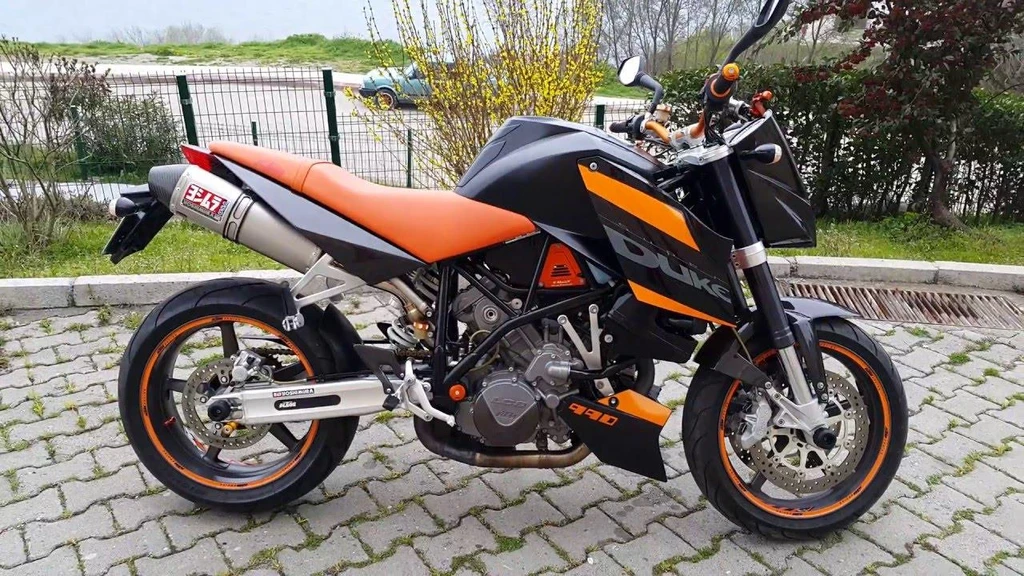

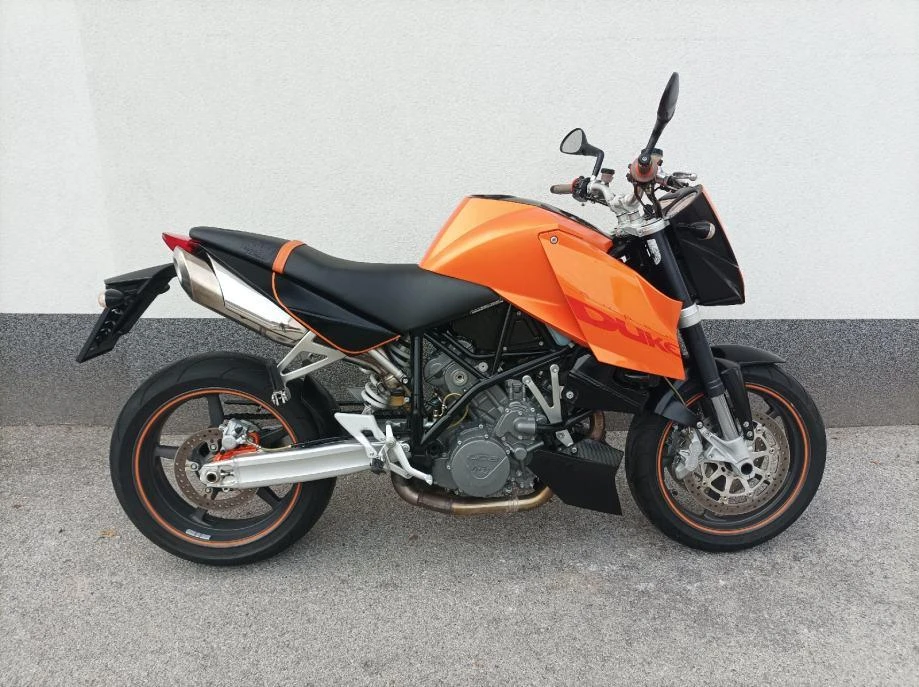

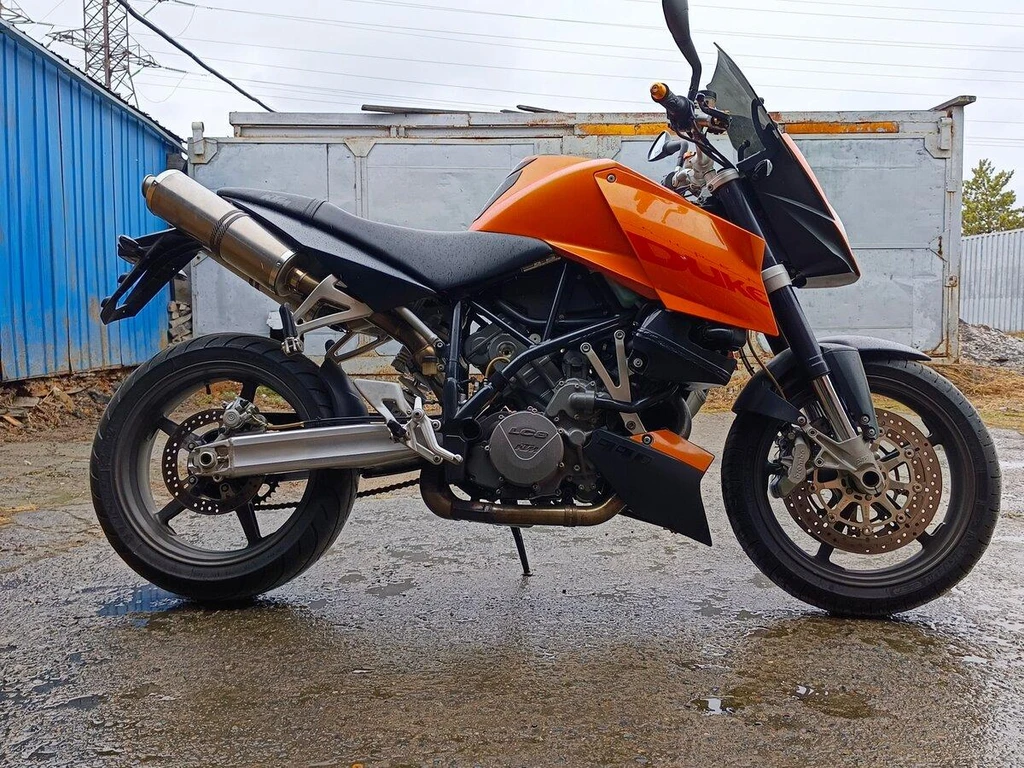

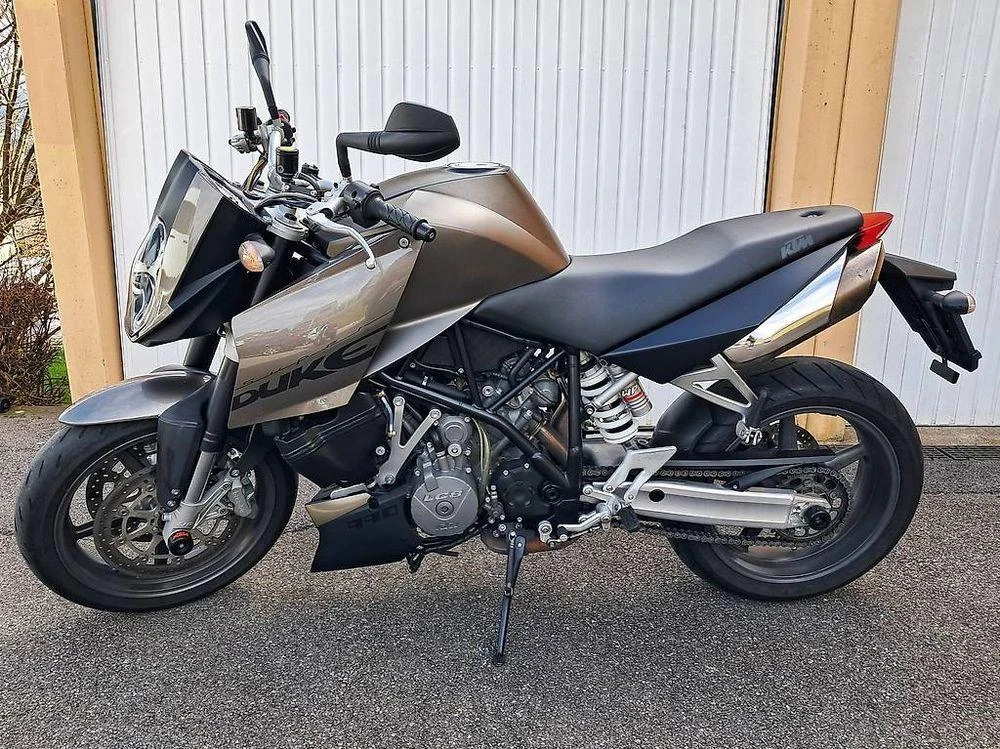

KTM 990 Super Duke (2006)

KTM 990 Super Duke (2006)

The KTM 990 Super Duke, a rebellious offspring of Austrian engineering, bursts onto the scene with a no-nonsense attitude and a deep V-twin growl. Its 75-degree, four-stroke heart beats with a raw, unbridled energy, firing on all cylinders to deliver a thrilling riding experience.

The Super Duke’s potent 999cc engine is the key to its unapologetic performance, with a punchy delivery of torque and a top-end rush that’ll leave even the most seasoned riders grinning from ear to ear. Whether carving up twisties or devouring the highway, this naked roadster is the perfect companion for those who crave the raw, untamed rush of the open road.

With its aggressive styling, bolstered by the addition of KTM PowerParts accessories, the Super Duke is the perfect antidote to the monotony of the daily commute. It’s a bike that demands attention, and rewards its rider with a sense of freedom and exhilaration that’s hard to find elsewhere. The KTM 990 Super Duke is the ultimate road warrior, and it’s ready to take on the world.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity60.9 cubic inches / 999.8 cc
Max Power88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Fuel Tank Capacity18.5 Litres / 4.8 gal
Seat Height33.6 inches / 855 mm
KTM 990 Super Duke (2006)

All Specifications

Make & Model

ModelKTM 990 Super Duke
Year2006

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement60.9 cubic inches / 999.8 cc
Bore x Stroke101 x 62.4mm
Compression Ratio11.5:1
Max Horsepower88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Engine Management SystemElectronic fuel injection / electric
Lubrication SystemDry-sump lubrication with 2 rotor pumps
Cooling SystemLiquid cooling,
Exhaust2 x Premium steel with three-way-catalyser

Performance

Top Speed236 km/h

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final DriveChain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery12 V/11.2 Ah
StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coated Subframe AluminiumHandlebar Aluminium 28/22 mm (1.89″), tapered
Front Suspension48mm WP Upside down adjustable
Front Suspension Travel5.3 inches / 135 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel6.3 inches / 160 mm
Rake24
Trail103mm / 4.0 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc 1 piston caliper

Dimension & Weights

Seat Height33.6 inches / 855 mm
Wheelbase56.6 inches / 1438 mm
Ground Clearance165 mm / 6.4 in
Fuel Tank Capacity18.5 Litres / 4.8 gal
Dry Weight186 kg / 410 lbs

Features

  • 75V-twin cylinder, DOHC, 4 valves per cylinder engine
  • 999cc engine displacement
  • 120-horsepower output
  • 75-degree DOHC V-twin design
  • Four-stroke engine type
  • Dual overhead camshafts
  • Four valves per cylinder
  • Carbon fiber heat shield
  • Carbon fiber spoiler
  • Carbon fiber rear seat cover
  • Carbon fiber brake reservoir cap
  • Carbon fiber rear fender
  • Carbon fiber clutch and ignition covers
  • Carbon fiber airbox covers
  • Carbon fiber footrest covers
  • Carbon fiber swingarm shield
  • Dymag carbon fiber wheels
  • Five-spoke wheel design
  • Racing suspension
  • Dual titanium Akrapovic slip-on mufflers
  • Increased power and torque
  • Smooth power delivery
  • Low unsprung weight due to Dymag wheels
