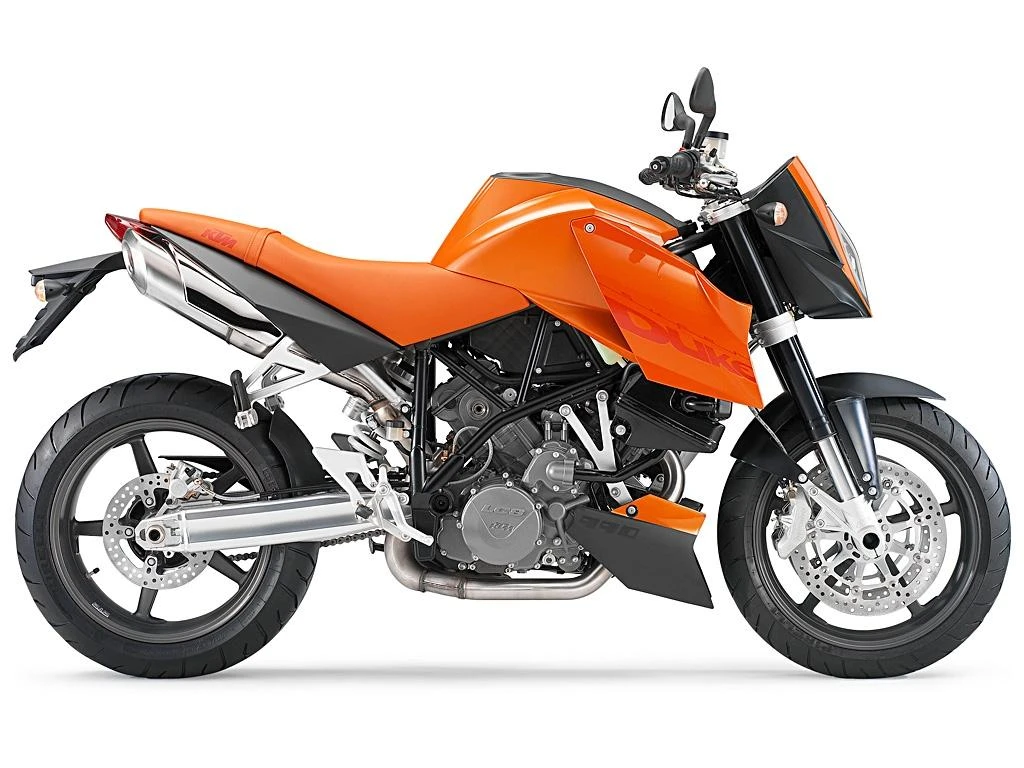

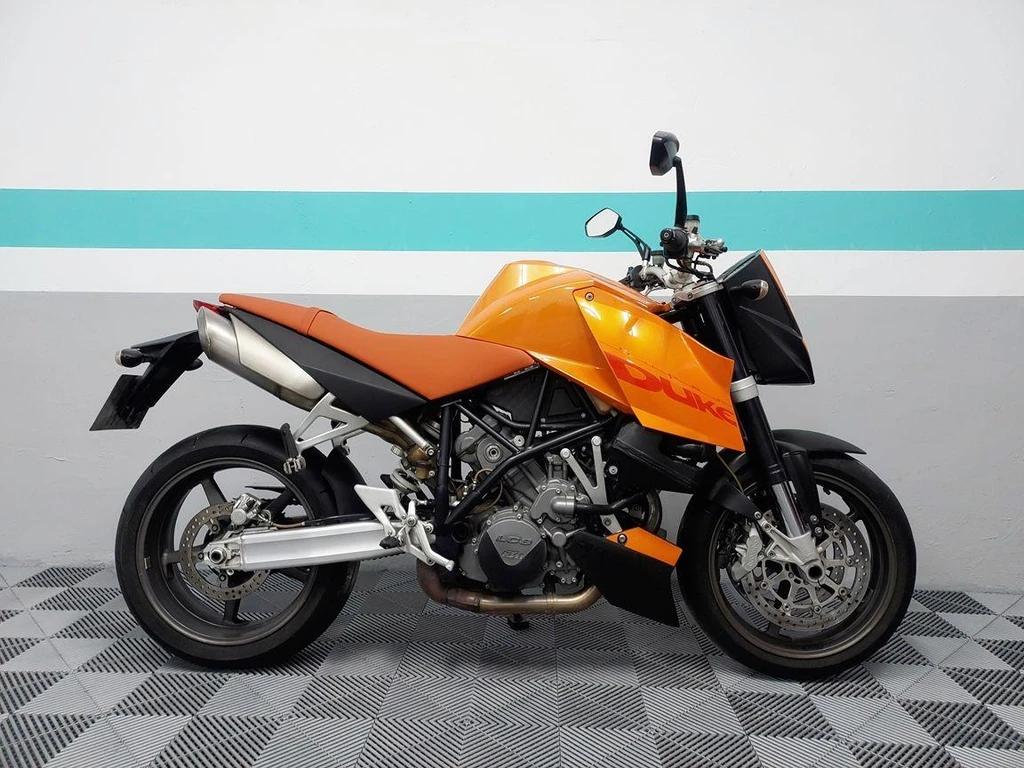

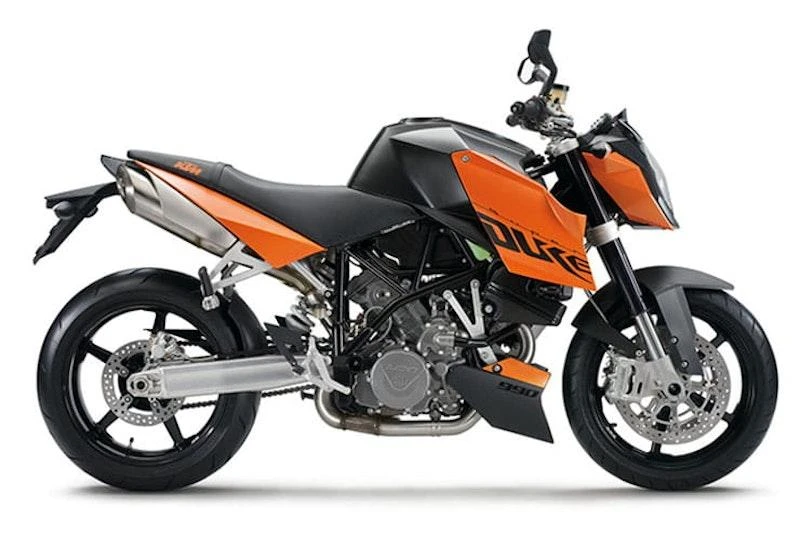

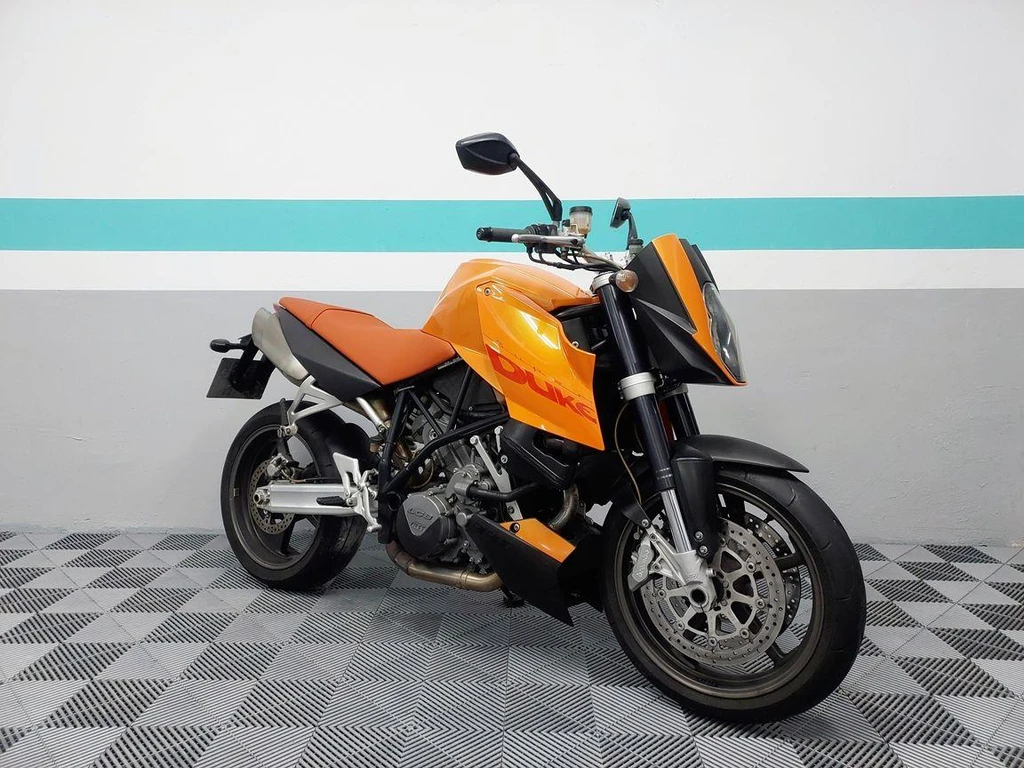

KTM 990 Super Duke (2005)

KTM 990 Super Duke (2005)

The KTM 990 Super Duke is a bold and unapologetic motorcycle that embodies the spirit of youthful rebellion. Its 100hp V-twin engine, with its four valves per cylinder and DOHC configuration, is the perfect match for this supermoto’s razor-sharp handling and agility.

With its ultra-long wheel travel, the 990 Super Duke navigates even the most treacherous road surfaces with ease, allowing riders to focus on the sheer thrill of the ride. Whether carving through city streets or devouring country lanes, this motorcycle’s unique blend of power and precision is unmatched.

And yet, despite its intimidating 990cc motor, the 990 Super Duke is surprisingly comfortable on long trips, thanks in part to KTM’s thoughtful provision of top box and tank bag accessories. The result is a motorcycle that is at once a raw, unbridled thrill machine and a practical, long-distance tourer – a true king of the road.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity60.9 cubic inches / 999.8 cc
Max Power88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Fuel Tank Capacity18.5 Litres / 4.8 gal
Seat Height33.6 inches / 855 mm
KTM 990 Super Duke (2005)

All Specifications

Make & Model

ModelKTM 990 Super Duke
Year2005

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement60.9 cubic inches / 999.8 cc
Bore x Stroke101 x 62.4mm
Compression Ratio11.5:1
Max Horsepower88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Engine Management SystemElectronic fuel injection / electric
Lubrication SystemDry-sump lubrication with 2 rotor pumps
Cooling SystemLiquid cooling,
Exhaust2 x Premium steel with three-way-catalyser

Performance

Top Speed236 km/h

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final DriveChain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery12 V/11.2 Ah
StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coated Subframe AluminiumHandlebar Aluminium 28/22 mm (1.89″), tapered
Front Suspension48mm WP Upside down adjustable
Front Suspension Travel5.3 inches / 135 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel6.3 inches / 160 mm
Rake24
Trail103mm / 4.0 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc 1 piston caliper

Dimension & Weights

Seat Height33.6 inches / 855 mm
Wheelbase56.6 inches / 1438 mm
Ground Clearance165 mm / 6.4 in
Fuel Tank Capacity18.5 Litres / 4.8 gal
Dry Weight186 kg / 410 lbs

Features

  • 100hp V-twin engine
  • 4 valves per cylinder
  • DOHC design
  • 4 stroke, 75V-twin cylinder
  • 990cc engine in Super Duke
  • 999cc engine in Super Duke
  • 118bhp engine in Super Duke
  • 100hp engine in 950SM
  • 950cc engine in 950SM
  • Ultra-long wheel travel
  • Large fuel tank
  • Top box available as accessory
  • Tank bag available as accessory
  • Luggage rack on 950SM
  • Grab rail for pillion on 950SM
  • No top box rack on 990 Super Duke
  • No grab handles for pillion on 990 Super Duke
  • Fuel-injection on Super Duke
  • Two Keihin 43mm carburetors on 950SM
