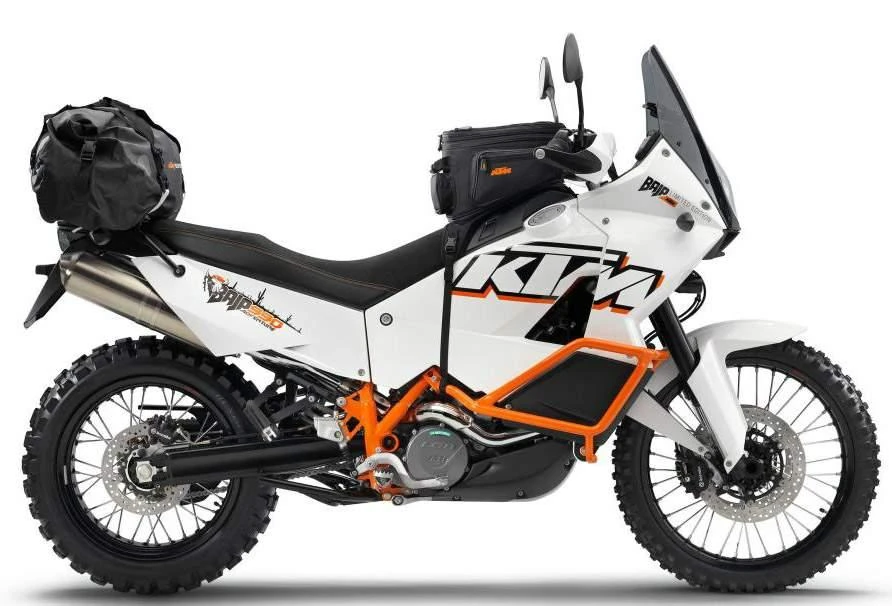

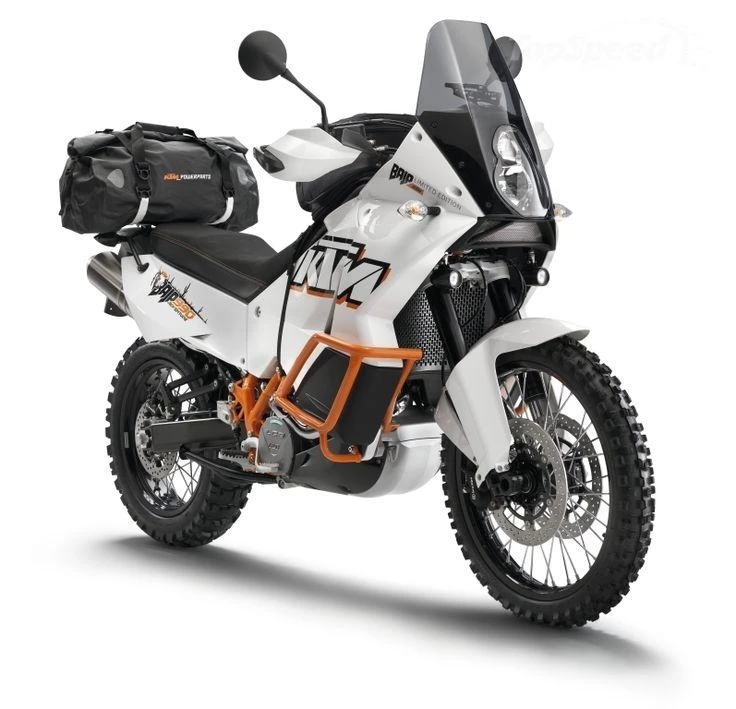

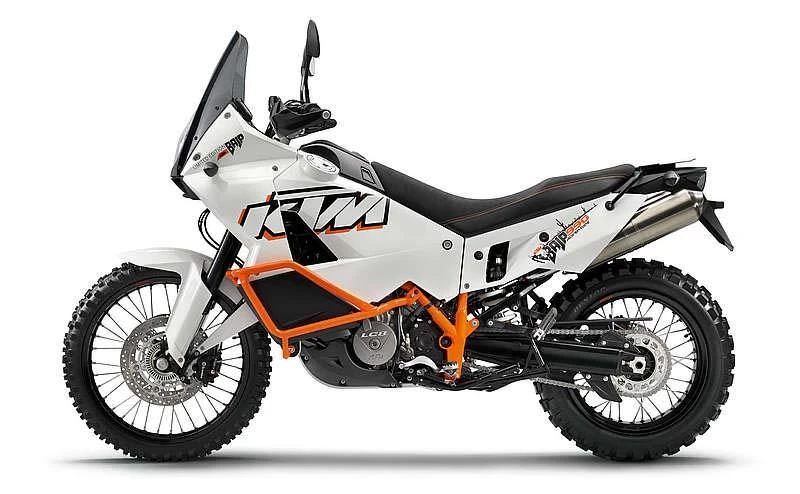

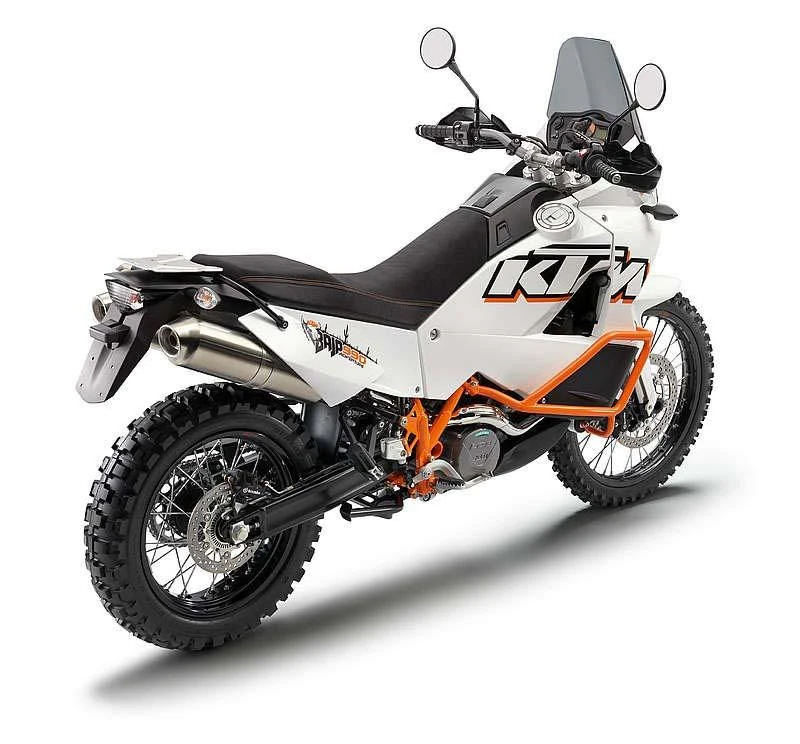

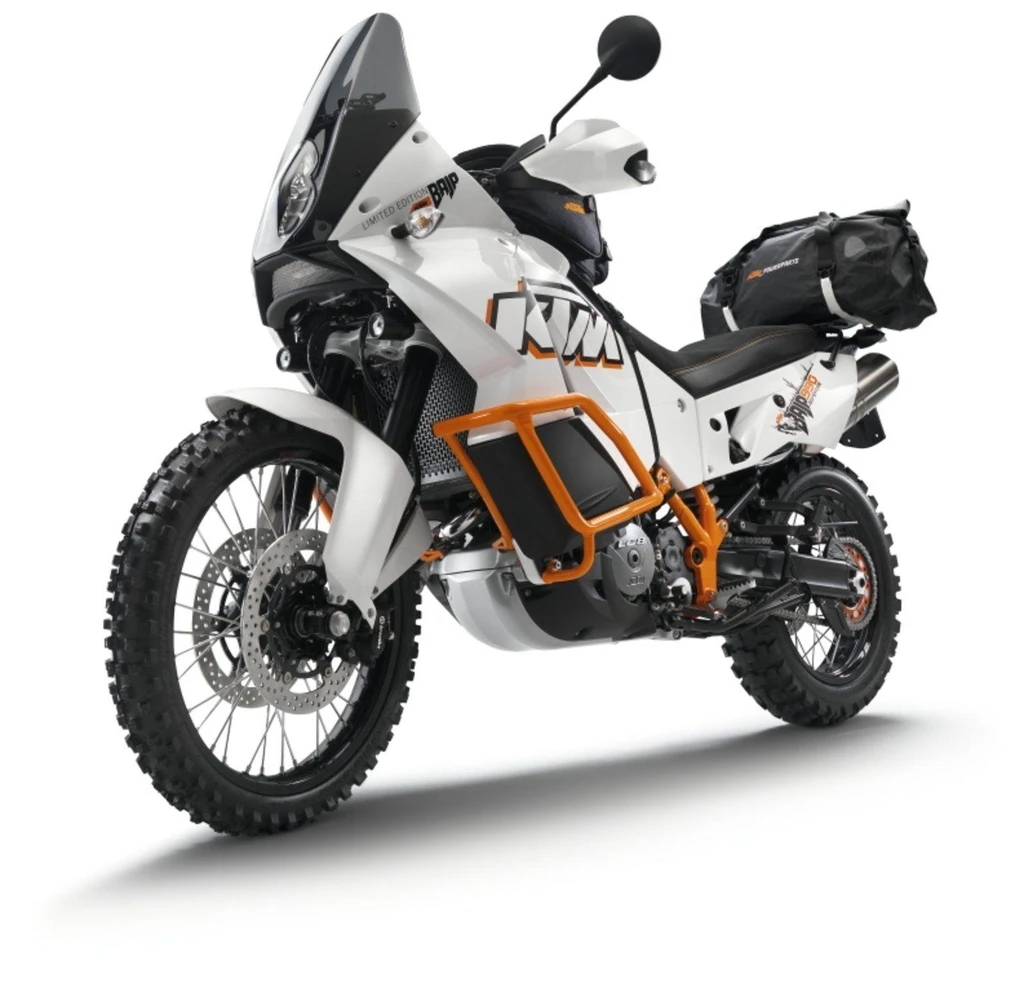

The KTM 990 Adventure R Baja is a testament to the Austrian brand’s commitment to building the ultimate off-road travel enduro. Powered by a 999cc, 113bhp liquid-cooled V-twin engine, this limited edition model is designed to tackle the toughest terrain with ease.
With its six-speed gearbox and specially tuned engine character, the Baja Edition is built for adventure. The addition of Dunlop 908 RR off-road tires, orange crash guards, and LED auxiliary lights further emphasize its off-road credentials.
The Baja Edition’s exceptional ground clearance of 261mm and 20-litre fuel tank capacity make it the perfect companion for long-distance travel. Weighing in at 210kg, this beast of a machine is ready to take on any challenge that comes its way.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
60.9 cubic inches / 999.8 cc
Max Power
116 hp / 85 kW @ 9000 pm
Max Torque
73.8 ft-lb / 100 nm
Fuel Tank Capacity
19.5 Litres / 5.8 gal
Seat Height
35.2 inches / 895 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 990 Adventure R Baja
Year
2013
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
60.9 cubic inches / 999.8 cc
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5;1
Max Horsepower
116 hp / 85 kW @ 9000 pm
Max Torque
73.8 ft-lb / 100 nm
Engine Management System
Keihin Electronic Fuel Injection EMS
Cooling System
Liquid cooling
Exhaust
Twin stainless steel silencer with regulated catalytic converter
Performance
Top Speed
210.7 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet Multi-disc hydraulically operated,
Gearbox
6 Speed
Final Drive
Chain, X-Ring 5/8 x 5/16″
Electrical & Electronics System
Battery
12 V/11.2 Ah
Starter
Electric
Chassis & Suspension
Frame Type
Tubular cromoly spaced frame. powered coated
Front Suspension
48mm WP USD forks
Front Suspension Travel
9.7 inches / 248 mm
Rear Suspension
WP-PDS rear shock, hydraulic spring preload
Rear Suspension Travel
9.7 inches / 248 mm
Rake
26.6
Trail
119 mm / 4.68 in
Handlebar
Aluminium, tapered, 28/22 mm
Wheels & Brakes
Front Wheel/Rim Size
2.15 x 21”;
Front Tire Size
90/90 -21
Rear Wheel/Rim Size
4.25 x 18”
Rear Tire Size
150/70 -R18
Front Brakes
2x 300mm Brembo discs 2 piston calipers
Rear Brakes
Single 240mm Brembo disc 1 piston caliper
Dimension & Weights
Seat Height
35.2 inches / 895 mm
Wheelbase
61.8 inches / 1570 mm
Ground Clearance
296 mm / 11.6 in
Fuel Tank Capacity
19.5 Litres / 5.8 gal
Dry Weight
207 kg / 456.34 lbs
Features
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
999cc liquid-cooled V-twin engine
113bhp
Six-speed gearbox
Dunlop 908 RR off-road tyres
Orange powder-coated frame
Orange crash guards
LED auxiliary lights
Suede-style seat
Aluminum radiator guard
GPS base mount
Aluminum-steel sprocket
Tank bag
Rear waterproof luggage bag
Fully adjustable front and rear WP suspension
261mm ground clearance
20 Litres fuel tank capacity
210kg dry weight
