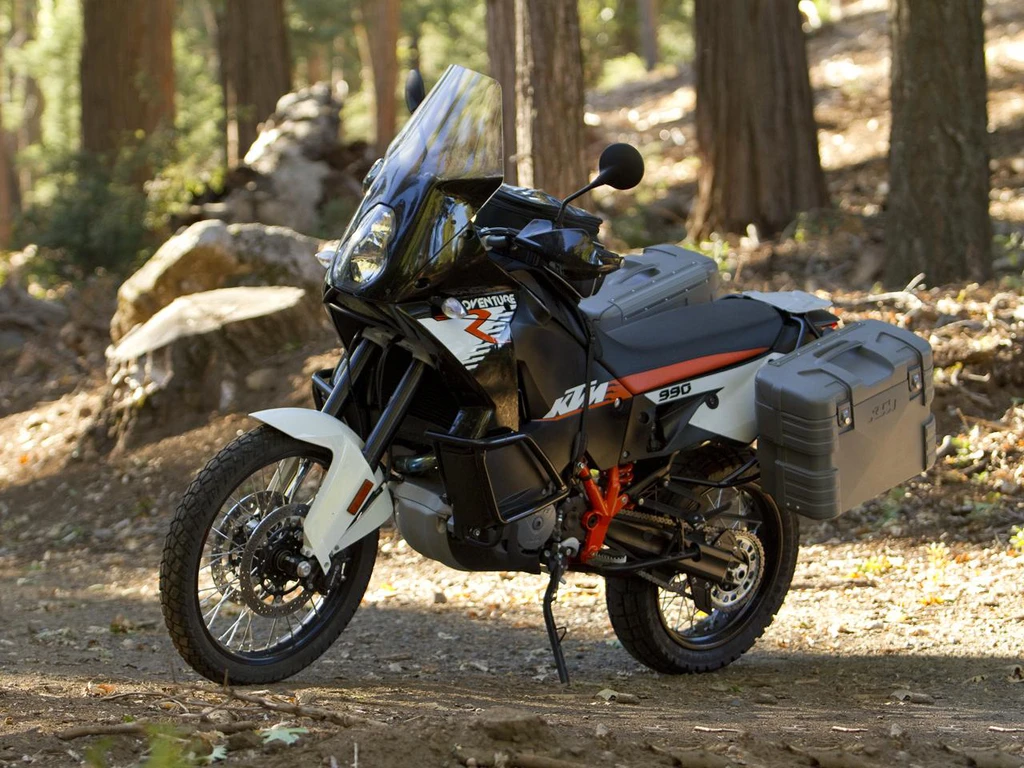

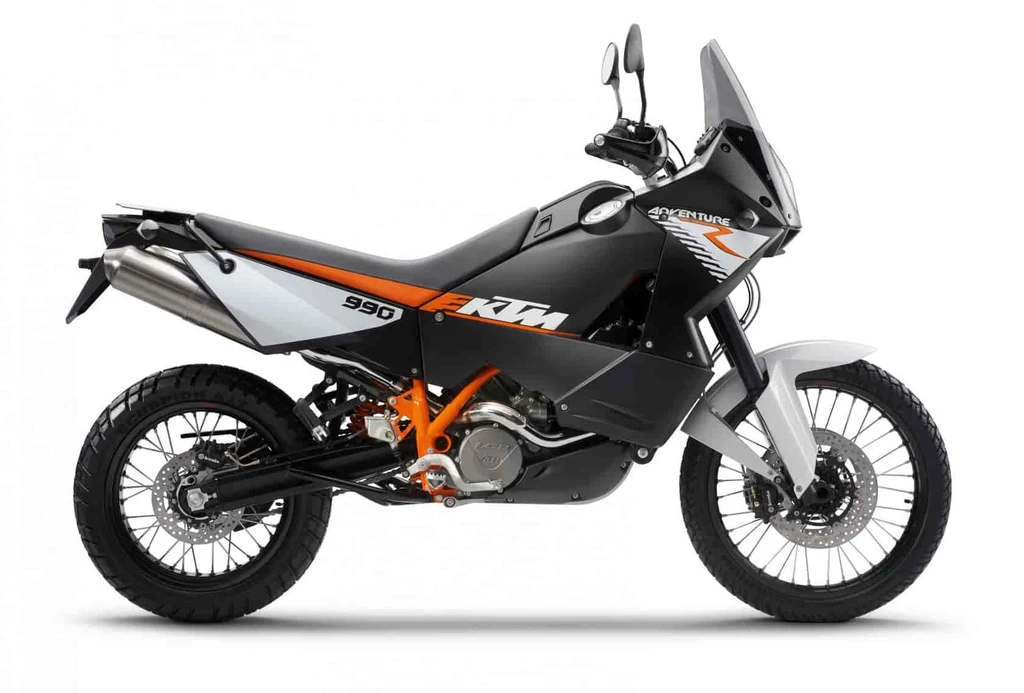

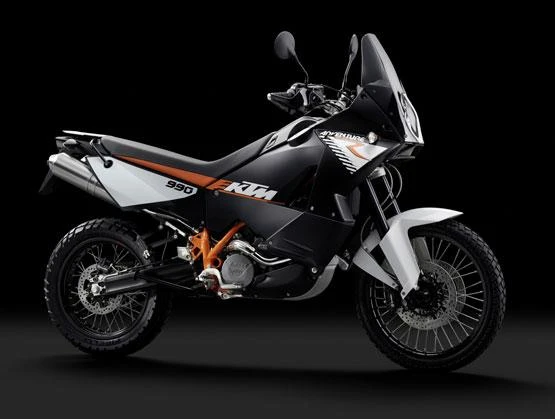

KTM 990 Adventure R (2011)

KTM’s 990 Adventure R is a high-performance variant of the 990 Adventure, boasting a more potent 999cc, 75-degree V-twin engine that delivers a whopping 113.31 horsepower at 8,750 rpm and 100 Nm of torque at 6,750 rpm.

This engine is the heart of the Adventure R, providing a thrilling riding experience with its linear power delivery and a healthy dose of torque throughout the rev range. The bike’s weight has been carefully managed, with the R model tipping the scales at 2 kilograms less than its standard counterpart.

But what truly sets the Adventure R apart is its attention to detail and commitment to delivering a top-tier riding experience. With its 2-inch higher seat and distinctive design cues, this bike is tailor-made for taller, more experienced riders who crave excitement and adventure on the road.

Whether carving up mountain roads or tackling grueling off-road terrain, the KTM 990 Adventure R is the ultimate tool for the discerning adventurer. Its exceptional power, agility, and off-road prowess make it an unbeatable choice for anyone seeking a thrilling riding experience.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	60.9 cubic inches / 999.8 cc
Max Power	116 hp / 85 kW @ 9000 pm
Max Torque	73.8 ft-lb / 100 nm
Fuel Tank Capacity	19.5 Litres / 5.1 gal
Seat Height	35.6 inches / 905 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 990 Adventure R
Year	2011

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	60.9 cubic inches / 999.8 cc
Bore x Stroke	101 x 62.4mm
Compression Ratio	11.5;1
Max Horsepower	116 hp / 85 kW @ 9000 pm
Max Torque	73.8 ft-lb / 100 nm
Engine Management System	Keihin Electronic Fuel Injection EMS
Lubrication System	Pressure lubrication with 2 Eaton pumps
Cooling System	Liquid cooling
Exhaust	Twin stainless steel silencer with regulated catalytic converter

Performance

Top Speed

210.7 km/h

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet Multi-disc hydraulically operated,
Gearbox	6 Speed
Final Drive	Chain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery	12 V/11.2 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Tubular cromoly spaced frame. powered coated
Front Suspension	48mm WP USD forks
Front Suspension Travel	9.7 inches / 248 mm
Rear Suspension	WP-PDS rear shock, hydraulic spring preload
Rear Suspension Travel	9.7 inches / 248 mm
Rake	26.6
Trail	119 mm / 4.68 in
Handlebar	Aluminium, tapered, 28/22 mm

Wheels & Brakes

Front Wheel/Rim Size	2.15 x 21”;
Front Tire Size	90/90 -21
Rear Wheel/Rim Size	4.25 x 18”
Rear Tire Size	150/70 -R18
Front Brakes	2x 300mm Brembo discs 2 piston calipers
Rear Brakes	Single 240mm Brembo disc 1 piston caliper

Dimension & Weights

Seat Height	35.6 inches / 905 mm
Wheelbase	61.8 inches / 1570 mm
Ground Clearance	301 mm / 11.85 in
Fuel Tank Capacity	19.5 Litres / 5.1 gal
Dry Weight	207 kg / 456.34 lbs

Features

999cc, twin-cylinder, four-stroke, V 75-degree engine
104.6 hp at 8,250 rpm and 100 Nm at 6,750 rpm on the standard model
113.31 hp at 8,750 rpm and 100 Nm at 6,750 rpm on the R model
2 kg lighter on the R model
2 inches higher seat on the R model
Four-stroke, DOHC, 4 valves per cylinder engine
75V-twin cylinder engine configuration
KTM’s Superduke-derived engine
18bhp more powerful than the older 990 Adventure S
115bhp from the engine
106bhp on the standard 2009 990 Adventure
Smoother-running crank design
55mm extra suspension travel on the Adventure R
Firmer suspension settings on the Adventure R
ABS available on the standard model
Gel seat available as an optional extra
