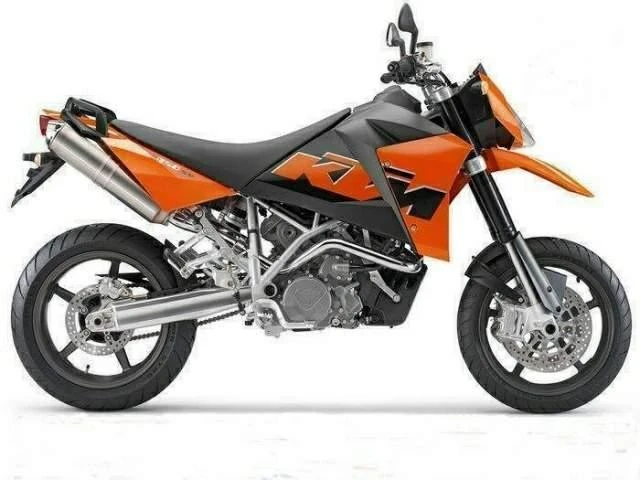

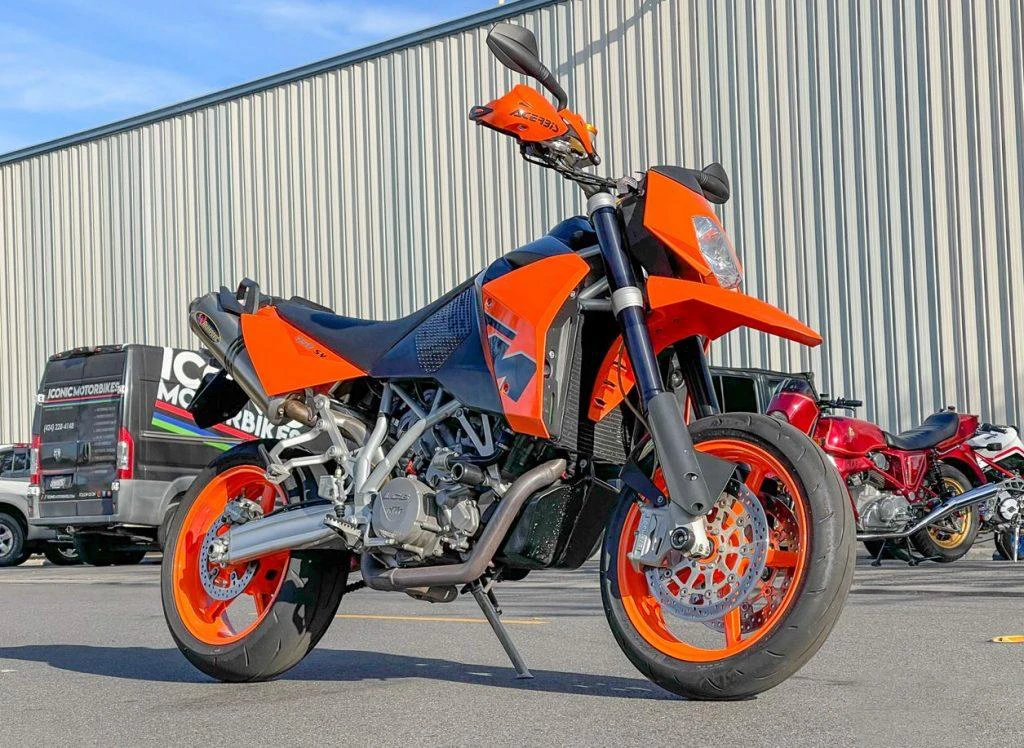

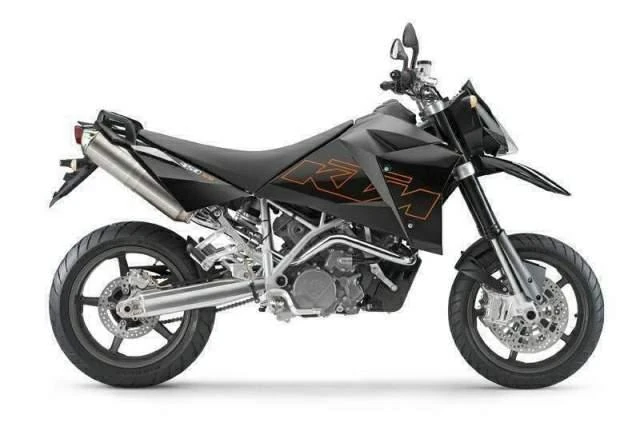

The KTM 950 Supermoto: a machine that defies convention with its raw, unapologetic design. The 75-degree, 942cc V-twin engine pumps out a potent mix of torque and power, its DOHC, 4-valve design delivering a thrilling riding experience. This is a bike that eschews subtlety for unbridled excitement, its angular lines and aggressive stance a testament to its off-road heritage.
As you swing a leg over the 950 Supermoto, the first thing that hits you is its incredible agility. This is a bike that carves through twisties with ease, its lightweight frame and adjustable suspension making it an absolute joy to ride.
But the 950 Supermoto is more than just a hooligan’s dream – it’s a seriously capable street bike that can hang with the best of them. With its liquid-cooled V-twin and six-speed transmission, it’s a machine that’s as happy on the highway as it is in the canyons.
And yet, despite its many talents, the 950 Supermoto remains a true original, a bike that refuses to be pigeonholed or defined by the crowd. It’s a machine that’s as much a reflection of its rider’s personality as it is a statement of its own unique character.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
57.4 cubic inches / 942 cc
Max Power
98 hp / 72 kW @ 8500 rpm
Max Torque
70.1 ft-lb / 95 nm
Fuel Tank Capacity
15 Litres / 3.9 gal
Seat Height
34.45 inches / 875 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 950 Supermoto
Year
2005
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
57.4 cubic inches / 942 cc
Bore x Stroke
100 x 60 mm
Compression Ratio
11.5:1
Max Horsepower
98 hp / 72 kW @ 8500 rpm
Max Torque
70.1 ft-lb / 95 nm
Engine Management System
2X 43mm Keihin constant pressure
Lubrication System
Pressure lubrication with 2 Eaton pumps
Cooling System
Liquid cooling
Performance
Top Speed
137 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Tubular cromoly spaced frame, powered coated
Front Suspension
48mm WP Upside down adjustable
Front Suspension Travel
7.8 inches / 200 mm
Rear Suspension
WP shock, fully adjustable
Rear Suspension Travel
8.2 inches / 210 mm
Rake
24.4
Trail
109 mm / 4.3 in
Wheels & Brakes
Front Tire Size
120/70 -ZR17
Rear Tire Size
180/55 -ZR17
Front Brakes
2x 305mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 1 piston caliper
Dimension & Weights
Seat Height
34.45 inches / 875 mm
Wheelbase
59.3 inches / 1505 mm
Ground Clearance
195 mm / 7.7 in
Fuel Tank Capacity
15 Litres / 3.9 gal
Dry Weight
191 kg / 421 lbs
Features
Four stroke, 75V-twin cylinder engine
DOHC, 4 valves per cylinder
75-degree, counterbalanced V-twin engine
942cc liquid-cooled V-twin engine
Slicker airbox and pipe arrangement
87.6-hp peak power output
1.3 ponies less power than the ’05 Adventure
Handlebar-mounted choke
Light flywheels
Tapered aluminum handlebar
Rubber-damped pegs
Rounded seat
Dirtbike-smooth seat/tank transition
WP suspension
17-inch wheels
Big discs
Wide front brakes
Liquid-cooled engine
Counterbalanced engine
Dual overhead camshafts
