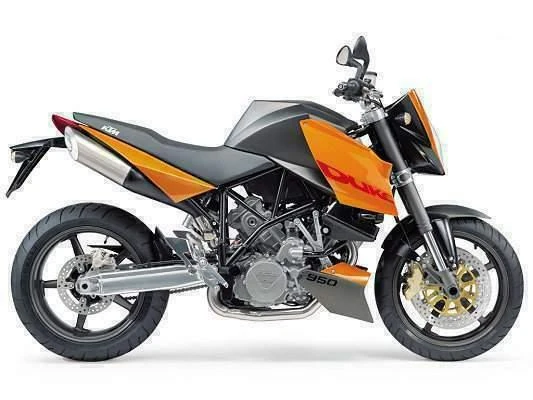

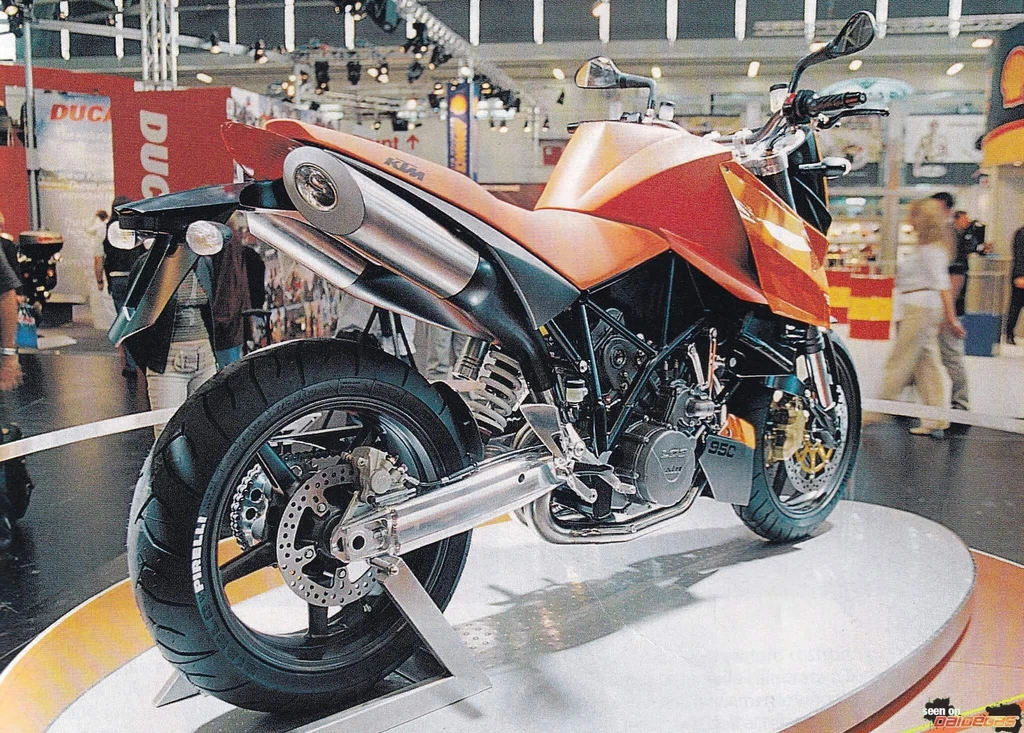

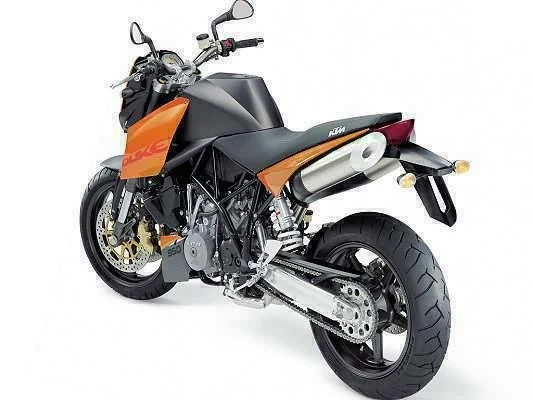

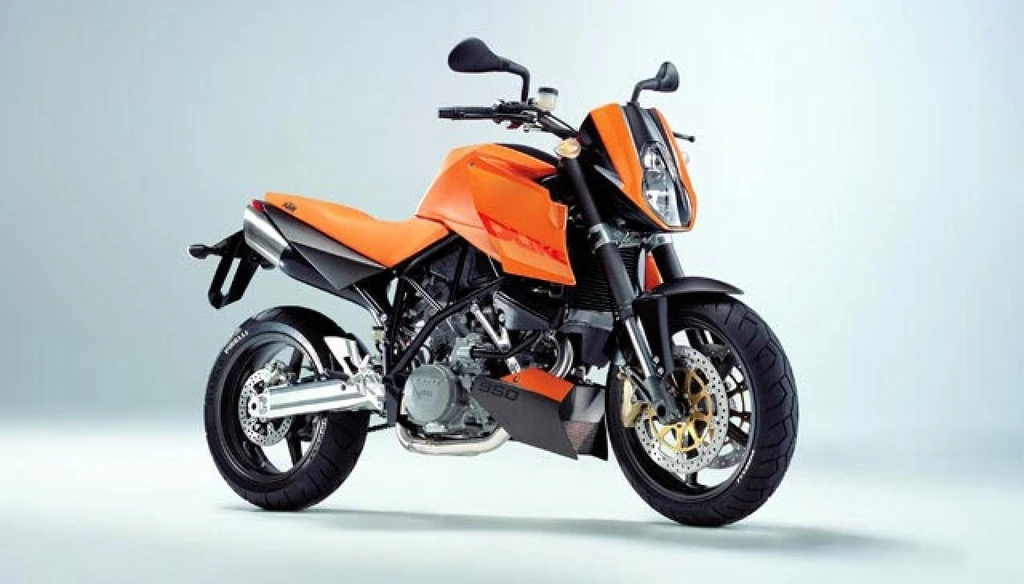

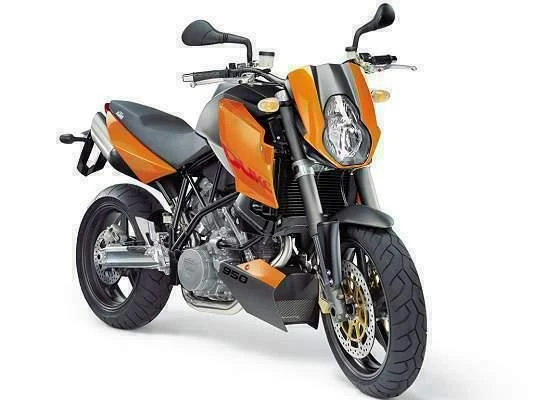

The KTM 950 Duke Concept is a raw, unbridled beast of a bike, built for the unapologetic rider who refuses to be tamed by the conventions of the street. Its 75-degree, V-twin LC8 engine is a masterclass in power and finesse, delivering a thrilling ride that’s as much about the experience as it is about the destination.
With four valves per cylinder and dual overhead camshafts, this engine is a force to be reckoned with, its 4-stroke architecture providing a silky-smooth power delivery that’s matched only by its capacity for raw, untamed power.
Riding the KTM 950 Duke Concept is a sensory overload, a sensory experience that leaves the rider breathless and yearning for more. It’s a bike that demands to be ridden hard, and rewards its master with a sense of freedom and exhilaration that’s hard to find on the roads. It’s the perfect storm of power, agility, and style, and it’s a bike that will leave you questioning everything you thought you knew about the limits of speed and thrill.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
57.4 cubic inches / 942 cc
Max Power
106 hp @ 9500 rpm
Max Torque
9 km-g @ 7000 rpm
Fuel Tank Capacity
17 Litres
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 950 Duke Concept
Year
2003
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
57.4 cubic inches / 942 cc
Bore x Stroke
100 x 60 mm
Compression Ratio
11.5;1
Max Horsepower
106 hp @ 9500 rpm
Max Torque
9 km-g @ 7000 rpm
Engine Management System
2X 43mm Keihin constant pressure
Lubrication System
Pressure lubrication with 2 Eaton pumps
Cooling System
Liquid cooling
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
48mm WP USD adjustable, 135mm travel
Front Suspension Travel
5.3 inches / 135 mm
Rear Suspension
WP shock, fully adjustable, 160mm travel
Rear Suspension Travel
6.3 inches / 160 mm
Wheels & Brakes
Front Tire Size
120/70-17
Rear Tire Size
180/55-17
Front Brakes
2x 320mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
17 Litres
Dry Weight
179 kg
Features
Four-stroke engine
75V-twin cylinder configuration
DOHC (dual overhead camshaft) design
4 valves per cylinder
Fuel injection system
75-degree V-twin engine
LC8 engine
