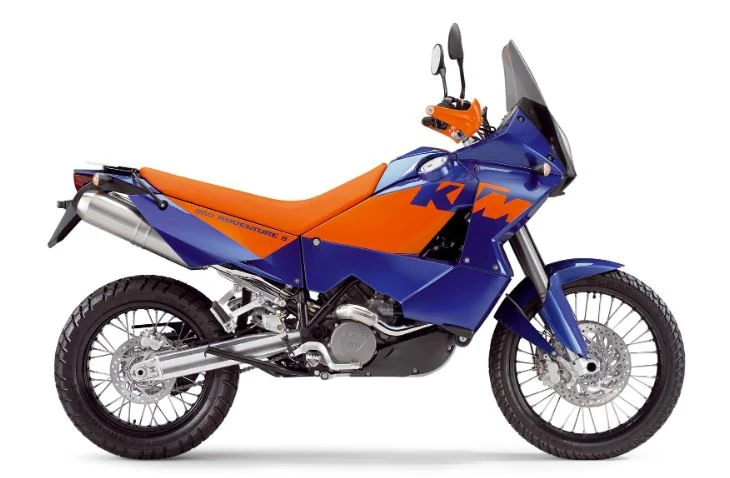

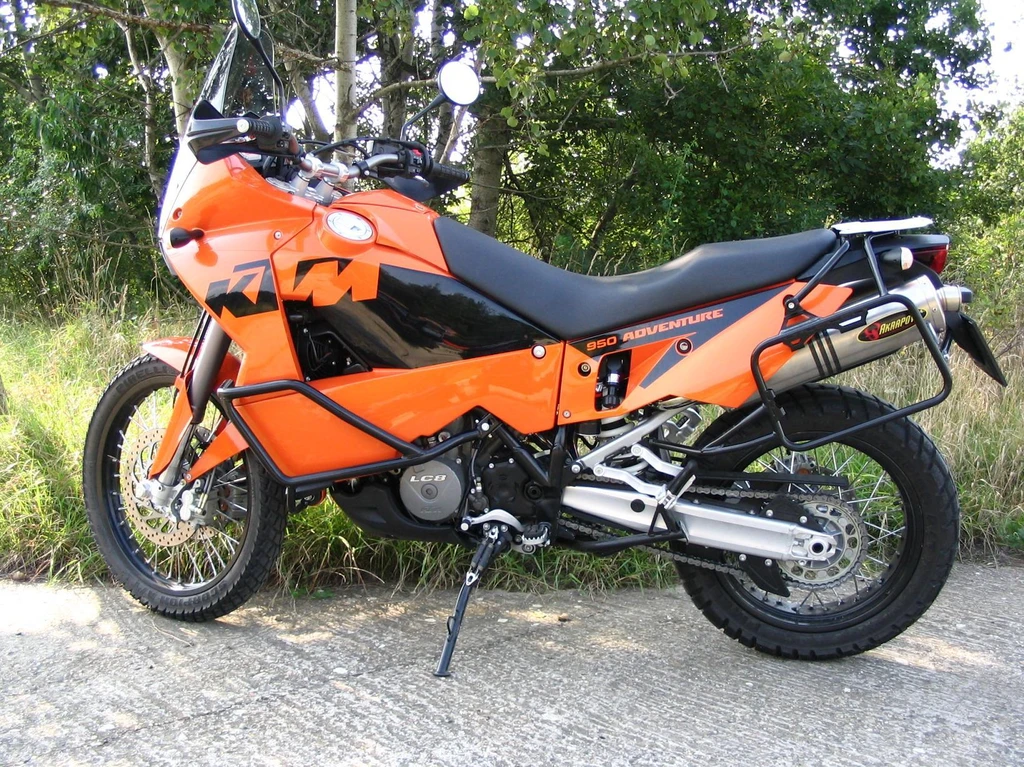

KTM 950 Adventure s (2007 - 2009)

The KTM 950 Adventure S is a formidable player in the big-bore adventure market, boasting a 75V-twin cylinder engine with DOHC and 4 valves per cylinder, delivering a punchy and responsive character.

Its chromium-molybdenum tubular space frame provides the perfect blend of strength and agility, while the longer suspension travel and higher seat height make it a sportier version of its companion model, the 950 Adventure.

On the road, the White Power suspension is a revelation, providing a firm initial response that gives way to excellent damping control and a comfortable ride, even over rough terrain. Whether carving up twisties or tackling the toughest off-road trails, the 950 Adventure S is a true adventure bike that’s as at home on the pavement as it is in the dirt.

Whether tackling the toughest off-road trails or carving up twisties, the KTM 950 Adventure S is a true adventure bike that’s always a joy to ride, and always a good day.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	57.4 cubic inches / 942 cc
Max Power	98 hp / 71.4 kW @ 8000 rpm
Max Torque	70.1 ft-lb / 95 nm
Fuel Tank Capacity	22 Litres / 5.8 gal
Seat Height	36 inches / 915 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 950 Adventure s
Year	2007 – 2009

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	57.4 cubic inches / 942 cc
Bore x Stroke	100 x 60 mm
Compression Ratio	11.5:1
Max Horsepower	98 hp / 71.4 kW @ 8000 rpm
Max Torque	70.1 ft-lb / 95 nm
Engine Management System	Constant-pressure carburetor 43mm
Lubrication System	Pressure lubrication with 2 Eaton pumps
Cooling System	Liquid cooling

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Adventure – Silver/Black or Orange/Black/Adventure S – Orange/Black
Gearbox	6 Speed
Gear Ratios	1st gear 35:12, 2nd gear 32:15, 3rd gear 30:18, 4th gear 27:20, 5th gear 27:2,6th gear 26:27
Final Drive	Chain, 17-42

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Chromium-molybdenum tubular space frame, powder-coated
Front Suspension	WP-Upside-down 48 Multi Adjuster
Front Suspension Travel	10.4 inches / 265 mm
Rear Suspension	WP – PDS with hydraulic spring preload
Rear Suspension Travel	10.2 inches / 260 mm
Rake	26.6
Trail	119 mm / 4.7 in

Wheels & Brakes

Front Tire Size	90/90 -21
Rear Tire Size	150/70 -18
Front Brakes	2x 300mm discs 2 piston calipers
Rear Brakes	Single 240mm disc 2 piston caliper

Dimension & Weights

Seat Height	36 inches / 915 mm
Wheelbase	61.8 inches / 1570 mm
Ground Clearance	316 mm / 12.4 in
Fuel Tank Capacity	22 Litres / 5.8 gal
Dry Weight	198 kg / 426.5 lbs

Features

75V-twin cylinder engine
DOHC engine design
4 valves per cylinder
Chromium-molybdenum tubular space frame
Powder-coated frame
Higher seat (35mm) on the 950 Adventure S
Longer suspension travel
White Power suspension
Adjustable low and high speed compression damping
Adjustable rebound damping
Preload adjustable by a convenient handle
48mm cartridge forks
Fully adjustable front forks
230mm rear suspension travel (standard model)
265mm rear suspension travel (taller ‘S’ version)
18″ and 21″ rim sizes
Specially developed Pirelli tyres
Adjustable seat height options
