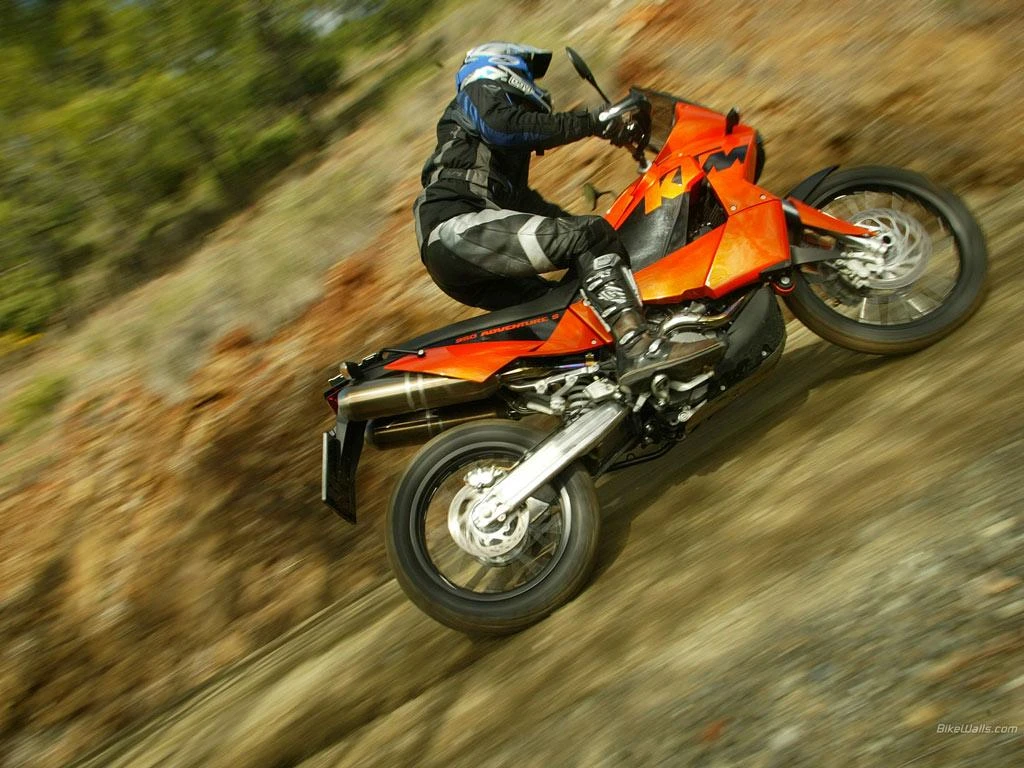

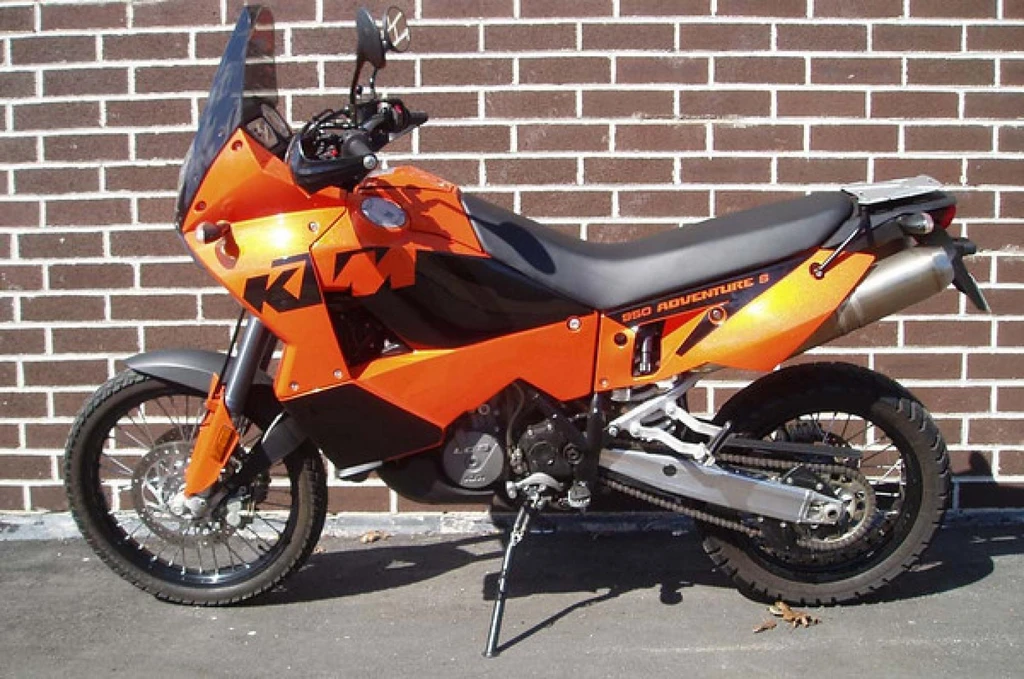

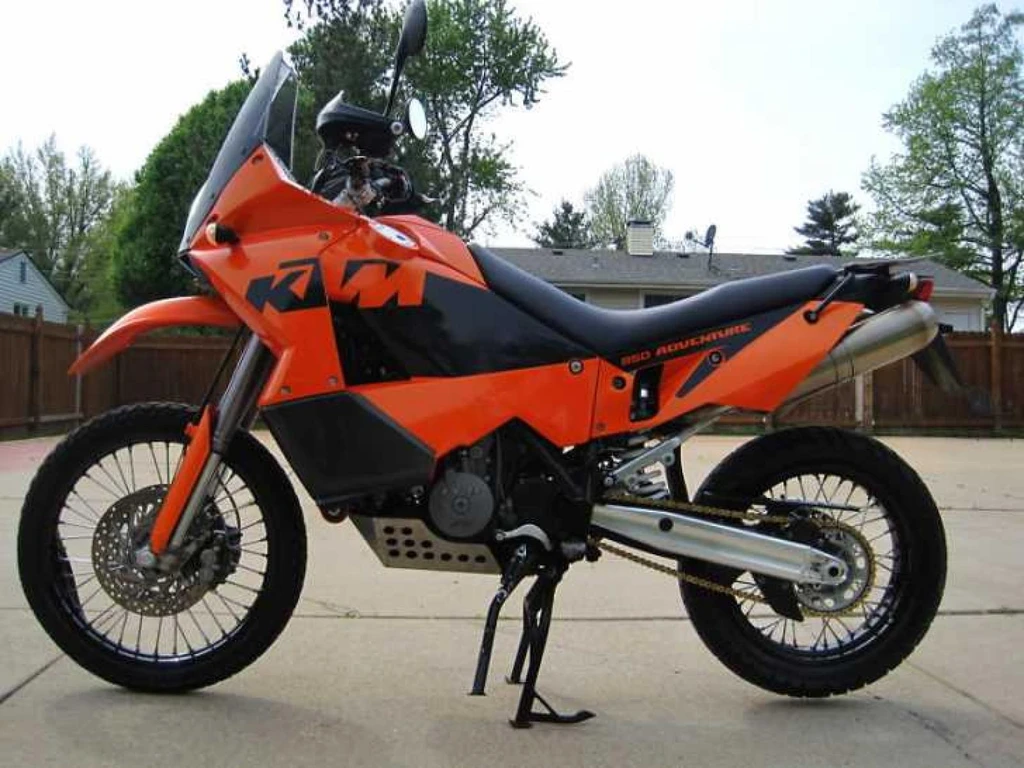

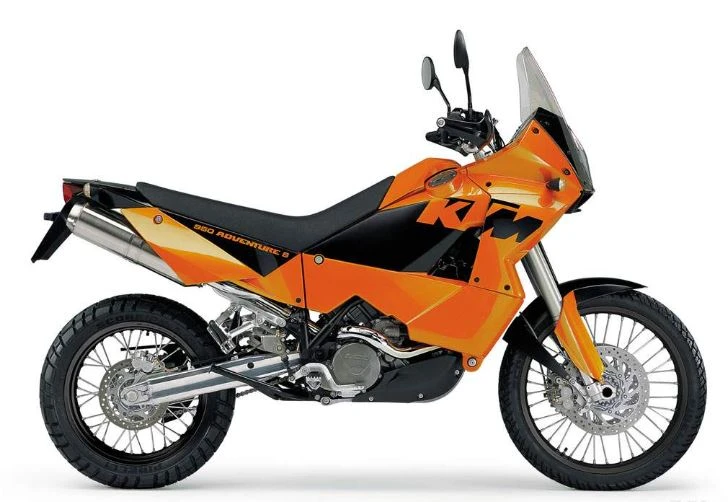

KTM 950 Adventure S (2003 - 2004)

The KTM 950 Adventure S is a high-performance dual-sport motorcycle that embodies the spirit of rally sport machines. Its 75V-twin, DOHC engine produces a potent blend of power and torque, making it an exhilarating ride on both paved roads and rugged terrain.

The 950 Adventure S features a chromium-molybdenum tubular space frame, powder-coated for added durability, and a generous ground clearance of 316mm, ensuring that even the most ambitious off-road excursions are a breeze. Its White Power suspension is renowned for its exceptional damping control and ability to adapt to varying road conditions.

Whether navigating tight mountain switchbacks or charging across the desert, the 950 Adventure S is a true companion for the most adventurous riders. Its sporty ergonomics, courtesy of the 35mm higher seat, invite spirited riding, while its robust construction and high-quality components inspire confidence in the most demanding environments. And when the road ends, the fun truly begins. This motorcycle is a thrilling experience that will leave you grinning from ear to ear, always.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	57.4 cubic inches / 942 cc
Max Power	98 hp / 71.4 kW @ 8000 rpm
Max Torque	70.1 ft-lb / 95 nm
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Seat Height	36 inches / 915 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 950 Adventure S
Year	2003 – 2004

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	57.4 cubic inches / 942 cc
Bore x Stroke	100 x 60 mm
Compression Ratio	11.5:1
Max Horsepower	98 hp / 71.4 kW @ 8000 rpm
Max Torque	70.1 ft-lb / 95 nm
Engine Management System	Constant-pressure carburetor 43mm
Lubrication System	Pressure lubrication with 2 Eaton pumps
Cooling System	Liquid cooling

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Adventure – Silver/Black or Orange/Black/Adventure S – Orange/Black
Gearbox	6 Speed
Gear Ratios	1st gear 35:12, 2nd gear 32:15, 3rd gear 30:18, 4th gear 27:20, 5th gear 27:2,6th gear 26:27
Final Drive	Chain, 17-42

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Chromium-molybdenum tubular space frame, powder-coated
Front Suspension	WP-Upside-down 48 Multi Adjuster
Front Suspension Travel	10.4 inches / 265 mm
Rear Suspension	WP – PDS with hydraulic spring preload
Rear Suspension Travel	10.2 inches / 260 mm
Rake	26.6
Trail	119 mm / 4.7 in

Wheels & Brakes

Front Tire Size	90/90 -21
Rear Tire Size	150/70 -18
Front Brakes	2x 300mm discs 2 piston calipers
Rear Brakes	Single 240mm disc 2 piston caliper

Dimension & Weights

Seat Height	36 inches / 915 mm
Wheelbase	61.8 inches / 1570 mm
Ground Clearance	316 mm / 12.4 in
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Dry Weight	198 kg / 426.5 lbs

Features

Four stroke, 75V-twin cylinder engine
DOHC, 4 valves per cylinder
Chromium-molybdenum tubular space frame
Powder-coated frame
Sporty design
Longer suspension travel
35-mm higher seat
High-quality components
White Power suspension
Adjustable rear PDS White Power shock
Adjustable low and high speed compression damping
Adjustable rebound damping
Preload adjustment handle
48mm cartridge forks
Fully adjustable front forks
Specially developed Pirelli tyres
Reasonable hard charging on the road
Reasonable grip on gravel surfaces
18″ and 21″ rim sizes
Ground clearance of 281mm (standard) and 316mm (S version)
