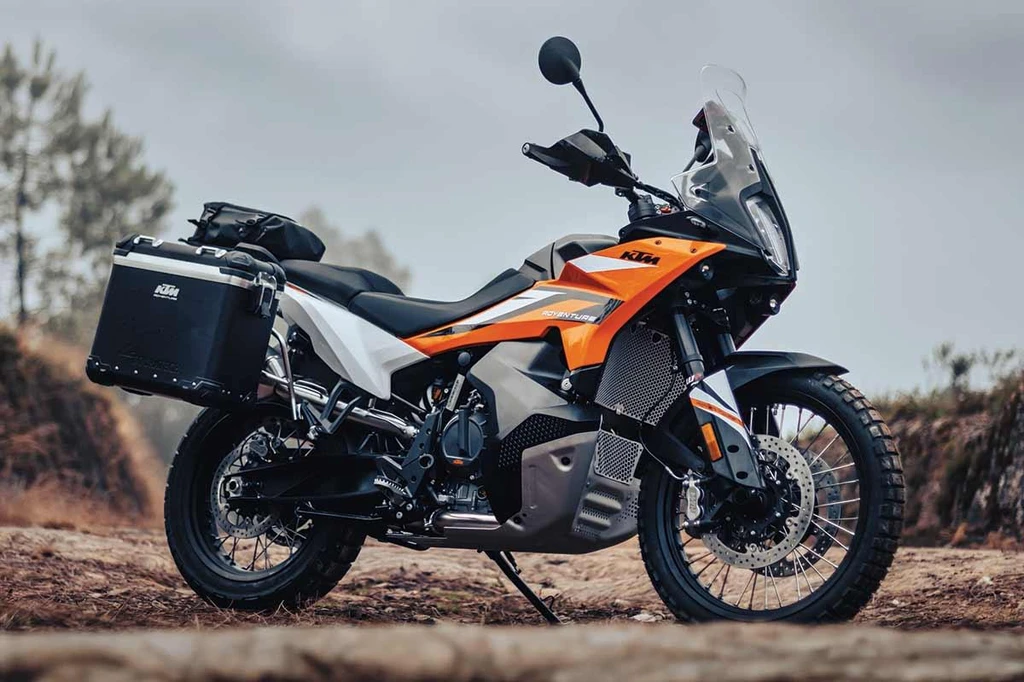

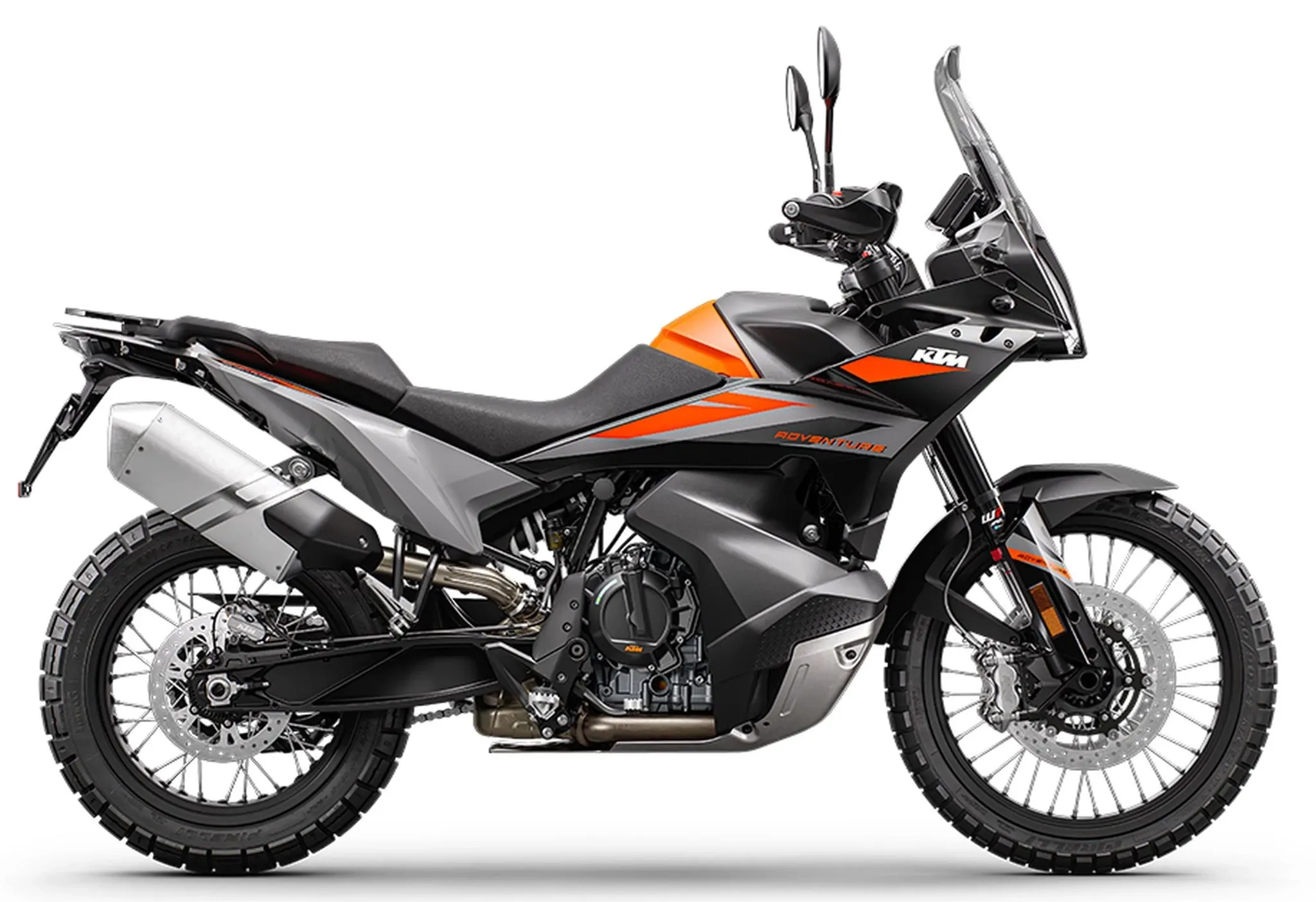

The 2023 KTM 890 ADVENTURE is a tour-de-force of engineering and design, forged to conquer any trail, any road, and any route with unbridled power and agility. The LC8 engine remains a highlight, delivering 105 hp and 100 Nm/6500 rpm of torque, its raspy growl and responsive nature making it a true master of all conditions.
A low center of gravity, courtesy of the 20-liter fuel tank design, accentuates the bike’s slim form and ergonomic excellence, allowing riders to feel the nimbleness and maneuverability in both sitting and standing positions. The robust steel subframe is a testament to KTM’s commitment to durability and versatility, accommodating even the heaviest of pillions and packages with ease.
But what truly sets the KTM 890 ADVENTURE apart is its ability to balance control and thrill, its ride-by-wire power delivery as reassuring as it is exhilarating. With Bosch’s 9.1 MP Cornering ABS and off-road mode, riders can push their limits with confidence, knowing that they have the ultimate adventure tool at their fingertips. With the 2023 KTM 890 ADVENTURE, the limits of possibility are waiting to be brushed away.
Key Specifications
Engine Type
Four stroke, parallel twin cylinder, DOHC, 4 valves percylinder
Engine Capacity
54.3 cubic inches / 889 cc
Max Power
78.3 kw / 105 hp
Max Torque
73.7 ft-lb / 100 nm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Weight (Wet/Kerb)
463 lbs / 210 kg
Seat Height
33.8 inches / 860 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 890 Adventure
Year
2023
Engine
Engine Type
Four stroke, parallel twin cylinder, DOHC, 4 valves percylinder
Displacement
54.3 cubic inches / 889 cc
Bore x Stroke
90.7 x 68.8 mm
Compression Ratio
13.5:1
Max Horsepower
78.3 kw / 105 hp
Max Torque
73.7 ft-lb / 100 nm
Engine Management System
DKK DellOrto with 46mm throttle body
Lubrication System
Pressure lubrication with 2 oil pumps
Cooling System
Liquid cooled with water/oil heat exchanger
Exhaust
Stainless-steel
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
PASC antihopping clutch, mechanically operated
Gearbox
6 Speed
Final Drive
Chain 520 X-Ring
Electrical & Electronics System
Starter
Electric
ABS
Bosch 9.1 MP incl. Cornering-ABS and offroad mode, disengageable
Chassis & Suspension
Frame Type
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension
48mm WP APEX 43 forks
Front Suspension Travel
7.87 inches / 200 mm
Rear Suspension
WP APEX – Monoshock
Rear Suspension Travel
7.87 inches / 200 mm
Rake
26.3
Trail
64.1
Wheels & Brakes
Wheels
Wire-spoked
Front Wheel/Rim Size
2.50 x 21
Front Tire Size
90/90 x 21 Continental Twinduro TKC 80
Rear Wheel/Rim Size
4.50 x 18
Rear Tire Size
150/70 x 18 Continental Twinduro TKC 80
Front Brakes
2x 320mm discs with 4-piston radially mounted calipers
Rear Brakes
Single 260mm disc 2-piston floating caliper
ABS
Bosch 9.1 MP incl. Cornering-ABS and offroad mode, disengageable
Dimension & Weights
Seat Height
33.8 inches / 860 mm
Wheelbase
60.2 inches / 1529 mm
Ground Clearance
233 mm / 9.17 in
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Wet (kerb/curb) Weight
463 lbs / 210 kg
Features
Four stroke, parallel twin cylinder engine
DOHC, 4 valves per cylinder
Chromium-Molybdenum-Steel frame
Engine as stressed element
2x 320mm discs with 4-piston radially mounted calipers
Bosch 9.1 MP ABS with Cornering-ABS
Off-road mode
Disengageable ABS
LC8 engine with 105 hp output
100 Nm/6500 rpm torque
Ride-by-wire power
Low center of gravity
20 liter fuel tank design
Ergonomic design for sitting and standing positions
Robust steel subframe
Adjustable seat height (825 mm)
Lowering kit available
Integrated front mask with fairing section
Reinforced front mask for larger GPS devices
Wider panels for seat protection
WP Suspension APEX 43 mm front forks
Adjustable rebound and compression on front forks
APEX shock absorber
