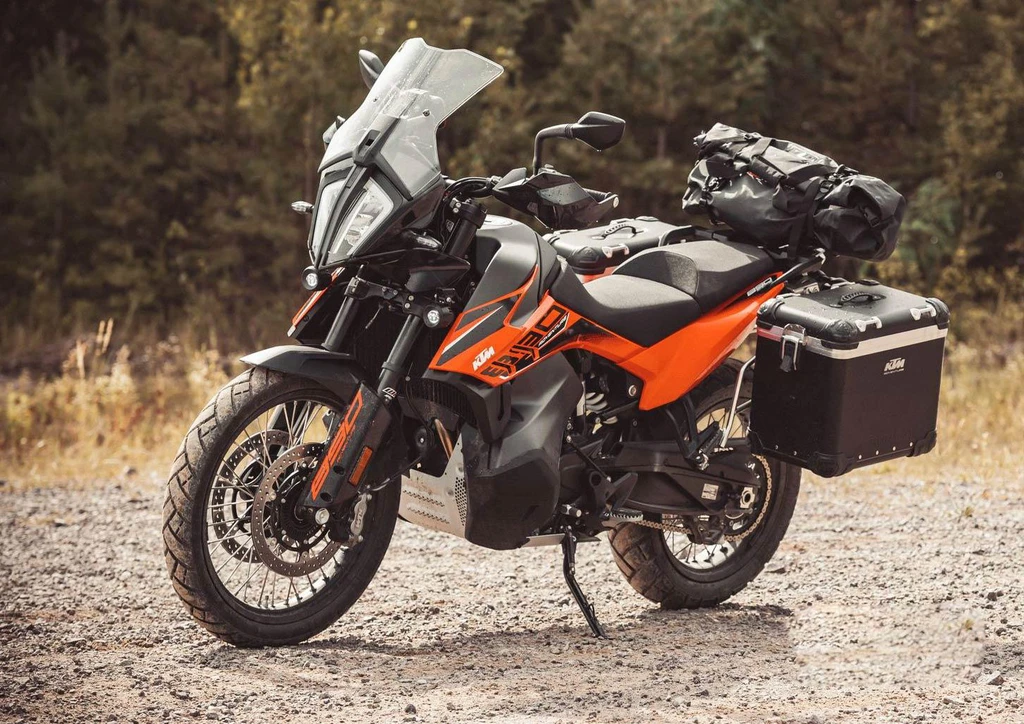

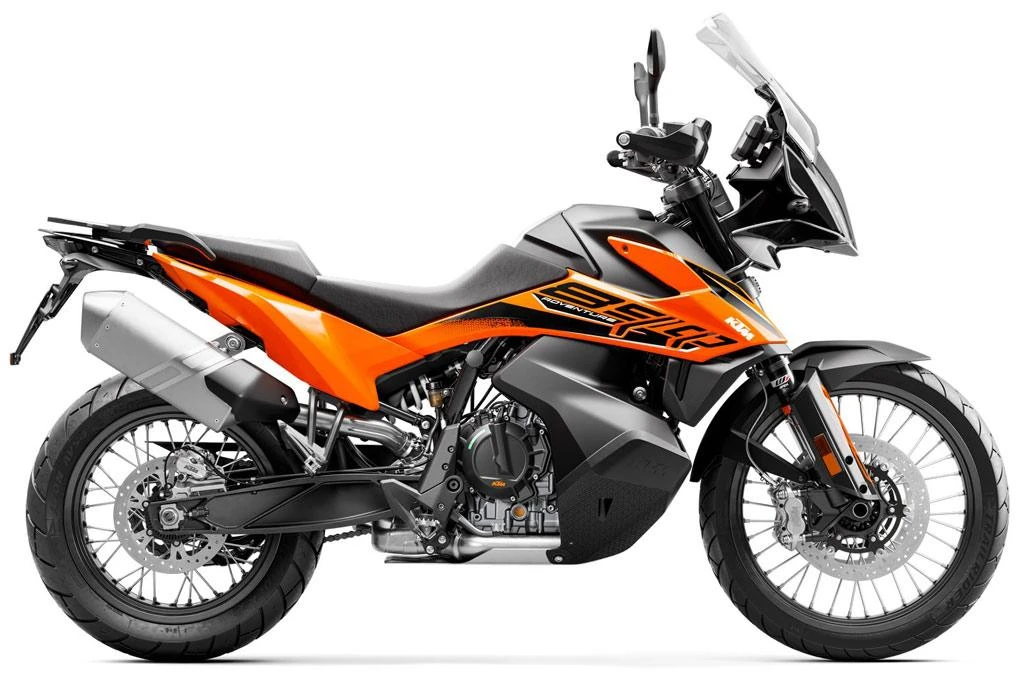

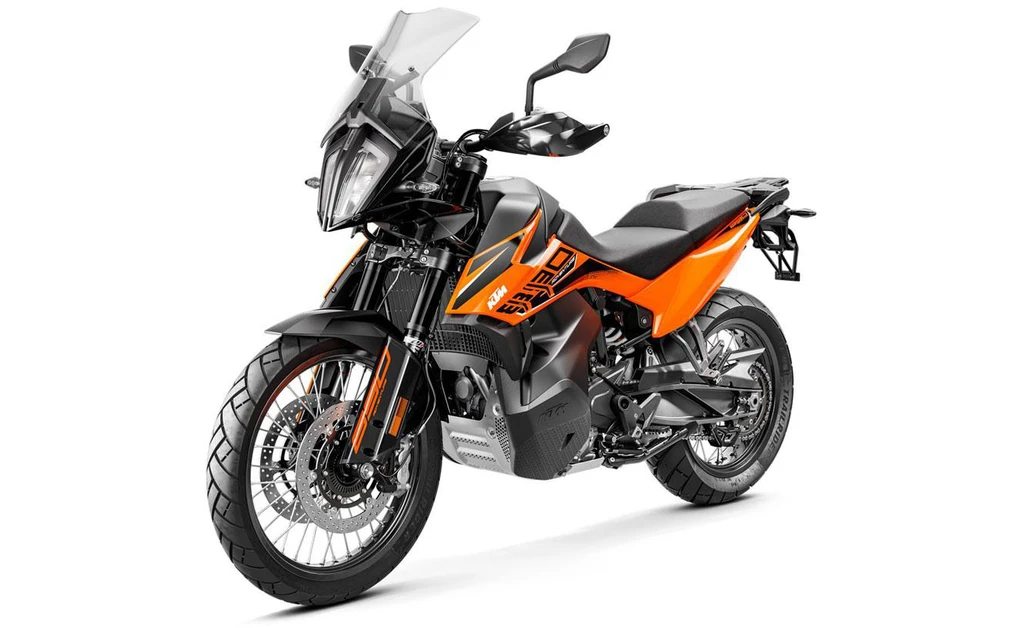

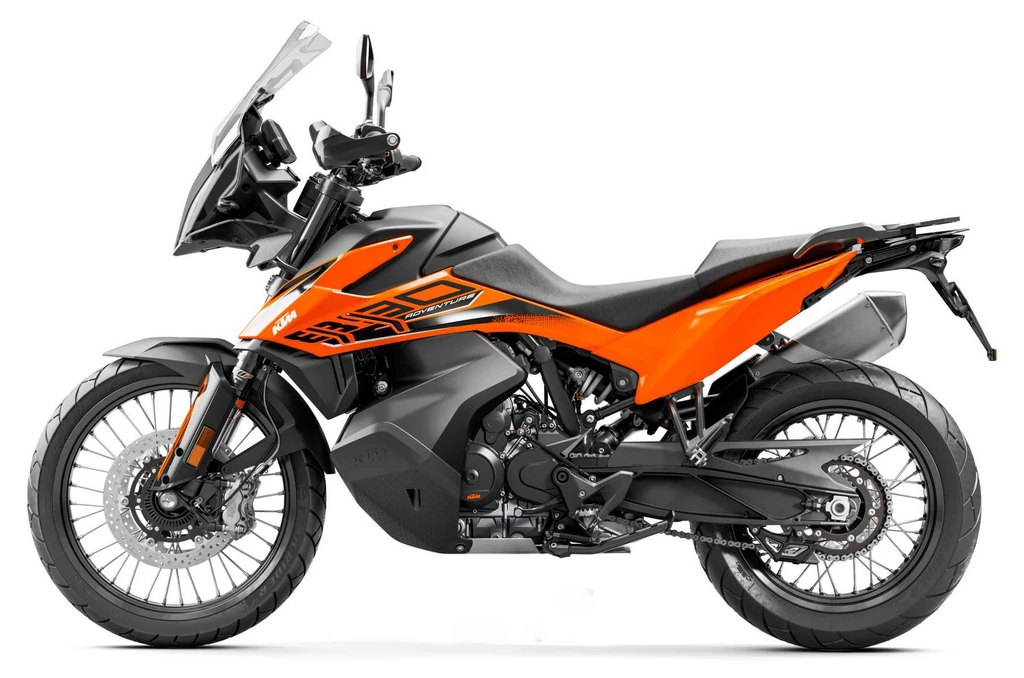

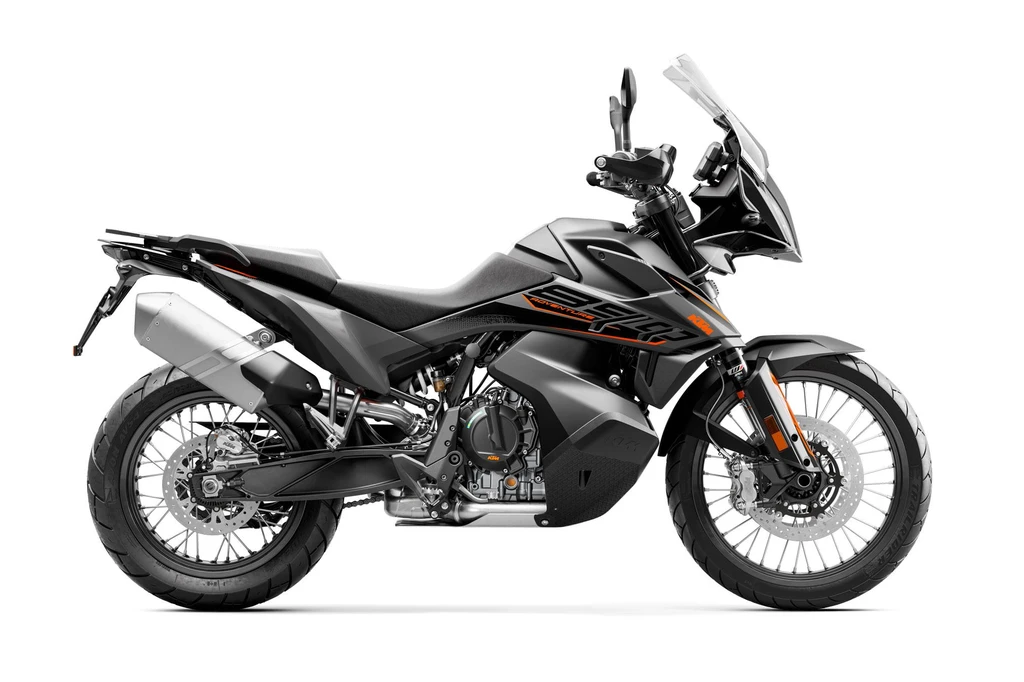

KTM 890 Adventure (2021)

The KTM 890 Adventure is a masterclass in versatility, marrying the agility and responsiveness of a KTM with the long-distance comfort of an adventure tourer.

Its four-stroke, parallel-twin engine pumps out 105 horsepower and 100 Nm of torque, making it the perfect companion for both on-road excursions and off-road escapades.

The chassis, built around a robust Chromium-Molybdenum-Steel frame, is designed to channel the engine’s power and precision handling, while the new WP APEX rear shock offers unparalleled customization potential.

Whether you crave the thrill of the gravel or the freedom of the open road, the KTM 890 Adventure is the ultimate travel companion, delivering a riding experience that’s as exhilarating as it is effortless, and undoubtedly, the ultimate adventure awaits.

Key Specifications

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valves percylinder
Engine Capacity	54.3 cubic inches / 889 cc
Max Power	78.3 kw / 105 hp
Max Torque	73.7 ft-lb / 100 nm
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Weight (Wet/Kerb)	463 lbs / 210 kg
Seat Height	33.46 inches / 850 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 890 Adventure
Year	2021

Engine

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valves percylinder
Displacement	54.3 cubic inches / 889 cc
Bore x Stroke	90.7 x 68.8 mm
Compression Ratio	13.5:1
Max Horsepower	78.3 kw / 105 hp
Max Torque	73.7 ft-lb / 100 nm
Engine Management System	DKK DellOrto with 46mm throttle body
Lubrication System	Pressure lubrication with 2 oil pumps
Cooling System	Liquid cooled with water/oil heat exchanger
Exhaust	Stainless-steel

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	PASC antihopping clutch, mechanically operated
Gearbox	6 Speed
Final Drive	Chain 520 X-Ring

Electrical & Electronics System

Starter	Electric
ABS	Bosch 9.1 MP incl. Cornering-ABS and offroad mode, disengageable

Chassis & Suspension

Frame Type	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension	48mm WP APEX 43 forks
Front Suspension Travel	7.87 inches / 200 mm
Rear Suspension	WP APEX – Monoshock
Rear Suspension Travel	7.87 inches / 200 mm
Rake	26.3
Trail	64.1

Wheels & Brakes

Wheels	Wire-spoked
Front Wheel/Rim Size	2.50 x 21
Front Tire Size	90/90 x 21 Continental Twinduro TKC 80
Rear Wheel/Rim Size	4.50 x 18
Rear Tire Size	150/70 x 18 Continental Twinduro TKC 80
Front Brakes	2x 320mm discs with 4-piston radially mounted calipers
Rear Brakes	Single 260mm disc 2-piston floating caliper
ABS	Bosch 9.1 MP incl. Cornering-ABS and offroad mode, disengageable

Dimension & Weights

Seat Height	33.46 inches / 850 mm
Wheelbase	60.2 inches / 1529 mm
Ground Clearance	233 mm / 9.17 in
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Wet (kerb/curb) Weight	463 lbs / 210 kg

Features

Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Chromium-Molybdenum-Steel frame
Engine as stressed element
Powder coated frame
2x 320mm discs with 4-piston radially mounted calipers
Bosch 9.1 MP ABS and Cornering-ABS
Offroad mode
889cc compact engine
105 hp and 100 Nm of torque
Euro5 compliant engine
New WP APEX rear shock
Rebound damping adjuster
Hand adjuster for spring preload
200mm of suspension travel
Dakar Rally-inspired ergonomics
Accessible seat height
20-liter tank
KTM MY RIDE navigation
Adventure-spec tires
Full-size TFT dashboard
Cornering ABS
Motorcycle Traction Control
Motor Slip Regulation
Adjustable seat height
Strong yet lightweight subframe
