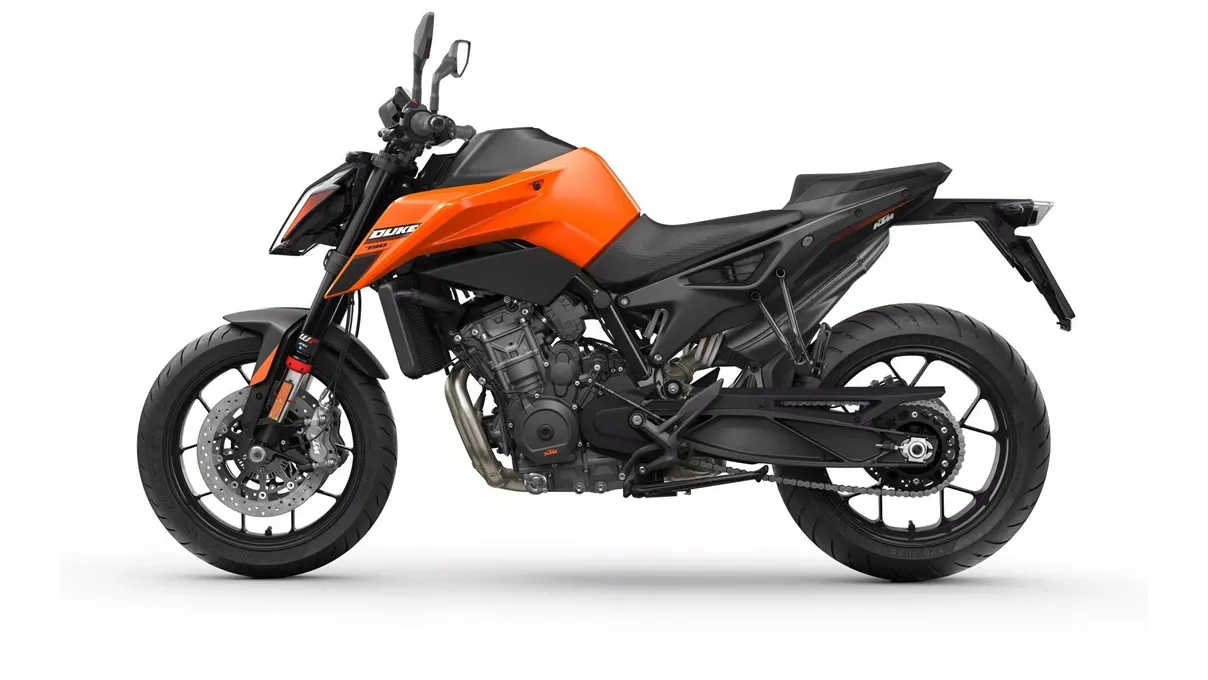

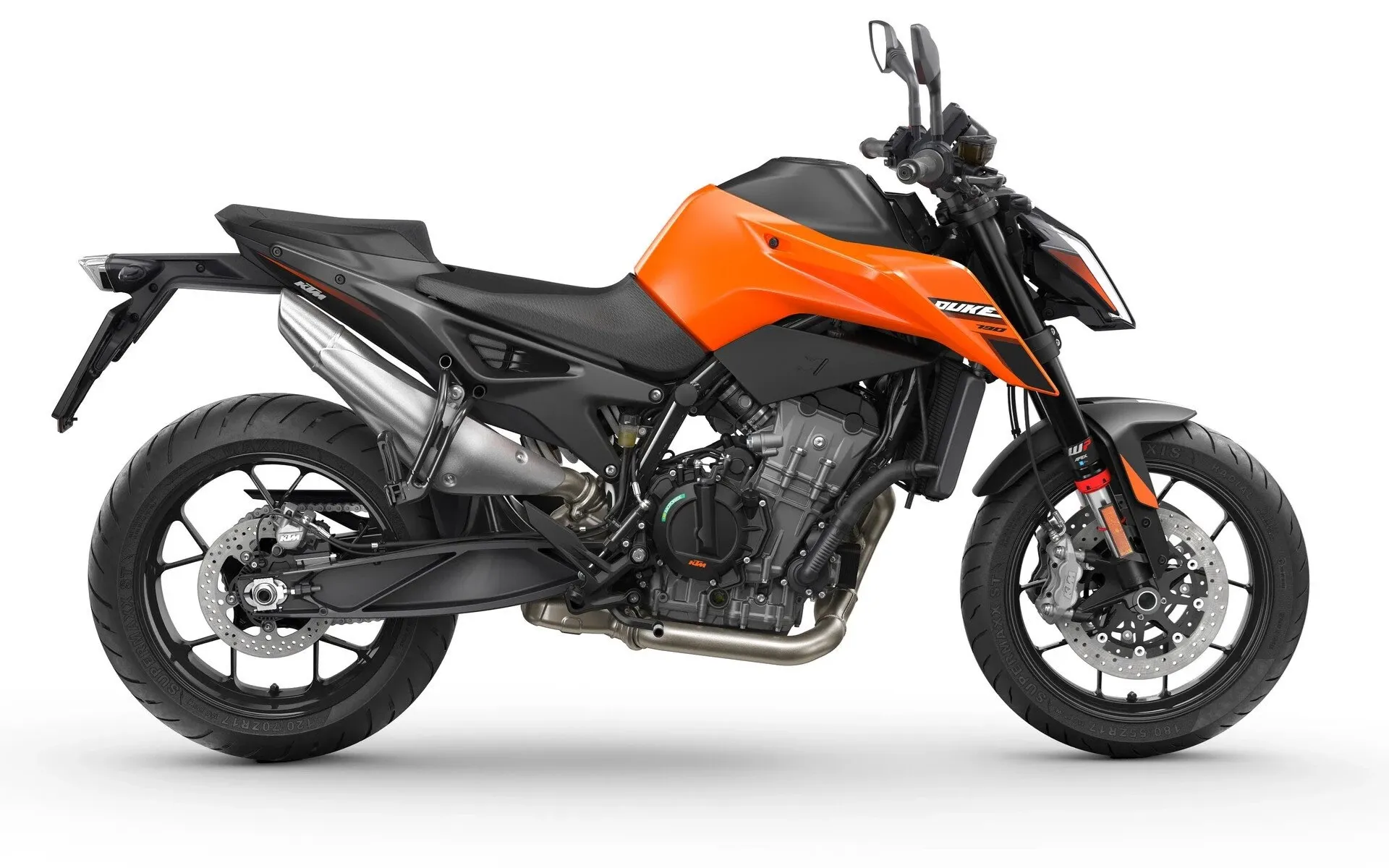

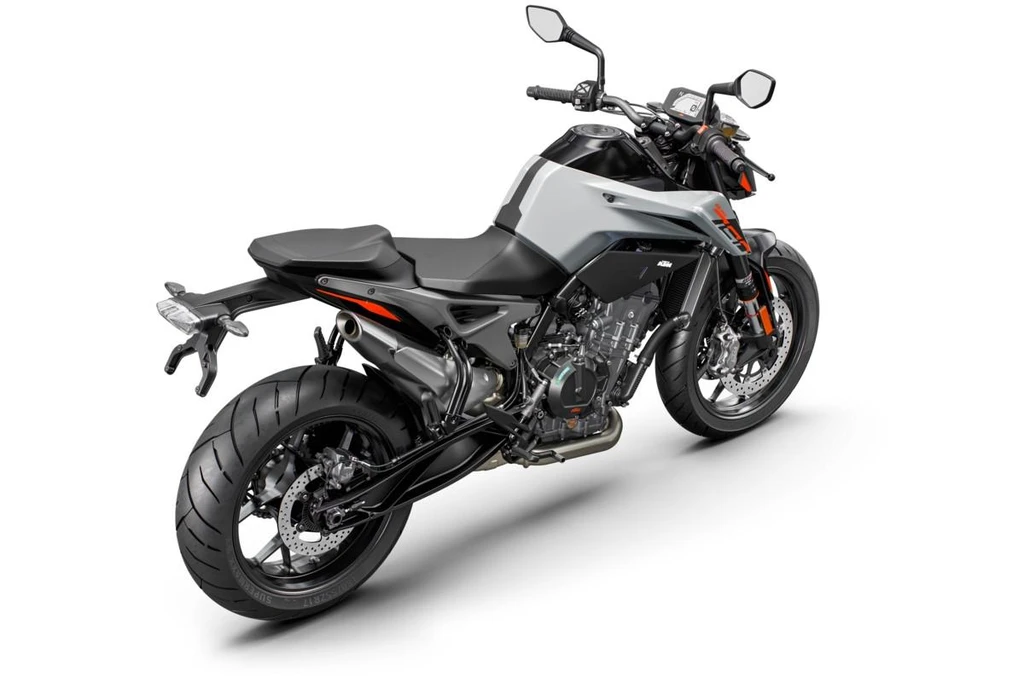

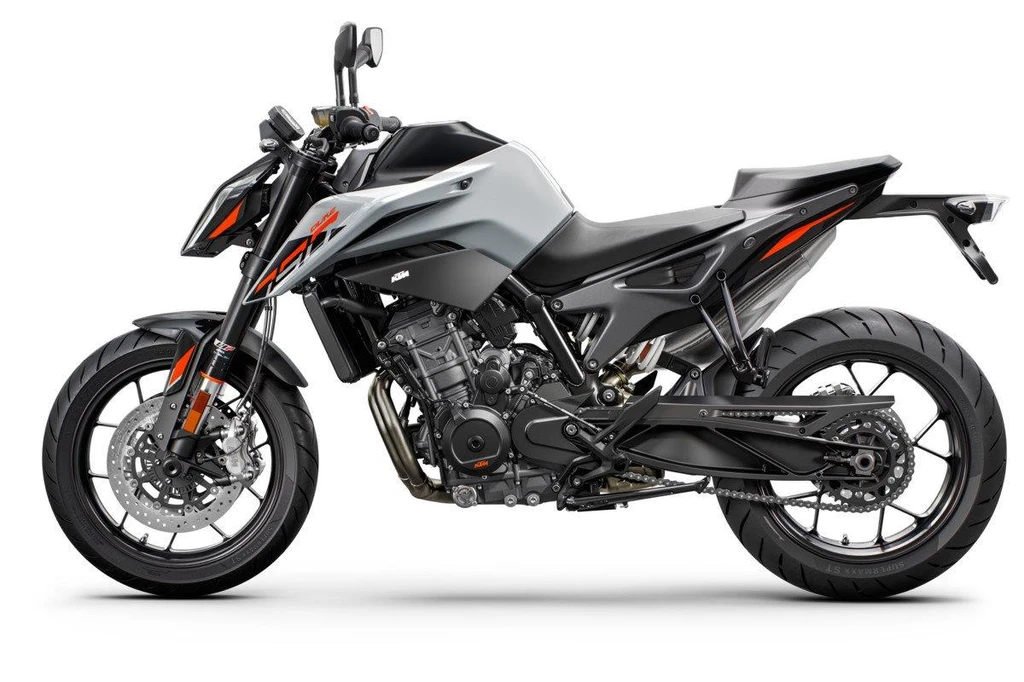

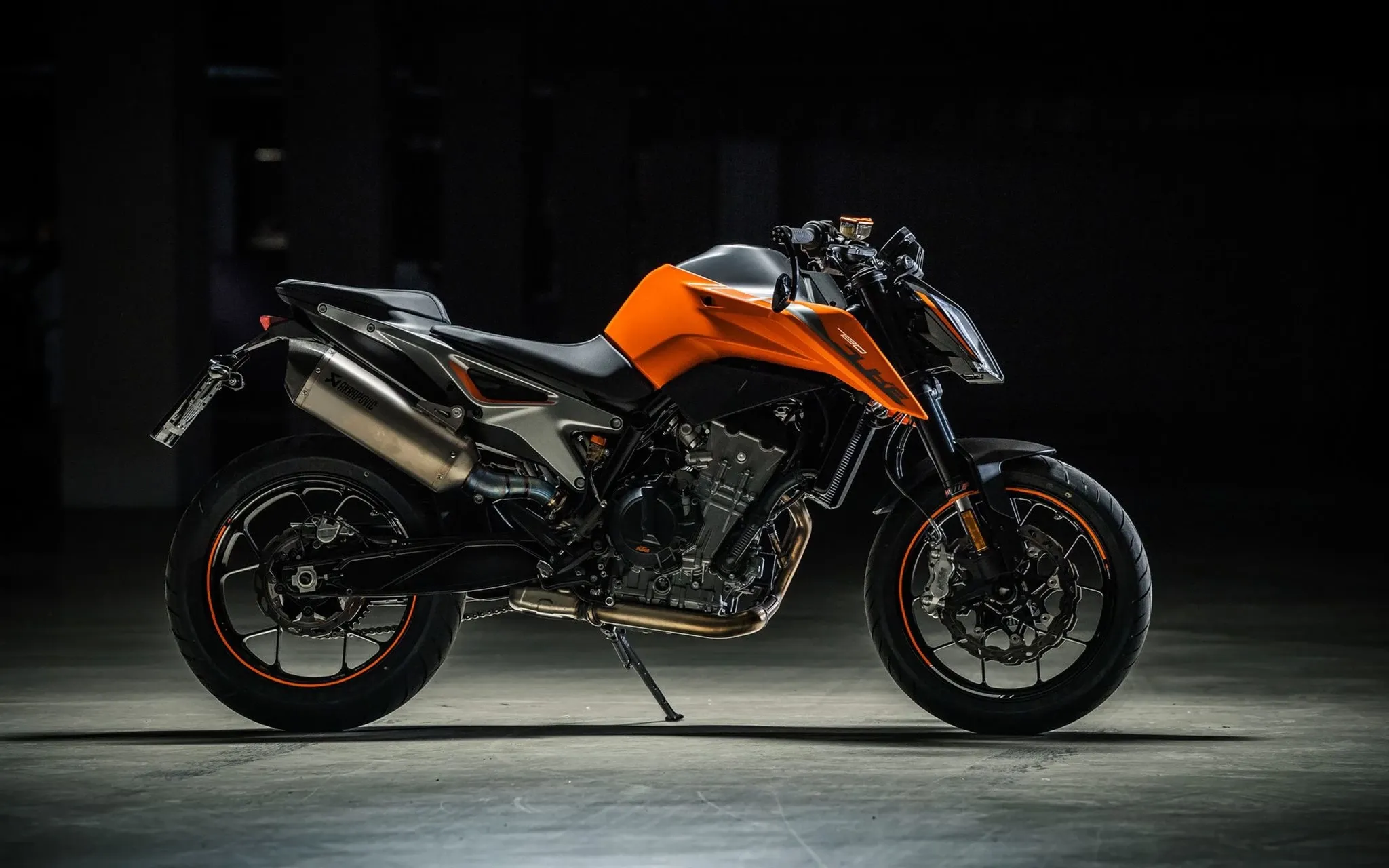

The 2022 KTM 790 DUKE is the latest iteration of the Austrian manufacturer’s mid-range marvel, boasting a READY TO RACE character and performance that’s unmatched in its class.
Powered by the most compact twin-cylinder in its class, the 790 DUKE generates a potent 105 Hp and 87 Nm of torque, making it an ideal choice for riders who crave agility and hard-hitting punch.
But what truly sets the 790 DUKE apart is its ability to deliver easy, rideable power, while still providing an impressive top end that keeps the excitement levels high throughout the rev-range. With a fuel consumption of just 4.4 liters per 100 kilometers, riders can enjoy the thrill of the twisties for hours on end.
Thanks to its specifically developed geometry, the 790 DUKE offers razor-sharp handling that’s both agile and precise. The high-quality WP APEX suspension at each end ensures a perfect connection with the road, instilling rider confidence at all times.
In addition to its impressive performance and handling, the 790 DUKE also boasts a comprehensive suite of electronic features, including Cornering sensitive Motorcycle Traction Control (MTC), Cornering ABS with SUPERMOTO mode, and three standard Ride Modes. With its perfect blend of power, agility, and features, the 2022 KTM 790 DUKE is poised to take its rightful place as a mid-range champion.
Key Specifications
Engine Type
Four stroke, parallel twin cylinder, DOHC, 4 valve percylinder
Engine Capacity
48.7 cubic inches / 799 cc
Max Power
77 kw / 105 hp
Max Torque
63.4 ft-lb / 87 nm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Seat Height
32.4 inches / 825 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 790 Duke
Year
2022
Engine
Engine Type
Four stroke, parallel twin cylinder, DOHC, 4 valve percylinder
Displacement
48.7 cubic inches / 799 cc
Bore x Stroke
88 mm x 65.7 mm
Compression Ratio
12.7:1
Max Horsepower
77 kw / 105 hp
Max Torque
63.4 ft-lb / 87 nm
Engine Management System
DellOrto fuel-Injection
Lubrication System
Forced oil lubrication with 2 oil pumps
Cooling System
Liquid cooled with water/oil heat exchanger
Exhaust
Stainless steel primary and secondary silencer
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
PASC antihopping clutch, mechanically operated
Gearbox
6 Speed
Final Drive
Chain 520 X-Ring
Electrical & Electronics System
Starter
Electric
ABS
Bosch 9.1 MP (incl. Cornering-ABS and super moto mode, disengageable)
Chassis & Suspension
Frame Type
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension
WP APEX 43
Front Suspension Travel
5.5 inches / 140 mm
Rear Suspension
WP APEX – Monoshock
Rear Suspension Travel
5.9 inches / 150 mm
Rake
24
Trail
66
Handlebar
Aluminum, tapered, 28/22 mm
Wheels & Brakes
Front Wheel/Rim Size
3.50 x 17 in cast aluminium
Front Tire Size
120/70-17
Rear Wheel/Rim Size
5.50 x 17 in cast aluminium
Rear Tire Size
180/50-17
Front Brakes
2x 300mm discs, radially mounted 4 piston caliper
Rear Brakes
Single 240mm disc, 2 piston floating caliper
ABS
Bosch 9.1 MP (incl. Cornering-ABS and super moto mode, disengageable)
Dimension & Weights
Seat Height
32.4 inches / 825 mm
Ground Clearance
186 mm / 7.3 in
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Dry Weight
169 kg / 372.5 lbs
Features
Four stroke, parallel twin cylinder engine
DOHC, 4 valve per cylinder
95 Hp version for Europe (A2 configuration)
105 Hp version for the rest of the world
87 Nm of torque
Torque output tuned for easy, rideable power
Top end performance for excitement throughout rev-range
Meager fuel consumption of 4.4 l / 100 km
WP APEX suspension at each end
Cornering sensitive Motorcycle Traction Control (MTC)
Cornering ABS with SUPERMOTO mode
3 standard Ride modes
Full-color 5-inch TFT display
LED lights all around
Quickshifter+ for clutchless up and downshifts (optional)
Motor Slip Regulation (MSR) (optional)
TRACK mode (optional)
Cruise Control (optional)
Tire Pressure Monitoring System (TPMS) (optional)
KTM MY RIDE for hands-free phone and music connection (optional)
