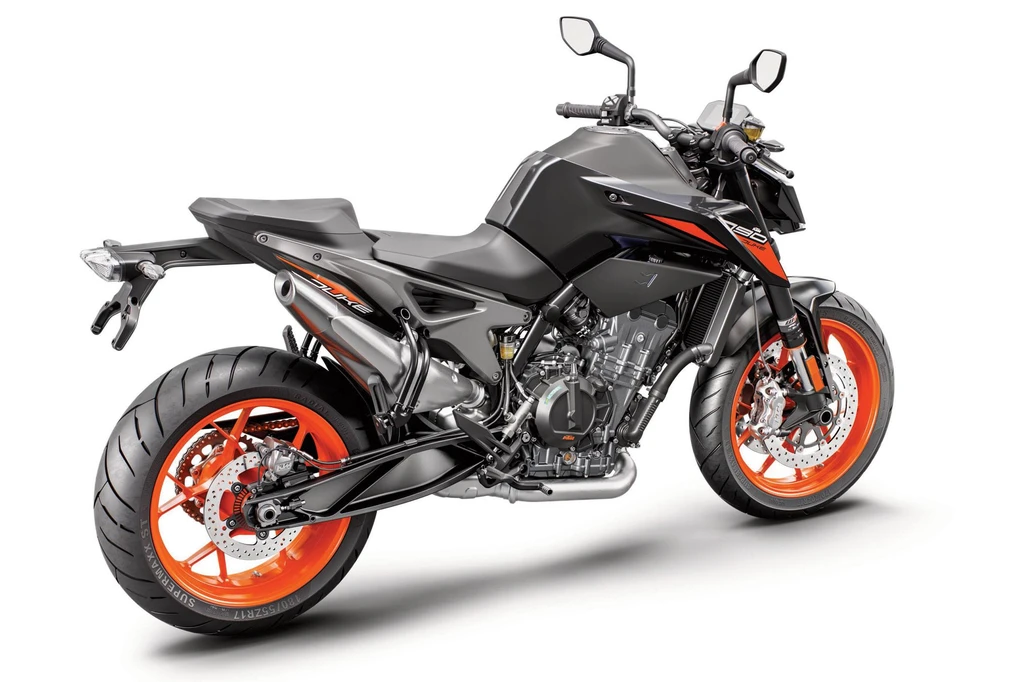

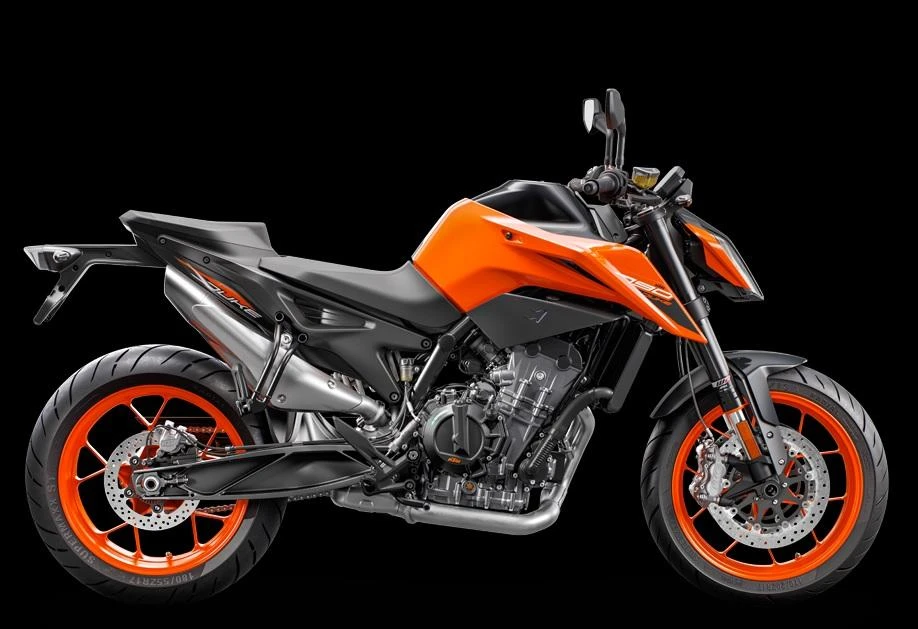

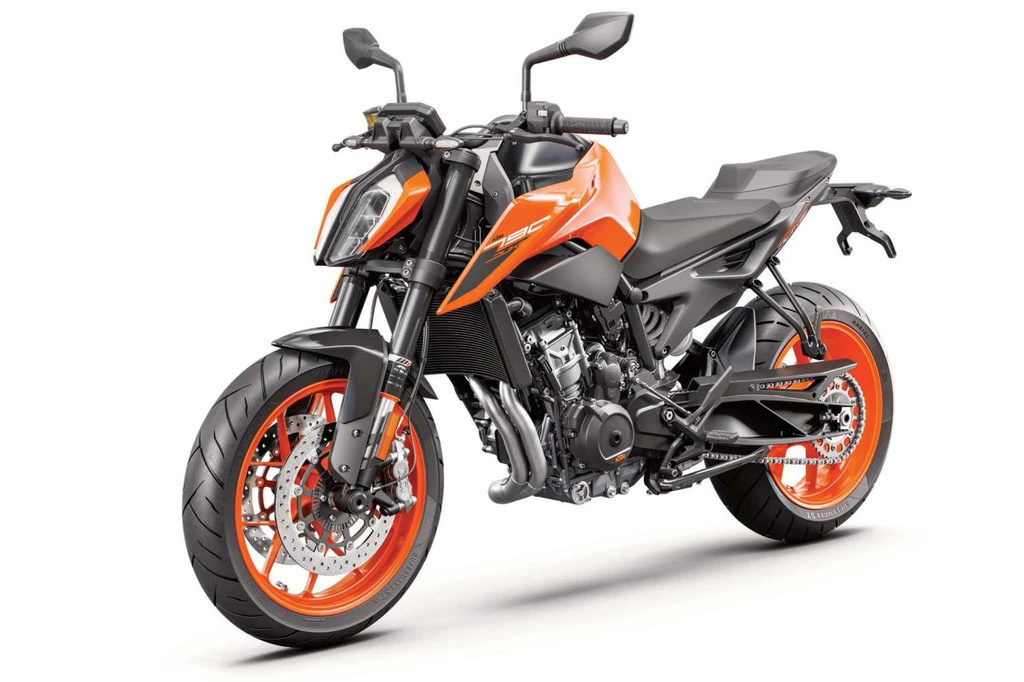

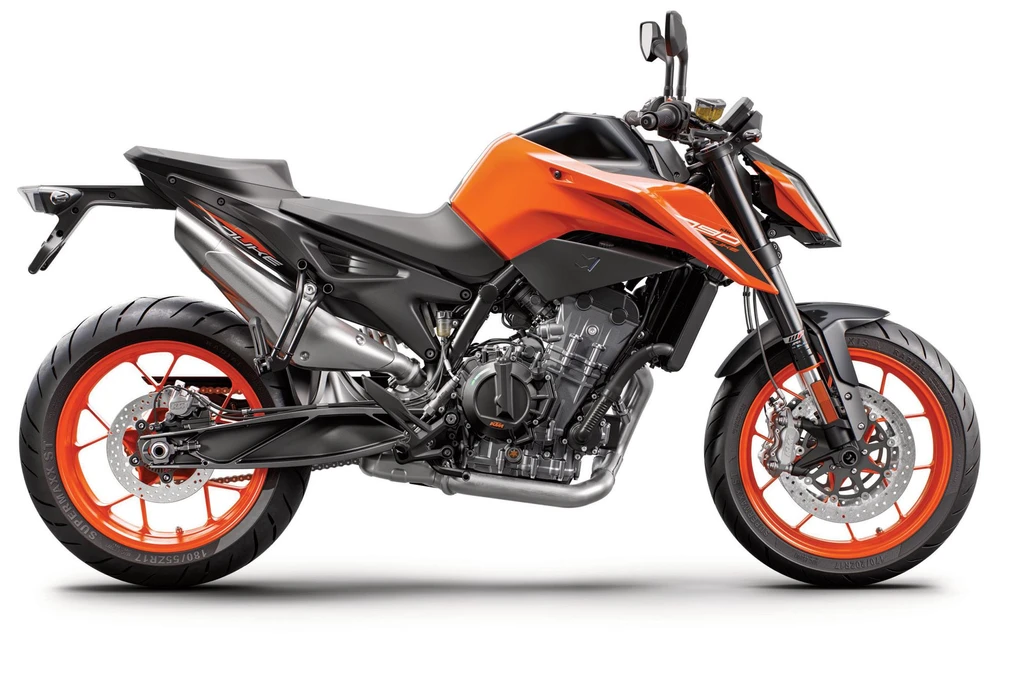

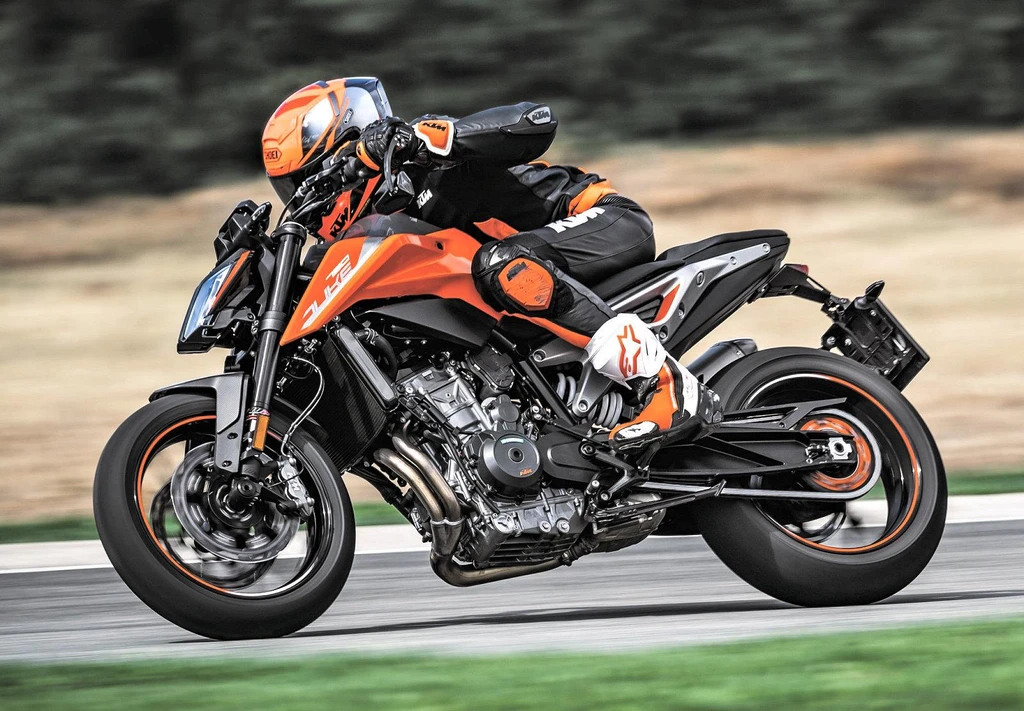

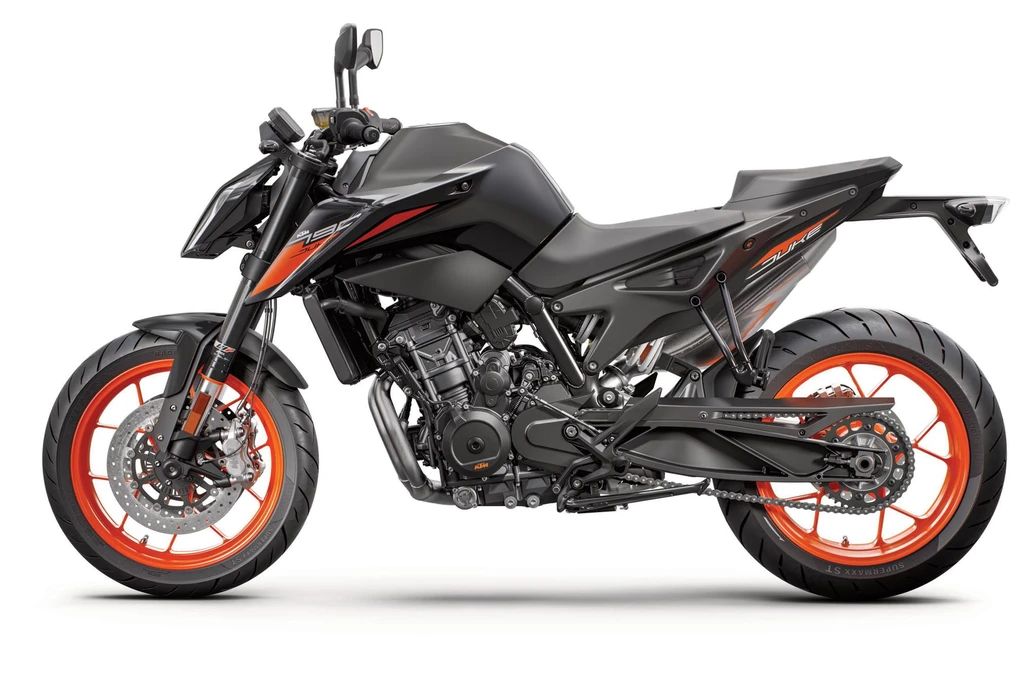

KTM 790 Duke (2020)

The KTM 790 DUKE is a menacingly accurate machine, bred for the corners. Its 799cc LC8c parallel twin motor, nestled in one of the lightest and most compact chassis around, delivers exceptional efficiency with class-leading power and torque.

At the heart of this beast lies a compact, liquid-cooled 8-valve DOHC unit, built for torque and delivering a peak torque at 8,000 rpm. An advanced ride-by-wire system ensures great refinement, low fuel consumption, and exceptional emission figures.

The exhaust system is a masterpiece, a stainless-steel thing of beauty that centralizes mass and allows for a relatively small muffler, playing a dramatic soundtrack as you gun it.

But what truly sets the KTM 790 DUKE apart is its agility, which comes from the deftness of its lightweight chassis and the innovative combination of tubular steel frame, cast aluminum subframe and swing arm, performance-oriented wheels, brakes, and WP suspension.

The result is a ride that’s not just fast, but dynamically thrilling, with the ability to flick from one bend to the next with pinpoint precision, putting you in the heart of the action and not on the sidelines. The KTM 790 DUKE is a force to be reckoned with, a lightweight powerhouse that demands to be ridden at the limit.

Key Specifications

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valve percylinder
Engine Capacity	48.7 cubic inches / 799 cc
Max Power	78 kw / 105 hp
Max Torque	63.4 ft-lb / 87 nm
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Seat Height	32.4 inches / 825 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 790 Duke
Year	2020

Engine

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valve percylinder
Displacement	48.7 cubic inches / 799 cc
Bore x Stroke	88 mm x 65.7 mm
Compression Ratio	12.7:1
Max Horsepower	78 kw / 105 hp
Max Torque	63.4 ft-lb / 87 nm
Engine Management System	DellOrto fuel-Injection
Lubrication System	Forced oil lubrication with 2 oil pumps
Cooling System	Liquid cooled
Exhaust	Stainless steel primary and secondary silencer

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	PASC antihopping clutch, mechanically operated
Gearbox	6 Speed
Final Drive	Chain 520 X-Ring

Electrical & Electronics System

Starter	Electric
ABS	Bosch 9MP two-channel ABS (incl. Supermoto mode, diesengageable)

Chassis & Suspension

Frame Type	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension	43mm WP upside-down
Front Suspension Travel	5.5 inches / 140 mm
Rear Suspension	WP shock absorber with preload adjuster
Rear Suspension Travel	5.9 inches / 150 mm
Rake	24
Trail	66

Wheels & Brakes

Wheels	Cast aluminium
Front Wheel/Rim Size	3.50 x 17 in
Front Tire Size	120/70-17
Rear Wheel/Rim Size	5.50 x 17 in
Rear Tire Size	180/55-17
Front Brakes	2x 300mm discs
Rear Brakes	Single 240mm disc
ABS	Bosch 9MP two-channel ABS (incl. Supermoto mode, diesengageable)

Dimension & Weights

Seat Height	32.4 inches / 825 mm
Ground Clearance	186 mm / 7.3 in
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Dry Weight	169 kg / 372.5 lbs

Features

Four stroke engine
Parallel twin cylinder
DOHC
4 valve per cylinder
799 cc LC8c parallel twin motor
Lightweight and compact chassis
799 cc liquid cooled 8 valve, DOHC engine
Peak torque at 8,000 rpm
Ride-by-wire system
Stainless-steel exhaust system
Tubular steel frame
Cast aluminum subframe
Cast aluminum swing arm
Performance-oriented wheels
Brakes
WP suspension
43 mm open cartridge upside-down fork
Split function technology fork
Lightweight, light-alloy wheels
Low-pressure die casting process wheels
