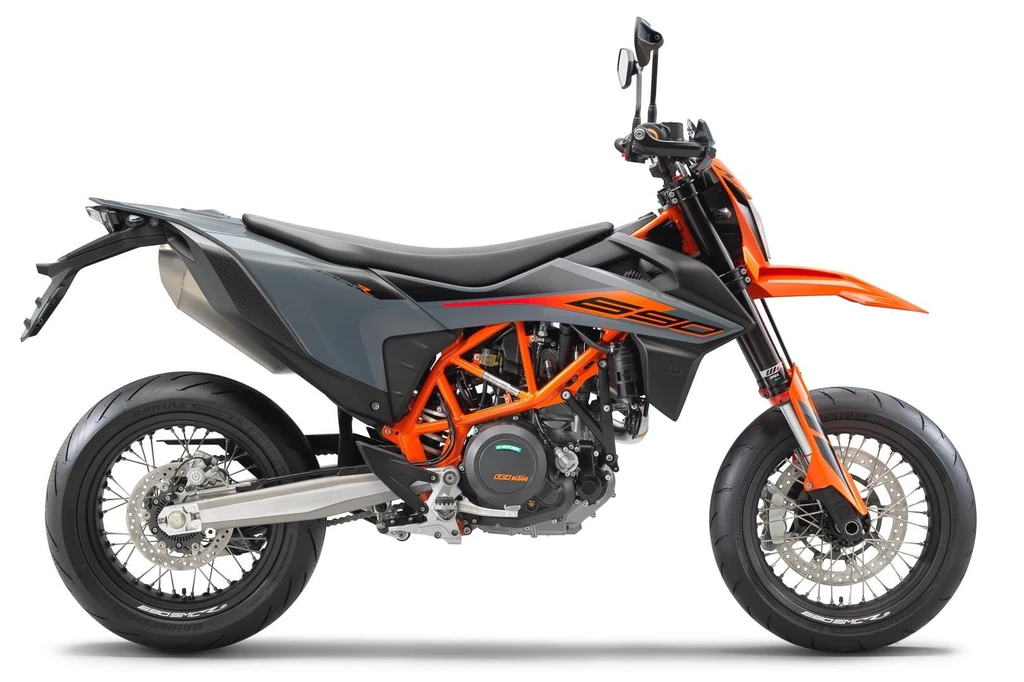

KTM 690 SMC R (2021)

KTM 690 SMC R (2021)

The KTM 690 SMC R is a supermoto force to be reckoned with, its LC4 engine delivering a thrilling combination of torque and pace. This is a bike that eats up twisty roads, dispatches traffic with ease, and begs to be unleashed on a track. Its chrome-molybdenum steel chassis, WP APEX suspension, and supermoto ergonomics all work in harmony to create a ride that’s as agile as it is aggressive.

Purposeful design and cutting-edge technology come together to make the 2021 KTM 690 SMC R a true marvel of motorcycling. With its new ABS modulator, Cornering ABS, and Supermoto ABS modes, this bike offers unparalleled levels of control and feel. And with its large, high-quality Brembo brakes, stopping performance is taken to new heights.

As the latest symbol of KTM’s supermoto excellence, the 690 SMC R boasts a sharp, modern look that’s sure to turn heads on the road or track. With its Euro5-compliant catalytic converter and the option to click into a 35kW power setting for A2 license holders, this bike is more accessible than ever. As KTM’s Product Manager Joachim Sauer puts it, the LC4 has always been a powerful companion for those who crave the thrill of the ride.

Key Specifications

Engine TypeSingle cylinder, 4-stroke, SOHC, 4-valve
Engine Capacity692.7 cc / 42.2 cu in
Max Torque54 ft-lb / 73.5 nm
Fuel Tank Capacity3.5 US gallons / 13.5 L
Seat Height35.1 inches / 892 mm

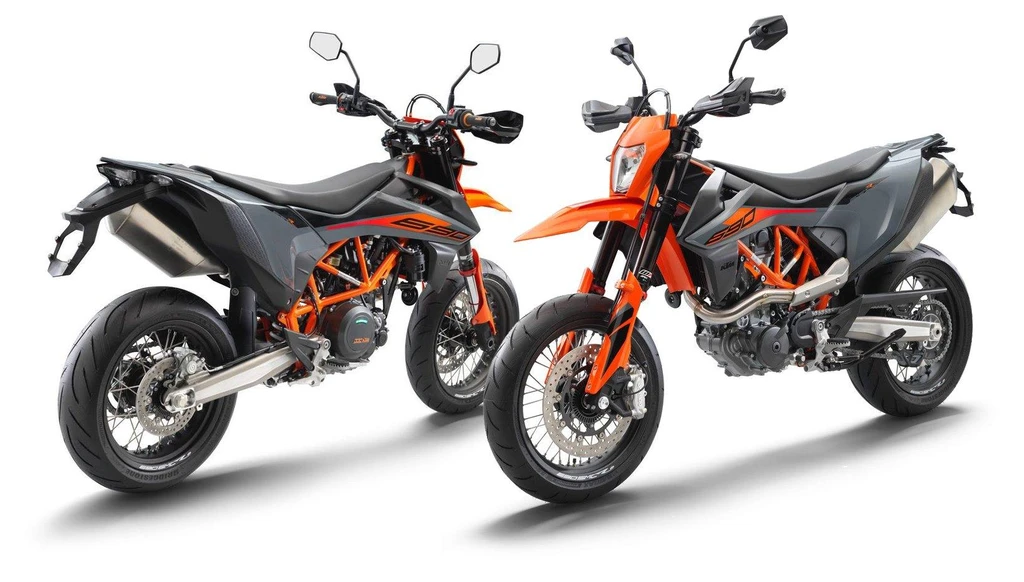

KTM 690 SMC R (2021)

All Specifications

Make & Model

ModelKTM 690 SMC R
Year2021

Engine

Engine TypeSingle cylinder, 4-stroke, SOHC, 4-valve
Displacement692.7 cc / 42.2 cu in
Bore x Stroke105 x 80 mm
Compression Ratio12.7:1
Max Torque54 ft-lb / 73.5 nm
Engine Management SystemKeihin EFI (throttle body 50 mm)
Lubrication SystemPressure lubrication with 2 oil pumps
Cooling SystemLiquid cooled
ExhaustStainless steel primary and secondary silencer

Performance

Top Speedn/a

Transmission

ClutchAPTC slipper clutch, hydraulically actuated
Gearbox6-Speed
Final DriveChain, X-Ring 5/8 1/4 in

Electrical & Electronics System

BatteryLithium Ion 12V 8,6Ah
StarterElectric
ABSTwo-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)

Chassis & Suspension

Frame TypeChrome-moly tubular space frame, powder-coated
Front SuspensionWP APEX 48
Front Suspension Travel8.4 inches / 215 mm
Rear SuspensionWP APEX with Pro-Lever linkage
Rear Suspension Travel9.4 inches / 240 mm
Trail107.7 mm / 4.2 in
Handlebar808 mm wide rubber mounted

Wheels & Brakes

Front Wheel/Rim SizeSpoked wheels with aluminum tubeless rims 3.50 17
Front Tire Size120/70 ZR 17
Rear Wheel/Rim SizeSpoked wheels with aluminum tubeless rims 5.00 17
Rear Tire Size160/60 ZR 17
Front BrakesSingle 320mm disc, Brembo four-piston radial fixed calliper
Rear BrakesSingle 240 mm disc, Brembo single piston floating caliper
ABSTwo-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)

Dimension & Weights

Seat Height35.1 inches / 892 mm
Wheelbase57.8 inches / 1470 mm
Ground Clearance237 mm / 9.3 in
Fuel Tank Capacity3.5 US gallons / 13.5 L

Features

  • Spoked wheels
  • Aluminum tubeless rims
  • WP APEX suspension
  • Supermoto ergonomics
  • Cornering ABS mode
  • Supermoto ABS mode
  • Rear wheel deactivation of lean angle input
  • New ABS modulator
  • Brembo brakes
  • Brembo M 4.32 monoblock caliper
  • 320mm front disc brake
  • 240mm rear disc brake
  • Optimized braking system stiffness
  • Euro5 emissions status
  • Catalytic converter with Euro5 emissions
  • 35kW power setting for A2 license status
  • Aluminum tubeless rims 3.50 17
  • Aluminum tubeless rims 5.00 17

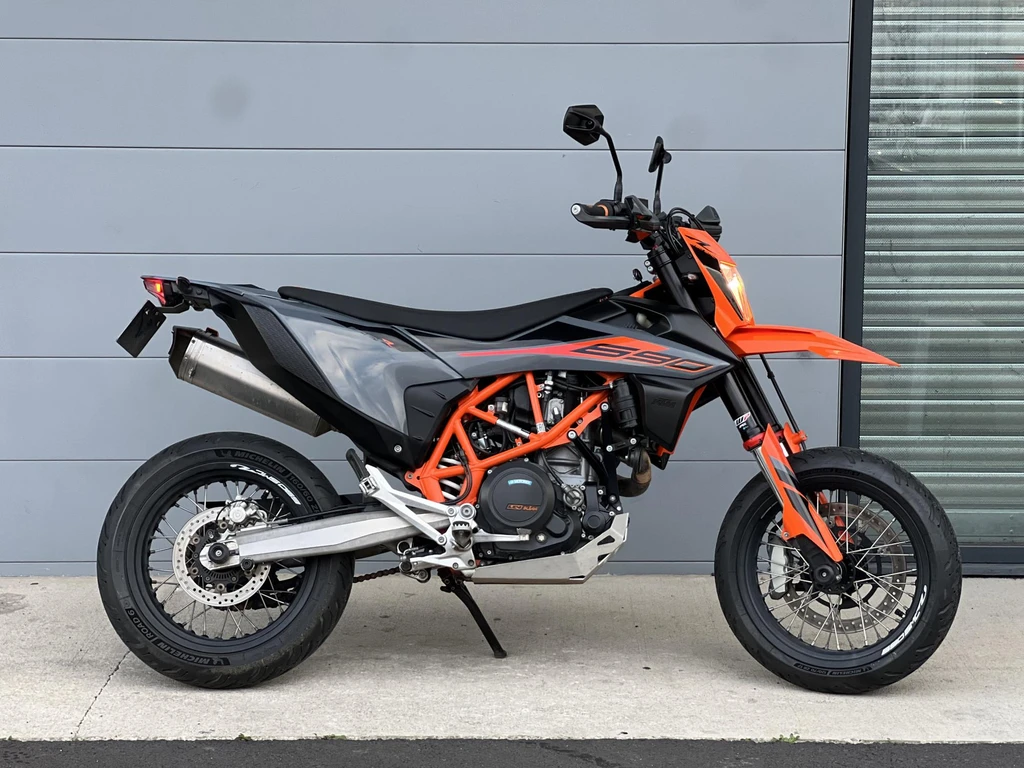

KTM 690 SMC R (2021)

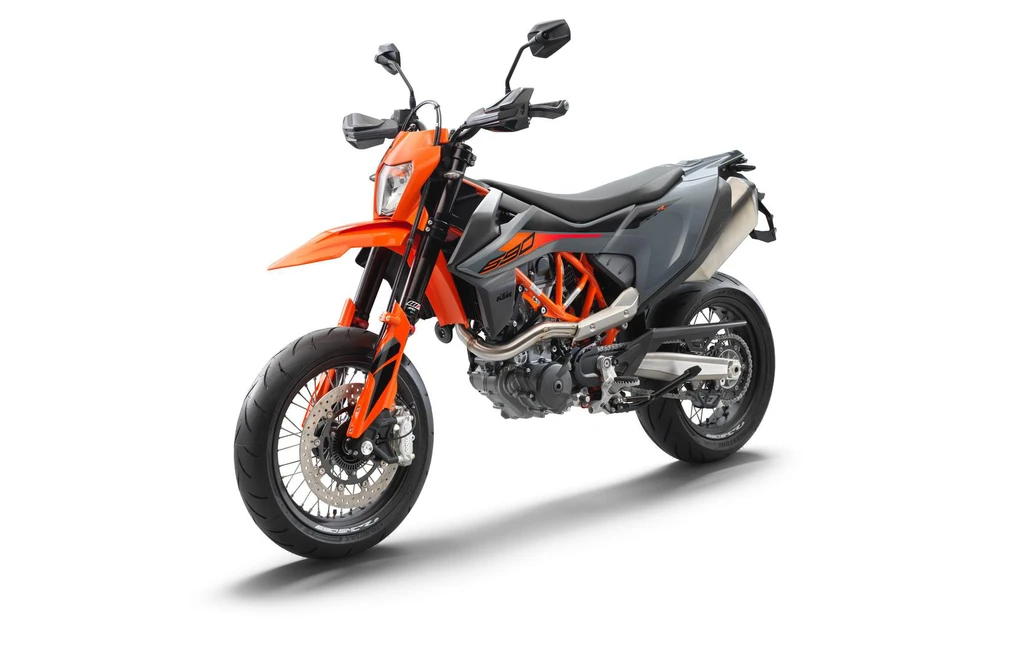

KTM 690 SMC R (2021)
KTM 690 SMC R (2021)
