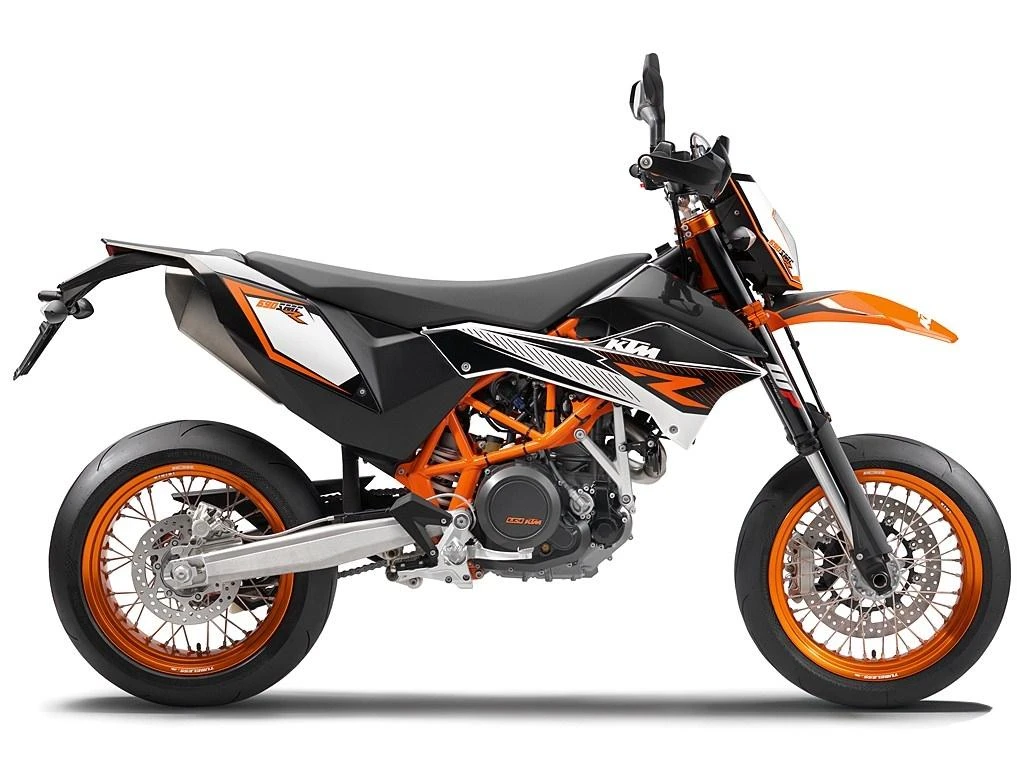

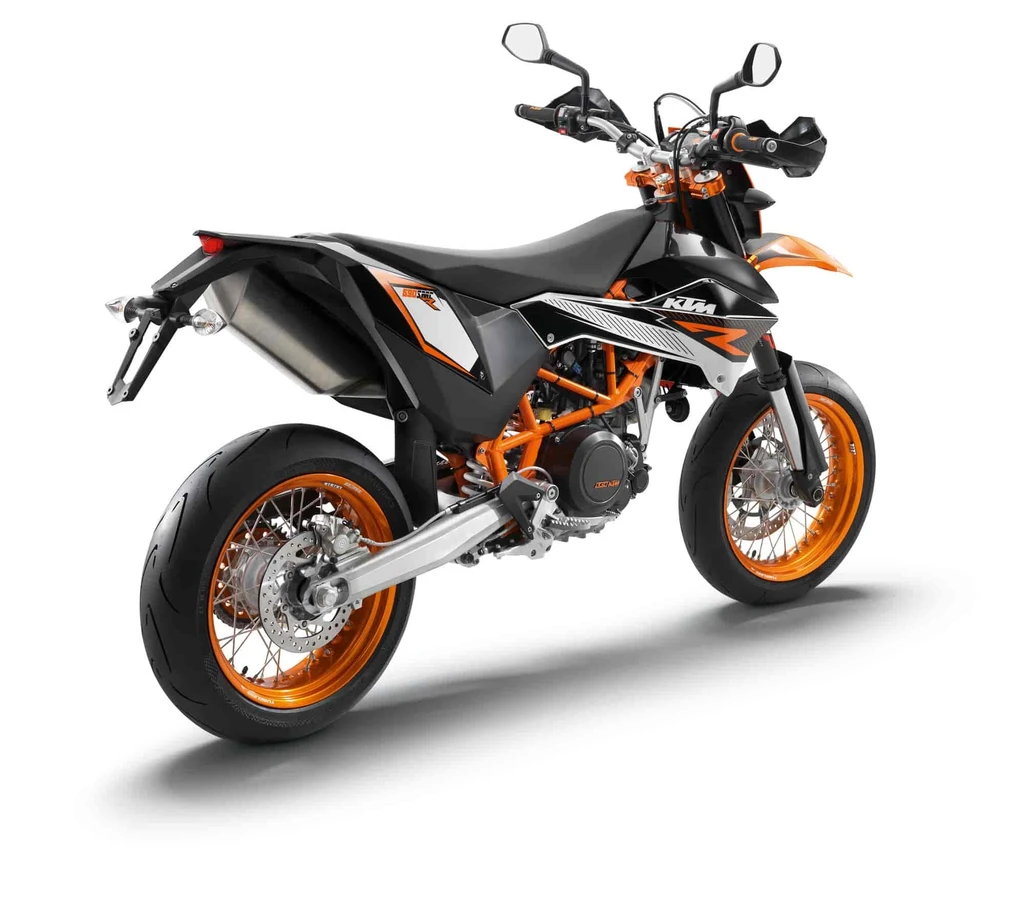

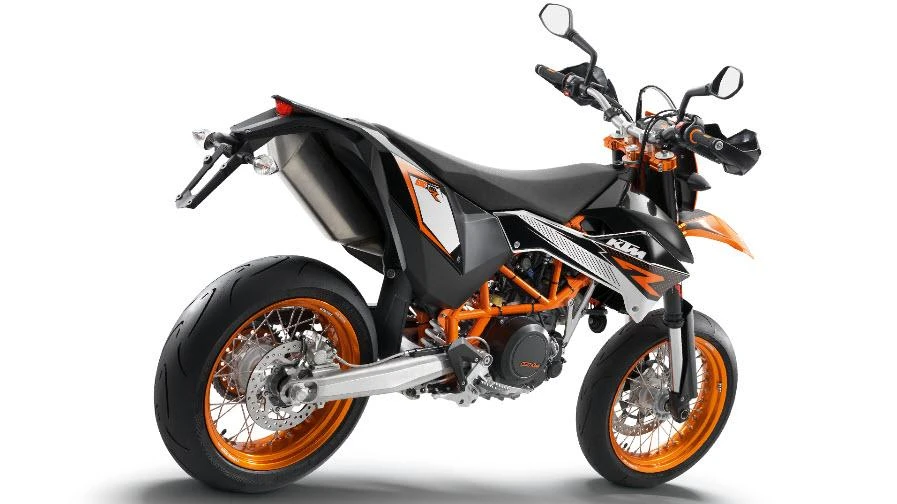

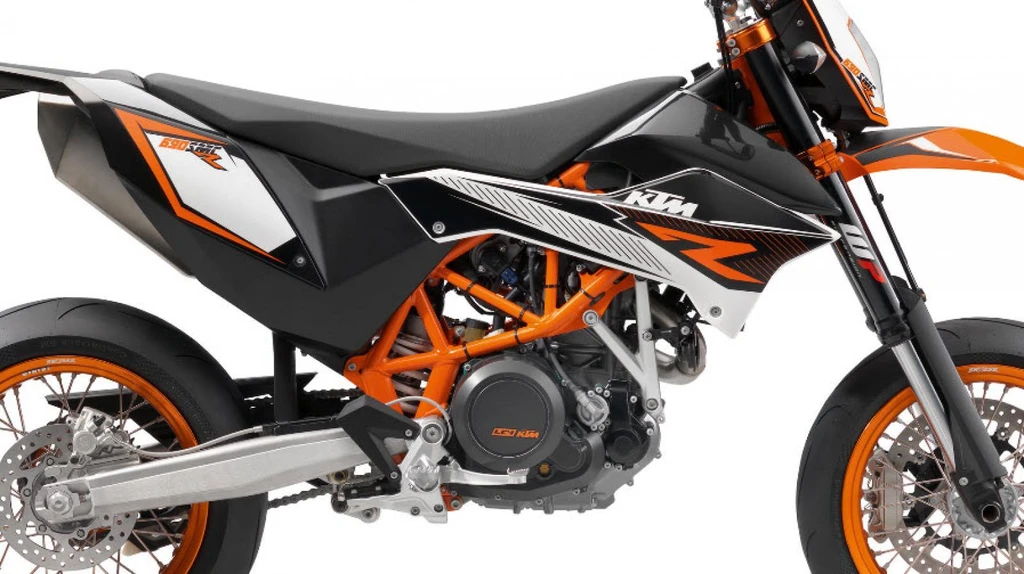

KTM 690 SMC-R (2012 – 2013)

KTM 690 SMC-R (2012 - 2013)

The 690 SMC-R is a masterclass in minimalist, lightweight design, where every ounce counts towards delivering an exhilarating riding experience. This brawny single-cylinder engine, borrowed from the Duke R, packs a punch, propelling the bike with ease, thanks to its even greater power reserves. The LC4 power plant is paired with a 6-speed gearbox, an APTC anti-hopping clutch, and electronic fuel injection, making it a formidable force on the road and track.

With a dry weight of under 140 kilos, the 690 SMC-R is a razor-sharp tool for skilled riders, who will appreciate its perfectly balanced layout, self-supporting polymer tail tank, and innovative, die-cast swingarm. The new, ergonomically optimised seat provides increased comfort, while the fully adjustable WP suspension, with revised spring rates and optimised weight distribution, ensures razor-sharp agility.

The Continental SportAttack SM tires, with their outstanding grip, are the perfect complement to this finely tuned machine, which is sure to leave even the most seasoned riders grinning from ear to ear.

Key Specifications

Engine TypeFour stroke, single Cylinder. SOHC, 4 Valve
Engine Capacity39.9 cubic inches / 690 cc
Max Power49 kw / 65.7 hp
Max Torque50.1 ft-lb / 68 nm
Fuel Tank Capacity12 Litres / 3.1 gal
Seat Height35 inches / 890 mm
KTM 690 SMC-R (2012 - 2013)

All Specifications

Make & Model

ModelKTM 690 SMC-R
Year2012 – 2013

Engine

Engine TypeFour stroke, single Cylinder. SOHC, 4 Valve
Displacement39.9 cubic inches / 690 cc
Bore x Stroke102×84.5mm
Compression Ratio12.5:1
Max Horsepower49 kw / 65.7 hp
Max Torque50.1 ft-lb / 68 nm
Engine Management SystemKeihin EFI with EPT (Electr. Power Throttle)
Cooling SystemLiquid Cooled

Performance

Top Speedn/a

Transmission

ClutchAPTC multi-disc wet clutch, hydraulically operated
Gearbox6 Speed
Final DriveChain 5/8 x 1/4″ X Ring

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder coated,Aluminium Sub frame, aluminium, tapered, 28/22 mm handlebar.
Front SuspensionWP48mm Upside-down forks,
Front Suspension Travel9.8 inches / 250 mm
Rear SuspensionWP-Monoshock with Pro-Lever linkage,
Rear Suspension Travel9.8 inches / 250 mm
Trail63

Wheels & Brakes

Front Tire Size120/70 -ZR17
Rear Tire Size160/60 -ZR17
Front BrakesSingle320mm disc
Rear BrakesSingle240mm disc

Dimension & Weights

Seat Height35 inches / 890 mm
Wheelbase58.2 inches / 1480 mm
Ground Clearance270 mm / 10.6 in
Fuel Tank Capacity12 Litres / 3.1 gal
Dry Weight139 kg / 306.4 lbs

Features

  • Powerful LC4 1-cylinder, 4-stroke engine
  • Electronic fuel injection
  • Balancer shaft
  • APTC anti-hopping clutch
  • 6-speed gearbox
  • Light steel trellis frame
  • Innovative, die-cast swingarm
  • Self-supporting polymer tail tank
  • Ergonomically optimised seat
  • Fully adjustable WP suspension
  • Revised spring rates
  • Optimised front/rear weight distribution
  • New Continental SportAttack SM tires
  • Outstanding grip
  • Less than 140 kilos dry weight
  • Wire wheels with airtight beds
