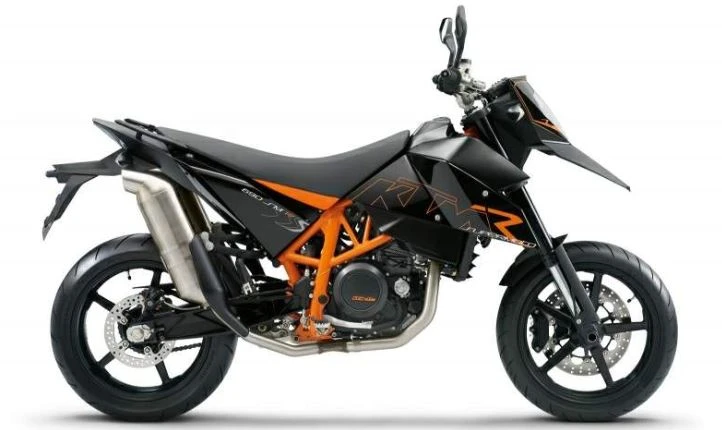

The KTM 690 LC4 Supermoto R is a high-performance street bike that defies convention with its edgy, supermoto styling and high-spec components.
Fitted with a lightweight, rigid chrome-molybdenum tubular space frame and a one-piece, aluminium die-cast swingarm, this bike is built for agility and precision.
The WP suspension components, including a 48mm USD fork and fully adjustable monoshock, have been specifically tuned for high-performance street riding, providing exceptional handling and control.
With Brembo brakes providing exceptional stopping power, and KTMs APTC anti-hopping clutch ensuring smooth, consistent power delivery, the 690 LC4 Supermoto R is the ultimate machine for riders seeking an exhilarating riding experience.
This bike’s potent blend of performance, handling, and style will undoubtedly push even the most seasoned riders to new heights.
Key Specifications
Engine Type
Four stroke, single Cylinder. SOHC, 4 Valve
Engine Capacity
653.7
Max Power
63 hp / 46.kW@7500 rpm
Max Torque
65Nm / 47.9 ft-lb@6550 rpm
Fuel Tank Capacity
3.4 US gallons / 13.2 L
Seat Height
34.5 inches / 875 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 690 LC4 Supermoto R
Year
2008
Engine
Engine Type
Four stroke, single Cylinder. SOHC, 4 Valve
Displacement
653.7
Bore x Stroke
102x80mm
Compression Ratio
11.7:1
Max Horsepower
63 hp / 46.kW@7500 rpm
Max Torque
65Nm / 47.9 ft-lb@6550 rpm
Engine Management System
Generation Keihin EMS with EPT (Electric Power Throttle)
