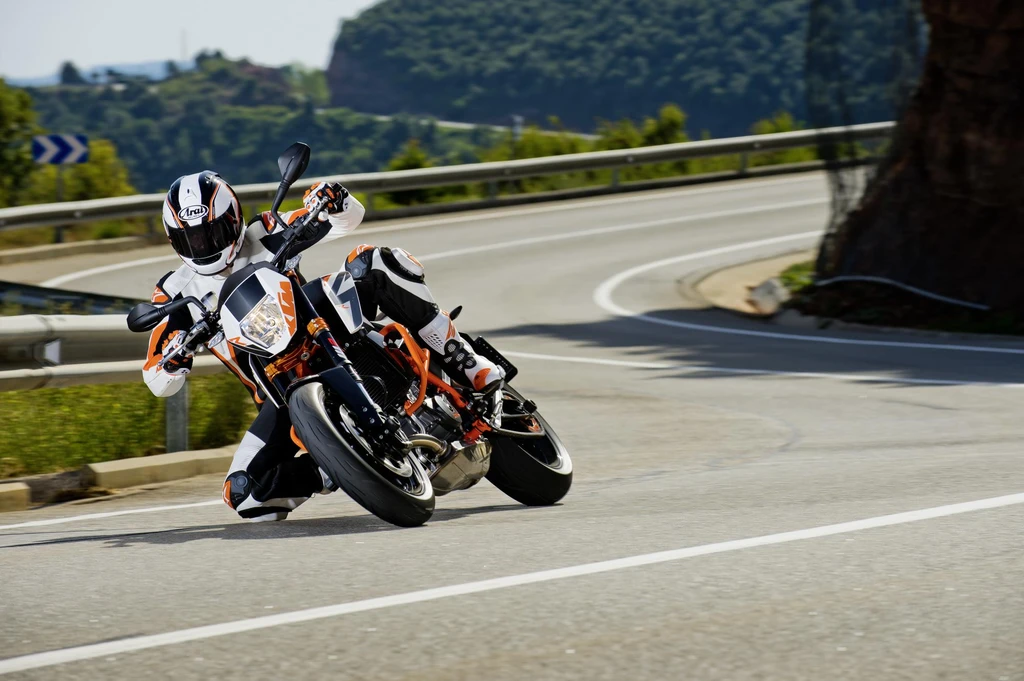

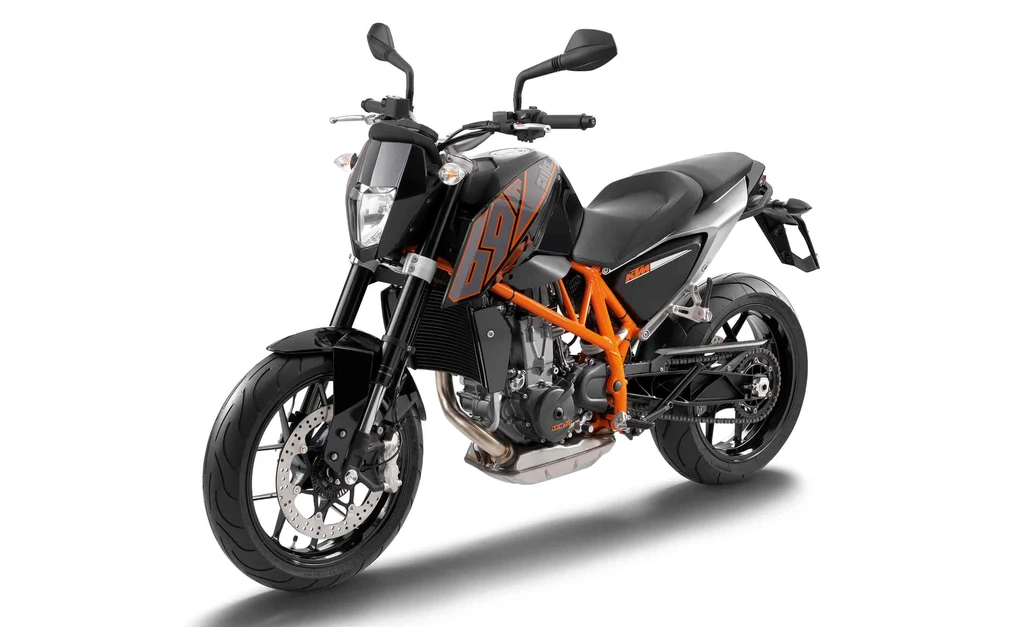

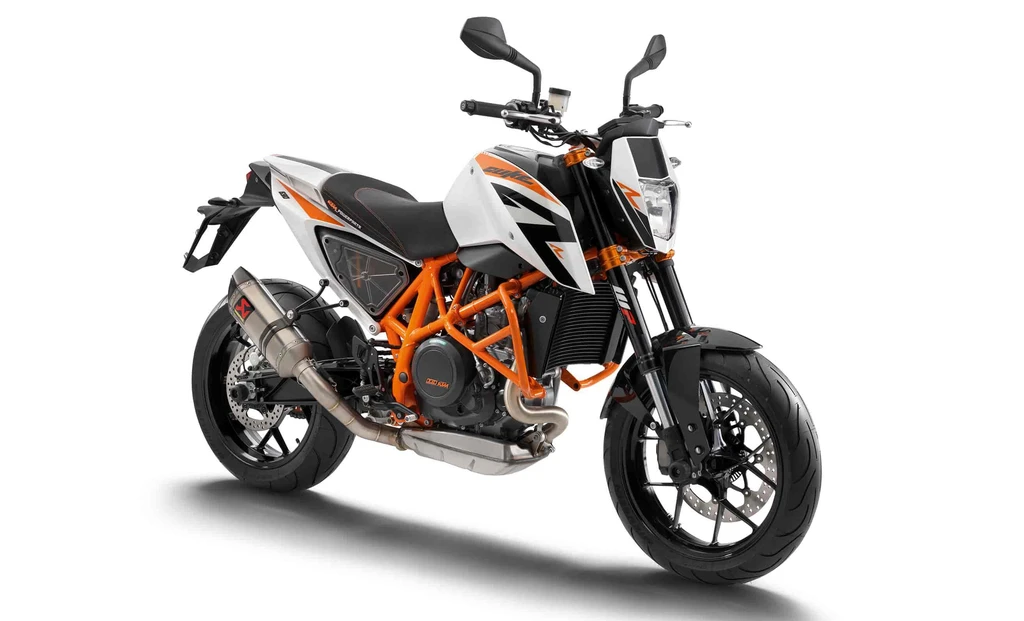

The KTM 690 Duke R is the ultimate expression of sporty genes, distilling the essence of the 690 Duke into a formidable hot rod that’s as at home on twisty roads as it is in everyday traffic.
Its 690 single-cylinder engine is a marvel of engineering, boasting a balancer shaft that eliminates vibration while delivering unparalleled power. Twin ignition and ride-by-wire throttle actuation ensure seamless transitions and razor-sharp throttle response.
As you twist the throttle, the Duke R’s LC4 engine unleashes its full fury, its electronic engine management system expertly coaxing out every last bit of performance. With its finely tuned combustion and advanced fuel injection, this bike is a masterclass in balance and poise.
In the hands of an expert, the KTM 690 Duke R is a force to be reckoned with, its potent package of power, handling, and economy making it the perfect companion for the most demanding riders.
Key Specifications
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity
690 cc / 42.1 cu in
Max Power
52.2 kw / 70 hp
Max Torque
69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Seat Height
32.9 inches / 835 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 690 Duke R
Year
2014
Engine
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Displacement
690 cc / 42.1 cu in
Bore x Stroke
102×84.5mm
Compression Ratio
12.6:1
Max Horsepower
52.2 kw / 70 hp
Max Torque
69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Engine Management System
Generation Keihin EMS with EPT (Electric Power Throttle)
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Exhaust
Stainless steel silencer with regulated catalytic converter
