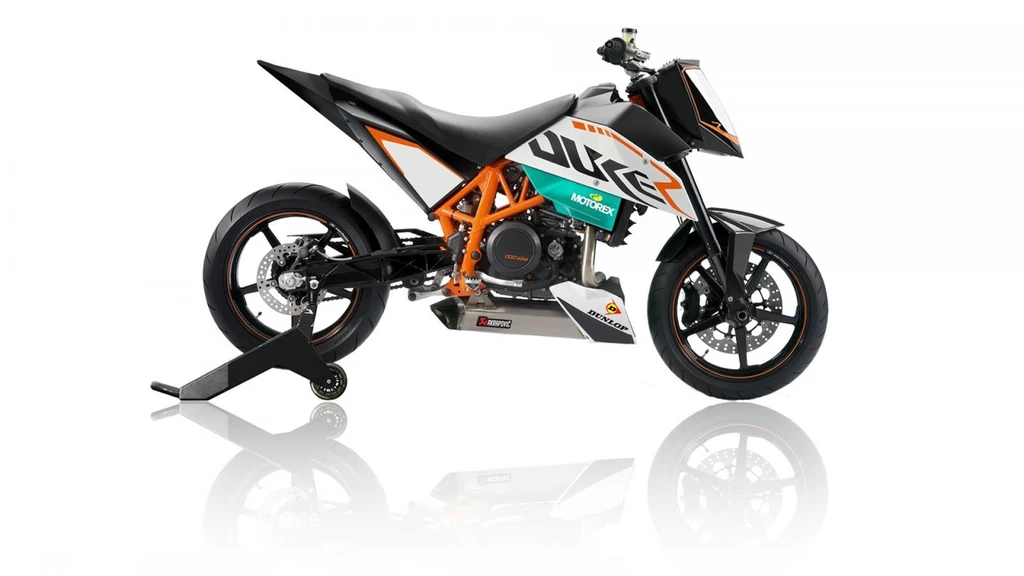

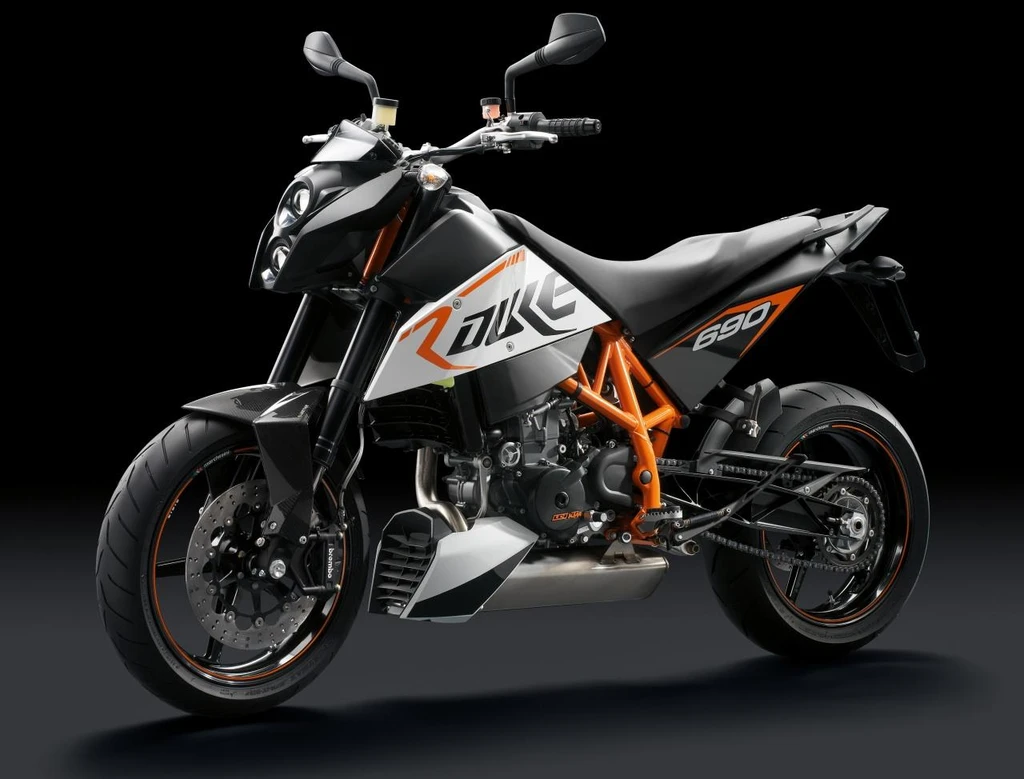

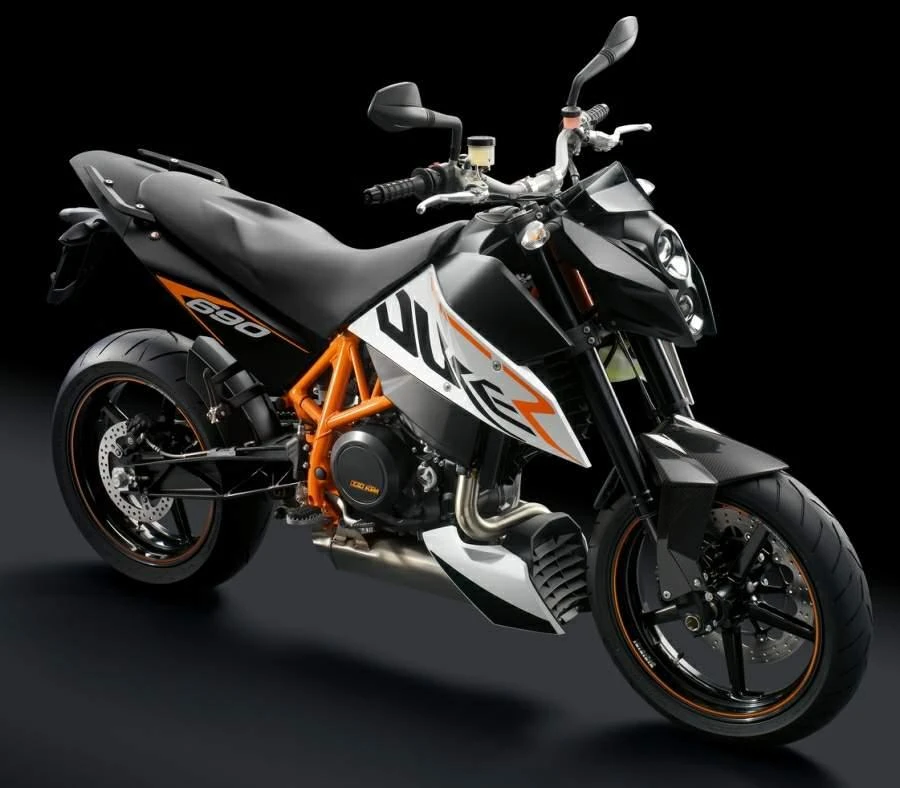

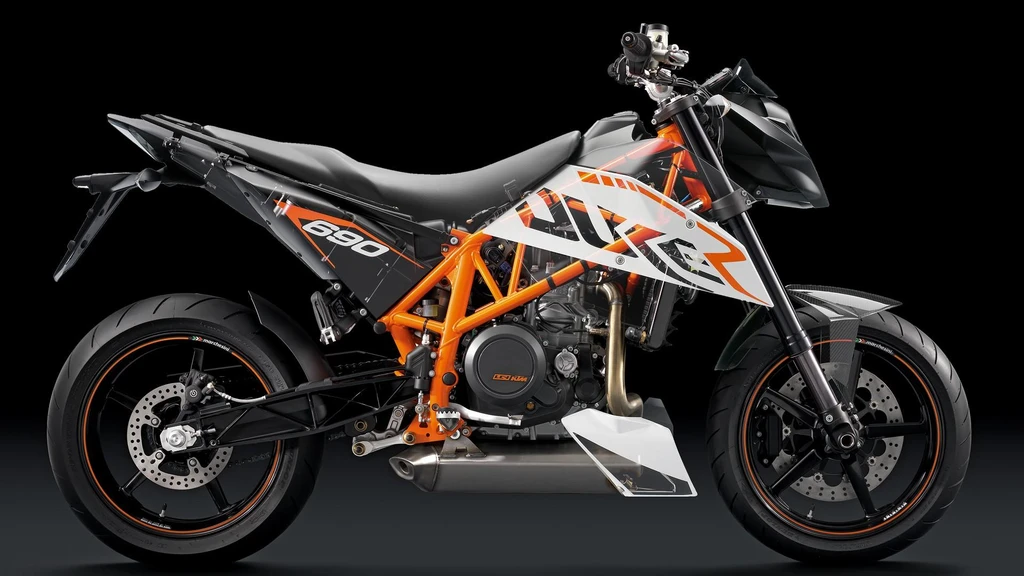

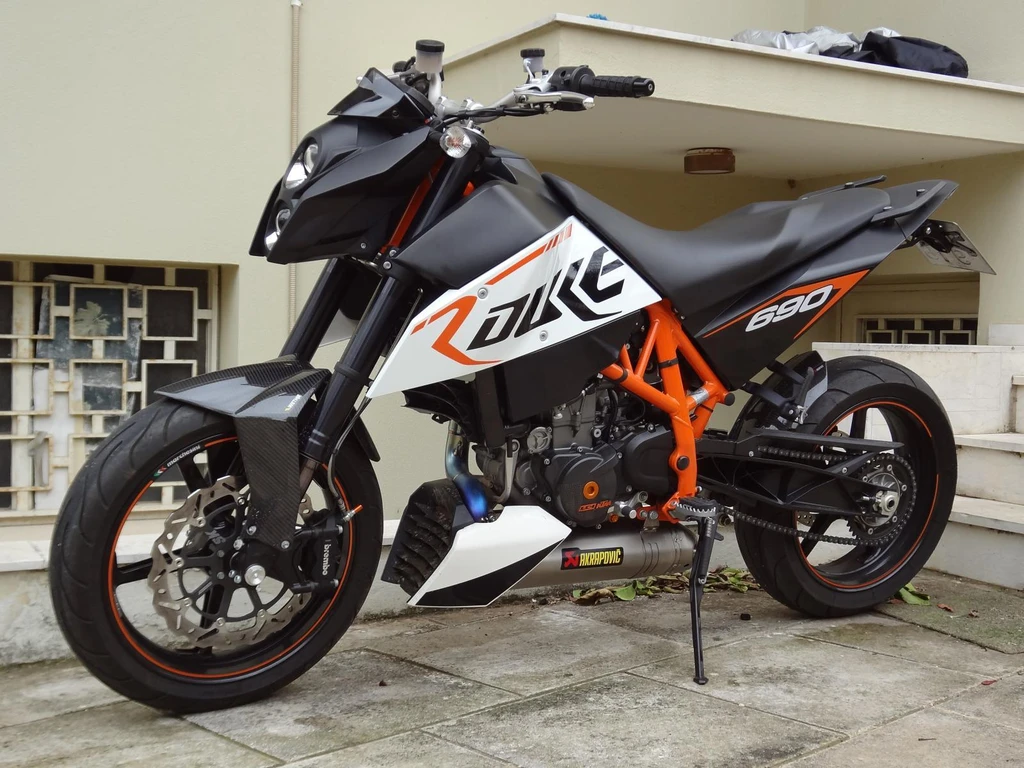

KTM 690 Duke R (2011)

The KTM 690 Duke R is a masterclass in stripped-back, high-performance design. Its 690cc, 70bhp single-cylinder engine delivers its power in a characteristic burst, making it perfect for exiting tight corners with precision and flair.

With its lightweight construction of just 148.5kg/327lbs (dry), the Duke R is a handling dynamo, its WP suspension – now with slightly firmer spring rates – working in harmony with its slick six-speed gearbox to create a riding experience that’s both exhilarating and intuitive.

As you carve through the twisties, the Duke R’s orange frame and blacked-out components seem to blur into the distance, leaving only the thrill of the ride. And with its razor-sharp handling and willingness to entertain, this pint-sized powerhouse is sure to leave even the most seasoned riders grinning from ear to ear. It’s a truly unforgettable experience that will leave you craving more.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity	690 cc / 42.1 cu in
Max Power	52.2 kw / 70 hp
Max Torque	69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Fuel Tank Capacity	3.6 US gallons / 13.5 L
Seat Height	34 inches / 865 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 690 Duke R
Year	2011

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Displacement	690 cc / 42.1 cu in
Bore x Stroke	102×84.5mm
Compression Ratio	12.5:1
Max Horsepower	52.2 kw / 70 hp
Max Torque	69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Engine Management System	Generation Keihin EMS with EPT (Electric Power Throttle)
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Exhaust	Stainless steel silencer with regulated catalytic converter

Performance

Top Speed

202.9 km/h / 126 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC multi-disc wet clutch, hydraulically operated
Gearbox	6 Speed
Primary Drive Ratio	36:79
Gear Ratios	1st 14:35 / 2nd 16:28 / 3rd 21:28 / 4th 21:23 / 5th 23:22 / 6th 23:20
Final Drive	Chain X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery	12 V / 11.2 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Chromoly trellis frame, powder-coated, aluminium sub frame
Front Suspension	WPUpside-down forks, 4860 ROMA
Front Suspension Travel	5.5 inches / 140 mm
Rear Suspension	WPmonoshock, 4618 with Pro-lever deflector
Rear Suspension Travel	5.5 inches / 140 mm
Trail	100.7 mm / 3.96 in

Wheels & Brakes

Front Wheel/Rim Size	Cast aluminium wheels 3.5 x 17″
Front Tire Size	120/70 – R17
Rear Wheel/Rim Size	Cast aluminium wheels 5.5 x 17″
Rear Tire Size	160/60 – R17
Front Brakes	Single320 mm floating disc, radially screwed four-piston brake caliper
Rear Brakes	Single240 mm floating disc, single piston caliper

Dimension & Weights

Seat Height	34 inches / 865 mm
Ground Clearance	155 mm / 6.1 in
Fuel Tank Capacity	3.6 US gallons / 13.5 L
Dry Weight	148.5 kg / 327 in

Features

Single-cylinder 690cc engine
70 horsepower output
Weight: 148.5kg/327lbs (dry)
51.6lb-ft torque output
WP suspension
All-black fork
Firmer spring rates
Orange frame
Mostly white graphics
Carbon fender
Orange wheel stripes
Blacked-out components
Single 320mm disc with Brembo radial-mount four-piston callipers at the front
240mm rear disc
Six-speed gearbox
Wide handlebars
Stiff steel tube trellis frame
Cast aluminium swingarm
Up-rated front fork
