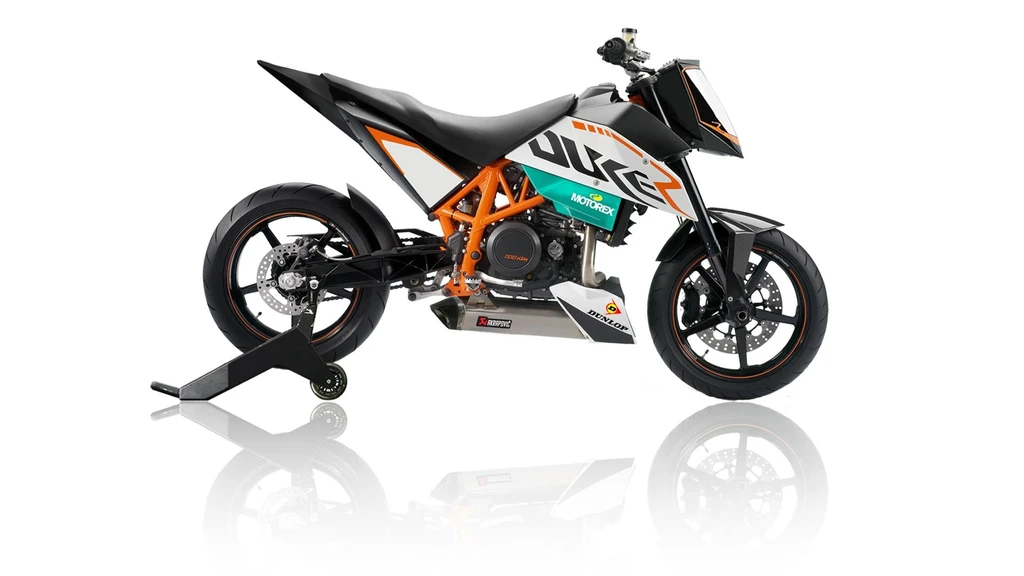

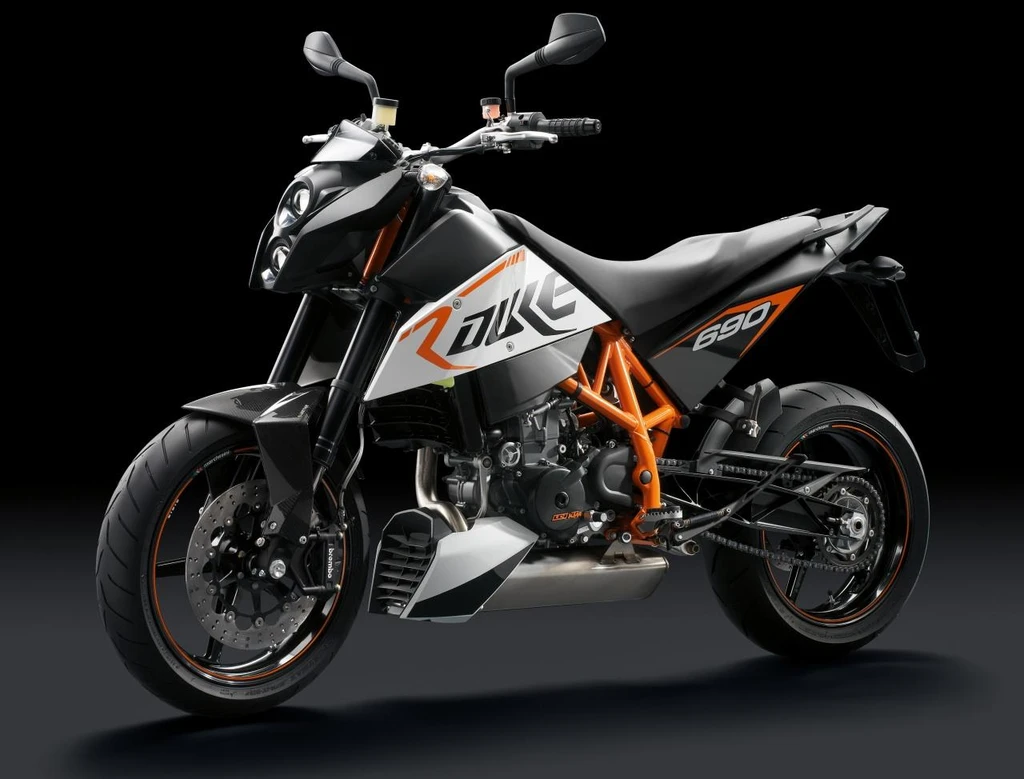

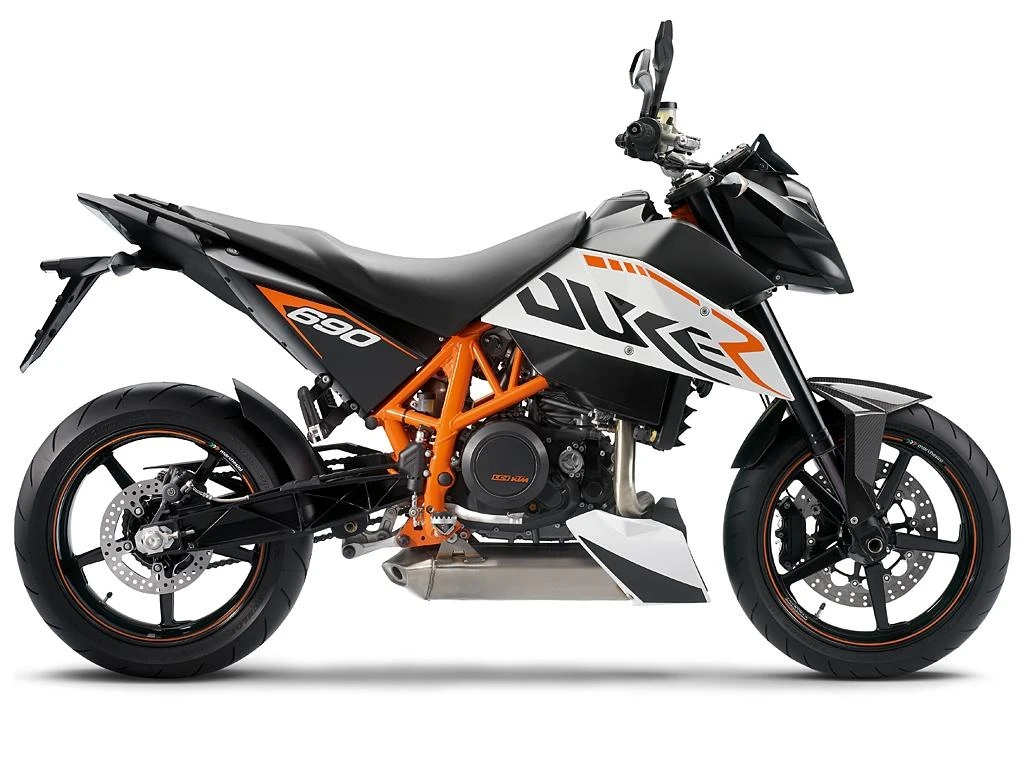

KTM 690 Duke R (2010)

The 2010 KTM 690 Duke R is a tantalizing prospect for thrill-seeking riders, offering an exhilarating riding experience that’s as raw as it is rewarding. Its potent single-cylinder engine, displacing a genuine 690cc, unleashes a burst of 70 horsepower that’s perfect for exiting tight corners with precision and panache.

Weighing a mere 148.5kg, this potent yet lithe machine is an absolute blast to ride, with its high-spec WP suspension and slick six-speed gearbox making light work of even the most twisty roads.

The 690 Duke R’s aggressive makeover, featuring an orange frame, carbon fender, and blacked-out components, is matched only by its unbridled enthusiasm for the ride. With its razor-sharp handling and unapologetic engine character, this bike is an antidote to the bland, poseur-friendly sportsbikes that dominate the market. The KTM 690 Duke R is the ultimate tool for riders who crave a truly special motorcycle experience.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity	690 cc / 42.1 cu in
Max Power	52.2 kw / 70 hp
Max Torque	69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Fuel Tank Capacity	3.6 US gallons / 13.5 L
Seat Height	34 inches / 865 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 690 Duke R
Year	2010

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Displacement	690 cc / 42.1 cu in
Bore x Stroke	102×84.5mm
Compression Ratio	12.5:1
Max Horsepower	52.2 kw / 70 hp
Max Torque	69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Engine Management System	Generation Keihin EMS with EPT (Electric Power Throttle)
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Exhaust	Stainless steel silencer with regulated catalytic converter

Performance

Top Speed

202.9 km/h / 126 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC multi-disc wet clutch, hydraulically operated
Gearbox	6 Speed
Primary Drive Ratio	36:79
Gear Ratios	1st 14:35 / 2nd 16:28 / 3rd 21:28 / 4th 21:23 / 5th 23:22 / 6th 23:20
Final Drive	Chain X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery	12 V / 11.2 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Chromoly trellis frame, powder-coated, aluminium sub frame
Front Suspension	WPUpside-down forks, 4860 ROMA
Front Suspension Travel	5.5 inches / 140 mm
Rear Suspension	WPmonoshock, 4618 with Pro-lever deflector
Rear Suspension Travel	5.5 inches / 140 mm
Trail	100.7 mm / 3.96 in

Wheels & Brakes

Front Wheel/Rim Size	Cast aluminium wheels 3.5 x 17″
Front Tire Size	120/70 – R17
Rear Wheel/Rim Size	Cast aluminium wheels 5.5 x 17″
Rear Tire Size	160/60 – R17
Front Brakes	Single320 mm floating disc, radially screwed four-piston brake caliper
Rear Brakes	Single240 mm floating disc, single piston caliper

Dimension & Weights

Seat Height	34 inches / 865 mm
Ground Clearance	155 mm / 6.1 in
Fuel Tank Capacity	3.6 US gallons / 13.5 L
Dry Weight	148.5 kg / 327 in

Features

690cc single-cylinder engine
70bhp power output
51.6lb-ft torque output
148.5kg/327lbs dry weight
WP suspension
All-black fork
Slightly firmer spring rates
Orange frame
Mostly white graphics
Carbon fender
Orange wheel stripes
Blacked-out components
Single-cylinder engine
6-speed gearbox
Light weight
High-spec suspension
Slick gearbox
Single 320mm front disc brake
Brembo radial-mount four-piston callipers
240mm rear disc brake
Wide handlebars
Cast aluminium swingarm
Stiff steel tube trellis frame
