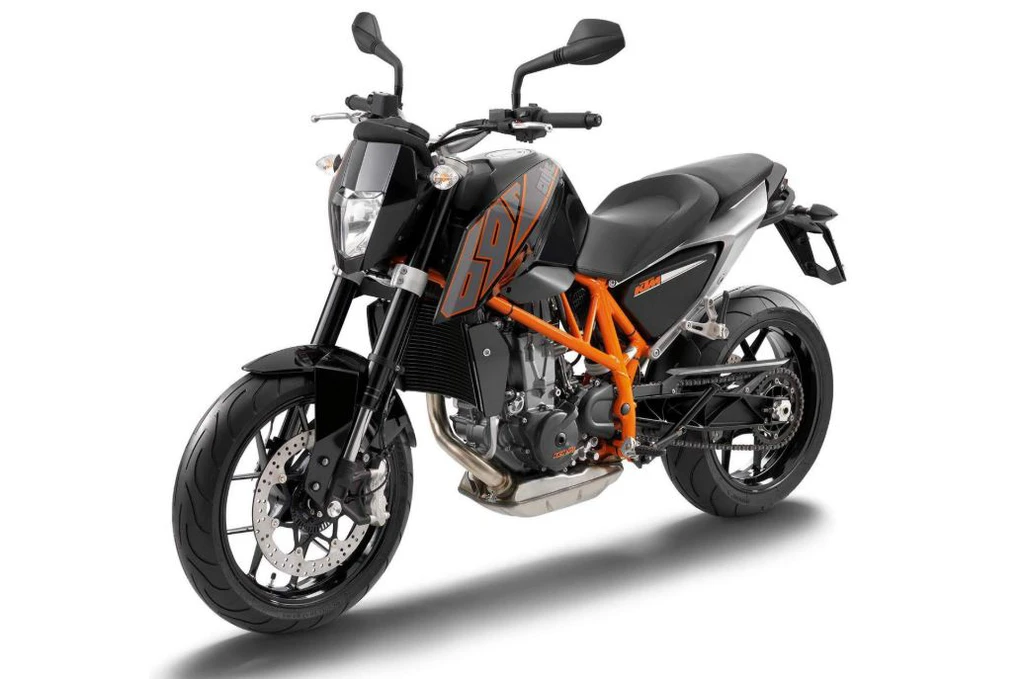

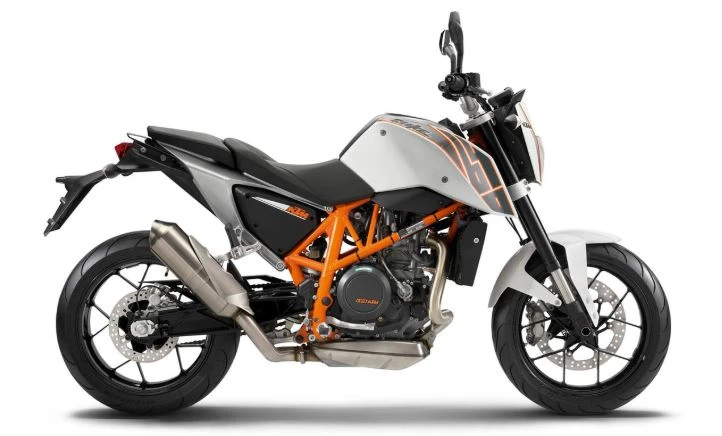

The 690 Duke is a testament to KTM’s commitment to preserving the raw, unbridled essence of a single-cylinder motorcycle.
While it has gained smoothness, increased passenger capacity, and improved long-distance capabilities, the 690 Duke has never lost its intense and elemental ride dynamics.
Its cutting-edge LC4 engine boasts 690 cm of displacement, twin ignition, and plug-selective mapping for optimal combustion, along with extended service intervals and reduced fuel consumption.
This potent combination of technology and design results in a riding experience that is both incomparable and unforgettable, making it hard to justify the need for more cylinders.
The 690 Duke delivers 50 kW of power, courtesy of ride-by-wire and a finely balanced crank drive, making it an effortless and thrilling ride.
Key Specifications
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity
690 cc / 42.1 cu in
Max Power
52.2 kw / 70 hp
Max Torque
69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Seat Height
32.9 inches / 835 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 690 Duke
Year
2013
Engine
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Displacement
690 cc / 42.1 cu in
Bore x Stroke
102×84.5mm
Compression Ratio
12.6:1
Max Horsepower
52.2 kw / 70 hp
Max Torque
69.8Nm / 7.1 kgf-m / 51.6 ft-lb@6550 rpm
Engine Management System
Generation Keihin EMS with EPT (Electric Power Throttle)
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Exhaust
Stainless steel silencer with regulated catalytic converter
