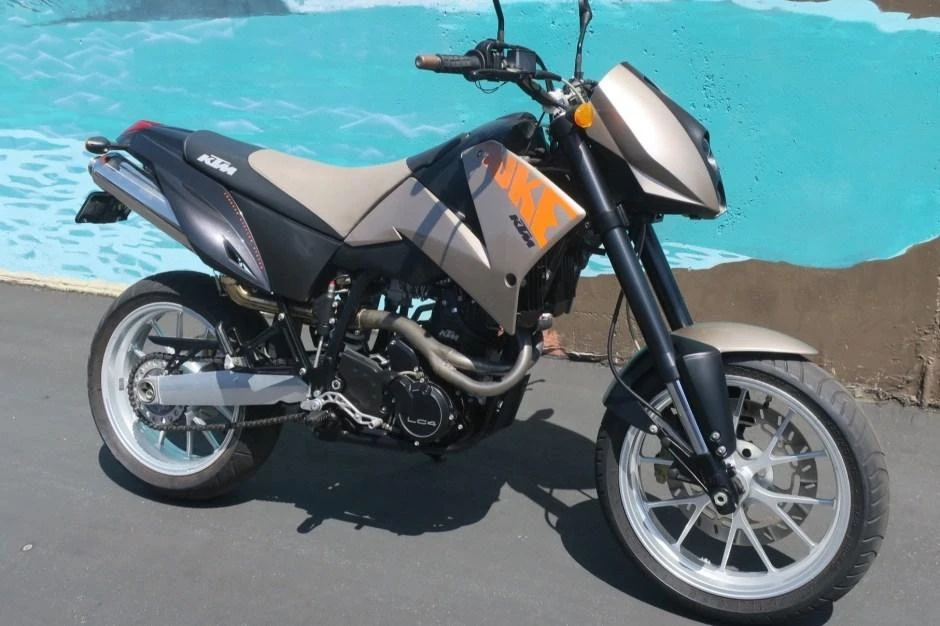

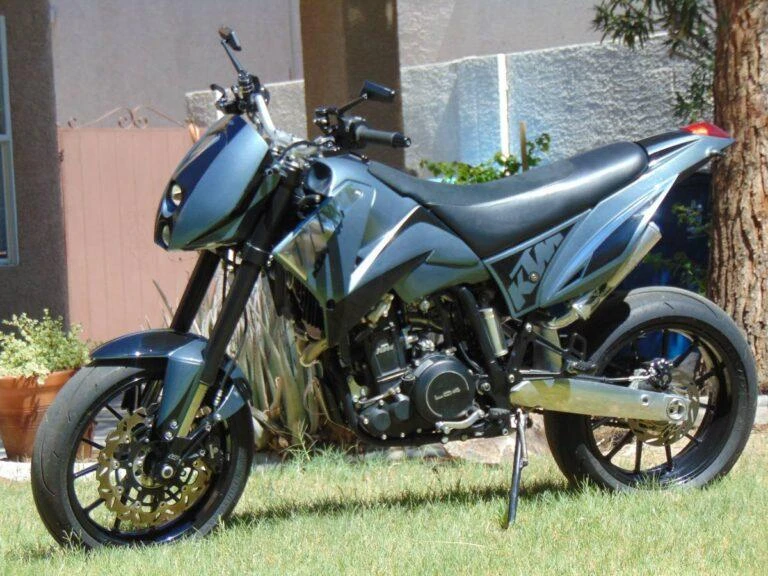

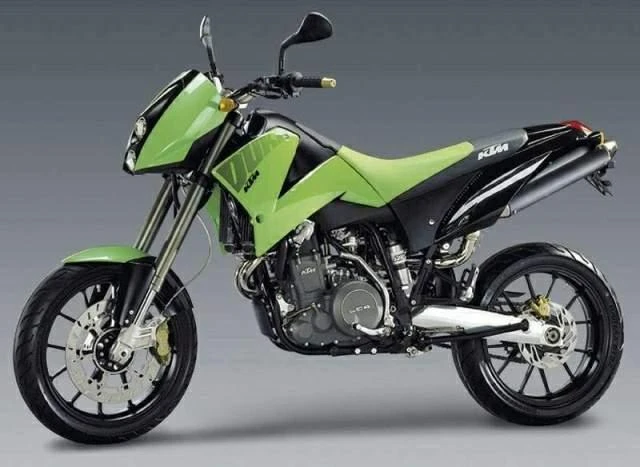

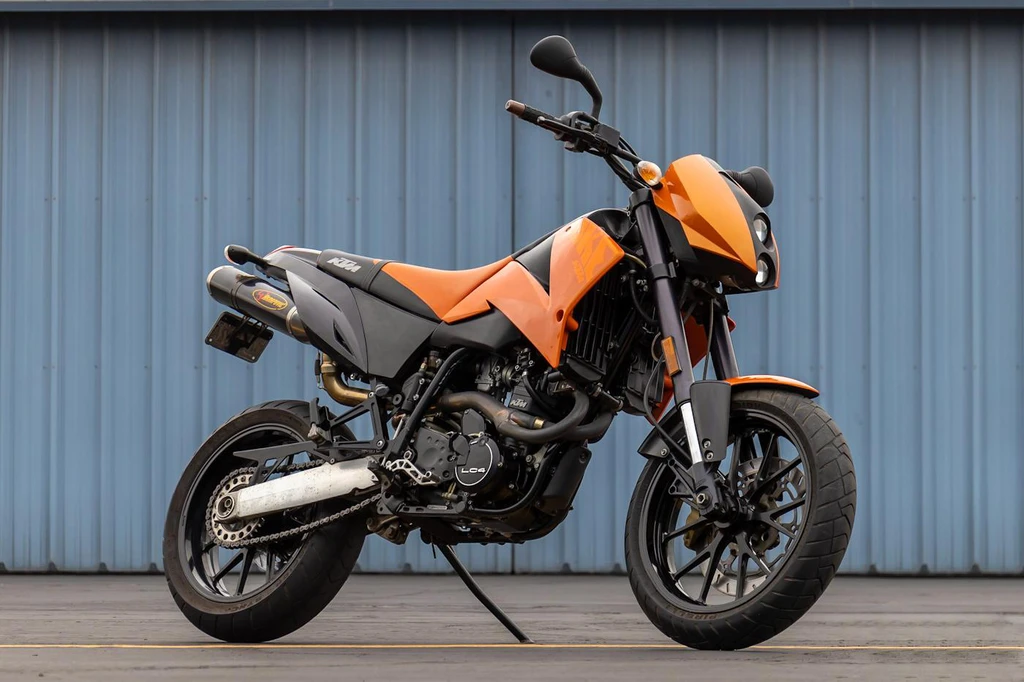

KTM 640 Duke II (2001 – 2002)

KTM 640 Duke II (2001 - 2002)

The KTM 640 Duke II is the latest incarnation of the Austrian manufacturer’s iconic supermotard-styled bike, which has been turning heads since its introduction in the late 1990s. With its potent 624cc four-stroke engine, producing 41kW (55bhp) and a healthy dose of torque, this bike is a thrilling ride that excels in tight, twisty city streets and mountain passes.

Its lightweight steel-tube cradle chassis and WP upside-down forks provide exceptional handling, while the massive 320mm (12.6in) front brake disc and single four-piston Brembo racing caliper deliver incredible stopping power. The 640 Duke II’s aggressive styling, complete with its distinctive twin headlight nosecone and sweeping fuel tank, is sure to turn heads on the road.

But don’t let its on-road prowess fool you – the Duke’s high-specification chassis parts come at a price, making it a costly machine that’s not suited for long trips, thanks to its limited comfort and equipment. Still, for those who crave the ultimate thrill of riding a lightweight, high-performance bike, the KTM 640 Duke II is the ultimate choice, offering an unforgettable riding experience that’s hard to match.

Key Specifications

Engine TypeFour stroke, single Cylinder. SOHC, 4 valves, engine balancer
Engine Capacity624.6 cc / 38.1 cu in
Max Power40.1 kw / 55 hp
Max Torque60 Nm / 6.1 kgf-m / 44.3 lb-ft @ 5500 rpm
Fuel Tank Capacity11.3 L/ 3.0 US gal / 2.4 Imp gal
Seat Height33.9 inches / 860 mm
KTM 640 Duke II (2001 - 2002)

All Specifications

Make & Model

ModelKTM 640 Duke II
Year2001 – 2002

Engine

Engine TypeFour stroke, single Cylinder. SOHC, 4 valves, engine balancer
Displacement624.6 cc / 38.1 cu in
Bore x Stroke101 x 78 mm
Compression Ratio11.5:1
Max Horsepower40.1 kw / 55 hp
Max Torque60 Nm / 6.1 kgf-m / 44.3 lb-ft @ 5500 rpm
Engine Management SystemMikuni BST 40 carburetor
Lubrication System2 x Eaten oil pumps
Cooling SystemLiquid cooled

Performance

Top Speed162 km/h / 101 mph

Transmission

ClutchMulti-disc in oil bath
Gearbox5 Speed
Primary Drive Ratio30:81, straight cut gears
Gear Ratios1st 14:35 / 2nd 15:24 / 3rd 18:21 / 4th 20:19 / 5th 22:18
Final DriveChain, O-ring 5/8 x 1/4″

Electrical & Electronics System

Battery12V 8Ah, maintenance free
StarterElectric & kick

Chassis & Suspension

Frame TypeCentral chrome-moly steel frame
Front SuspensionWP – 4054 Roma Top adjuster, preload, compression and rebound adjustable
Rear SuspensionCentral shock absorber WP IBS with PRO-LEVER linkage to rear- swing-arm with needle bearing
Trail62.5o

Wheels & Brakes

Front Tire Size120/70 – ZR17 58H
Rear Tire Size160/60 – ZR17 69H
Front BrakesSingle 320 mm disc, 4 piston caliper
Rear BrakesSingle 220 mm disc, 1 piston caliper

Dimension & Weights

Seat Height33.9 inches / 860 mm
Wheelbase57.5 inches / 1460 mm
Ground Clearance250 mm / 9.9 in
Fuel Tank Capacity11.3 L/ 3.0 US gal / 2.4 Imp gal
Dry Weight145 kg / 320lbs

Features

  • Four-stroke single-cylinder engine
  • SOHC (Single Overhead Camshaft)
  • 4 valves
  • Engine balancer
  • 610cc engine in original Duke
  • 624cc engine in latest Duke
  • 41kW (55bhp) power
  • 145kg (3201b) mass
  • WP upside-down forks
  • WP monoshock
  • BBS 43cm (17in) cast wheels
  • Sportsbike tyres
  • 320mm (12.6in) front brake disc
  • Single four-piston Brembo racing caliper
  • Twin headlight design
  • Sweeping fuel tank
  • Long travel suspension
  • Quick steering
  • Amazing brakes
  • High-specification chassis parts
