KTM 450 Rally (2013)

KTM 450 Rally (2013)

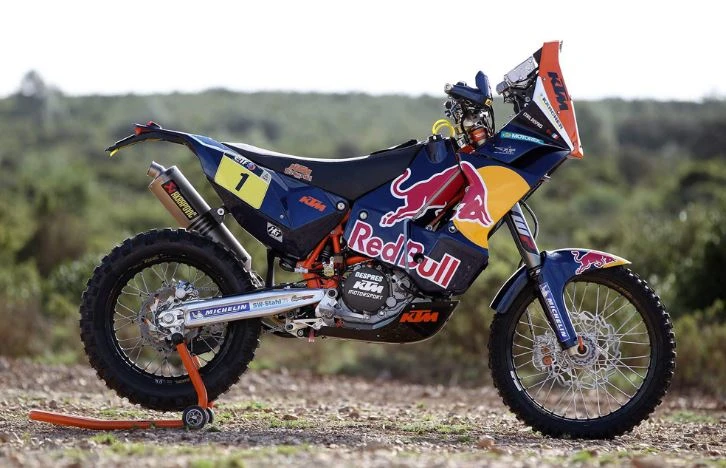

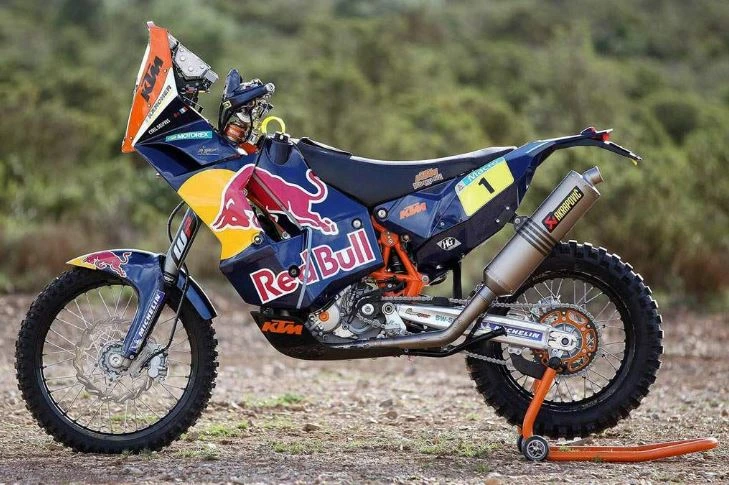

The KTM 450 Rally is a behemoth of a motorcycle, born from the intense competition of the Dakar Rally and forged with the singular goal of winning. This is a bike that’s been battle-hardened by the likes of Marc Coma and Cyril Despres, and it shows in its impressive spec sheet: a 450cc carburetted single-cylinder engine, a chrome-molybdenum chassis, and top-shelf suspension and brakes.

But what truly sets the KTM 450 Rally apart is its engine character – a raw, unbridled power that’s more akin to a rally car than a motorcycle. The 5-speed gearbox and multi-disc hydraulically operated wet clutch only add to the sense of urgency, as does the bike’s lightweight 145kg dry weight.

As I take the KTM 450 Rally out for a spin, I’m immediately struck by the sense of freedom and exhilaration that comes with riding a bike with no fairings or screens to get in the way. The bike’s 21-inch front wheel and 18-inch rear wheel carve through the road with ease, and the WP suspension soaks up bumps with aplomb.

The KTM 450 Rally is a true competition machine, built to win the toughest rallies on Earth – and now it’s yours to own, for a cool €25,000.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves per cylinder
Engine Capacity449.3 cc / 27.4 in
Fuel Tank Capacity35 L / 9.2 US gal / 7.7 Imp gal
Seat Height38.5 inches / 980 mm
KTM 450 Rally (2013)

All Specifications

Make & Model

ModelKTM 450 Rally
Year2013

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves per cylinder
Displacement449.3 cc / 27.4 in
Bore x Stroke97 x 60.9 mm
Compression Ratio12.5:!
Engine Management SystemKeihin FCR-MX 41
Cooling SystemLiquid Cooled

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, hydraulically operated
Gearbox5Speed
Primary Drive Ratio29:74
Gear Ratios1st 14:35 / 2nd 17:33 / 3rd 19:30 / 4th 21:28 / 5th 23:26
Final DriveChain, 5/8 x 1/4″

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder coatedSubframe Self-supporting plastic tankHandlebar Aluminium, tapered, 28 / 22 mm
Front SuspensionWP-USD 48 mm
Front Suspension Travel11.9 inches / 300 mm
Rear SuspensionWP-Monoshock with Pro-Lever linkage
Rear Suspension Travel12.2 inches / 310 mm
Trail62.5o

Wheels & Brakes

Front Tire Size90/90 – 2154S TT, Michelin T63
Rear Tire Size130/80 – 18 66S TT, Michelin T63
Front BrakesSingle 300 mm disc, Brembo two-piston, floating caliper
Rear BrakesSingle 240 mm disc, 1 piston, floating caliper

Dimension & Weights

Seat Height38.5 inches / 980 mm
Wheelbase60.4 inches / 1535 mm
Ground Clearance320 mm / 12.6 in
Fuel Tank Capacity35 L / 9.2 US gal / 7.7 Imp gal
Dry Weight145 kg / 320 lbs

Features

  • 48mm USD fork
  • Fully adjustable monoshock from WP
  • 5-speed gearbox
  • Multi-disc hydraulically operated wet clutch
  • 300mm front brake disc
  • 250mm rear brake disc
  • 12-litre fuel tank
  • 21-inch front wheels
  • 18-inch rear wheels
  • Chrome-molybdenum chassis
  • Single-cylinder engine with carburettor
  • Weighs 145kg without fuel
  • 30 litres of fuel capacity
  • Top speed not mentioned
