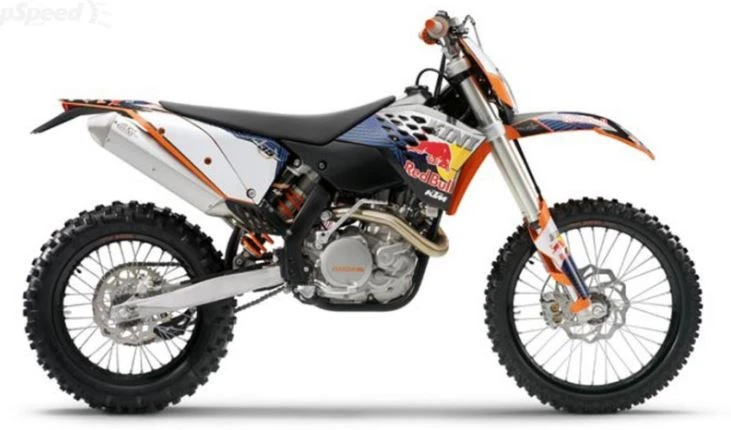

KTM 450 EXCLimited Champions Edition (2009)

KTM 450 EXCLimited Champions Edition (2009)

KTM’s storied history in motorsports is a testament to its unwavering commitment to excellence, with an impressive 160+ World Championship titles amassed over the past 35 years.

The journey began in 1974, when Russian rider Gennadij Moiseev secured KTM’s first 250cc World Championship title, marking the starting point of an unparalleled success story that has captivated the world of motorsports.

This summer, KTM is proud to introduce the limited Champions Edition motorcycle, designed to honor the past champions who have helped shape the brand’s legacy. Influenced by the racing design of two-time Motocross World Champion Heinz Kinigadner, the Champions Edition bike boasts a distinctive look, complete with a Red Bull Kini Graphics kit, headlight and taillight package, and an array of KTM PowerParts items that truly set it apart from standard models.

The heart of the Champions Edition bike is its powerful, four-stroke, single-cylinder engine, delivering a thrilling riding experience that embodies the spirit of KTM’s championship-winning heritage.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves per cylinder
Engine Capacity27.42 cubic inches / 447.9 cc
Fuel Tank Capacity9.0 L / 2.4 US gal / 2.0 Imp gal
Seat Height38.7 inches / 970 mm

All Specifications

Make & Model

ModelKTM 450 EXCLimited Champions Edition
Year2009

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves per cylinder
Displacement27.42 cubic inches / 447.9 cc
Bore x Stroke89 x 72 mm
Compression Ratio11.9:1
Engine Management SystemKeihin MX FCR 39 carburetor
Lubrication SystemPressure lubrication with 2 rotor pumps

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Gear Ratios1st 14:34 / 2nd 17:31 / 3rd 19:28 / 4th 22:26 / 5th 24:23 / 6th 26:21
Final DriveChain, X ring, 5.8 x 1/4″

Electrical & Electronics System

Battery12V 8Ah, maintenance free
StarterElectric & kick

Chassis & Suspension

Frame TypeCentral tube chrome-moly-steel frame
Front SuspensionWP 4860 MA upside-down fork
Front Suspension Travel11.8 inches / 300 mm
Rear SuspensionWP-PDS shock absorber, aluminium swingarm
Rear Suspension Travel13.2 inches / 335 mm

Wheels & Brakes

Front Tire Size90/90 – 21
Rear Tire Size140/80 – 18
Front BrakesSingle 260 mm disc, floating caliper
Rear BrakesSingle 220mm disc, floating caliper

Dimension & Weights

Seat Height38.7 inches / 970 mm
Wheelbase58.3 inches / 1481 mm
Ground Clearance380 mm / 15.0 in
Fuel Tank Capacity9.0 L / 2.4 US gal / 2.0 Imp gal
Dry Weight113.5 kg / 250.2 lbs

Features

  • Four stroke engine
  • Single cylinder
  • SOHC design
  • 4 valves per cylinder
  • Red Bull Kini Graphics kit
  • Headlight package
  • Taillight package
  • Skid plate
  • Front axle pull
  • Black shrouds
  • Billet fuel cap
  • KTM PowerParts items
  • Racing design
  • Limited edition bike
  • Unparalleled motorsports success story
  • Celebrates 160+ World Championship titles
  • Inflenced by Heinz Kinigadner’s design
