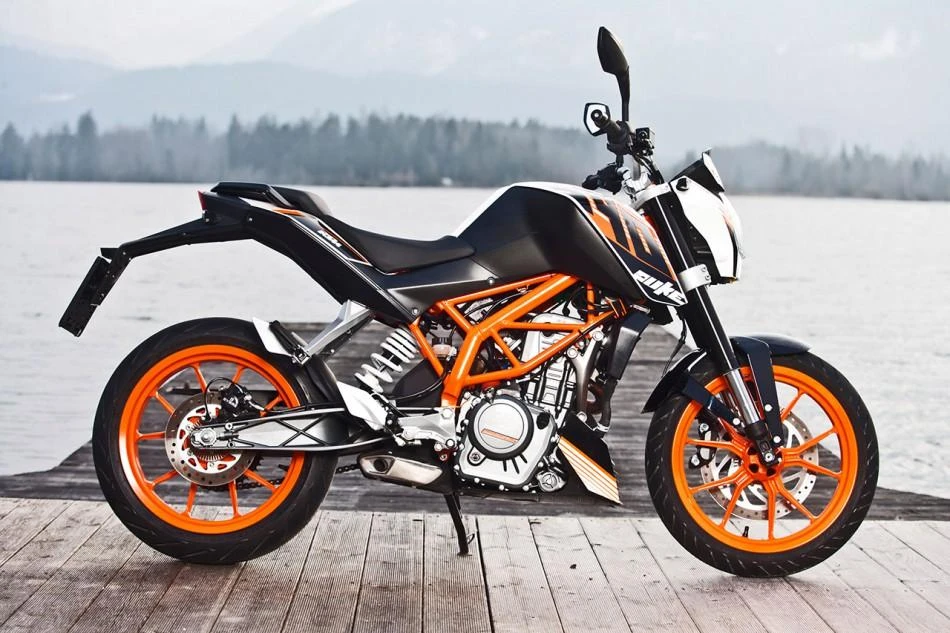

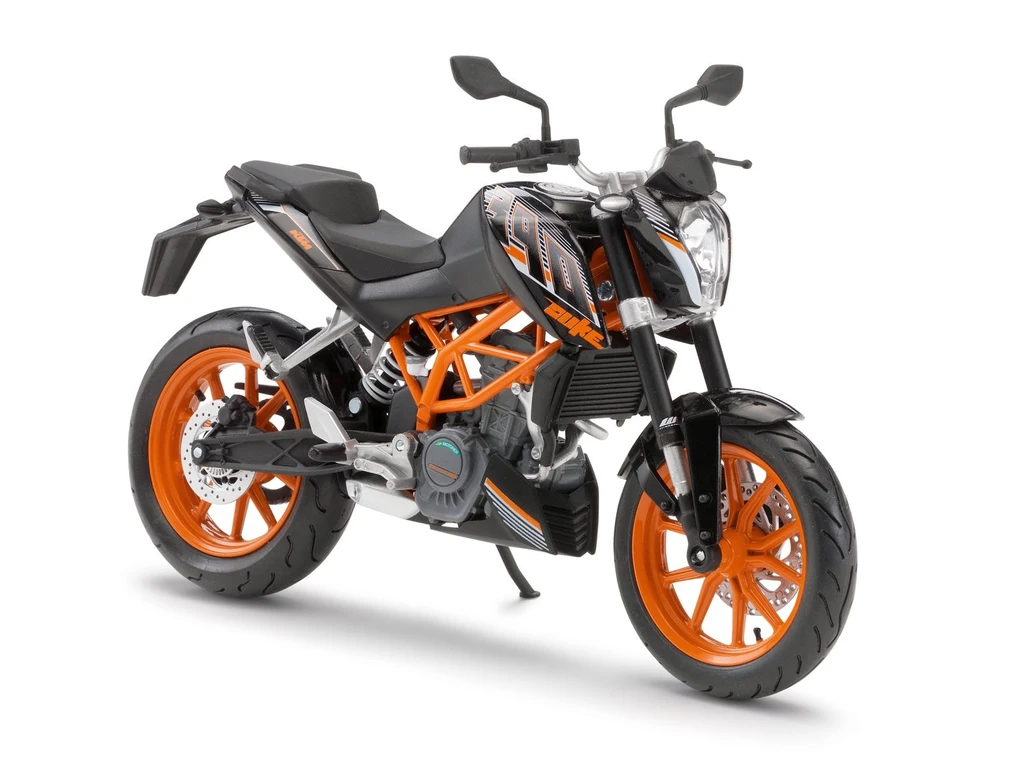

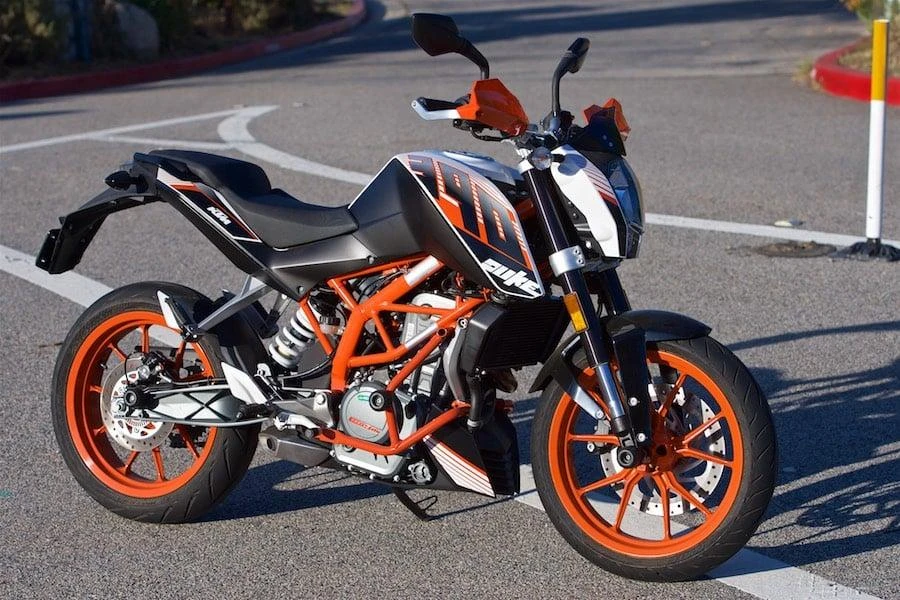

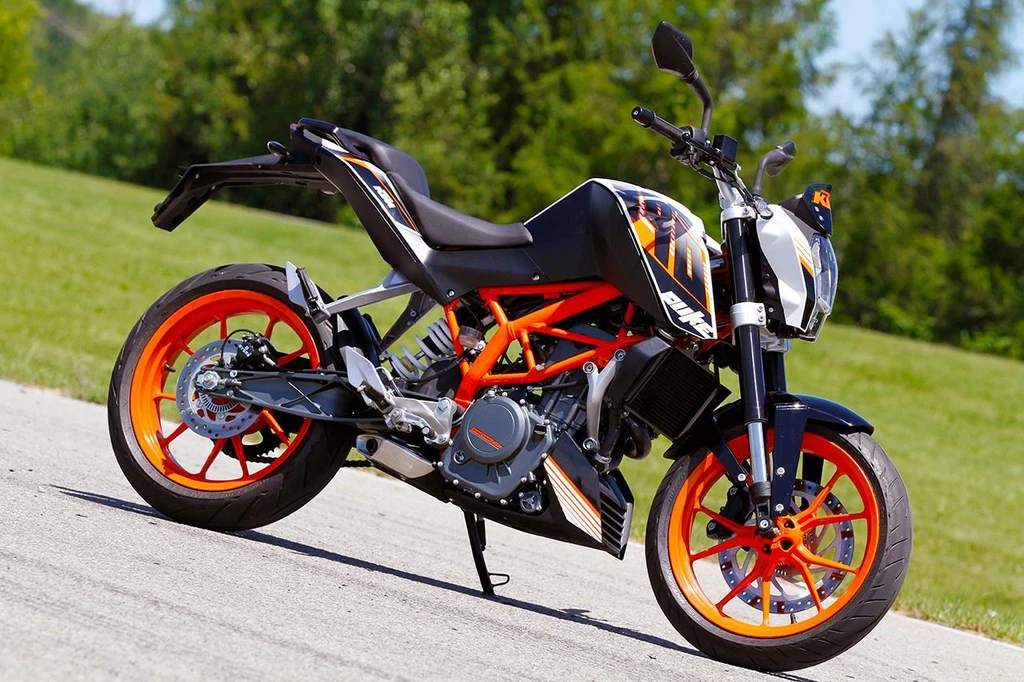

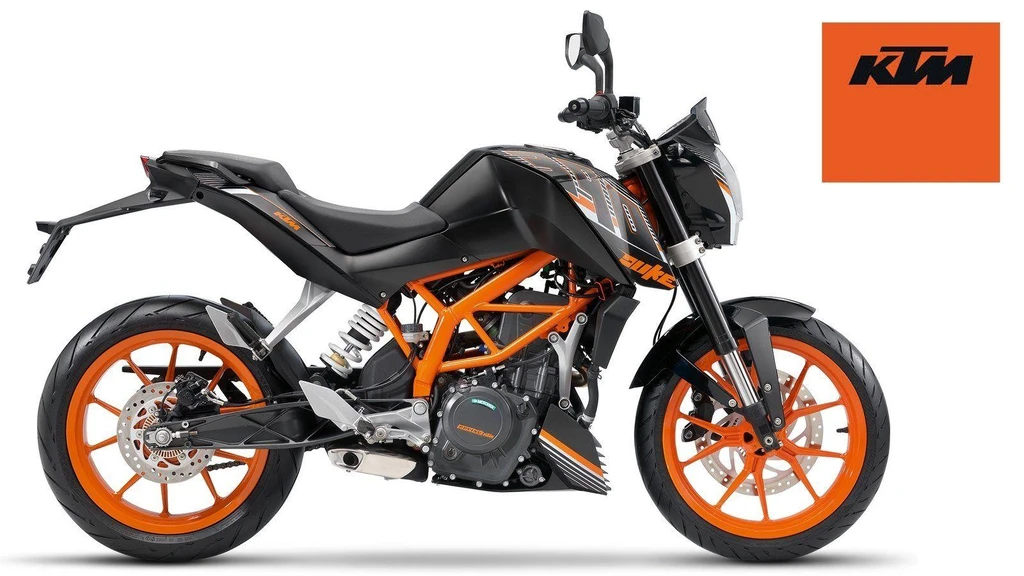

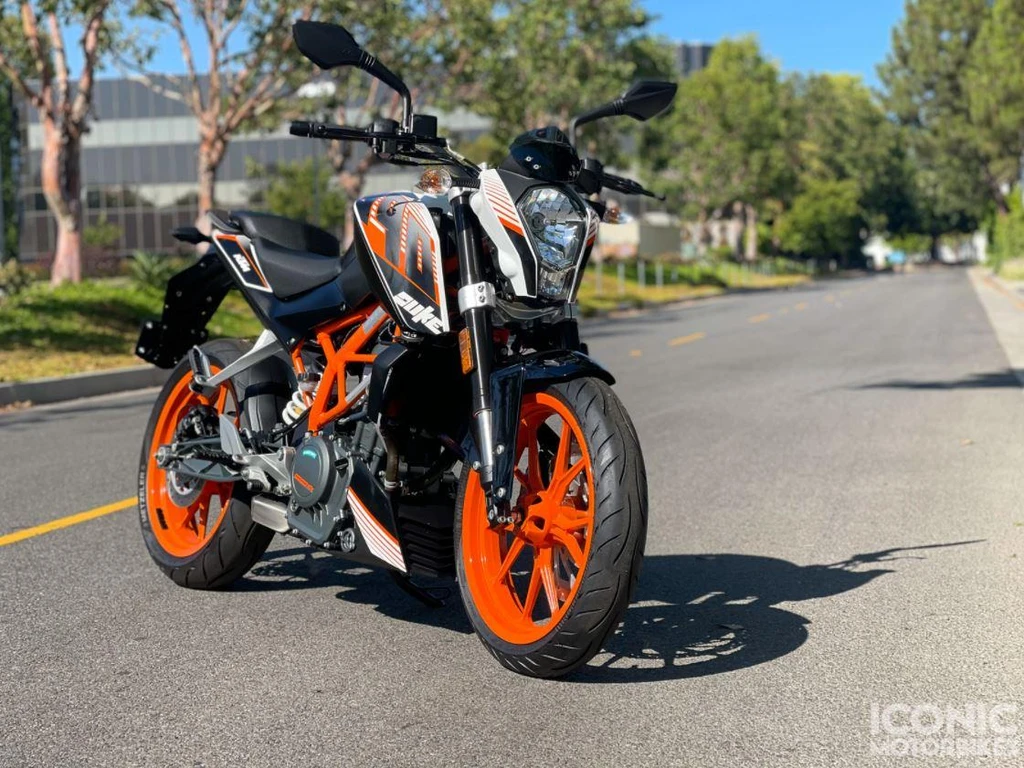

KTM 390 Duke (2015 – 2016)

KTM 390 Duke (2015 - 2016)

The KTM 390 Duke is a masterclass in minimalist engineering, distilling the essence of a great motorcycle into a lean, mean machine that demands your attention on the road. This potent 375cc four-stroke single cylinder engine, boasting 44 horsepower, is a marvel of compact design, weighing in at just 36 kilograms.

The engine’s character is that of a smooth, responsive powerplant that’s perfect for carving up twisty roads or cruising around town. With a strong mid-range and plenty of torque, the 390 Duke is a joy to ride, and its agility is simply unmatched. Whether you’re a seasoned rider or just starting out, this bike is sure to put a smile on your face.

In short, the KTM 390 Duke is a game-changer, offering more riding fun for your money than almost any other bike on the market. Its lightweight, agile chassis and potent engine make it the perfect choice for anyone looking for a thrilling, affordable ride. And with its place in the Duke family, it’s clear that KTM is committed to building bikes that are both exhilarating and accessible. The KTM 390 Duke is an absolute must-ride for anyone who loves the thrill of the open road.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Engine Capacity22.7 cubic inches / 373.4 cc
Max Power32 kw / 43.5 hp
Max Torque35.3 Nm / 3.6 kg-m / 26 ft-lb @7000rpm
Fuel Tank Capacity11 L / 2.9 US gal / 2.4 Imp gal
Seat Height31.4 inches / 800 mm
KTM 390 Duke (2015 - 2016)

All Specifications

Make & Model

ModelKTM 390 Duke
Year2015 – 2016

Engine

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Displacement22.7 cubic inches / 373.4 cc
Bore x Stroke89 x 60 mm
Compression Ratio12.8:1
Max Horsepower32 kw / 43.5 hp
Max Torque35.3 Nm / 3.6 kg-m / 26 ft-lb @7000rpm
Engine Management SystemBosch electronically controlled injection
Lubrication SystemForced oil lubrication with 2 Eaton pumps
Cooling SystemLiquid Cooled

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, Brembo hydraulics
Gearbox6 Speed, claw shifted
Primary Drive Ratio30:80
Gear Ratios1st 12:32 / 2nd 14:26 / 3rd 19:27 / 4th 21:24 / t5th 23:22 / 6th 25:21
Final DriveChain 5/8 x 1/4″ X Ring

Electrical & Electronics System

BatteryFTZ-9, 12V 8Ah, maintenance free
StarterElectric

Chassis & Suspension

Frame TypeSteel trellis
Front SuspensionWP inverted fork 43 mm
Front Suspension Travel5.9 inches / 150 mm
Rear SuspensionWP monoshock
Rear Suspension Travel5.9 inches / 150 mm
Trail100 mm / 3.8 in

Wheels & Brakes

Front Tire Size110/70 – ZR17 M/C 54W TL, Metzeler SPORTEC MS
Rear Tire Size150/70 – ZR17 M/C 66W TL, Metzeler SPORTEC MS
Front BrakesSingle300 mm disc, 4 piston radial caliper
Rear BrakesSingle230 mm disc, 1 piston floating caliper

Dimension & Weights

Seat Height31.4 inches / 800 mm
Wheelbase53.8 inches / 1367 mm
Ground Clearance172 mm / 6.8 in
Fuel Tank Capacity11 L / 2.9 US gal / 2.4 Imp gal
Dry Weight139 kg / 306 lbs

Features

  • Four stroke, single cylinder, DOHC with finger followers
  • 4 valves per cylinder
  • 375 cc displacement
  • 44 hp power output
  • Low weight, under 150 kg fully fuelled
  • Ultra-light trellis frame
  • Cast aluminium swingarm
  • WP Suspension components
  • Brembo disc brakes
  • Disengageable 9MB ABS by Bosch
  • Power enhancing force feed lubrication
  • Crank case evacuation
  • Forged piston
  • Nikasil-coated cylinder
  • Compact design
  • Typical KTM styling
  • Affordable price, $6995 plus on road costs
  • Produced in India with Bajaj Auto
  • Reduced production costs
  • Enhanced chassis for extra power
