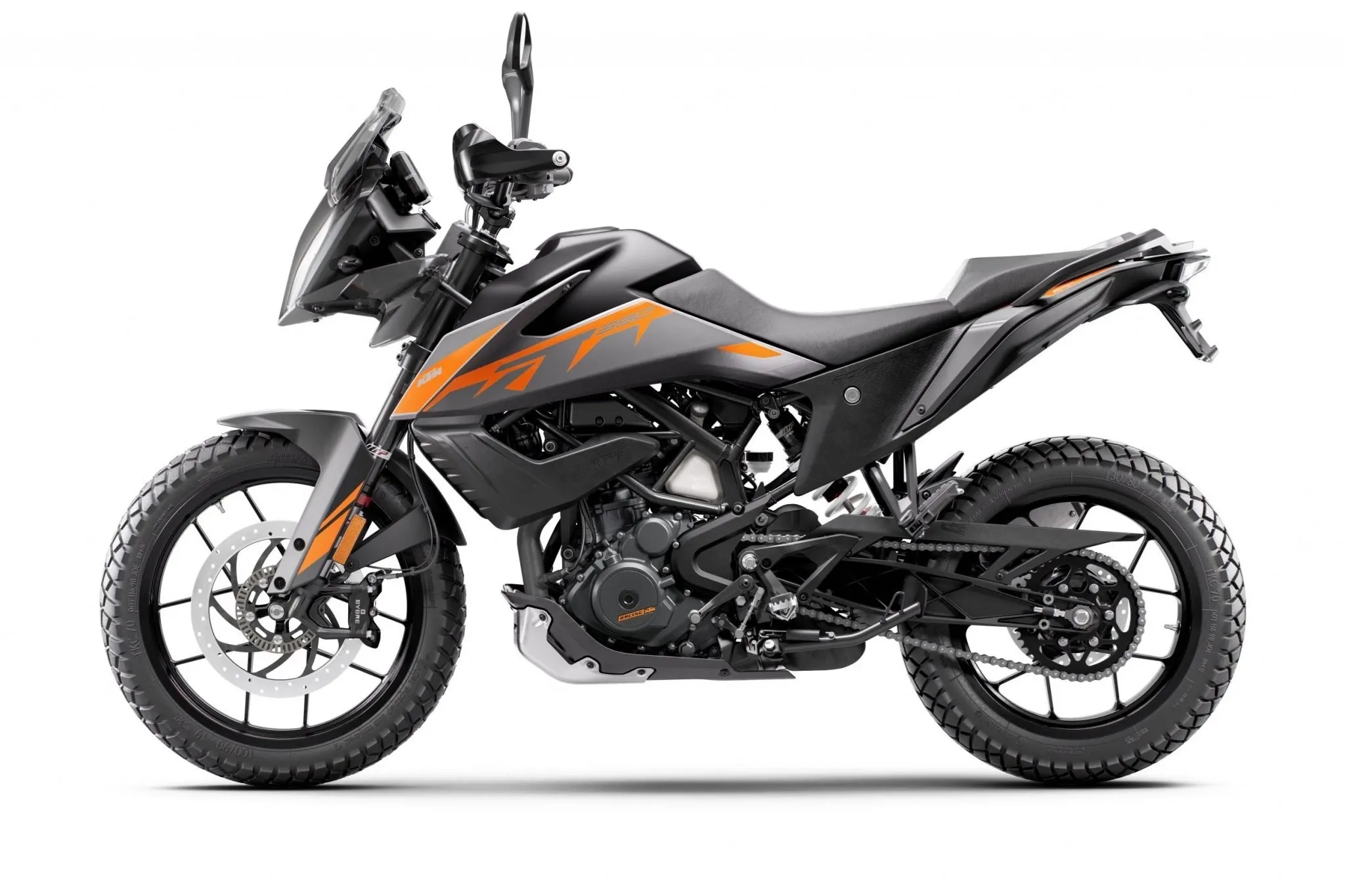

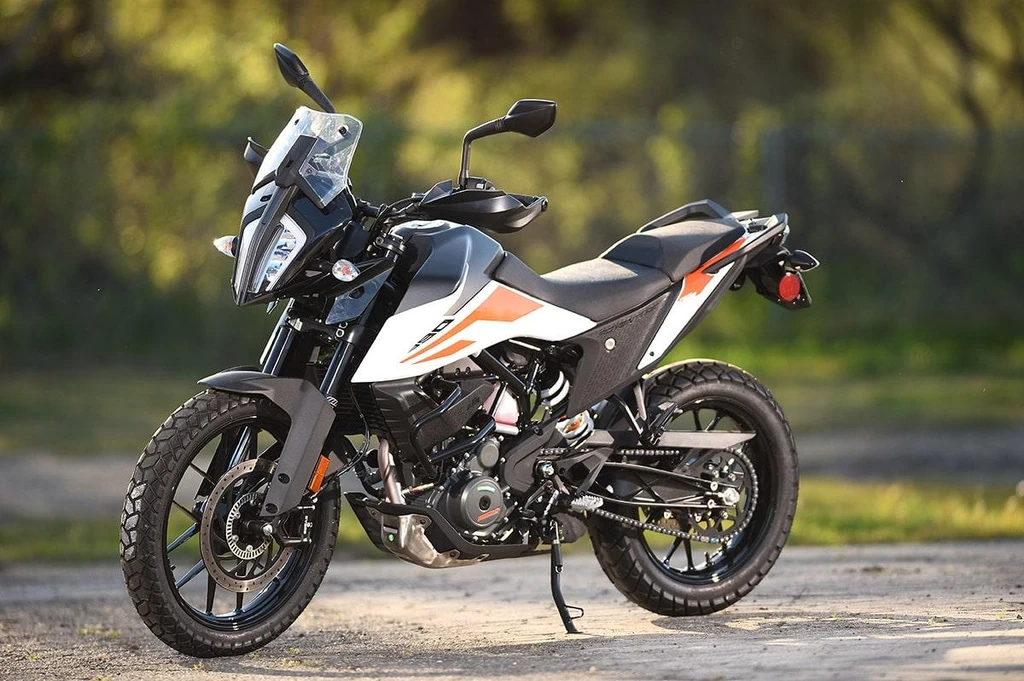

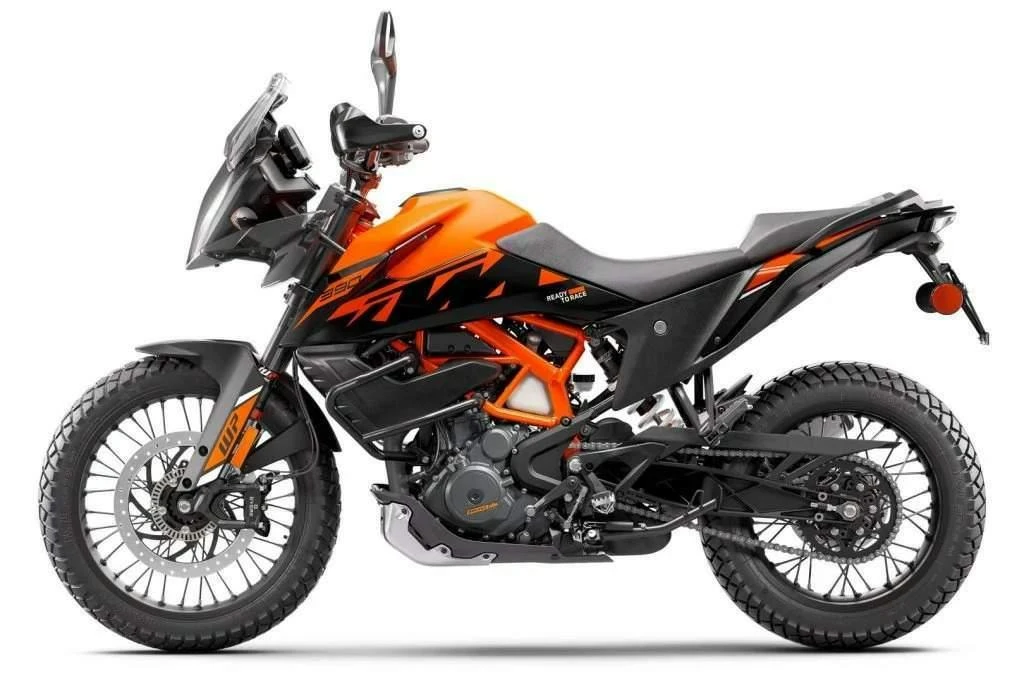

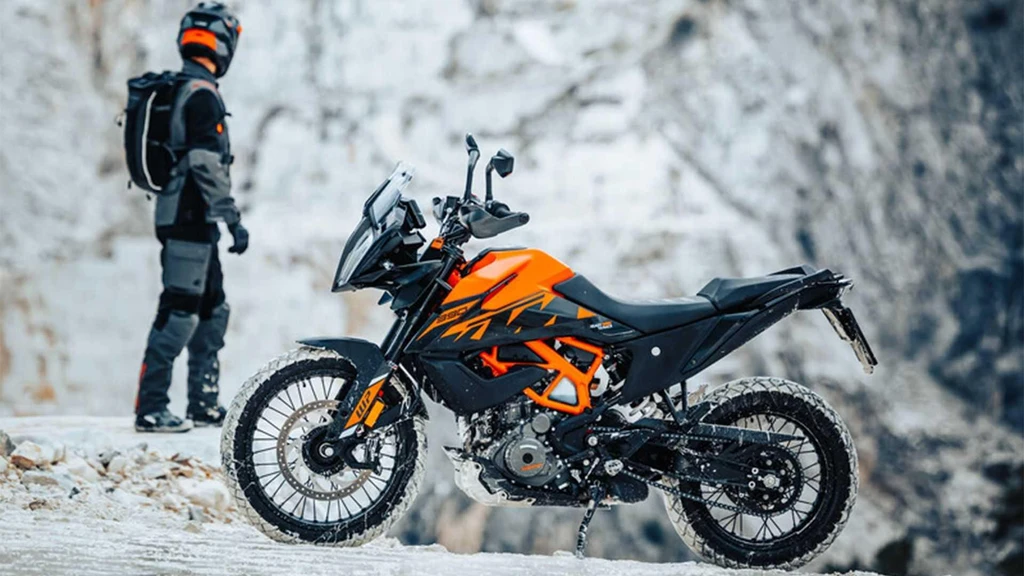

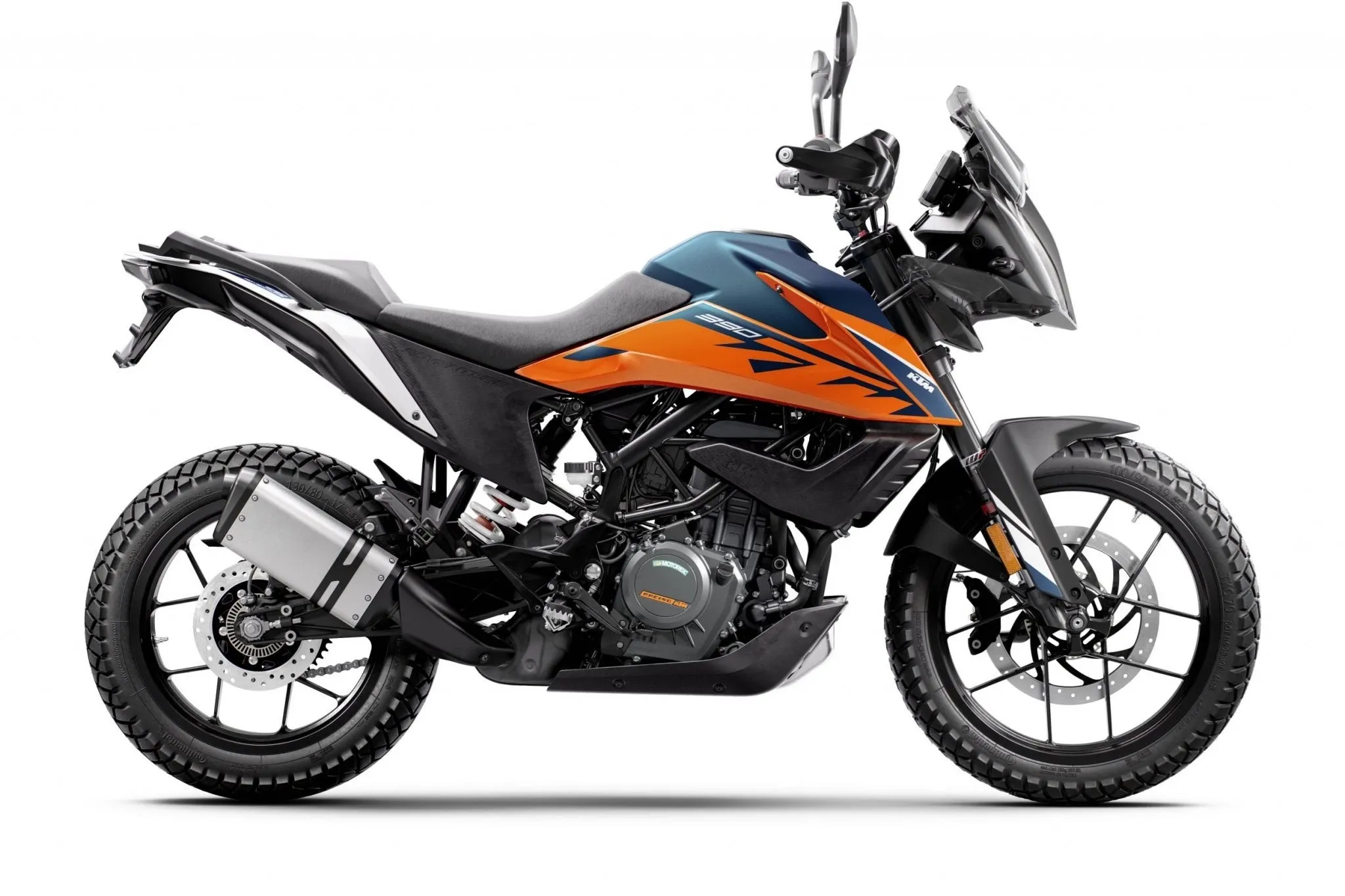

The 2023 KTM 390 Adventure is a masterclass in versatility and performance. Its potent 373cc single-cylinder engine, boasting 44 Nm of torque and 43 hp, is a marvel of engineering, delivering a thrilling riding experience that’s as at home on the highway as it is on the dirt.
With its lightweight steel trellis frame and WP APEX shock absorber, this bike is designed to devour any terrain that comes its way. The Bosch 9.1 MP package brings with it Cornering-ABS and off-road mode, making it the perfect companion for both seasoned adventurers and new riders alike.
Whether you’re commuting through the city or exploring the great outdoors, the KTM 390 Adventure is the ultimate all-rounder, offering a unique blend of power, handling, and usability that’s sure to leave you grinning from ear to ear, every time you ride.
Key Specifications
Engine Type
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Engine Capacity
22.7 cubic inches / 373 cc
Max Power
44hp/ 32.8 kW@9000rpm
Max Torque
27.2 ft-lb / 37 nm
Fuel Tank Capacity
3.8 US gallons / 14.5 L
Weight (Wet/Kerb)
379 lbs / 172 kg
Seat Height
32.6 inches / 855 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 390 Adventure
Year
2023
Engine
Engine Type
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Displacement
22.7 cubic inches / 373 cc
Bore x Stroke
89 x 60 mm
Compression Ratio
12.6:1
Max Horsepower
44hp/ 32.8 kW@9000rpm
Max Torque
27.2 ft-lb / 37 nm
Engine Management System
Bosch EFI throttle body 38 mm
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Exhaust
Stainless steel primary and aluminium secondary silencer
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
PASC antihopping clutch, mechanically operated
Gearbox
6 Speed
Primary Drive Ratio
30:80
Final Drive
Chain X-Ring 520
Electrical & Electronics System
Starter
Electric
ABS
Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
