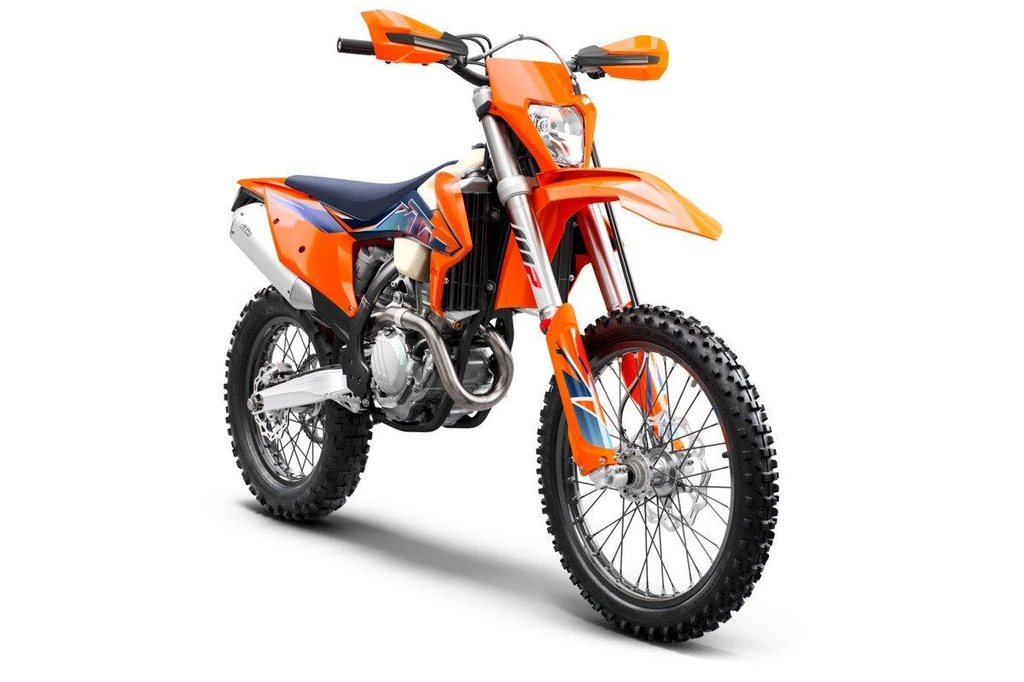

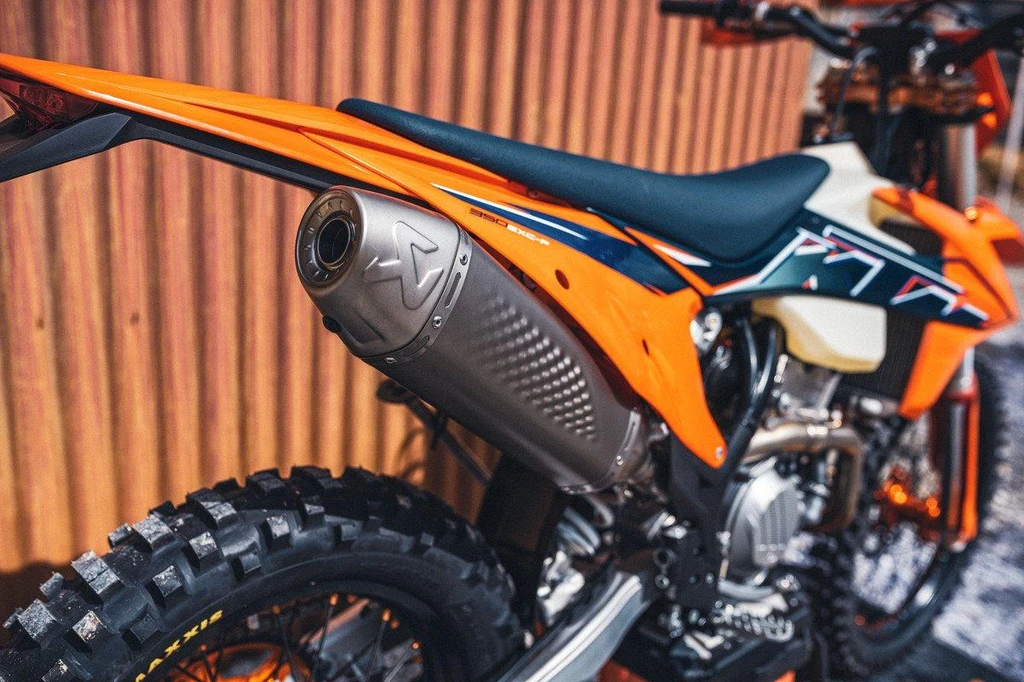

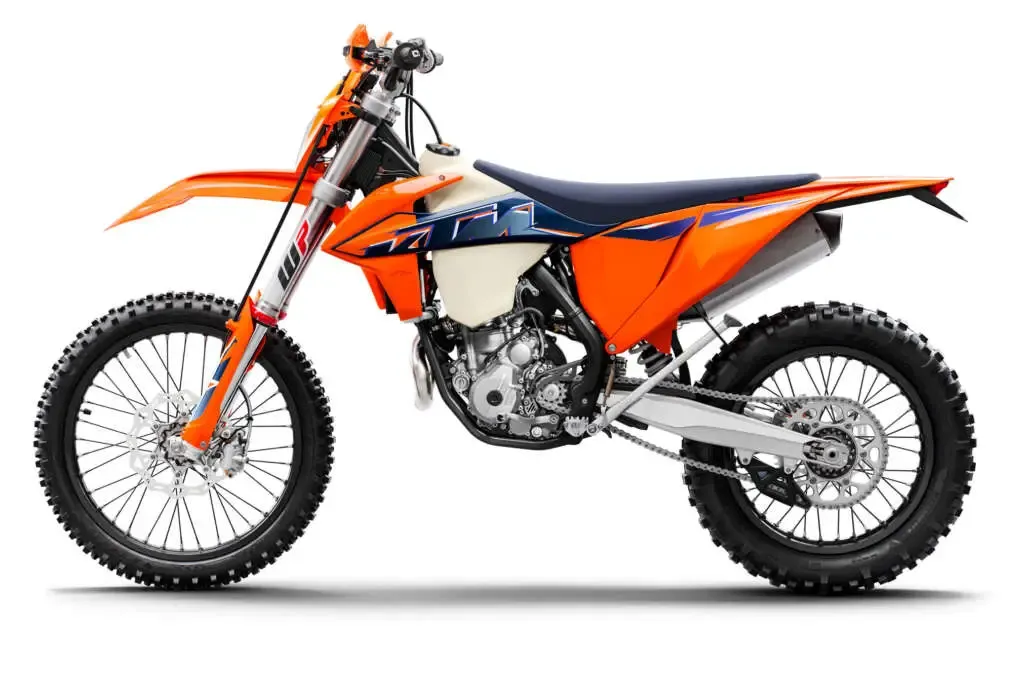

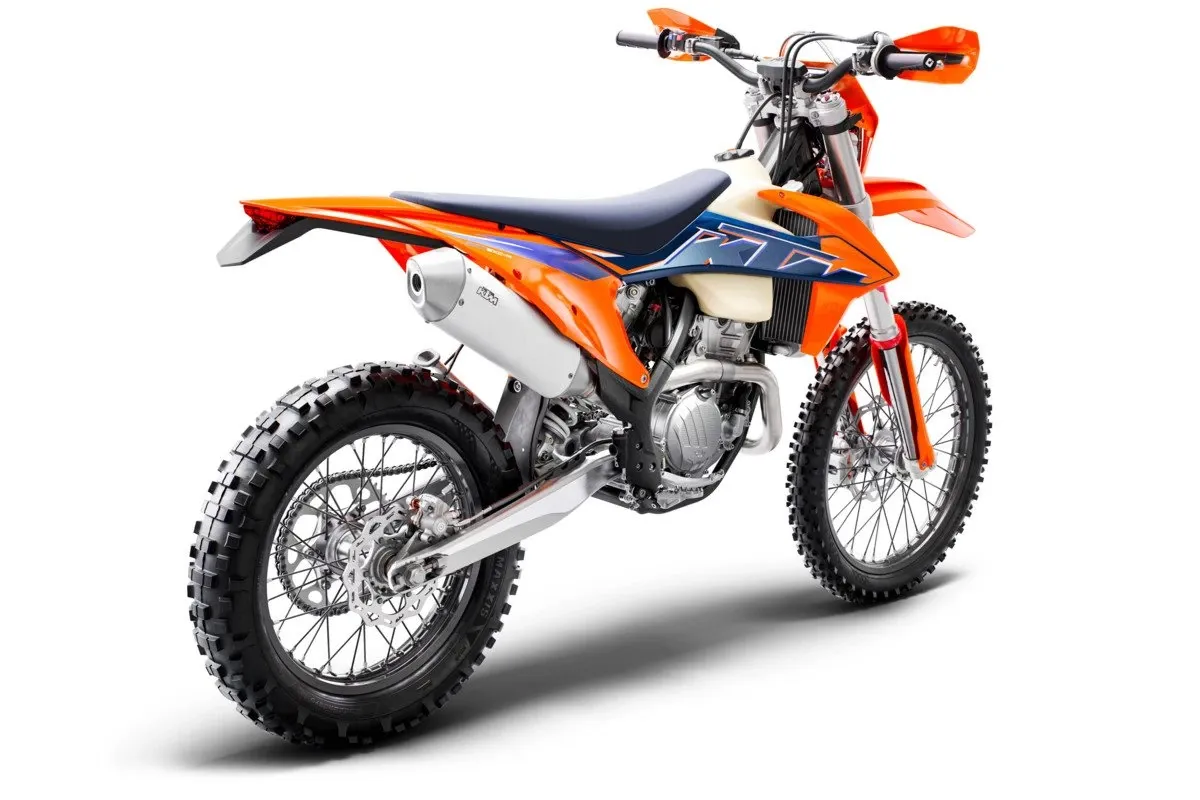

The KTM 350 EXC-F is the ultimate off-road machine, boasting a formidable combination of motor and mobility that has earned it a reputation as the definitive dual-sport model.
With a potent four-stroke, single-cylinder engine delivering a thrilling blend of 250-like agility and 450-like power, the 350 EXC-F is the choice of Red Bull KTM Factory Racing’s Josep Garcia in the current season.
The 2022 model takes its already impressive high-speed performance to the next level with firmer, sportier settings on its WP fork and rear shock, ensuring that every twist and turn is navigated with precision and control.
Whether tackling treacherous terrain or pushing for the podium, the KTM 350 EXC-F is the machine that holds all the cards.
Key Specifications
Engine Type
Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Engine Capacity
21.3 cubic inches / 349.7 cc
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Seat Height
37.7 inches / 960 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 350 EXC-F
Year
2022
Engine
Engine Type
Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Displacement
21.3 cubic inches / 349.7 cc
Bore x Stroke
88 x 57.5 mm
Compression Ratio
12.3:1
Engine Management System
Keihin EFI, flow restrictor 42 mm
Lubrication System
Twin oil pumps
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Gearbox
6Speed
Final Drive
Chain, X-Ring 5/8 x 1/4
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Central double-cradle-type 25CrMo4 steel
Front Suspension
48mm WP XPLOR-USD forks
Front Suspension Travel
11.8 inches / 300 mm
Rear Suspension
WP Xplor PDS shock absorber
Rear Suspension Travel
12.2 inches / 310 mm
Trail
63.5
Wheels & Brakes
Front Tire Size
90/90 – 21 M/C 54M M+S TT
Rear Tire Size
140/80 – 18 M/C 70M M+S TT
Front Brakes
Single 260 mm disc, 2 piston caliper
Rear Brakes
Single 220 mm disc, 1 piston caliper
Dimension & Weights
Seat Height
37.7 inches / 960 mm
Wheelbase
58.3 inches / 1482 mm
Ground Clearance
355 mm / 13.9 in
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Dry Weight
103.8 kg / 228.8 lbs
Features
Four stroke, single cylinder engine
DOHC with finger followers
4 valves per cylinder
Fuel-injected machinery
Ultra-popular KTM 350 EXC-F model
250 cc to 500 cc 4-Valve, single cylinder powerplants
Enough horsepower for grabby throttle hand
Dependable and reliable engine
Improved high-speed performance
Sportier settings on WP fork and rear shock
250-like agility and 450-like power
Dual-sport model
Rideability and competitiveness across any terrain
Blue colors and blue seat for 2022 models
Race plastics and graphics for 2022 models
Improved performance
