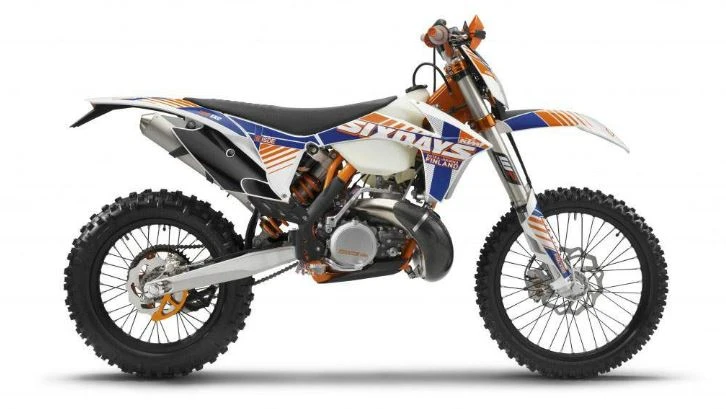

KTM 300 EXC-E Enduro Six Days (2012 -)

KTM 300 EXC-E Enduro Six Days (2012 -)

The KTM 300 EXC-E Enduro Six Days is a powerhouse of a machine, boasting a two-stroke engine that unleashes an incredible amount of torque and power, making light work of its low weight.

With a completely revamped chassis and a redesigned airbox, the 300 EXC is the ultimate partner for demanding enduro rides. Its liquid-cooled, two-stroke engine is a masterclass in engineering, delivering unparalleled performance and playfulness.

The 300 EXC’s new bodywork is a masterstroke, with a slim seat and spoiler lines that make handling a breeze. The adjustable exhaust control and ignition curve add another layer of customization, allowing riders to fine-tune their machine to suit their riding style.

The result is a bike that is not only incredibly powerful but also remarkably agile and comfortable, making it the perfect choice for those who demand the very best from their machine. The KTM 300 EXC-E Enduro Six Days is the ultimate enduro machine, and it’s ready to take on whatever the toughest trails can throw at it.

Key Specifications

Engine TypeTwo stroke, single cylinder, with reed intake and exhaust control
Engine Capacity293 cc / 17.9 cu in
Fuel Tank Capacity9.5L / 2.5 US gal / 2.1 Imp gal
Seat Height37.2 inches / 945 mm
KTM 300 EXC-E Enduro Six Days (2012 -)

All Specifications

Make & Model

ModelKTM 300 EXC-E Enduro Six Days
Year2012 –

Engine

Engine TypeTwo stroke, single cylinder, with reed intake and exhaust control
Displacement293 cc / 17.9 cu in
Bore x Stroke72 x 72 mm
Compression Ratio12.8:1
Engine Management SystemKeihin PWK36 S AG carburetor
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet, multi-plate, hydraulically operated
Gearbox6Speed
Primary Drive Ratio26:72
Gear Ratios1st 14:32 / 2nd 16:26 / 3rd 20:25 / 4th 22:23 / 5th 25:22 / 6th 26:20
Final DriveChain, Regina O-ring

Electrical & Electronics System

BatteryYTX4L-BS, 12V 3Ah
StarterElectric and kick

Chassis & Suspension

Frame TypeCentral double cradle, CrMo4
Front SuspensionWP48 mm upside down fork and shock
Rear SuspensionFully adjustable WP-PDSmono-shock
Trail62.5o

Wheels & Brakes

Front Tire Size80/100 – 21, 51M TT
Rear Tire Size110/100 – 18 64M TT
Front BrakesSingle260 mm disc, 2 piston caliper
Rear BrakesSingle 220 mm disc, 1 piston caliper

Dimension & Weights

Seat Height37.2 inches / 945 mm
Wheelbase58.1 inches / 1476 mm
Ground Clearance386 mm / 15.2 in
Fuel Tank Capacity9.5L / 2.5 US gal / 2.1 Imp gal
Dry Weight103 kg / 227 lbs

Features

  • Liquid-cooled, two-stroke engine
  • High power/displacement ratio
  • Low weight
  • Unbeatable power-to-weight ratio
  • Improved power in all rev ranges
  • Flow-optimised intake flange
  • New cylinder with low valve timing
  • Redesigned airbox
  • Adjustable exhaust control
  • Adjustable ignition curve
  • High-quality chrome-molybdenum steel frame
  • Greater lateral stiffness
  • Improved suspension system
  • New, lighter cast aluminium swingarm
  • New PDS shock absorber with adjustable rebound and compression damping
  • WP upside-down fork with wider adjustment ranges
  • CNC-machined hubs
  • Excel rims
  • Zinc/nickel-coated spokes and aluminium nipples
  • New bodywork with slim seat and spoiler lines
  • Excellent contact points
