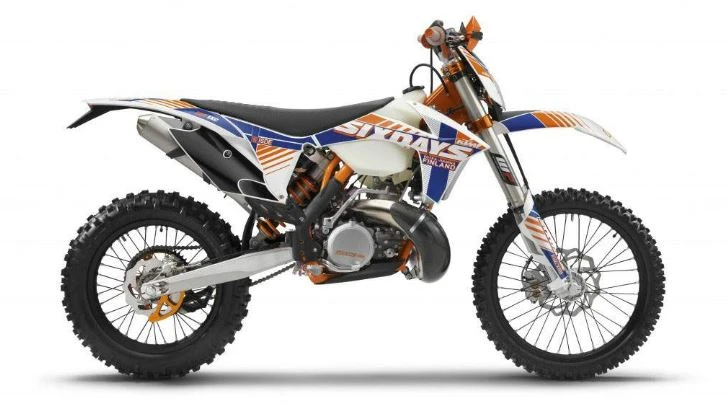

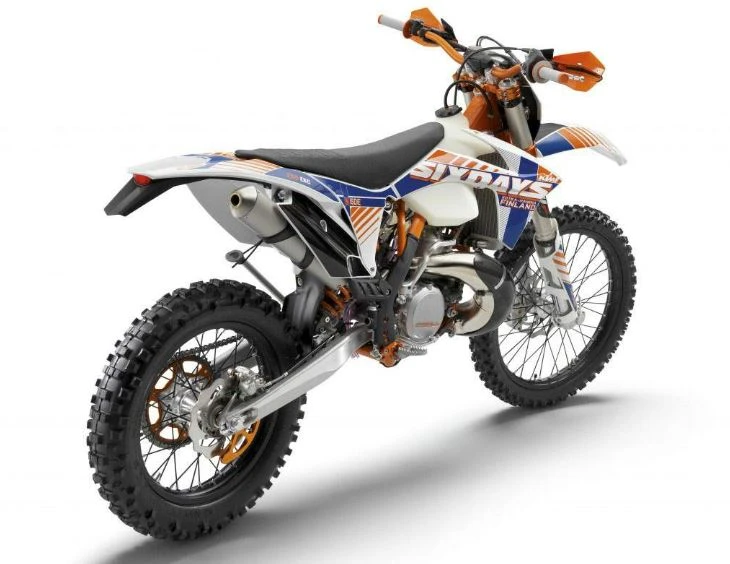

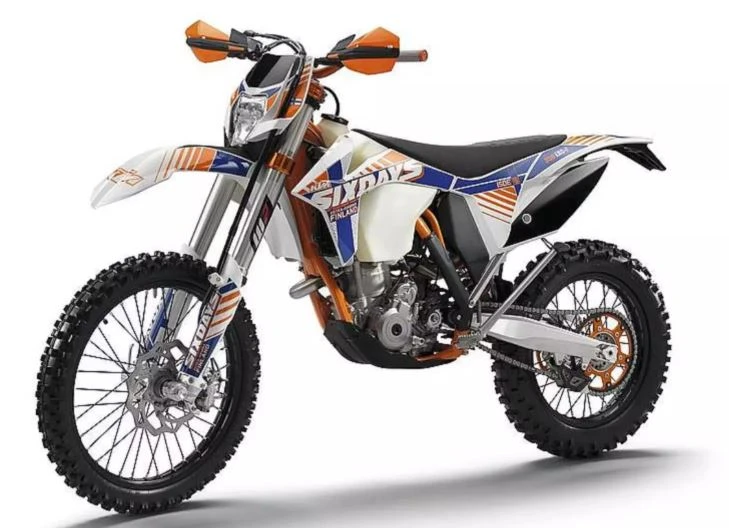

KTM 250 EXC-F Six Days (2012 -)

KTM 250 EXC-F Six Days (2012 -)

The KTM 250 EXC-F Six Days is the ultimate off-road machine, engineered to dominate the world’s largest enduro competition. Its 250cc four-stroke engine, featuring DOHC with finger followers and 4 valves, delivers exceptional power and agility.

This machine is built for the grueling test of the International Six Days Enduro, where riders face six days of intense competition, over a thousand kilometers of challenging terrain, and 40 hours in the saddle.

With a comprehensive package of high-quality special options, the 250 EXC-F Six Days is the genuine article, featuring the orange powder-coated frame of the KTM Factory Team.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves
Engine Capacity15.2 cubic inches / 248.6 cc
Fuel Tank Capacity2.5 US gallons / 9.5 L
Seat Height38.2 inches / 970 mm
KTM 250 EXC-F Six Days (2012 -)

All Specifications

Make & Model

ModelKTM 250 EXC-F Six Days
Year2012 –

Engine

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves
Displacement15.2 cubic inches / 248.6 cc
Bore x Stroke76 x54.80 mm
Compression Ratio13.2:1
Engine Management SystemKeihin EFI, flow restrictor, 42 mm
Lubrication SystemForced oil lubrication with 2 Eaton pumps
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, hydraulically operated
Gearbox6Speed
Primary Drive Ratio22:68
Gear Ratios1st 13:33 / 2nd 17:33 / 3rd 19:29 / 4th 23:28 / 5th 23:23 / 6th 26:22
Final DriveChain, 5/8 x 1/4 in

Electrical & Electronics System

BatteryYTX4L-BS, 12V 3Ah
StarterKick and electric

Chassis & Suspension

Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Front SuspensionWP Suspension Up Side Down 4860 MXMA PA
Rear Suspension335 mm/ 13.2 in
Trail63.5

Wheels & Brakes

Front Tire Size90/90 – 21 M/C 54M M+S TT
Rear Tire Size120/80 – 18 M/C 65M M+S TT
Front BrakesSingle 260 mm disc, 2 piston caliper
Rear BrakesSingle 220 mm disc, 1 piston caliper

Dimension & Weights

Seat Height38.2 inches / 970 mm
Wheelbase58.4 inches / 1482 mm
Ground Clearance345 mm / 13.6 in
Fuel Tank Capacity2.5 US gallons / 9.5 L
Dry Weight107.5 kg / 237 lbs

Features

  • Four stroke, single cylinder engine
  • DOHC with finger followers, 4 valves
  • Map select switch on the handlebars for selecting different engine management mappings
  • Camel SXS seat for improved long-distance comfort
  • Engine guard made of high-strength plastic
  • Radiator fan for optimising temperature control under extreme loads
  • CNC-machined, orange-anodised triple clamps
  • Knock-out wheel spindle for easier removal of the front wheel
  • Full brake disc at the rear
  • Rear brake disc protector
  • Quick-change brake pad securing bolts at the rear
  • Aluminium rear sprocket with riveted-on steel ring gear
  • Giant rims and spokes with a high-quality, black tin-nickel coating
  • Six Days graphics and orange powder-coated frame
  • Orange anodised handlebars
  • Anthracite anodised silencer
  • Kickstarter and electric starter
  • Redesigned drive for the electric starter
  • High-quality chrome-molybdenum steel frame
  • Even greater lateral stiffness in the frame
  • Cast aluminium swingarm
  • 7 mm longer PDS shock absorber
  • Adjustable rebound and high/low-speed compression damping
