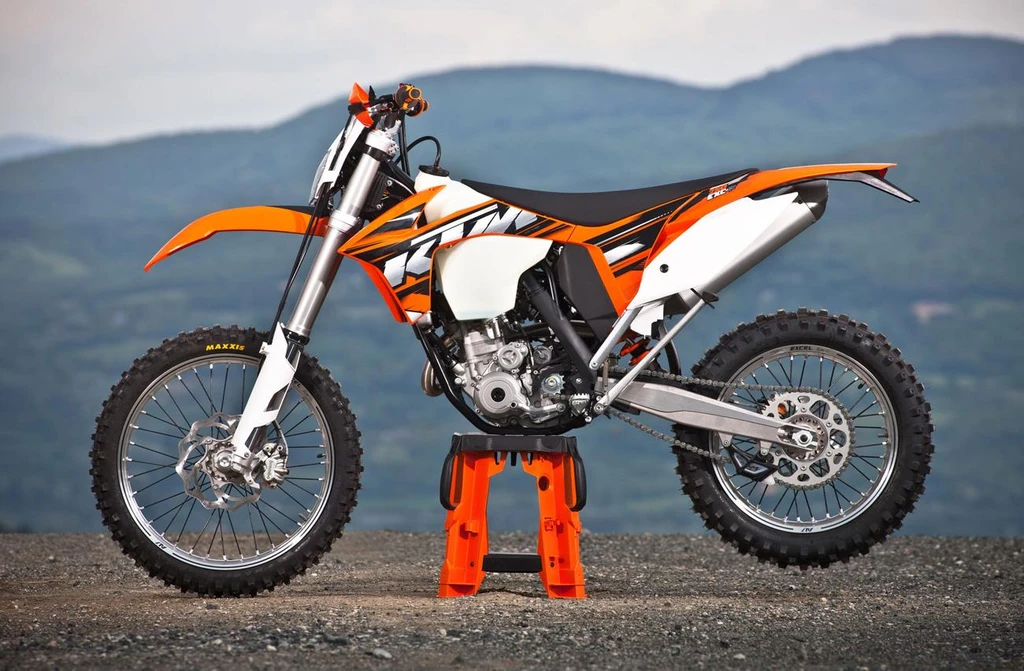

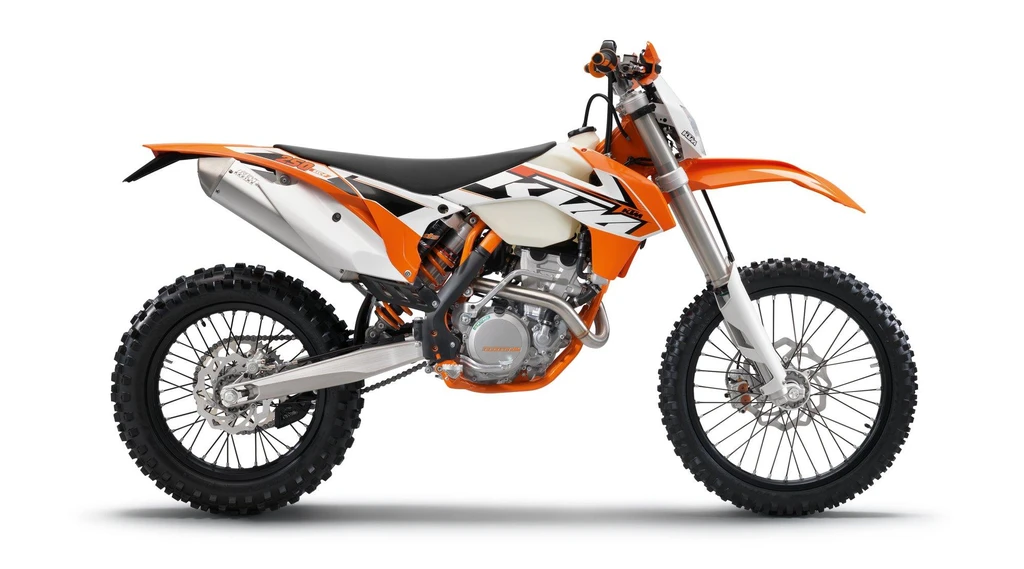

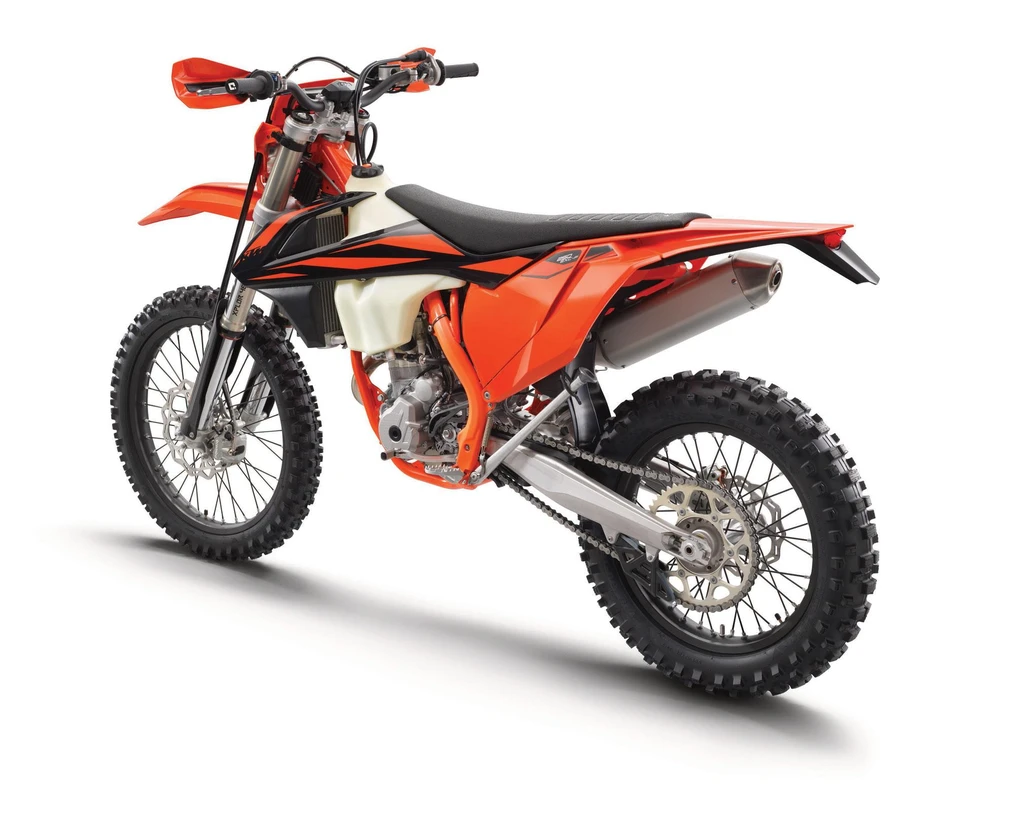

KTM 250 EXC-F (2013)

KTM 250 EXC-F (2013)

The KTM 250 EXC-F is an undisputed champion in the world of off-road motorcycles. This four-stroke single cylinder engine, with its DOHC design and finger followers, has been a key factor in KTM’s numerous world title victories. The bike’s exceptional handling is made possible by its super-agile chassis, equipped with state-of-the-art WP suspension components.

The powerful DOHC engine, featuring electronic fuel injection, delivers spontaneous and powerful responsiveness. The EMS from Keihin is state-of-the-art, with automatic temperature and altitude compensation, and an optional map-select switch that allows for various engine characteristics to be selected. The engine case has been slimmed down, reducing wall thickness while maintaining stability, resulting in a lighter engine and improved handling.

The KTM 250 EXC-F is a motorcycle that exudes performance, with a redesigned airbox that maximizes airflow while minimizing dust and spray. The bike is an absolute joy to ride, with its exceptional handling and power delivery making it an ideal choice for riders of all levels. As a testament to its capabilities, factory rider Antoine Meo will be competing in the E2 class on the latest version of this incredible machine.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves
Engine Capacity15.2 cubic inches / 248.6 cc
Fuel Tank Capacity2.5 US gallons / 9.5 L
Seat Height38.2 inches / 970 mm
KTM 250 EXC-F (2013)

All Specifications

Make & Model

ModelKTM 250 EXC-F
Year2013

Engine

Engine TypeFour stroke, single cylinder, DOHC with finger followers, 4 valves
Displacement15.2 cubic inches / 248.6 cc
Bore x Stroke76 x54.80 mm
Compression Ratio13.2:1
Engine Management SystemKeihin EFI, flow restrictor, 42 mm
Lubrication SystemForced oil lubrication with 2 Eaton pumps
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, hydraulically operated
Gearbox6Speed
Primary Drive Ratio22:68
Gear Ratios1st 13:33 / 2nd 17:33 / 3rd 19:29 / 4th 23:28 / 5th 23:23 / 6th 26:22
Final DriveChain, 5/8 x 1/4 in

Electrical & Electronics System

BatteryYTX4L-BS, 12V 3Ah
StarterKick and electric

Chassis & Suspension

Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Front SuspensionWP Suspension Up Side Down 4860 MXMA PA
Rear SuspensionWP-PDS 5018 DCC shock absorber
Trail63.5

Wheels & Brakes

Front Tire Size90/90 – 21 M/C 54M M+S TT
Rear Tire Size120/80 – 18 M/C 65M M+S TT
Front BrakesSingle 260 mm disc, 2 piston caliper
Rear BrakesSingle 220 mm disc, 1 piston caliper

Dimension & Weights

Seat Height38.2 inches / 970 mm
Wheelbase58.4 inches / 1482 mm
Ground Clearance345 mm / 13.6 in
Fuel Tank Capacity2.5 US gallons / 9.5 L
Dry Weight107.5 kg / 237 lbs

Features

  • Four stroke, single cylinder engine
  • DOHC with finger followers, 4 valves
  • Electronic fuel injection
  • 42 mm throttle body
  • Automatic temperature and altitude compensation
  • Optional map-select switch (PowerParts)
  • User setting tool from PowerParts range for individual tuning
  • Slimmed down die-cast engine case
  • High-strength aluminium alloy engine case
  • Redesigned airbox with minimal dust and spray
  • Twin-air filter replacement in 15 seconds
  • Ultra-light titanium valves
  • Cam followers with DLC coating
  • Broad usable rev range
  • 9.5 litres transparent plastic tank
  • Micro-filter in fuel line
  • Bayonet filler cap with safety mechanism
  • 13 Litres fuel tanks available from PowerParts range
  • Fully adjustable 48 mm open-cartridge fork by WP Suspension
