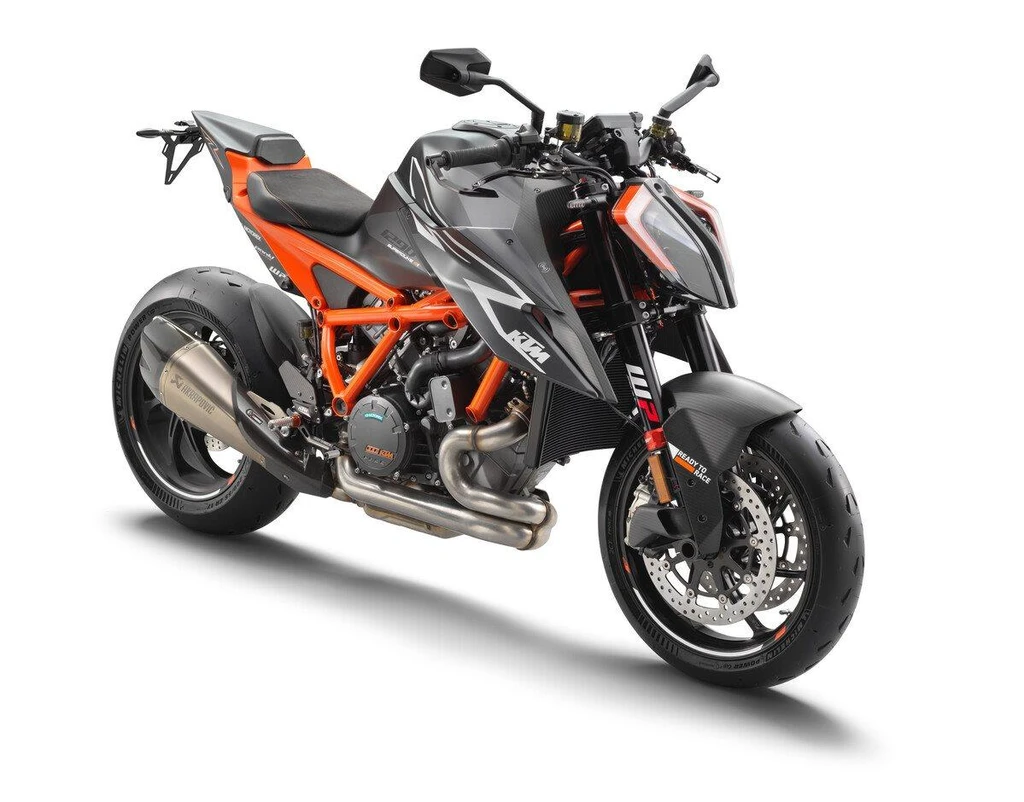

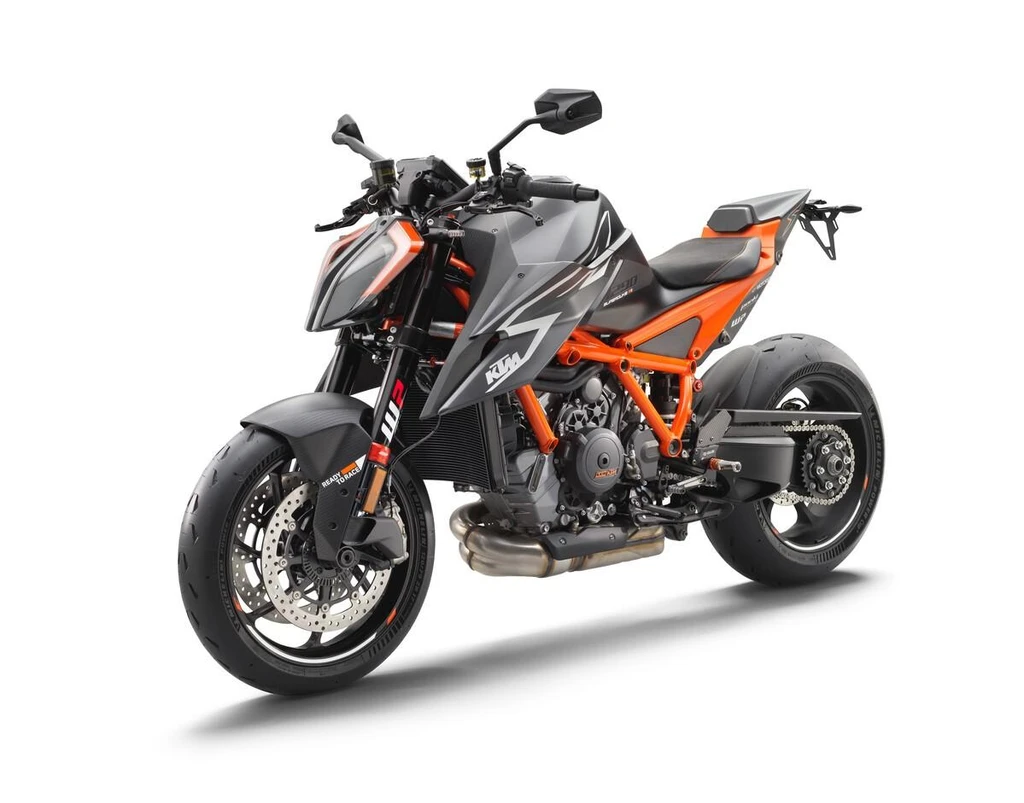

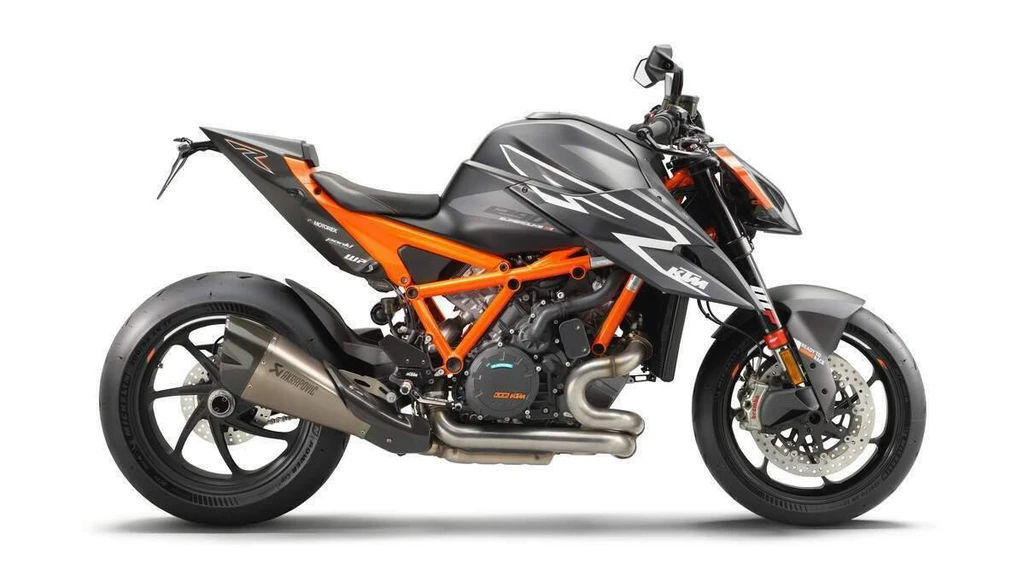

KTM 1290 Super Duke RR (2023)

The 2023 KTM 1290 Super Duke RR is a limited-edition Hyper Naked motorcycle that embodies the very essence of KTM’s racing DNA. Its 1,301cc engine unleashes 180 horsepower and 140 Nm of torque, delivering a 1:1 power-to-weight ratio that’s as menacing as it is exhilarating.

The RR’s aggressive styling is accentuated by its gloss black and matt carbon base, contrasting white graphics, and striking orange accents. Unique custom-made components, specific to the RR, amplify its ferocity and attitude.

But what truly sets the 1290 Super Duke RR apart is its exceptional handling, courtesy of WP Suspension’s finest components. The fully adjustable WP APEX PRO 7548 Close cartridge fork and custom-made WP APEX PRO 7746 Shock work in perfect harmony, while the WP APEX PRO 7117 steering damper provides 30 clicks of adjustability.

With its extensive use of carbon fiber, including a lightweight subframe, the RR is 11 kg lighter than its standard counterpart, making it equally at home on the track or carving up mountain roads. The KTM 1290 Super Duke RR is the ultimate Hyper Naked package, unleashing unlimited fury on the tarmac.

Key Specifications

Engine Type	Four stroke, 75 V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	79.3 cubic inches / 1301 cc
Max Power	132 kw / 180 hp
Max Torque	103 ft-lb / 140 nm
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Seat Height	32.9 inches / 837 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 1290 Super Duke RR
Year	2023

Engine

Engine Type	Four stroke, 75 V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	79.3 cubic inches / 1301 cc
Bore x Stroke	108 x 71 mm
Compression Ratio	–
Max Horsepower	132 kw / 180 hp
Max Torque	103 ft-lb / 140 nm
Lubrication System	Forced oil lubrication with 3 oil pumps
Cooling System	Liquid cooled
Exhaust	Akrapovič “slip-on line” exhaust system, Made from titanium with a carbon fiber end cap

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	PASCantihopping clutch, mechanically operated
Gearbox	6-speed
Final Drive	525 X-Ring

Electrical & Electronics System

Starter	Electric
ABS	Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)

Chassis & Suspension

Frame Type	Chrome-moly tubular space frame, powder-coated
Front Suspension	Fully adjustable WP APEX PRO 7548 close cartridge forks
Front Suspension Travel	5.1 inches / 130 mm
Rear Suspension	WP APEX PRO 7746
Rear Suspension Travel	5.5 inches / 140 mm
Trail	65.6

Wheels & Brakes

Wheels	7 spoke forged wheels
Front Wheel/Rim Size	3.5 x 17
Front Tire Size	Michelin Power Cup2
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	Michelin Power Cup2
Front Brakes	2 x 320 mm Brembo Stylema Monobloc four piston, radially mounted caliper
Rear Brakes	Single 240 mm Brembo twin-piston fixed calliper, brake disc
ABS	Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)

Dimension & Weights

Seat Height	32.9 inches / 837 mm
Ground Clearance	160 mm / 6.2 in
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Dry Weight	180 kg / 396.8 lbs

Features

1,301 cc engine
180 hp
180 kg dry weight
140 Nm of torque
1:1 power-to-weight ratio
WP APEX PRO 7548 Close cartridge fork
Custom-made WP APEX PRO 7746 Shock
WP APEX PRO 7117 steering damper
Carbon fiber subframe
Single-seat unit
LED taillights
LED turn signals
Adaptive brake light
Exclusive carbon fiber bodywork
Lightweight lithium ion battery
Ultra-lightweight forged wheel
Akrapovič Slip-on exhaust
Adjustable CNC-machined rearset

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
