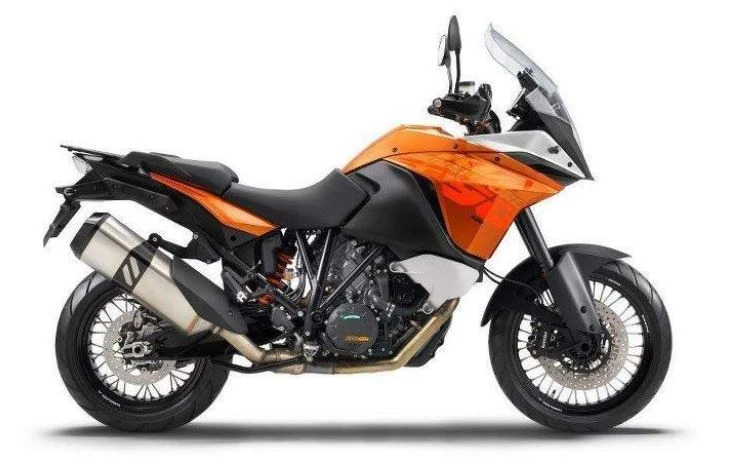

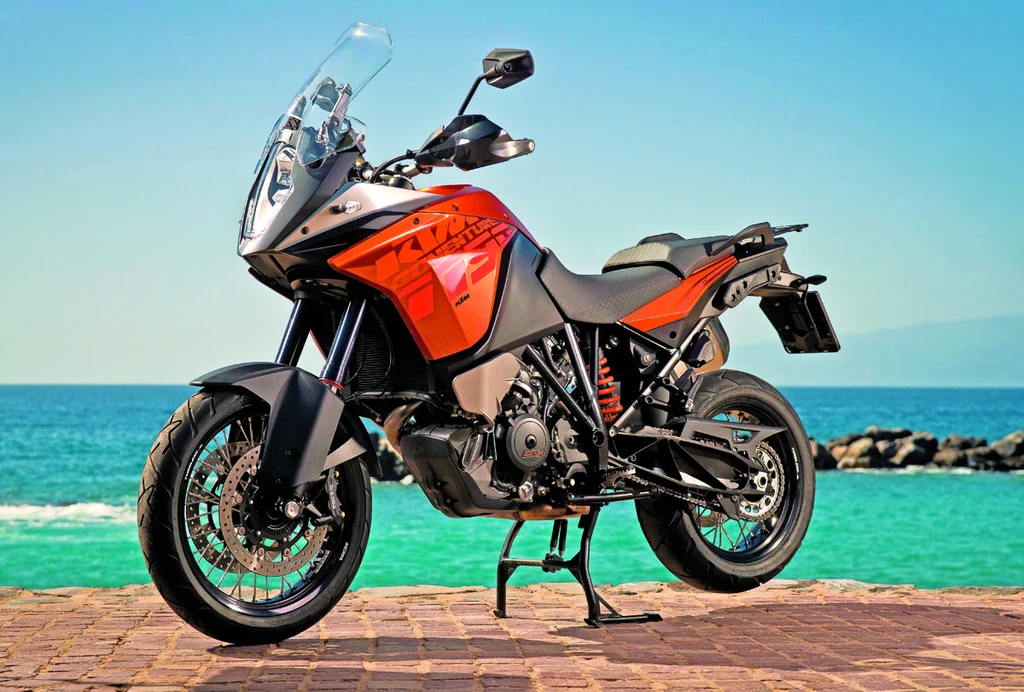

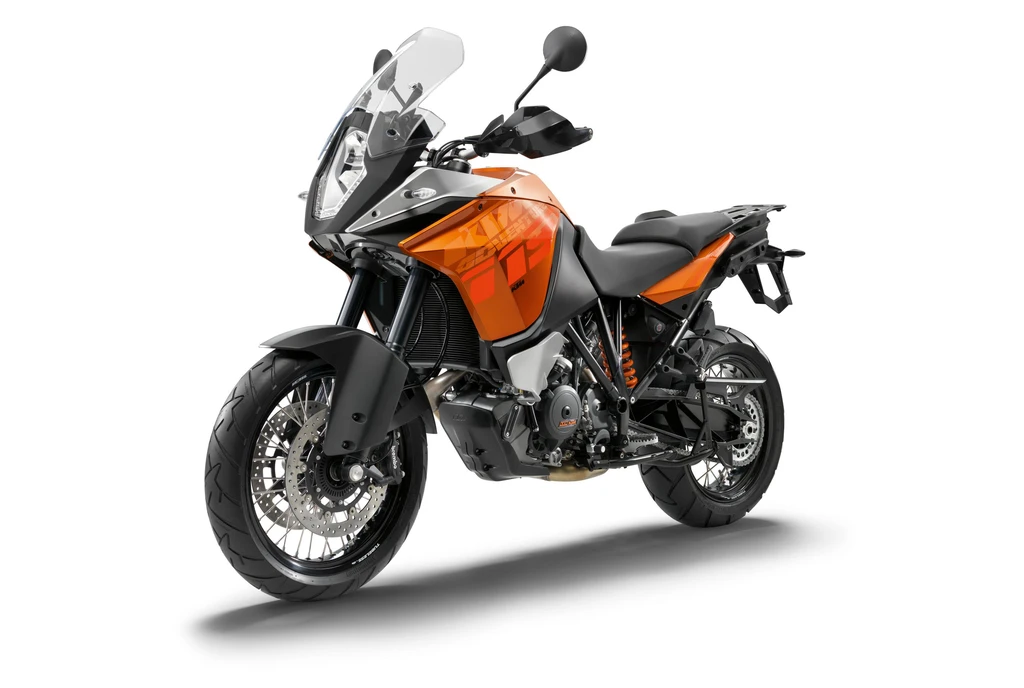

KTM 1190 Adventure (2014)

The 1190 Adventure is a game-changer in the travel segment, setting new standards in safety, performance, and riding pleasure. Powered by a 75V-twin cylinder engine, producing 150 hp, this beast combines a lightweight chassis with exceptional geometry and suspension, delivering unparalleled ride dynamics. Whether cruising or carving through twisties, the 1190 Adventure’s engine character is both refined and raw, with a wide range of possibilities in between.

Its advanced electronics package, featuring Bosch’s MSC (Motorcycle Stability Control), includes lean-sensitive traction control and ABS, providing unparalleled control and confidence. The chassis is a masterclass in balance and poise, with tubular light chrome-molybdenum steel, high-quality WP suspension, and adjustable ergonomics that cater to every rider’s needs.

With its unique blend of power, lightness, and sophistication, the KTM 1190 Adventure is a travel motorcycle that redefines the limits of what’s possible.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	72.9 cubic inches / 1195 cc
Max Power	147.5 hp / 107.7 kW @ 9500 rpm
Max Torque	92.2 lb-ft /124.8 Nm@ 7500 rpm
Fuel Tank Capacity	6.08 US gallons / 23.0 L
Seat Height	33.9 inches / 861 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 1190 Adventure
Year	2014

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	72.9 cubic inches / 1195 cc
Bore x Stroke	105 x 69 mm
Compression Ratio	12.5:1
Max Horsepower	147.5 hp / 107.7 kW @ 9500 rpm
Max Torque	92.2 lb-ft /124.8 Nm@ 7500 rpm
Engine Management System	EFI, ride by wire
Lubrication System	Forced oil lubrication with 3 rotor pumps
Cooling System	Liquid cooling

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multi-disc clutch, hydraulically operated
Gearbox	6 Speed
Final Drive	Chain 5/8 x 5/16″ X Ring

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular space frame made from chrome molybdenum steel, powder-coated
Front Suspension	48mm WP USD forks
Front Suspension Travel	7.5 inches / 190 mm
Rear Suspension	WP-PDS rear shock, hydraulic spring preload.
Rear Suspension Travel	8.2 inches / 210 mm
Rake	26.0
Trail	119.8 mm / 4.72 in.

Wheels & Brakes

Front Wheel/Rim Size	Spoked aluminum, 3.50 x 19 in.
Front Tire Size	120/70ZR-19
Rear Wheel/Rim Size	Spoked aluminum, 5.00 x 17 in.
Rear Tire Size	170/60ZR-17
Front Brakes	2x 320mm discs 4 piston calipers
Rear Brakes	Single 267mm disc 2 piston caliper

Dimension & Weights

Seat Height	33.9 inches / 861 mm
Wheelbase	63.0 inches / 1600 mm
Ground Clearance	220 mm / 8.7 in
Fuel Tank Capacity	6.08 US gallons / 23.0 L
Dry Weight	217 kg / 478.4 lbs

Features

75V-twin cylinder engine
DOHC, 4 valves per cylinder
150 hp
125 Nm torque
230 kg fully tanked weight
Power-to-weight ratio previously unheard of in this class
Lean-sensitive traction control
ABS with combined braking function
Lean-sensitive cornering ABS
MSC (Motorcycle Stability Control)
Electronic engine management system
Keihin electronic injection with drive-by-wire
Slipper clutches
Drive every 15,000 km
Low fuel consumption
Tubular light chrome-molybdenum steel frame
WPs suspension (EDS)
Electronically programmable WPs suspension
New off-road mode for ABS and MTC
Adjustable windscreen
Spoke wheels with tubeless tires
Footrests, seat height, and handlebar position adjustable
