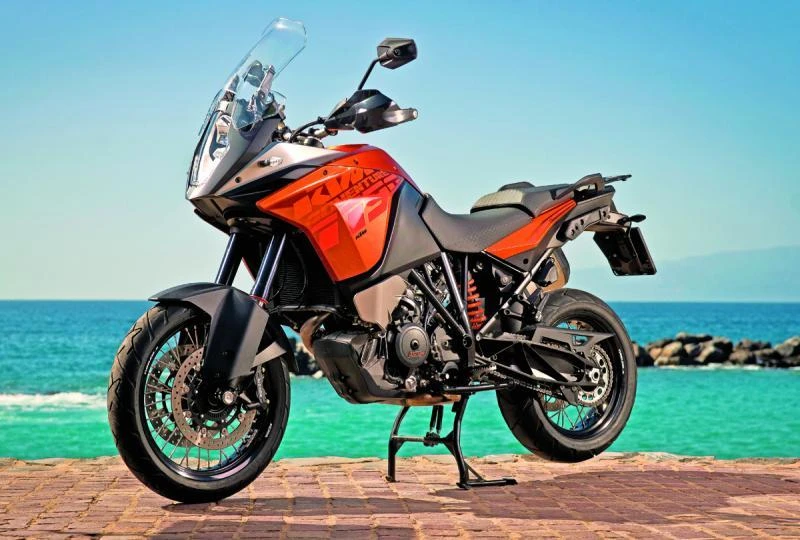

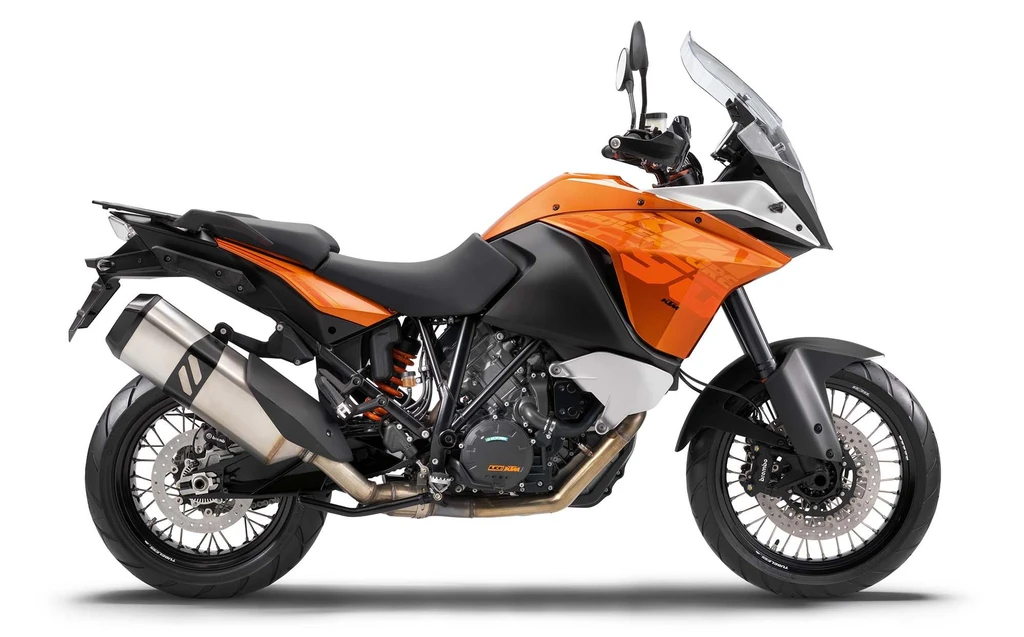

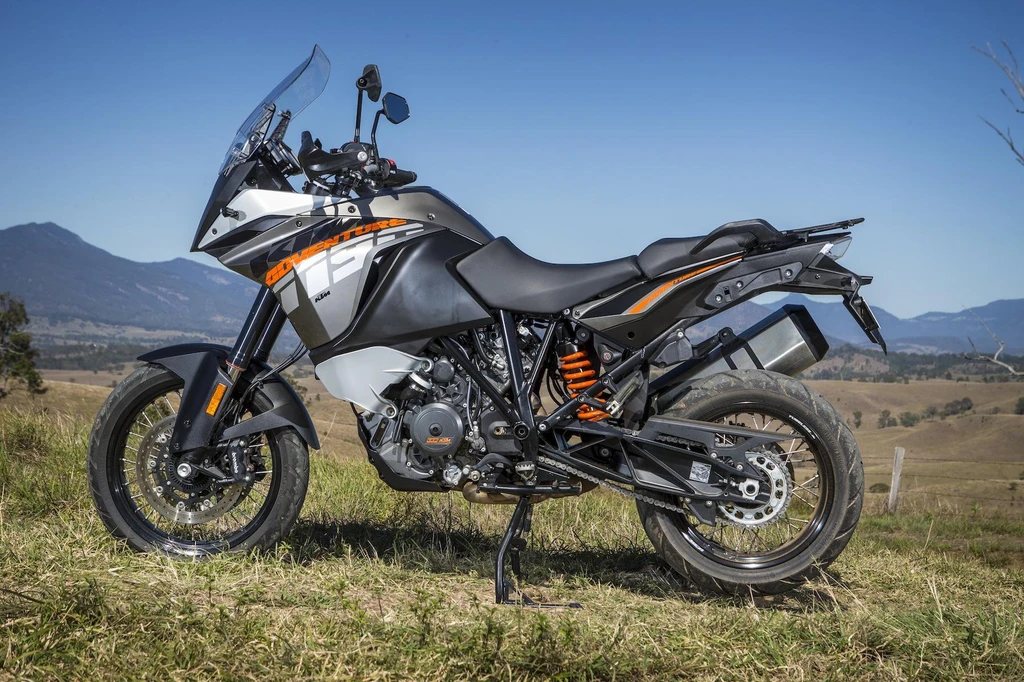

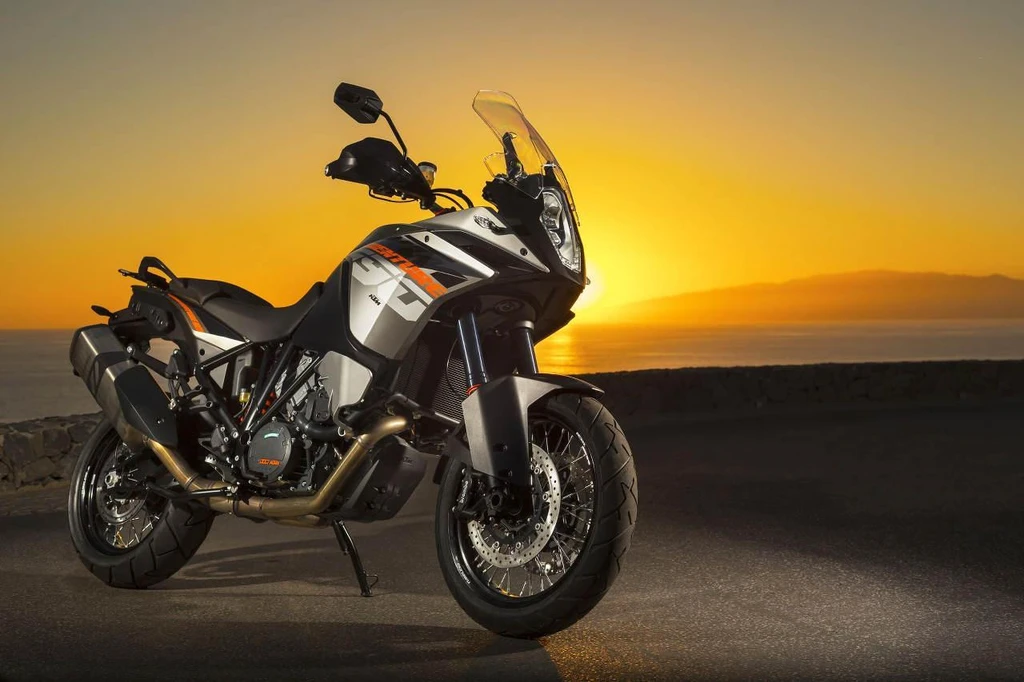

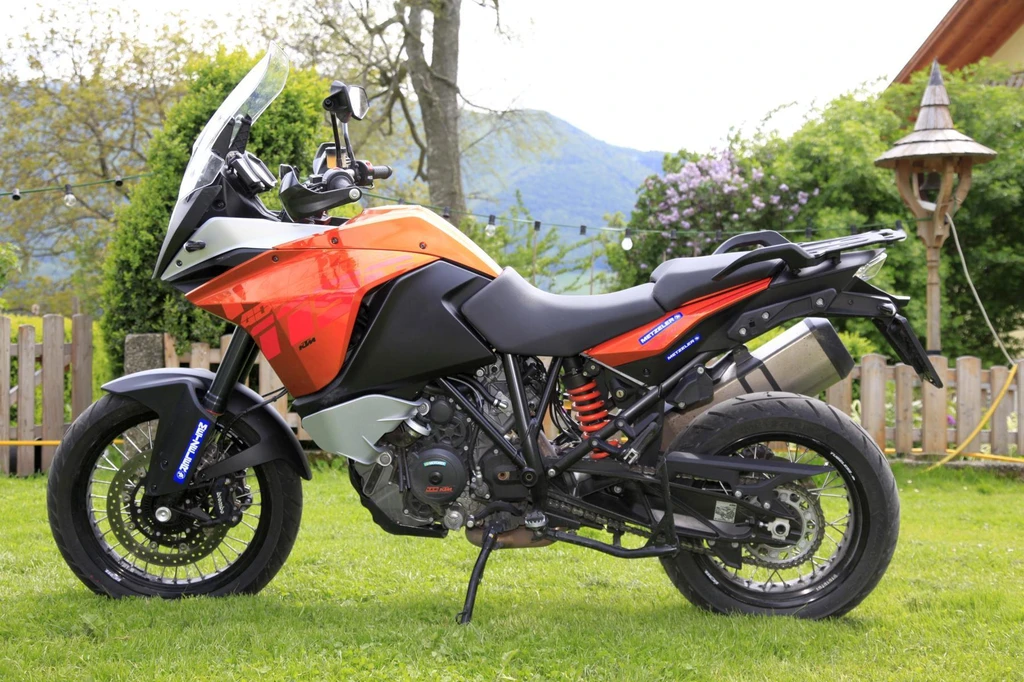

KTM 1190 Adventure (2013)

The 2013 KTM 1190 Adventure shatters conventions with its unwavering commitment to uncompromising performance and safety.

Its 75-degree V-twin engine, boasting 150 horsepower and 125 Nm of torque, delivers an unmatched power-to-weight ratio of 0.65 horsepower per kilogram. With Bosch’s Motorcycle Stability Control (MSC) and lean-sensitive cornering ABS, this motorcycle redefines the boundaries of safety and agility.

The 1190 Adventure’s engine management system, featuring Keihin electronic injection and drive-by-wire, provides seamless throttle response and precision control. This, combined with the exceptional suspension and geometry of the chassis, enables riders to tackle even the most challenging terrain with unbridled confidence.

Whether navigating twisty roads or traversing rugged off-road terrain, the 1190 Adventure’s versatility is unmatched. With its powerful, economical engine and exceptional handling, this motorcycle is capable of delivering an unforgettable riding experience – always pushing the limits, always exceeding expectations, and always leaving a lasting impression.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	72.9 cubic inches / 1195 cc
Max Power	147.5 hp / 107.7 kW @ 9500 rpm
Max Torque	92.2 lb-ft /124.8 Nm@ 7500 rpm
Fuel Tank Capacity	6.08 US gallons / 23.0 L
Seat Height	33.9 inches / 861 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 1190 Adventure
Year	2013

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	72.9 cubic inches / 1195 cc
Bore x Stroke	105 x 69 mm
Compression Ratio	12.5:1
Max Horsepower	147.5 hp / 107.7 kW @ 9500 rpm
Max Torque	92.2 lb-ft /124.8 Nm@ 7500 rpm
Engine Management System	EFI, ride by wire
Lubrication System	Forced oil lubrication with 3 rotor pumps
Cooling System	Liquid cooling

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multi-disc clutch, hydraulically operated
Gearbox	6 Speed
Final Drive	Chain 5/8 x 5/16″ X Ring

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular space frame made from chrome molybdenum steel, powder-coated
Front Suspension	48mm WP USD forks
Front Suspension Travel	7.5 inches / 190 mm
Rear Suspension	WP-PDS rear shock, hydraulic spring preload.
Rear Suspension Travel	8.2 inches / 210 mm
Rake	26.0
Trail	119.8 mm / 4.72 in.

Wheels & Brakes

Front Wheel/Rim Size	Spoked aluminum, 3.50 x 19 in.
Front Tire Size	120/70ZR-19
Rear Wheel/Rim Size	Spoked aluminum, 5.00 x 17 in.
Rear Tire Size	170/60ZR-17
Front Brakes	2x 320mm discs 4 piston calipers
Rear Brakes	Single 267mm disc 2 piston caliper

Dimension & Weights

Seat Height	33.9 inches / 861 mm
Wheelbase	63.0 inches / 1600 mm
Ground Clearance	220 mm / 8.7 in
Fuel Tank Capacity	6.08 US gallons / 23.0 L
Dry Weight	217 kg / 478.4 lbs

Features

Four stroke engine
75V-twin cylinder
DOHC
4 valves per cylinder
Bosch MSC (Motorcycle Stability Control)
Lean-sensitive traction control
ABS with combined braking function
Cornering ABS
150 hp
230 kg fully tanked
Power-to-weight ratio
Dual ignition
Electronic engine management system
Keihin electronic injection with drive-by-wire
Slipper clutches
Low fuel consumption
Tubular light chrome-molybdenum steel frame
WP suspension (EDS)
Electronically programmable suspension
New off-road mode for ABS and MTC
Adjustable windscreen
Adjustable handlebar position
Adjustable seat height
Adjustable footrests
Spoke wheels
Tubeless tires (120/70-19 front, 170/60-17 rear)
