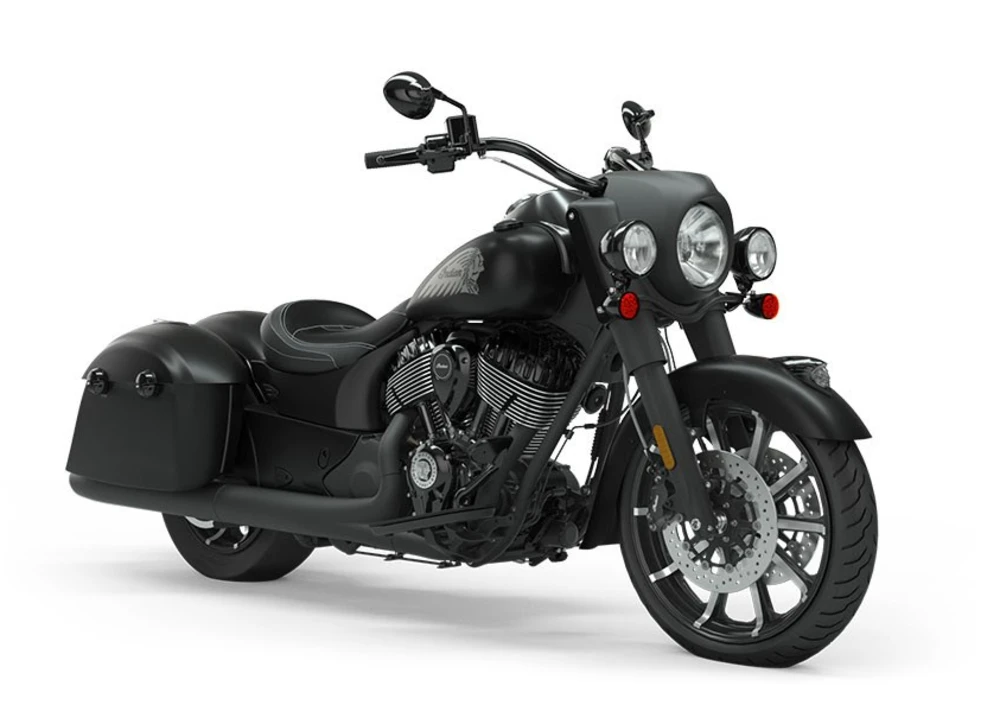

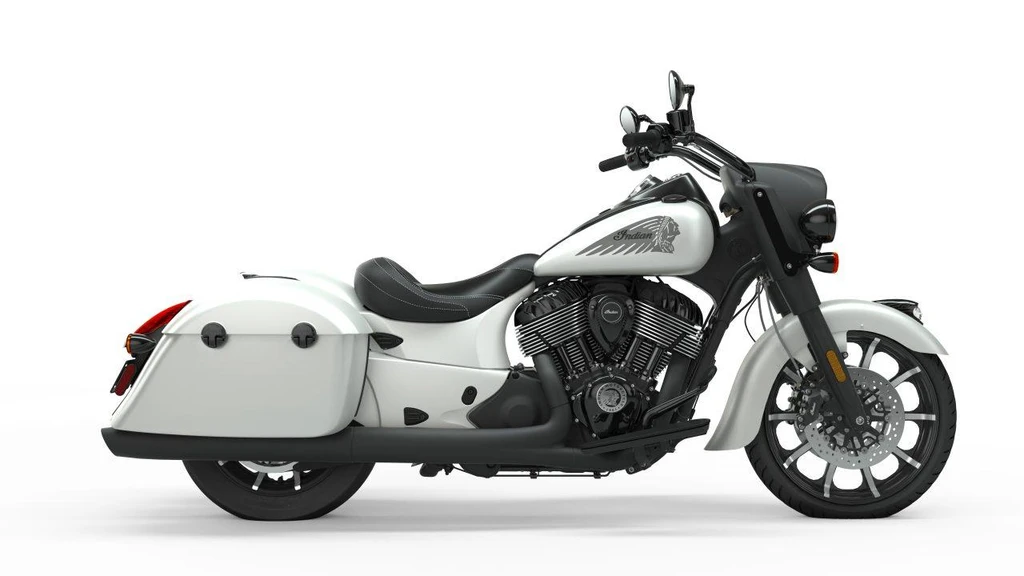

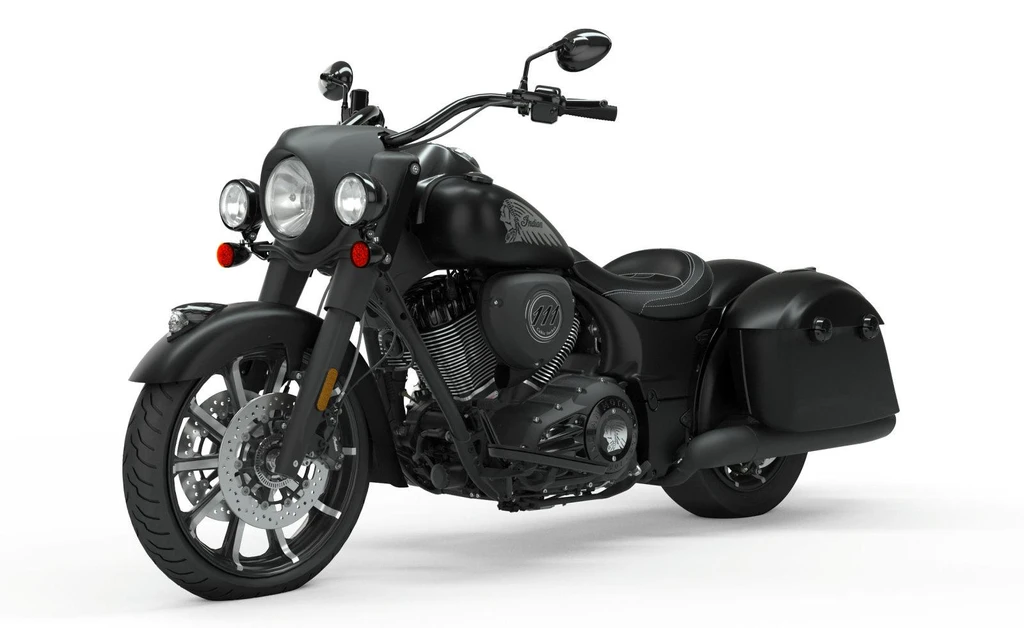

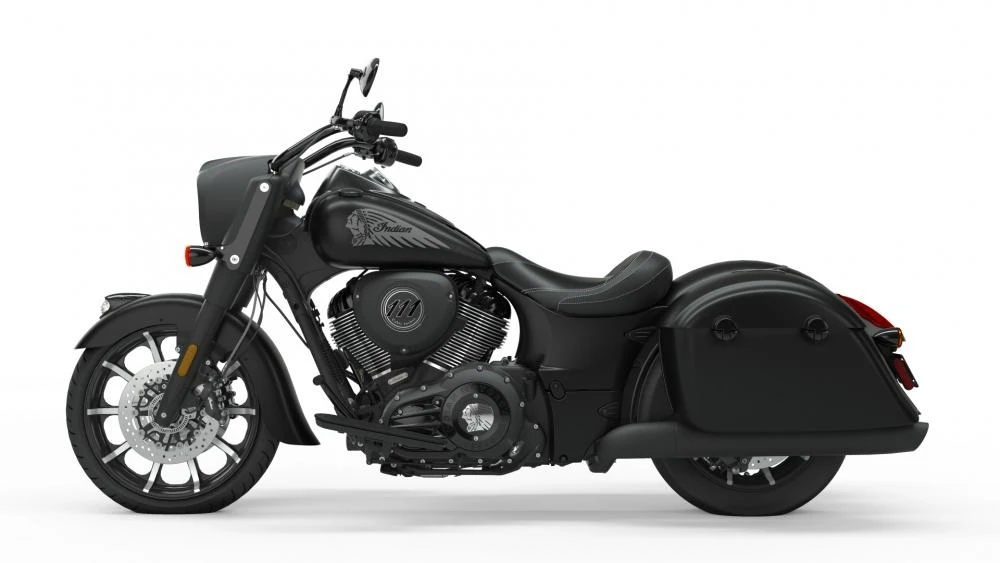

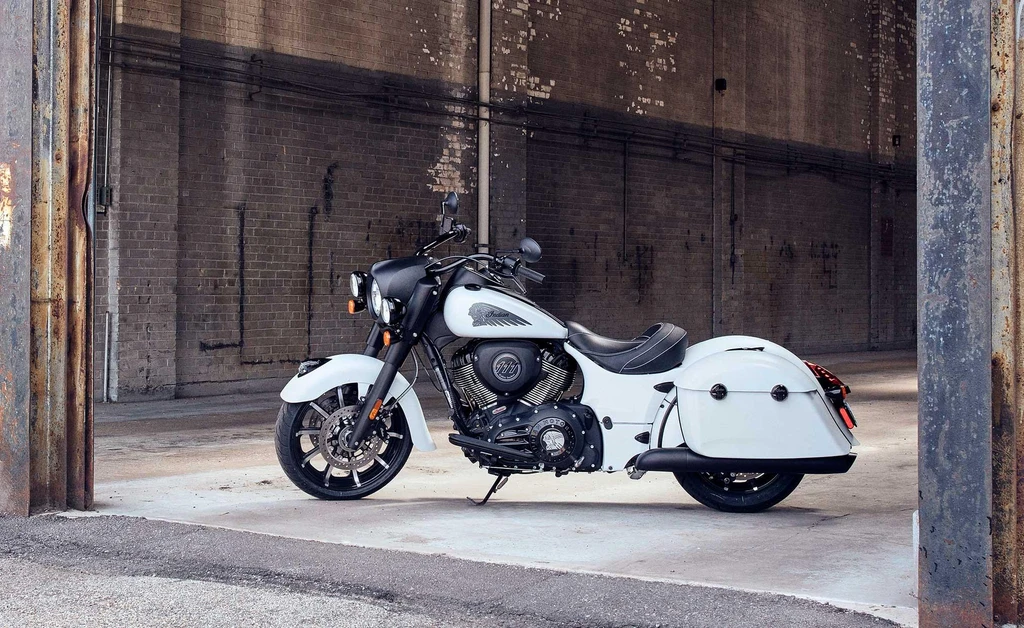

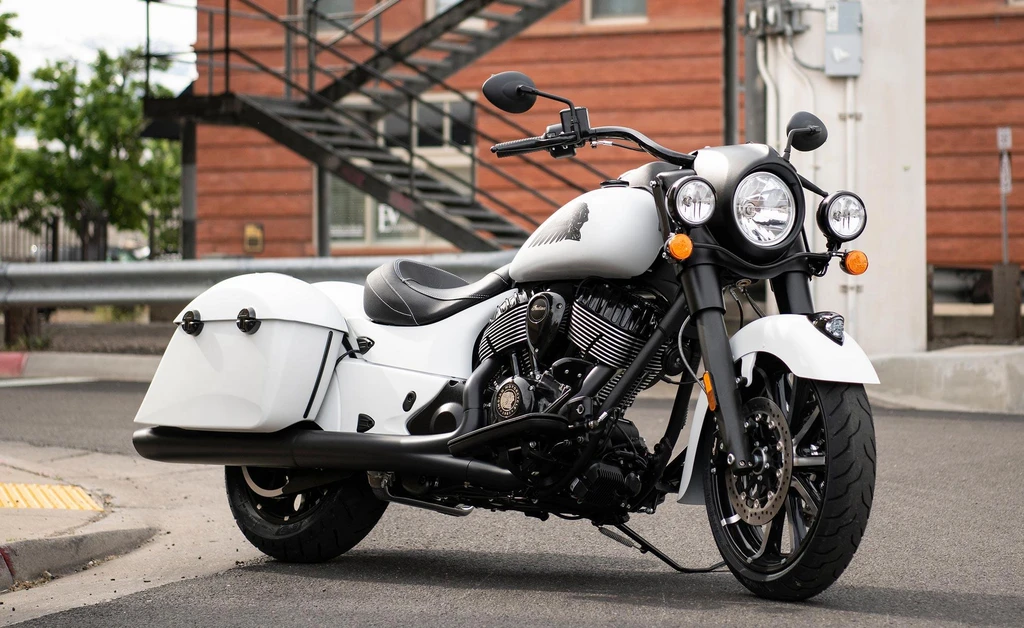

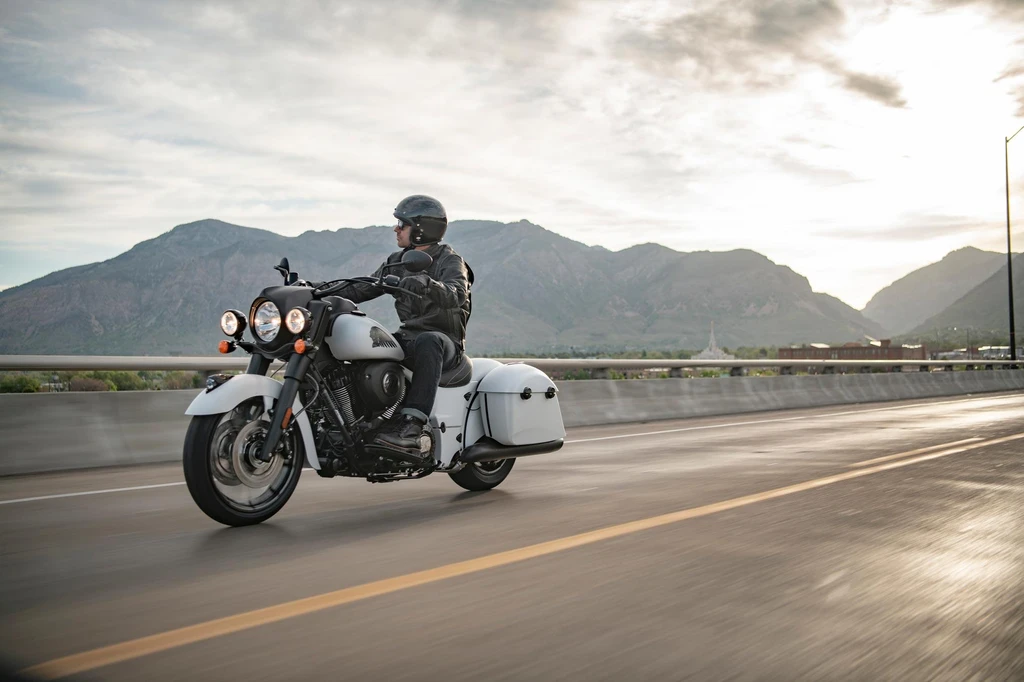

Indian Springfield Dark Horse (2018 – 2019)

Indian Springfield Dark Horse (2018 - 2019)

The Indian Springfield Dark Horse has taken a darker turn with the addition of a White Smoke option, joining the original Thunder Black Smoke option in its pursuit of a custom, premium look. The engine’s primary, valve, and cam covers, push-rod tubes, and saddlebag hinges now boast premium gloss black finishes, while the exhaust has been fully blacked out to complete the dark aesthetic.

The Thunder Stroke 111 engine delivers smooth, impressive power in every gear, its soul-stirring V-Twin a true marvel of engineering. With selectable Ride Modes – Tour, Standard, and Sport – riders can now choose their preferred riding experience on the fly, tailoring their bike to their unique style and needs.

Whether you’re cruising the open road, carving up twisties, or just commuting, the Indian Springfield Dark Horse has been crafted to deliver unparalleled performance, comfort, and customization. With its premium finishes, blacked-out exhaust, and cutting-edge technology, this bike is the ultimate expression of freedom and adventure. And with its incredible Thunder Stroke 111 engine at its heart, it’s ready to take you wherever your spirit may lead.

Key Specifications

Engine TypeThunder Stroke 111 49˚ V-Twin
Engine Capacity111 cubic inches / 1811. cc
Fuel Tank Capacity5.5 US gallons / 20.8 L
Seat Height26.0 inches / 660 mm
Indian Springfield Dark Horse (2018 - 2019)

All Specifications

Make & Model

ModelIndian Springfield Dark Horse
Year2018 – 2019

Engine

Engine TypeThunder Stroke 111 49˚ V-Twin
Displacement111 cubic inches / 1811. cc
Bore x Stroke101 x 113 mm
Compression Ratio9.5:1
Engine Management SystemElectronic Fuel Injection System Closed loop fuel injection / 54mm bore
ExhaustSplit dual exhaust with crossover

Performance

Top Speedn/a

Transmission

ClutchWet, Multi-Plate
Gearbox6 Speed
Gear Ratios1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final DriveBelt drive, 152 tooth

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeCast Aluminum Frame with Integrated Air-Box
Front Suspension46mm Telescopic forks
Front Suspension Travel4.7 inches / 119 mm
Rear SuspensionSingle Shock w/ Air Adjust
Rear Suspension Travel4.5 inches / 114 mm
Rake25
Trail133mm / 5.2 in

Wheels & Brakes

Front Tire SizeDunlop American Elite 130/60B19 61H
Rear Tire SizeDunlop Elite 3 180/60R16 80H
Front Brakes2x 300 mm Floating Rotor 4 piston calipers
Rear BrakesSingle 300 mm Floating Rotor 2 piston calipers

Dimension & Weights

Seat Height26.0 inches / 660 mm
Wheelbase67.0 inches / 1700 mm
Ground Clearance142 mm / 5.6 in
Fuel Tank Capacity5.5 US gallons / 20.8 L
Dry Weight349 kg / 770 lbs

Features

  • Ride Modes (Tour, Standard, Sport)
  • Rear Cylinder Deactivation
  • Remotely locking saddlebags
  • ABS
  • Cruise control
  • Keyless ignition
  • Tire pressure monitoring
  • Gloss black finishes on engines, primary, valve, and cam covers
  • Blacked out exhaust
  • Improved audio system with dynamic equalizer
  • 100-watt premium audio
  • Customizable equalizer
  • Tweeters separated from mid-range speakers
  • Selectable Ride Modes (Tour, Standard, Sport)
  • Instant throttle response in Sport mode
  • Aggressive power delivery in Sport mode
  • Smooth throttle response in Tour mode
  • Crisp throttle response in Standard mode
  • Engine heat reduction with Rear Cylinder Deactivation
