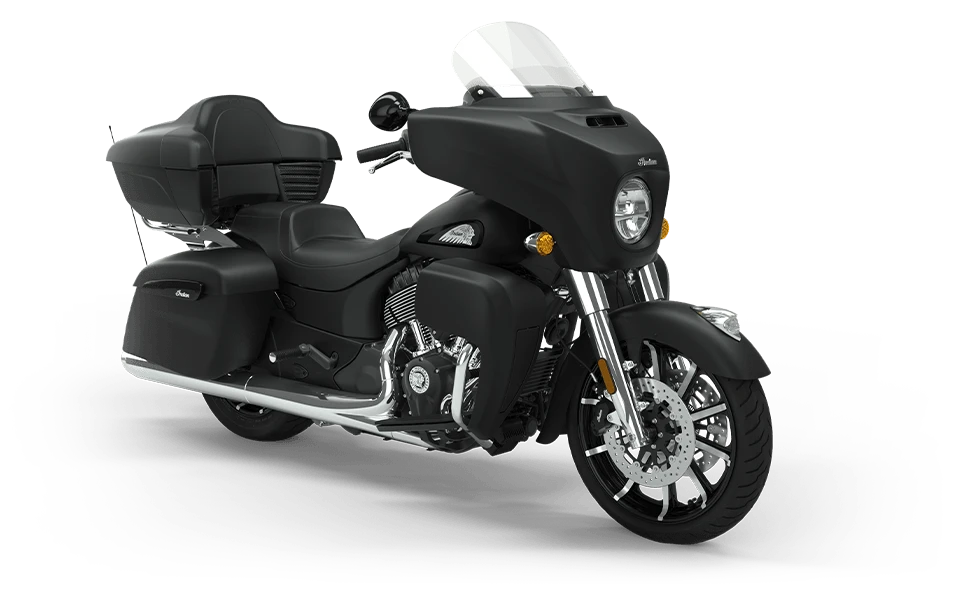

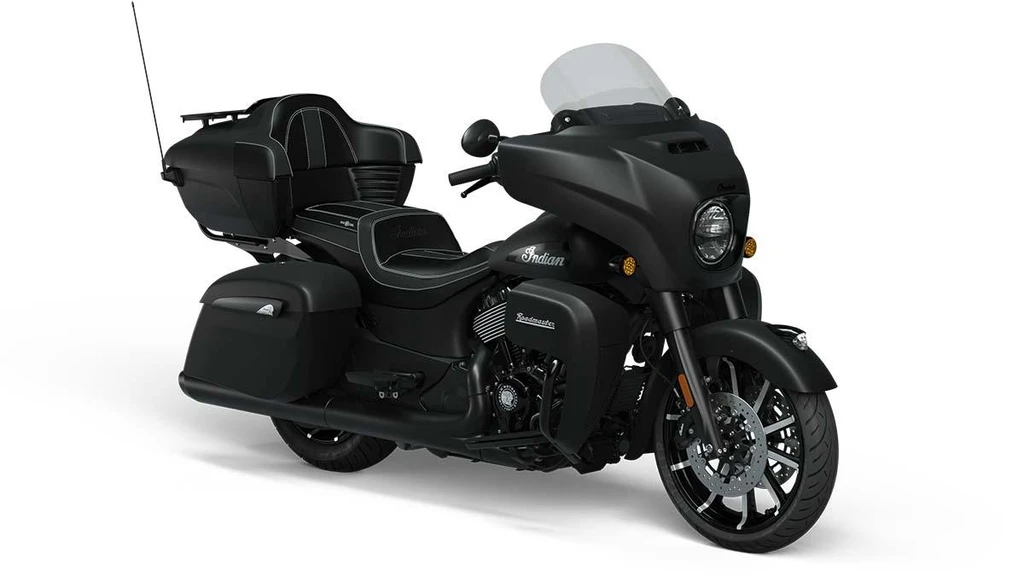

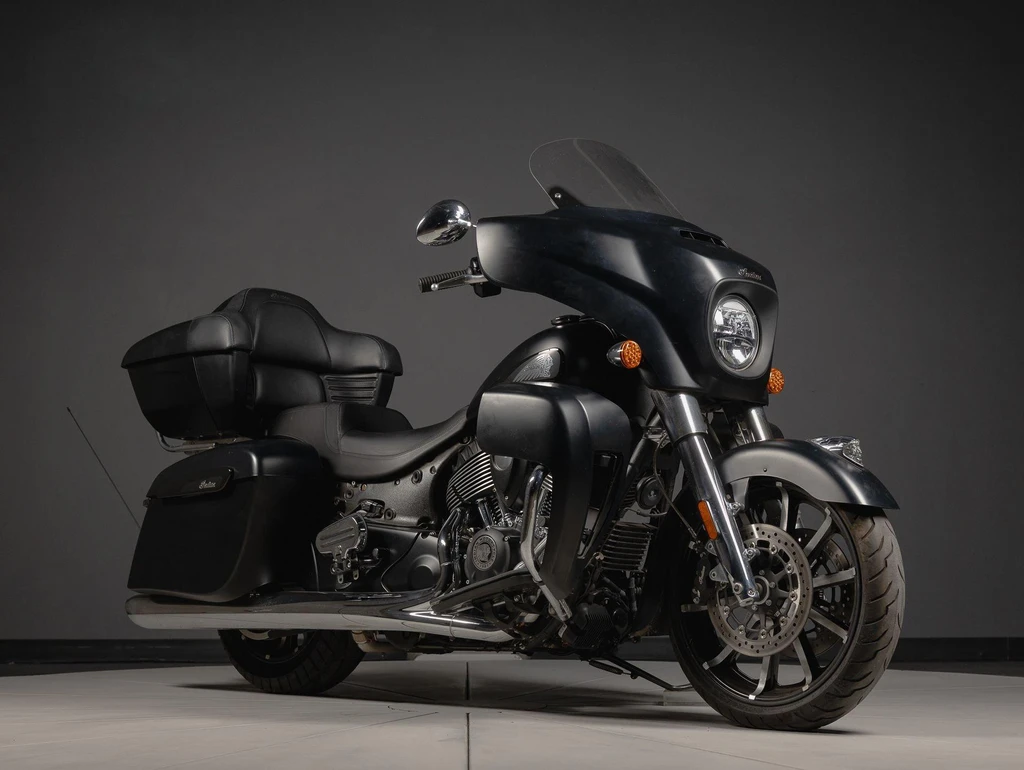

Indian Roadmaster Dark Horse 116 (2020)

Indian Roadmaster Dark Horse 116 (2020)

The Indian Roadmaster Dark Horse 116 is a masterfully crafted touring bike, boasting a bold new design with harder edges and sharper lines. At its heart lies the Thunderstroke 116 V-Twin engine, producing a whopping 126 ft-lb of torque for effortless power and a silky-smooth ride at any speed.

Its exceptional power is matched by outstanding steering geometry and a lightweight cast aluminum frame, providing responsive handling and agile cornering. Ride with confidence, knowing you’re in control.

The Indian Motorcycle Ride Command system takes center stage, offering the largest, fastest, and most customizable system on two wheels. With Apple CarPlay integration, turn-by-turn navigation, and Bluetooth connectivity, you’ll stay connected and informed on the road. The Roadmaster Dark Horse is built for the long haul, with premium amenities like high-output speakers, LED lighting, and heated grips to make every ride a joy. And with 37+ gallons of cargo space, you can take everything you need.

Key Specifications

Engine TypeThunder Stroke 116, 49˚ V-Twin
Engine Capacity1890 cc / 115 cub in
Fuel Tank Capacity5.5 US gallons / 20.8 L
Seat Height26.5 inches / 673 mm
Indian Roadmaster Dark Horse 116 (2020)

All Specifications

Make & Model

ModelIndian Roadmaster Dark Horse 116
Year2020

Engine

Engine TypeThunder Stroke 116, 49˚ V-Twin
Displacement1890 cc / 115 cub in
Bore x Stroke103.2 x 113mm
Compression Ratio11.0:1
Engine Management SystemElectronic fuel injection, closed loop, 54 mm bore
ExhaustSplit dual exhaust with cross-over

Performance

Top Speedn/a

Transmission

ClutchWet, multi-plate
Gearbox6 Speed
Gear Ratios1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final DriveBelt, 152 tooth

Electrical & Electronics System

StarterElectric
ABSIndividual front and rear control with ABS

Chassis & Suspension

Frame TypeHigh tensile steel, monoshock
Front Suspension46mm Telescopic forks
Front Suspension Travel4.7 inches / 119 mm
Rear SuspensionSingle shock
Rear Suspension Travel4.5 inches / 114 mm
Rake25
Trail150 mm / 5.9 in

Wheels & Brakes

Front Wheel/Rim SizeCast 19″ x 3.5″ with tire pressure monitoring
Front Tire Size130/60B19 61H Dunlop American Elite
Rear Wheel/Rim SizeCast 16″ x 5.0″ with tire pressure monitoring
Rear Tire Size180/60R16 80H Dunlop Elite 3
Front Brakes2x 300mm Floating rotor 4 piston calipers
Rear BrakesSingle 300mm floating rotor 2 piston calipers
ABSIndividual front and rear control with ABS

Dimension & Weights

Seat Height26.5 inches / 673 mm
Wheelbase65.7 inches / 1668 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity5.5 US gallons / 20.8 L
Dry Weight394 kg / 868 lbs

Features

  • Thunderstroke 116 V-Twin Engine
  • 126 ft-lb of torque
  • Lightweight cast aluminum frame
  • Responsive handling and agile cornering
  • Indian Motorcycle Ride Command
  • Apple CarPlay integration
  • Turn-by-turn navigation
  • Bluetooth connectivity
  • Vehicle information display
  • Connected traffic and weather overlays
  • 37+ gallons of cargo space
  • Weatherproof storage
  • Remote-locking saddlebags and trunk
  • Easy access storage in lowers
  • Optimized airflow vents
  • Extended reach, gunfighter style, Rogue seat
  • Premium audio with 200-watts speakers
  • Dynamic equalizer
  • LED lighting
  • Keyless ignition
  • Cruise control
  • Tire pressure monitoring
  • Heated grips
  • Push-button power windshield
