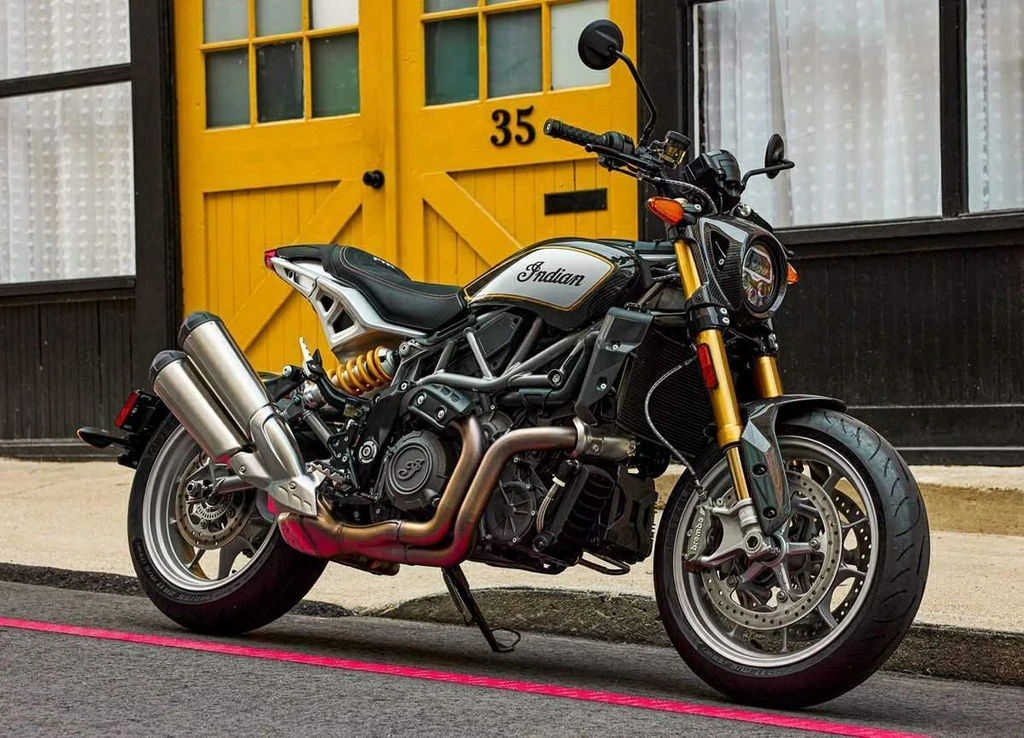

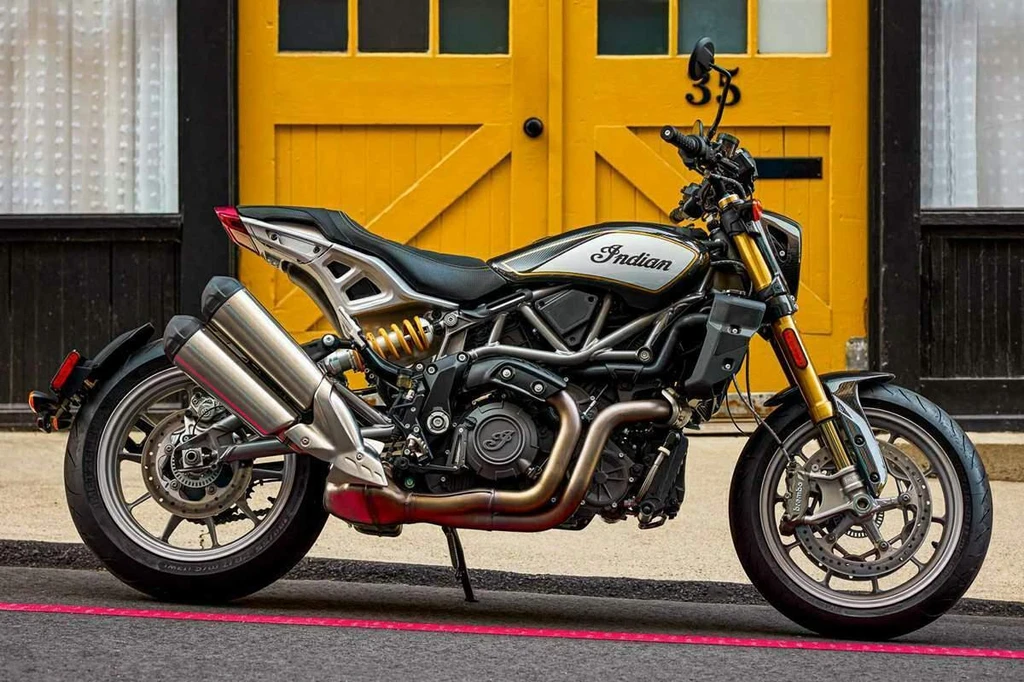

Indian FTR 1200 Carbon (2023)

Indian FTR 1200 Carbon (2023)

The Indian FTR 1200 Carbon is a raw, unbridled beast of a motorcycle, designed to unleash your inner thrill-seeker and let you cut loose on the open road. Its unmistakable, muscular style is an American original, born from a passion for the pure sport of motorcycling.

With its retuned front braking system and new clutch, the FTR provides a firmer feel and improved performance. The 101 mm round touchscreen display powered by RIDE COMMAND with navigation is a game-changer, offering three ride modes and advanced stability control for confident handling in all conditions.

But it’s not just about technology – the FTR 1200 Carbon is also a masterclass in design and craftsmanship, with carbon fibre components, premium seat, and exquisite attention to detail. Whether you’re carving up twisties or cruising down the highway, the FTR is an unforgettable experience, and its sheer performance and style will leave you breathless and begging for more. The Indian FTR 1200 Carbon is the ultimate American V-twin experience.

Key Specifications

Engine TypeFour stroke, 60 V Twin , DOHC, 4 valves per cylinder, graded buckets
Engine Capacity73 cubic inches / 1203 cc
Max Power120 hp / 89.4 kW @ 6000 rpm
Max Torque87 ft-lb / 117.9 nm
Fuel Tank Capacity3.4 US gallons / 12.9 L
Seat Height30.7 inches / 780 mm
Indian FTR 1200 Carbon (2023)

All Specifications

Make & Model

ModelIndian FTR 1200 Carbon
Year2023

Engine

Engine TypeFour stroke, 60 V Twin , DOHC, 4 valves per cylinder, graded buckets
Displacement73 cubic inches / 1203 cc
Bore x Stroke102 x 73.6 mm
Compression Ratio12.5:1
Max Horsepower120 hp / 89.4 kW @ 6000 rpm
Max Torque87 ft-lb / 117.9 nm
Engine Management SystemElectronic Fuel Injection closed loop, 60 mm bore
Cooling SystemLiquid Cooled
Exhaust2-into-1

Performance

Top Speedn/a

Transmission

ClutchAssist & Slip, Multi-Plate
Gearbox6 Speed
Gear Ratios1st 12.270 : 12nd 8.341 : 13rd 6.646 : 14th 5.639 : 15th 4.985 : 16th 4.278 : 1
Final DriveChain

Electrical & Electronics System

StarterElectric
ABSStandard, option to disable

Chassis & Suspension

Frame TypeSteel trellis
Front Suspension43 mm hlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Suspension Travel4.7 inches / 120 mm
Rear Suspensionhlins Fully Adjustable Piggyback IFP
Rear Suspension Travel4.7 inches / 120 mm
Rake25.3
Trail99.9 mm / 3.9 in

Wheels & Brakes

WheelsCastAluminum
Front Wheel/Rim Size17 x 3.5
Front Tire Size120/70ZR17 58W
Rear Wheel/Rim Size17 x 5.5
Rear Tire Size180/55ZR17 73W
Front Brakes2x 320mm t5 Rotor Brembo with 4-piston calipers
Rear BrakesSingle 260mm t5 RotorBrembowith 2-piston calipers
ABSStandard, option to disable

Dimension & Weights

Seat Height30.7 inches / 780 mm
Wheelbase60 inches / 1524 mm
Ground Clearance165 mm/ 6.5 in
Fuel Tank Capacity3.4 US gallons / 12.9 L

Features

  • Retuned front braking system for a firmer feel
  • New clutch with improved feel and performance
  • Speedometers moved up for easier viewing
  • Sport exhaust muffler now standard on all models
  • 101 mm round touchscreen display with RIDE COMMAND and navigation
  • Three ride modes (Sport, Standard, Rain)
  • Lean Angle Sensitive Stability Control
  • Anti-lock Braking System (ABS)
  • Carbon fibre components on FTR R Carbon
  • Fully adjustable Hlins Gold front forks on FTR R Carbon
  • Gold piggyback shock on FTR R Carbon
  • Iconic Indian Script logo tank panels on FTR R Carbon
  • Performance Adjustable Rearsets
  • Billet Bar End Weights
  • Billet Oil Cap
  • Billet Radiator Cap
  • Performance Adjustable Levers
  • Carbon Fiber Exhaust Heat Shield
  • Carbon Fiber Frame Guard
  • Carbon Fiber Sprocket Cover
  • Comfort+ Seat with durable and weather-resistant design
  • CruzTOOLS Tool Kits compatible with all Indian Motorcycle models
  • All-Weather Vinyl Tailbag for select passenger seats or luggage racks
