Indian Chieftain Limited 116 (2020)

Indian Chieftain Limited 116 (2020)

The Indian Chieftain Limited 116 is the epitome of power and sophistication on two wheels. Its Thunder Stroke 116 V-Twin engine delivers an astonishing 126 ft-lb of torque, effortlessly propelling you through even the most challenging terrain.

With its restyled fairing, slammed saddlebags, and 19 front wheel, this bike exudes a custom-inspired style that’s both aggressive and refined. The addition of LED lighting from nose to tail and a lowered stance only adds to its menacing presence on the road.

But it’s not just about looks – the Chieftain Limited is also a masterclass in handling and comfort. Its lightweight cast aluminum frame and outstanding steering geometry combine to provide a responsive ride that’s perfect for carving through twisties or cruising down the highway. And with the intuitive Ride Command system at your fingertips, you’ll always stay connected and in control.

Key Specifications

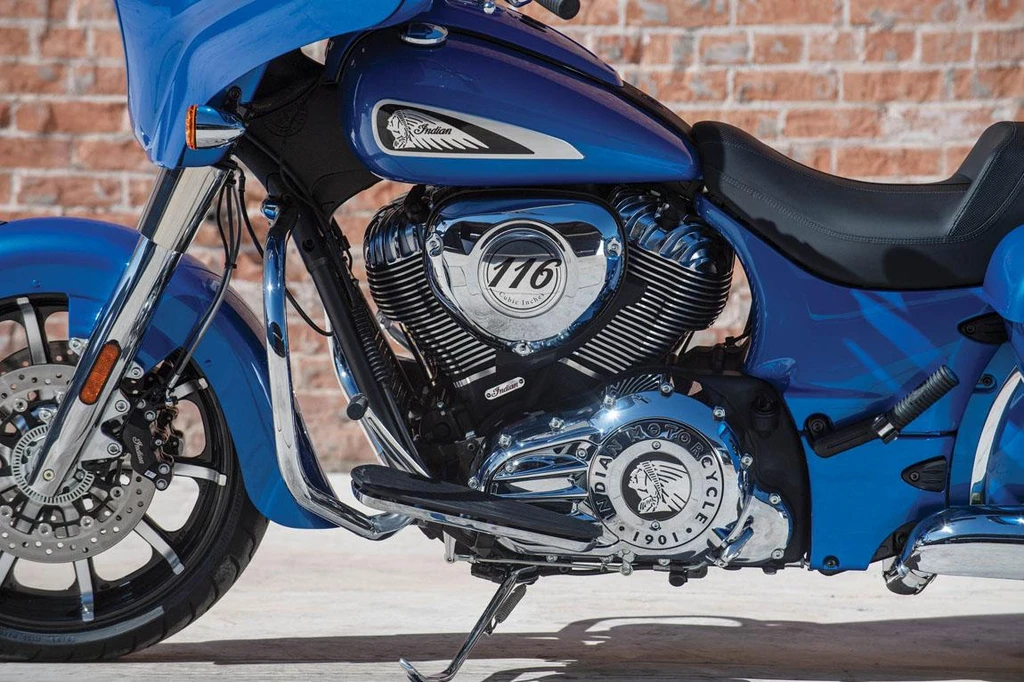

Engine TypeThunder Stroke 116, 49˚ V-Twin
Engine Capacity1890 cc / 115 cub in
Fuel Tank Capacity5.5 US gallons / 20.8 L
Weight (Wet/Kerb)830 lbs / 376 kg
Seat Height25.6 inches / 650 mm
Indian Chieftain Limited 116 (2020)

All Specifications

Make & Model

ModelIndian Chieftain Limited 116
Year2020

Engine

Engine TypeThunder Stroke 116, 49˚ V-Twin
Displacement1890 cc / 115 cub in
Bore x Stroke103.2 x 113mm
Compression Ratio11.0:1
Engine Management SystemElectronic fuel injection, closed loop, 54 mm bore
Cooling SystemAir / Oil cooled
ExhaustSplit dual exhaust with cross-over

Performance

Top Speedn/a

Transmission

ClutchWet, multi-plate
Gearbox6 Speed
Gear Ratios1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final DriveBelt, 152 tooth

Electrical & Electronics System

StarterElectric
ABSIndividual front and rear control with ABS

Chassis & Suspension

Frame TypeHigh tensile steel, monoshock
Front Suspension46mm Telescopic forks
Front Suspension Travel4.7 inches / 119 mm
Rear SuspensionSingle shock, air adjustable
Rear Suspension Travel4.5 inches / 114 mm
Rake25
Trail150 mm / 5.9 in

Wheels & Brakes

Front Wheel/Rim SizeCast 19″ x 3.5″
Front Tire Size130/60B19 61H Dunlop American Elite
Rear Wheel/Rim SizeCast 16″ x 5.0″
Rear Tire Size180/60R16 80H Dunlop Elite 3
Front Brakes2 x 300mm Floating rotor 4 piston calipers
Rear BrakesSingle 300mm floating rotor 2 piston calipers
ABSIndividual front and rear control with ABS

Dimension & Weights

Seat Height25.6 inches / 650 mm
Wheelbase65.7 inches / 1668 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity5.5 US gallons / 20.8 L
Wet (kerb/curb) Weight830 lbs / 376 kg
Dry Weight362 kg / 798 lbs

Features

  • Restyled fairing
  • Slammed saddlebags
  • 19 front wheel
  • New badging
  • Indian Motorcycle Ride Command system
  • Turn-by-turn navigation
  • Bluetooth connectivity
  • Vehicle information
  • Connected traffic and weather overlays
  • LED lighting
  • Lowered stance
  • Thunder Stroke 116 V-Twin engine
  • 126 ft-lb of torque at low RPM
  • Responsive ride at any speed
  • Lightweight cast aluminum frame
  • Responsive handling and agile cornering
  • Gunfighter style seat
  • High-output speakers in fairing
  • Crystal-clear audio with dynamic equalizer
  • Keyless ignition
  • Cruise control
  • ABS
  • Tire pressure monitoring
  • Push-button power windshield
