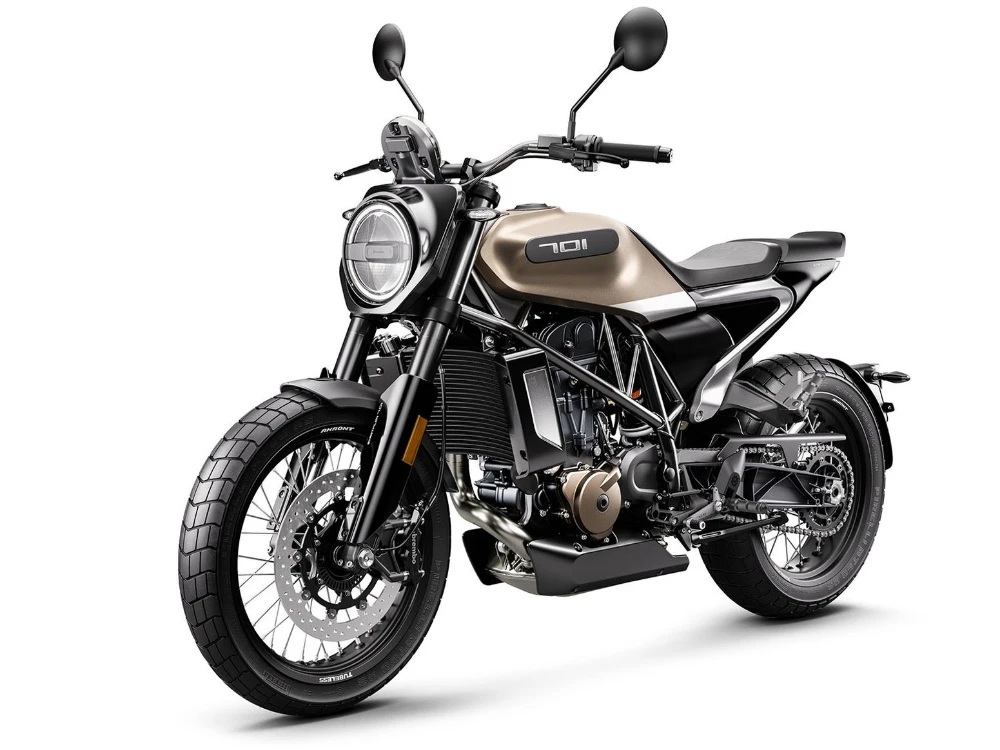

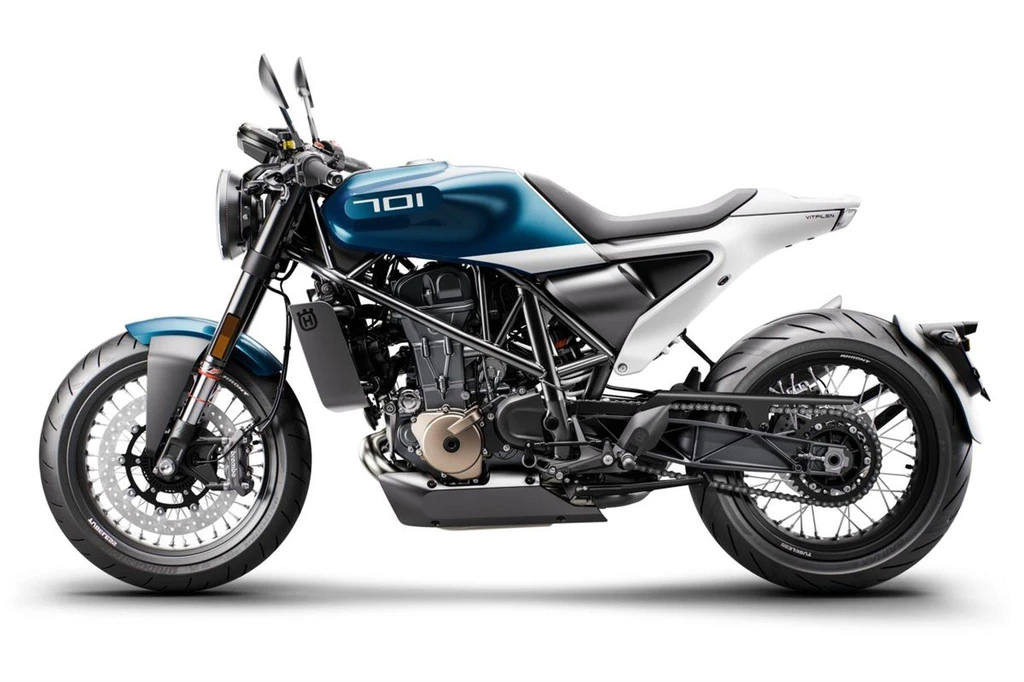

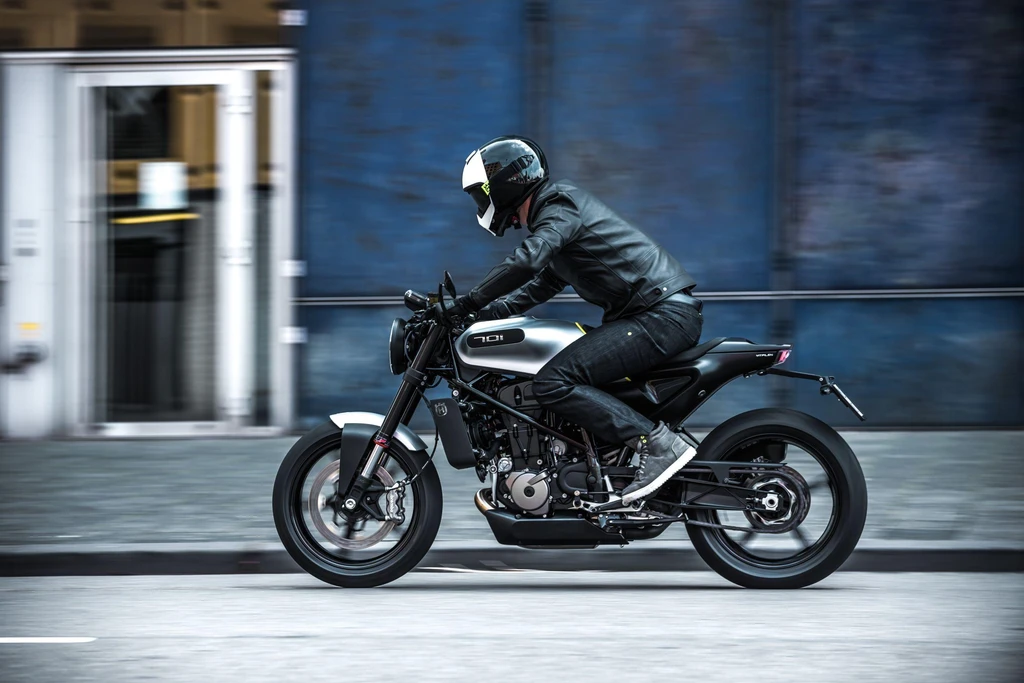

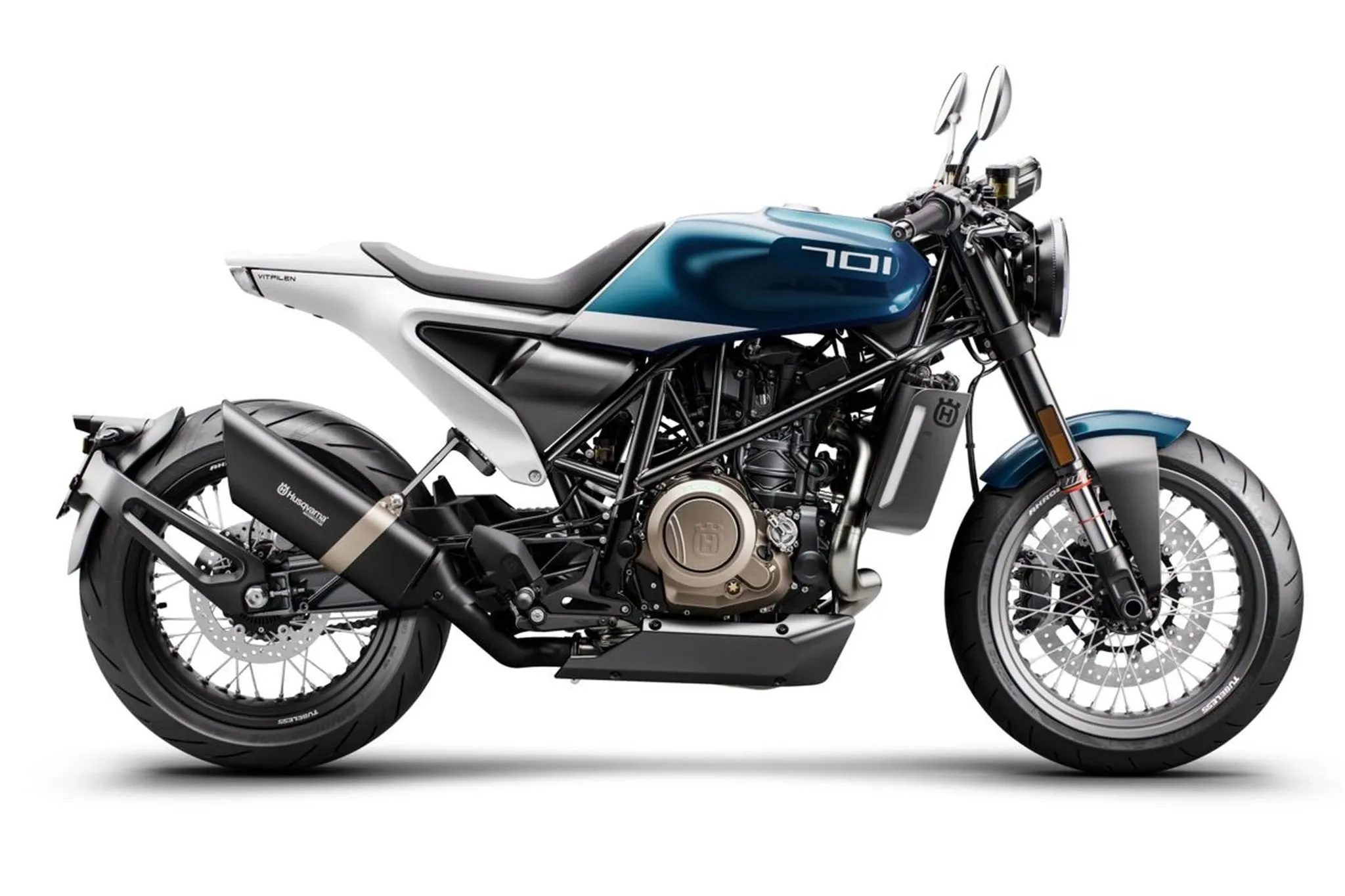

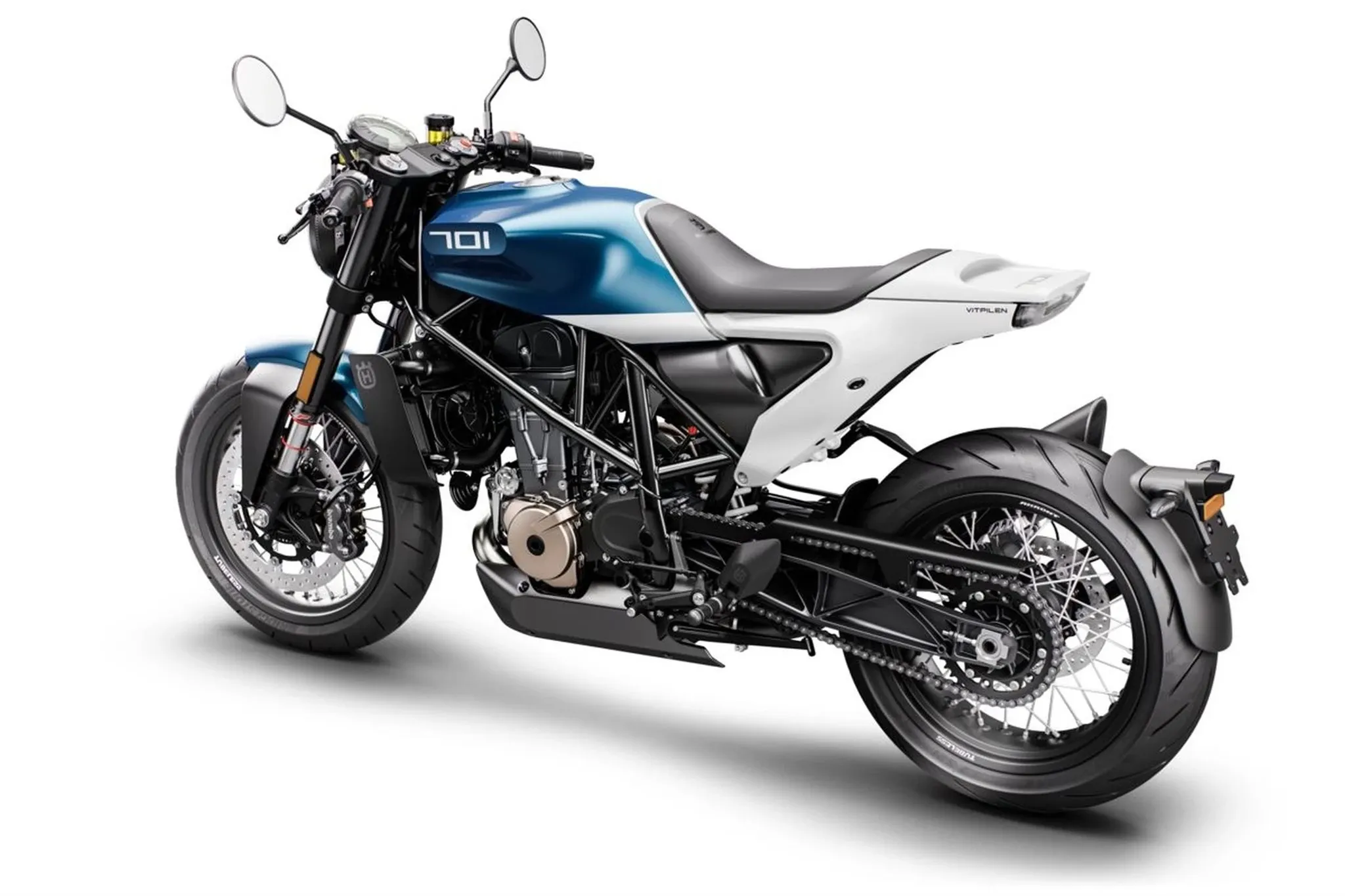

Husqvarna Vitpilen 701 (2020)

Husqvarna Vitpilen 701 (2020)

The Husqvarna Vitpilen 701 is the ultimate expression of modern motorcycle design, where form and function converge in perfect harmony. A lightweight trellis frame and minimalist aesthetics give way to a sporty riding style, where every twist of the wrist and flex of the chassis is magnified for an unmistakably pure riding experience.

A 692.7 cc single-cylinder engine, featuring the latest design and electronics technology, provides a potent 55kW (75hp) and 72Nm of torque. The ride-by-wire system and standard traction control system deliver immediate, sharp, and refined power, making every ride a thrill.

Innovative production processes and high-quality materials ensure premium reliability and efficiency, resulting in a long 10,000 km service interval. The result is a motorcycle that demands to be ridden with passion and precision.

The Vitpilen 701 is a masterclass in engineering and design, with every component working in perfect harmony to deliver an unparalleled riding experience. With its exceptional agility, stability, and braking performance, this motorcycle is ready to take on any road, anywhere.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves with intake cam levers and exhaust rocker arm
Engine Capacity692.7 cc / 42.27 cu in
Max Power55 kw / 75 hp
Max Torque71Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm
Fuel Tank Capacity3.17 US gallons / 12.0 L
Seat Height32.6 inches / 830 mm
Husqvarna Vitpilen 701 (2020)

All Specifications

Make & Model

ModelHusqvarna Vitpilen 701
Year2020

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves with intake cam levers and exhaust rocker arm
Displacement692.7 cc / 42.27 cu in
Bore x Stroke105 x 80 mm
Compression Ratio12.8:1
Max Horsepower55 kw / 75 hp
Max Torque71Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm
Engine Management SystemKeihin EFI, 50mm throttle body
Lubrication SystemPressure lubrication with 2 oil pumps
Cooling SystemLiquid cooling
ExhaustStainless steel primary and secondary silencer

Performance

Top Speedn/a

Transmission

ClutchAPTC slipper clutch, hydraulically operated
Gearbox6 Speed
Primary Drive Ratio36:79
Final DriveChain X-Ring 5/8 x 1/4″

Electrical & Electronics System

StarterElectric
ABSABS Bosch 9M+ Two Channel

Chassis & Suspension

Frame TypeChromium-Molybdenum-Steel trellis frame, powder coated, aluminium
Front Suspension43 mm WP-USD forks
Front Suspension Travel5.3 inches / 135 mm
Rear SuspensionWP-Monoshock with Pro-Lever linkage
Rear Suspension Travel5.3 inches / 135 mm
Trail109 mm / 4.3 in
HandlebarAluminium clip-on

Wheels & Brakes

Front Wheel/Rim SizeCast aluminium 3.50 x 17″
Front Tire Size129/70 R 17 Bridgestone Battlax
Rear Wheel/Rim SizeCast aluminium 5.00 x 17″
Rear Tire Size160/60 R 17 Bridgestone Battlax
Front BrakesSingle 320 mm disc,4 pistonBrembo caliper
Rear BrakesSingle 240 mm disc, Brembo single piston, floating caliper
ABSABS Bosch 9M+ Two Channel

Dimension & Weights

Seat Height32.6 inches / 830 mm
Wheelbase56.5 inches / 15 mm
Ground Clearance140 mm / 5.5 in
Fuel Tank Capacity3.17 US gallons / 12.0 L
Dry Weight157 kg / 346 lbs

Features

  • 692.7 cc liquid cooled, single-cylinder engine
  • Peak horsepower of 55kW (75hp)
  • 72Nm of torque
  • Electronic fuel injection
  • Ride-by-wire system
  • Standard traction control system
  • Up & down easy shift
  • Long 10,000 km service interval
  • Trellis frame constructed from high grade chromium molybdenum tubular steel
  • Hydraulic Brembo brake callipers
  • 320mm front and 240mm rear perforated steel discs
  • Bosch ABS system
  • WP APEX suspension
  • 43 mm upside down front forks
  • Monoshock rear suspension
  • Adjustable suspension components
  • 17″ spoked wheels
  • Bridgestone Battlax S21 tyres
  • Lightweight and narrow bodywork
