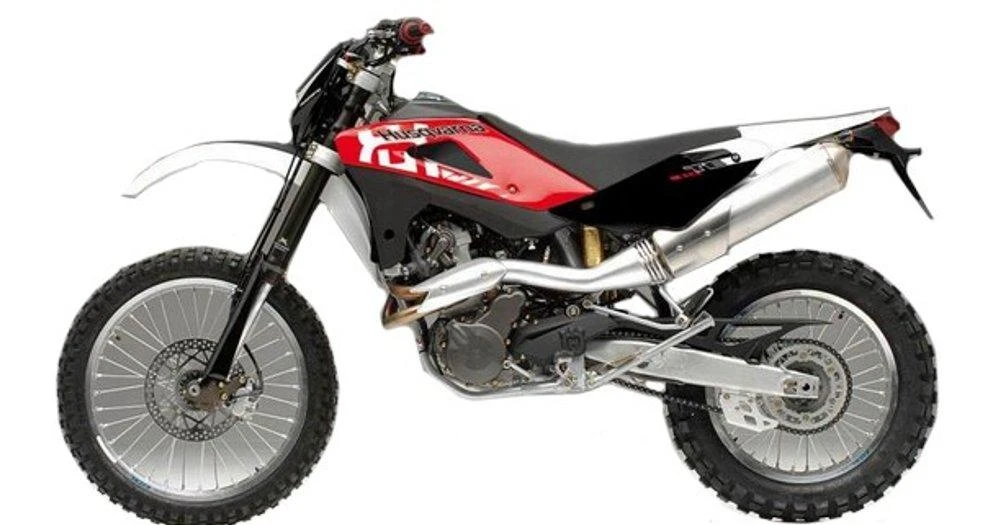

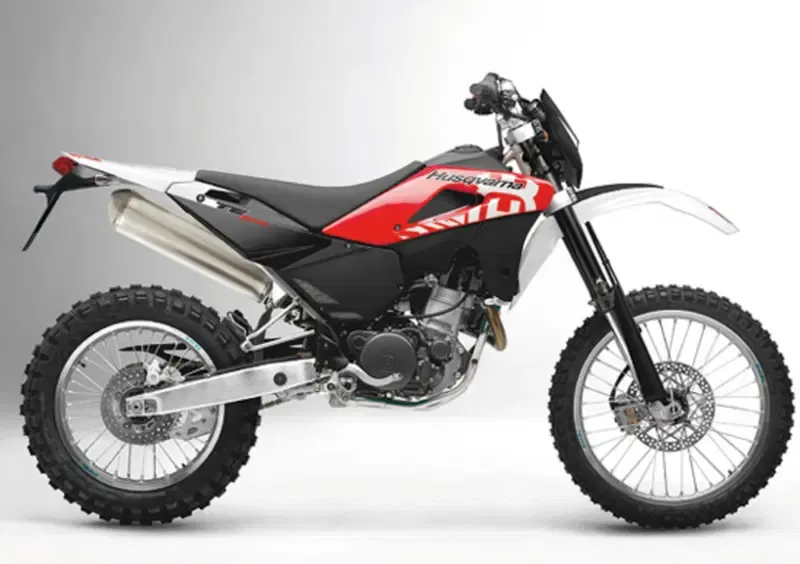

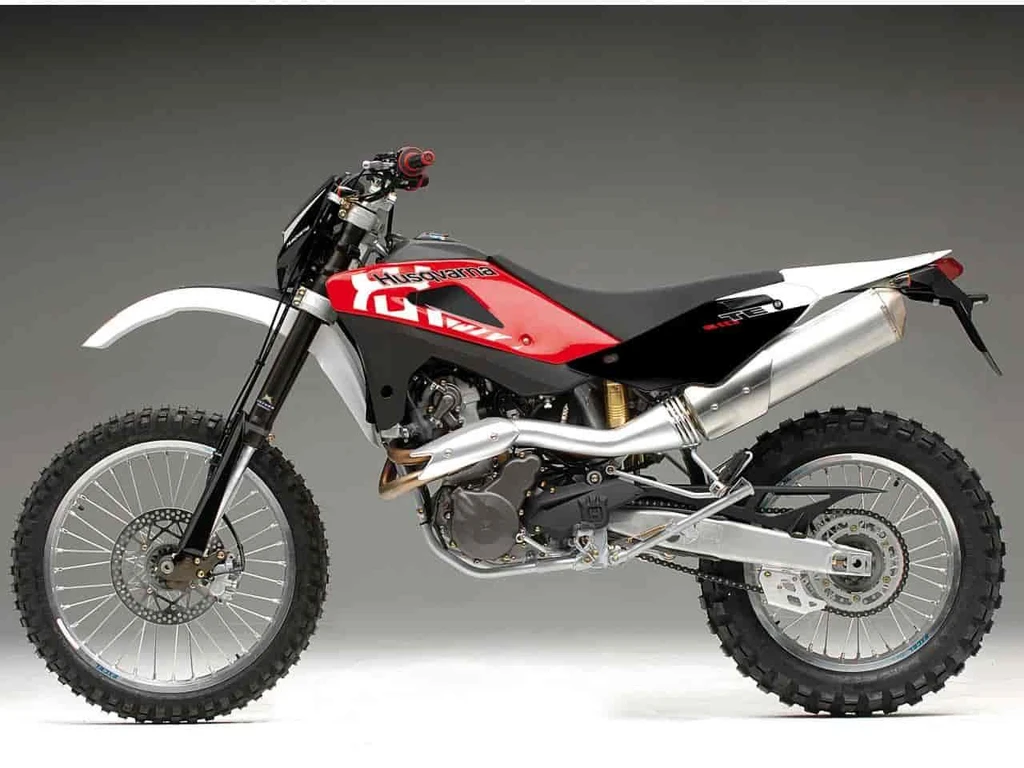

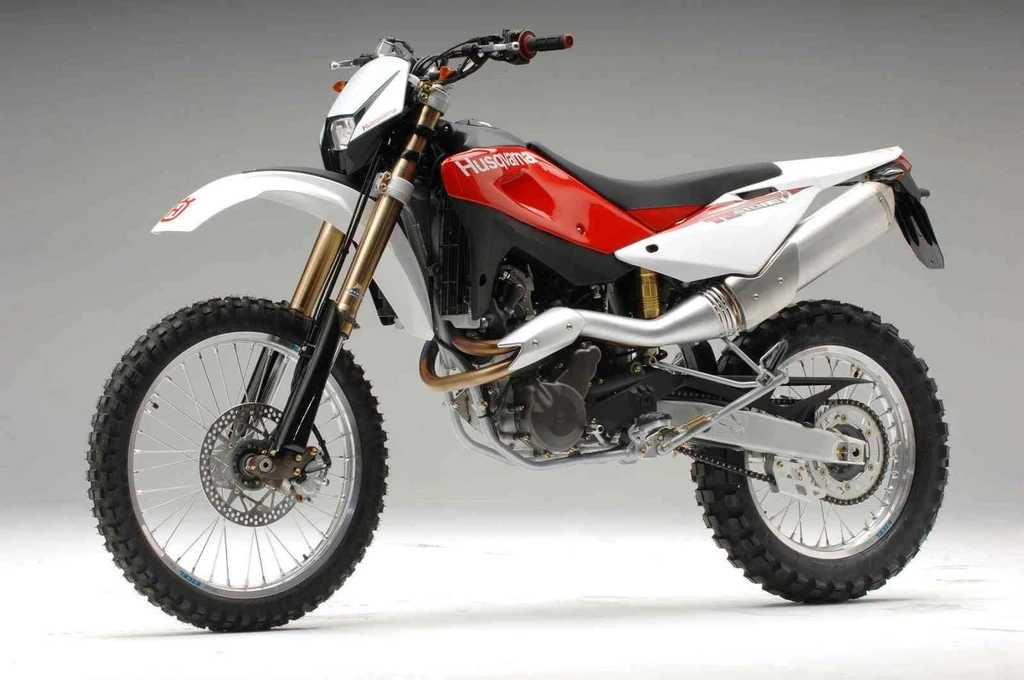

Husqvarna TE 610ie (2009)

Husqvarna TE 610ie (2009)

The Husqvarna TE 610ie is a testament to the brand’s rich heritage in off-road racing, now transformed into a versatile dual-purpose machine. Riding the TE 610ie is an exhilarating experience, with its 654cc single-cylinder engine delivering a strong character and impressive low-to-mid-range torque.

The chassis has been meticulously tuned for both on-road comfort and off-road capability, making it an ideal choice for those seeking a balance between performance and practicality. With a max power output of 39 kW and 52 Nm of torque, the TE 610ie is a force to be reckoned with, whether navigating twisty roads or tackling demanding trails.

The TE 610ie’s impressive credentials are further enhanced by its Euro 3-compliant engine, featuring a new electronic injection system, high compression piston, and digital ECU with TPS. This is a bike that embodies the perfect blend of muscle and class, poised to take riders on an unforgettable adventure.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves
Engine Capacity35.2 cubic inches / 576 cc
Max Power54 hp / 40.3 kW @ 7000 rpm
Max Torque52 Nm / 38.4 ft-lb @ 6500 rpm
Fuel Tank Capacity3.3 US gallons / 12.5 L
Seat Height37 inches / 940 mm
Husqvarna TE 610ie (2009)

All Specifications

Make & Model

ModelHusqvarna TE 610ie
Year2009

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves
Displacement35.2 cubic inches / 576 cc
Bore x Stroke98.0 x 76.4 mm
Compression Ratio11.0:1
Max Horsepower54 hp / 40.3 kW @ 7000 rpm
Max Torque52 Nm / 38.4 ft-lb @ 6500 rpm
Engine Management SystemElectronic injection
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet,multiplate type; mechanic control
Gearbox6 Speed
Gear Ratios1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Final DriveChain

Electrical & Electronics System

StarterElectric & kick

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front Suspension45mm Marzocchi “Upside-Down telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Front Suspension Travel10.6 inches / 270 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size90/90 -21
Rear Tire Size140/80 -18
Front BrakesSingle 260mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height37 inches / 940 mm
Wheelbase58.9 inches / 1497 mm
Fuel Tank Capacity3.3 US gallons / 12.5 L
Dry Weight139.7 kg /309.7 lbs

Features

  • Steel single tube cradle
  • Rear frame in light alloy
  • 45mm Marzocchi “Upside-Down” telescopic hydraulic fork
  • Advanced axle with compression and rebound stroke adjustment
  • High compression piston
  • Fuel injection system
  • New digital ECU with TPS
  • Max power output 39 kW at 7000 RPM
  • Max torque 52 NM at 6500 RPM
  • Multi-plate clutch with anti-kickback on electric starting
  • New sealed clutch plates
  • New oil level inspection port
  • New spark plug with extended electrode
  • New camshaft
  • Traditional Husky round tube frame
  • Modified rake and a more wrap-round cradle
  • New stand
  • New aluminium swinging arm
  • New progressive rear suspension link
  • New bodywork and fittings
  • New filter box
  • New final drive ratios
  • New catalysed monopipe exhaust system
  • Lockable 12.5-litre fuel tank
  • Digital instrumentation displays speed, time, mileage, rpm
