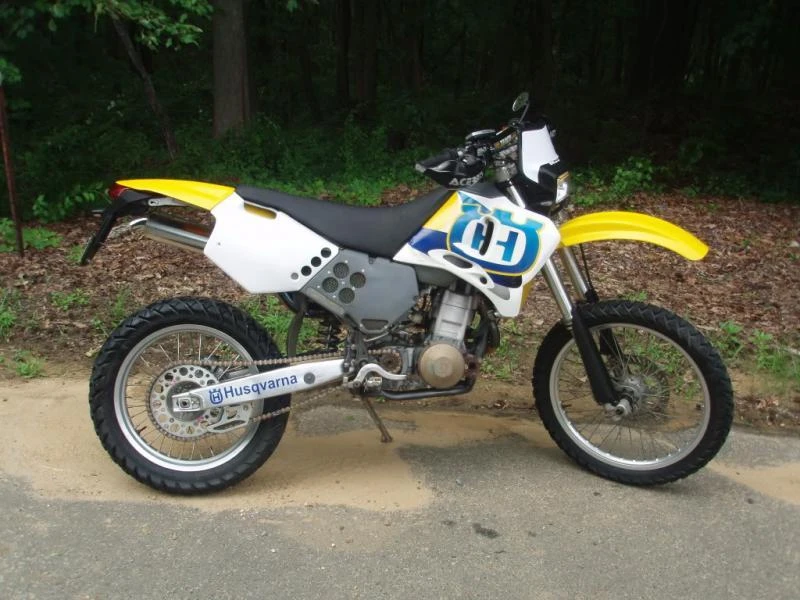

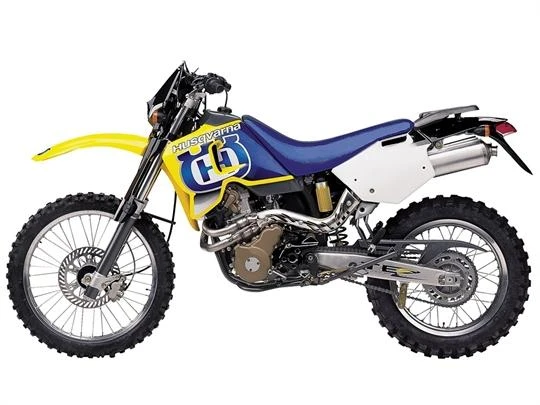

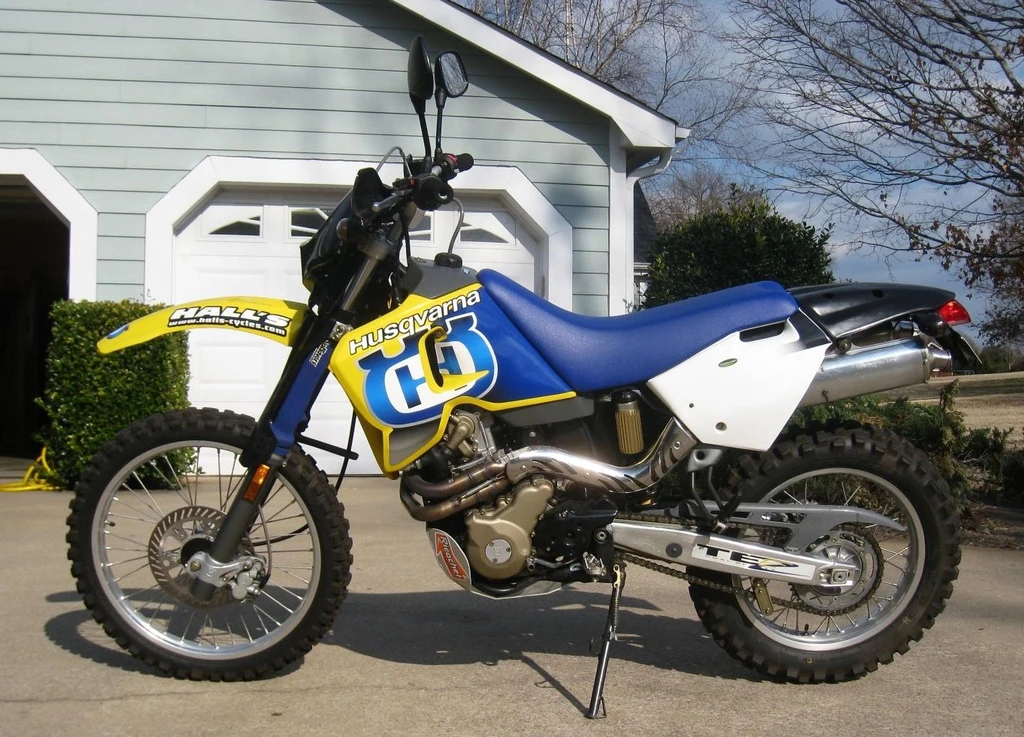

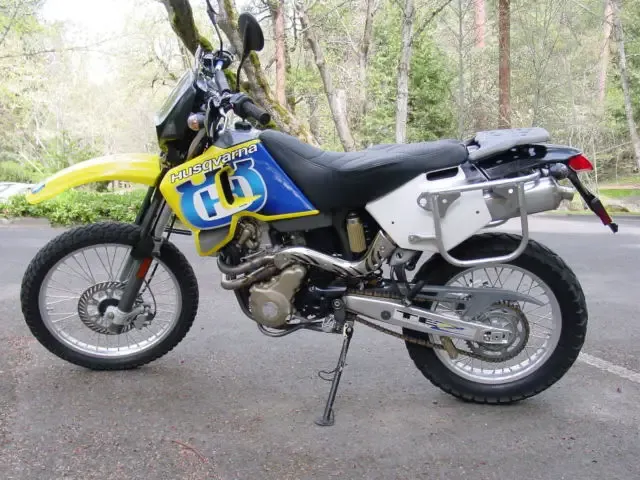

Husqvarna TE 610e (2003 – 2004)

The Husqvarna TE 610e is a force to be reckoned with on the trails, its 625cc engine delivering smooth, effortless power that makes quick work of even the toughest terrain.

With a steel single tube cradle frame and 45mm Marzocchi “Upside-Down” fork, the TE 610e is built for comfort and stability, its soft and supple suspension soaking up the bumps and dips of rough trails.

But it’s on the sand dunes that the TE 610e truly shines, its motor putting out great power and its handling surprisingly good, even with the weight of a full tank of fuel over the front wheel.

And when the terrain gets really technical, the TE 610e’s engine braking and rear brake combination proves to be a winning combination, allowing for controlled two-wheel drifting and even the occasional wheelie.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity	35.2 cubic inches / 576 cc
Max Power	53 hp /38.3kW @ 7000 rpm
Max Torque	36.8 ft-lb / 52 nm
Fuel Tank Capacity	2.4 US gallons / 9.0 L
Seat Height	33.9 inches / 860 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna TE 610e
Year	2003 – 2004

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Displacement	35.2 cubic inches / 576 cc
Bore x Stroke	98.0 x 76.4 mm
Compression Ratio	11.0:1
Max Horsepower	53 hp /38.3kW @ 7000 rpm
Max Torque	36.8 ft-lb / 52 nm
Engine Management System	41mm Keihin FCR MX
Cooling System	Liquid cooled

Performance

Top Speed

171 km/h

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multiplate type, hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Steel single tube cradle (round tubes);rear frame in light alloy
Front Suspension	45mm Marzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Rear Suspension	Sachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment

Wheels & Brakes

Front Tire Size	90/90 -21
Rear Tire Size	140/80 -18
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	33.9 inches / 860 mm
Wheelbase	58.5 inches / 1485 mm
Fuel Tank Capacity	2.4 US gallons / 9.0 L
Dry Weight	140.0 kg / 308.6 lbs

Features

Steel single tube cradle
Rear frame in light alloy
45mm Marzocchi “Upside-Down” telescopic hydraulic fork
Compression and rebound stroke adjustment
Electric start
Trelleborg off-road tyres (standard)
Intermediate Metzler Karuh tyres (standard, but noted to be less ideal for on-road use)
Twin alloy silencers
Adjustable suspension
Large fuel tank
Heavy-duty boots not required for starting the bike (thanks to electric start)
Adjustable rear shock
Engine braking capabilities
Front brake disconnection option
Wheelie capabilities in certain gear ranges
Braking system (no details provided)
Dual exhaust system (twin alloy silencers)
