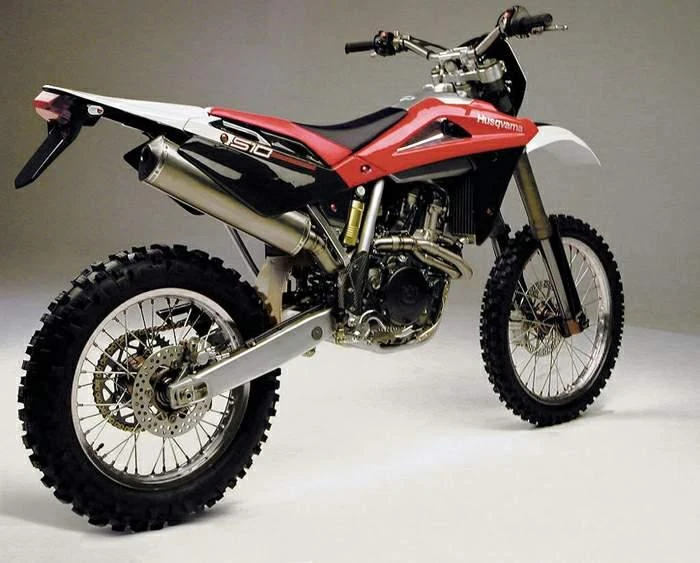

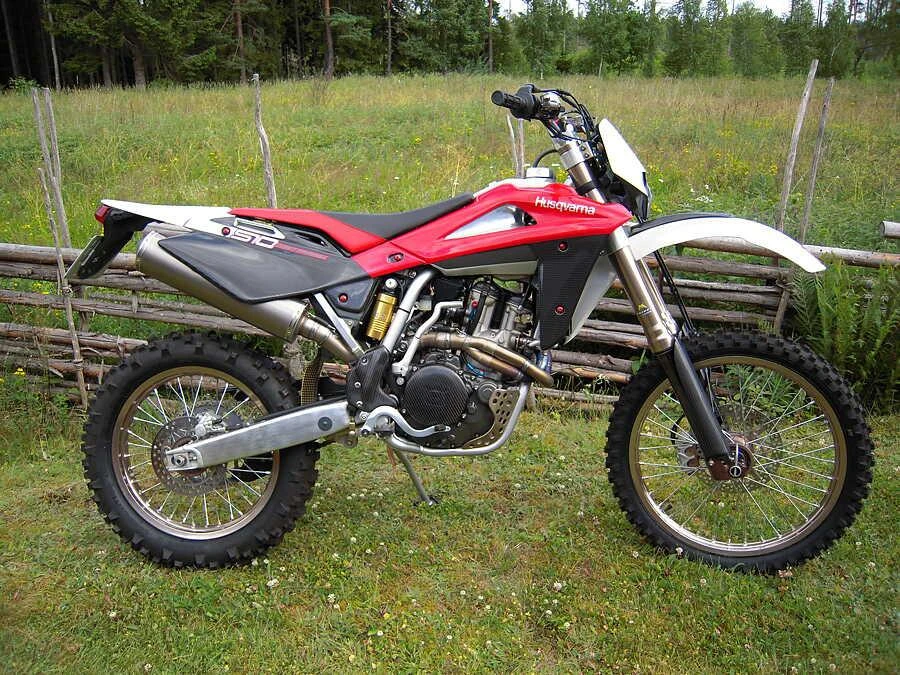

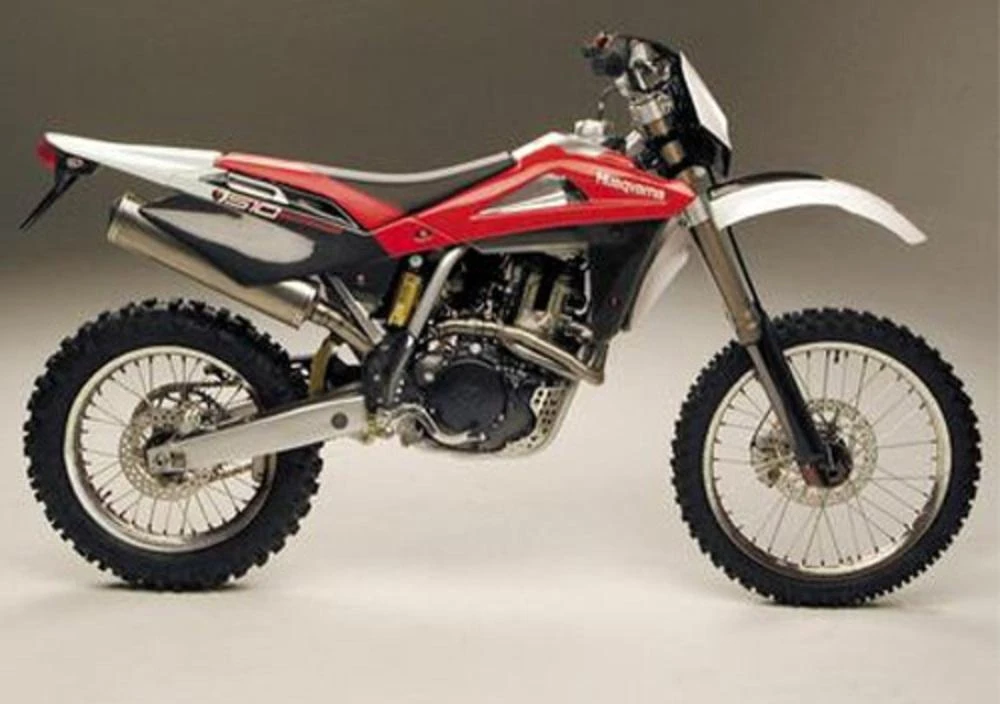

Husqvarna TE 510 Centennial Special Edition (2005)

The Husqvarna TE 510 Centennial Special Edition is a testament to the brand’s rich heritage, boasting a robust steel single tube cradle and a rear frame crafted from lightweight alloy. This sleek foundation is perfectly complemented by the Marzocchi “Upside-Down” telescopic hydraulic fork, which not only provides exceptional handling but also features advanced adjustability for compression and rebound stroke. This setup allows riders to fully exploit the 510’s potent engine character, which is marked by a thrilling blend of power and agility.

As you navigate twisty trails and challenging terrain, the TE 510 Centennial Special Edition rewards your skills with an intuitive riding experience that’s both exhilarating and precise. With its intuitive ergonomics and responsive throttle, this motorcycle is a true delight to ride, inviting you to push the limits and explore the full potential of its capable engine.

Bridging the gap between rugged off-road capability and refined on-road manners, the Husqvarna TE 510 Centennial Special Edition is an absolute must-ride for anyone seeking an unforgettable adventure.

Key Specifications

Engine Type	Four stroke, single cylinder, DOHC, 4 valves
Engine Capacity	30.5 cubic inches / 501 cc
Max Power	59.8 hp / 44 kW @ 8000 rpm
Max Torque	56 ft-lb / 49 nm
Fuel Tank Capacity	2.4 US gallons / 9.2 L
Seat Height	38.4 inches / 975 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna TE 510 Centennial Special Edition
Year	2005

Engine

Engine Type	Four stroke, single cylinder, DOHC, 4 valves
Displacement	30.5 cubic inches / 501 cc
Bore x Stroke	97 x 67.8 mm
Compression Ratio	12.5;1
Max Horsepower	59.8 hp / 44 kW @ 8000 rpm
Max Torque	56 ft-lb / 49 nm
Engine Management System	41mm Keihin MX carburetor
Cooling System	Liquid cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet / Multiplate / 6 spd
Gearbox	6 Speed
Gear Ratios	1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final Drive	Chain

Electrical & Electronics System

Battery	12 V – 6 Ah
Starter	Electric & kick

Chassis & Suspension

Frame Type	Steel single tube cradle (round tubes);rear frame in light alloy
Front Suspension	Marzocchi “Upside-Down” telescopic hydraulic fork with advanced axle; compressionand rebound stroke adjustment
Front Suspension Travel	11.8 inches / 300 mm
Rear Suspension	Sachs progressive “Soft Damp” type with single hydraulic shock absorber; springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel	12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size	90/90-21
Rear Tire Size	140/80-18
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	38.4 inches / 975 mm
Wheelbase	57.5 inches / 1460 mm
Ground Clearance	340 mm / 13.4 in
Fuel Tank Capacity	2.4 US gallons / 9.2 L
Dry Weight	117 kg / 258 lbs

Features

Steel single tube cradle (round tubes)
Rear frame in light alloy
Marzocchi “Upside-Down” telescopic hydraulic fork
Advanced axle
Compression stroke adjustment
Rebound stroke adjustment
