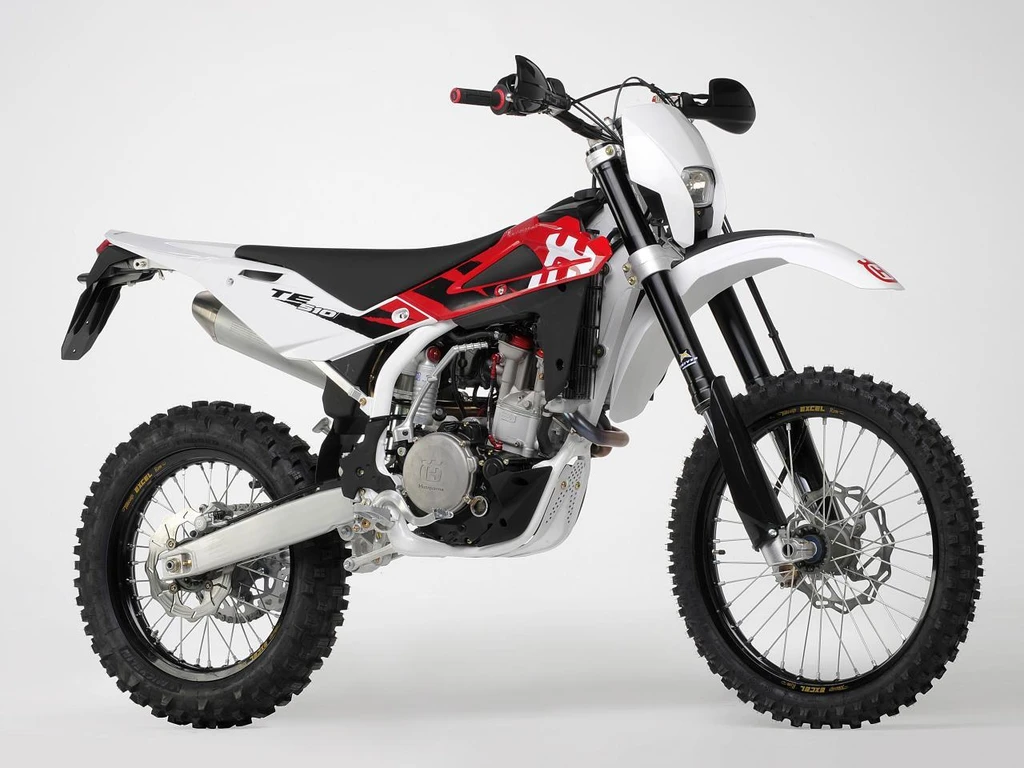

Husqvarna TE 510 (2006 – 2007)

The Husqvarna TE 510 is a testament to the Swedish brand’s commitment to off-road excellence. Built on a sturdy steel single tube cradle, the bike’s robustness is only matched by its agility. The rear frame, crafted from lightweight alloy, adds to the bike’s overall balance and poise.

A Marzocchi “Upside-Down” fork takes care of suspension duties, with advanced features like adjustable compression and rebound allowing riders to tailor the bike to their unique riding style.

Its engine, a potent 510cc single-cylinder, provides the grunt and character that’s synonymous with Husqvarna’s Enduro heritage, delivering a thrilling riding experience that’s as raw as it is refined.

Key Specifications

Engine Type	Four stroke, single cylinder, DOHC, 4 valves
Engine Capacity	30.5 cubic inches / 501 cc
Max Power	59.8 hp / 44 kW @ 8000 rpm
Max Torque	56 ft-lb / 49 nm
Fuel Tank Capacity	2.4 US gallons / 9.2 L
Seat Height	38.4 inches / 975 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna TE 510
Year	2006 – 2007

Engine

Engine Type	Four stroke, single cylinder, DOHC, 4 valves
Displacement	30.5 cubic inches / 501 cc
Bore x Stroke	97 x 67.8 mm
Compression Ratio	12.5;1
Max Horsepower	59.8 hp / 44 kW @ 8000 rpm
Max Torque	56 ft-lb / 49 nm
Engine Management System	41mm Keihin MX carburetor
Cooling System	Liquid cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet / Multiplate / 6 spd
Gearbox	6 Speed
Gear Ratios	1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final Drive	Chain

Electrical & Electronics System

Battery	12 V – 6 Ah
Starter	Electric & kick

Chassis & Suspension

Frame Type	Steel single tube cradle (round tubes);rear frame in light alloy
Front Suspension	Marzocchi “Upside-Down” telescopic hydraulic fork with advanced axle; compressionand rebound stroke adjustment
Front Suspension Travel	11.8 inches / 300 mm
Rear Suspension	Sachs progressive “Soft Damp” type with single hydraulic shock absorber; springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel	12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size	90/90-21
Rear Tire Size	140/80-18
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	38.4 inches / 975 mm
Wheelbase	57.5 inches / 1460 mm
Ground Clearance	340 mm / 13.4 in
Fuel Tank Capacity	2.4 US gallons / 9.2 L
Dry Weight	117 kg / 258 lbs

Features

Steel single tube cradle frame
Rear frame in light alloy
Marzocchi “Upside-Down” telescopic hydraulic fork
Advanced axle
Compression stroke adjustment
Rebound stroke adjustment
