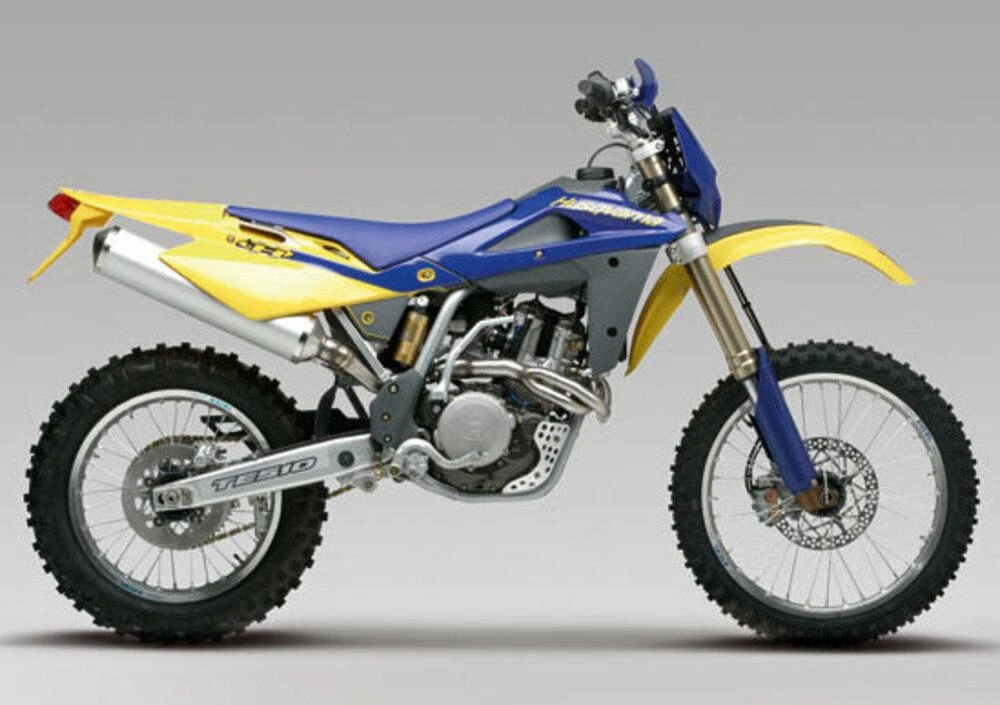

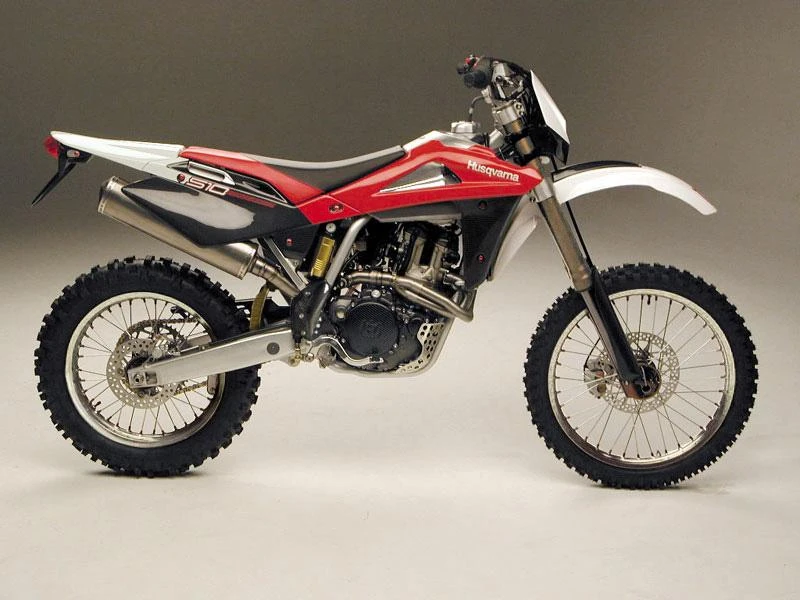

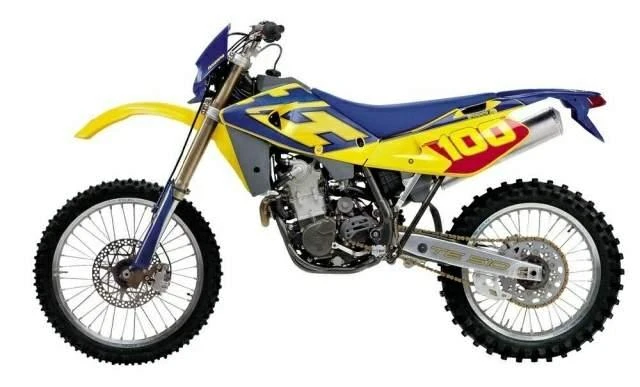

Husqvarna TE 510 (2004 – 2005)

Husqvarna TE 510 (2004 - 2005)

The Husqvarna TE 510 is a high-performance off-road motorcycle that embodies the brand’s rich heritage in enduro racing. Its steel single tube cradle provides a solid foundation, while the light alloy rear frame adds agility and responsiveness to the bike’s handling. The Marzocchi “Upside-Down” telescopic hydraulic fork is a masterclass in suspension design, offering advanced adjustability for both compression and rebound strokes.

This configuration allows riders to fine-tune the bike’s response to suit their riding style, from the subtle nuances of trail riding to the intense demands of extreme off-road competition. The result is a machine that is both capable and intuitive, its performance a true reflection of Husqvarna’s commitment to building motorcycles that inspire confidence and deliver thrilling riding experiences. The Husqvarna TE 510 is a true champion, bred to conquer the toughest terrain with precision and authority.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Engine Capacity30.5 cubic inches / 501 cc
Max Power59.8 hp / 44 kW @ 8000 rpm
Max Torque56 ft-lb / 49 nm
Fuel Tank Capacity2.4 US gallons / 9.2 L
Seat Height38.4 inches / 975 mm
Husqvarna TE 510 (2004 - 2005)

All Specifications

Make & Model

ModelHusqvarna TE 510
Year2004 – 2005

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Displacement30.5 cubic inches / 501 cc
Bore x Stroke97 x 67.8 mm
Compression Ratio12.5;1
Max Horsepower59.8 hp / 44 kW @ 8000 rpm
Max Torque56 ft-lb / 49 nm
Engine Management System41mm Keihin MX carburetor
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet / Multiplate / 6 spd
Gearbox6 Speed
Gear Ratios1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final DriveChain

Electrical & Electronics System

Battery12 V – 6 Ah
StarterElectric & kick

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front SuspensionMarzocchi “Upside-Down” telescopic hydraulic fork with advanced axle; compressionand rebound stroke adjustment
Front Suspension Travel11.8 inches / 300 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber; springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size90/90-21
Rear Tire Size140/80-18
Front BrakesSingle 260mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height38.4 inches / 975 mm
Wheelbase57.5 inches / 1460 mm
Ground Clearance340 mm / 13.4 in
Fuel Tank Capacity2.4 US gallons / 9.2 L
Dry Weight117 kg / 258 lbs

Features

  • Steel single tube cradle (round tubes)
  • Rear frame in light alloy
  • Marzocchi “Upside-Down” telescopic hydraulic fork
  • Advanced axle
  • Compression stroke adjustment
  • Rebound stroke adjustment
