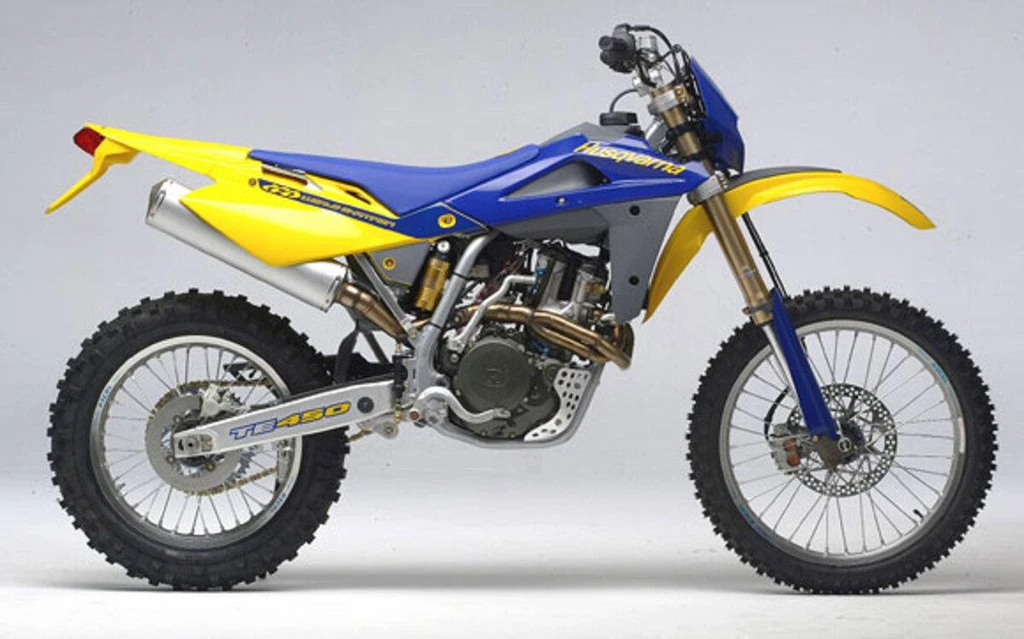

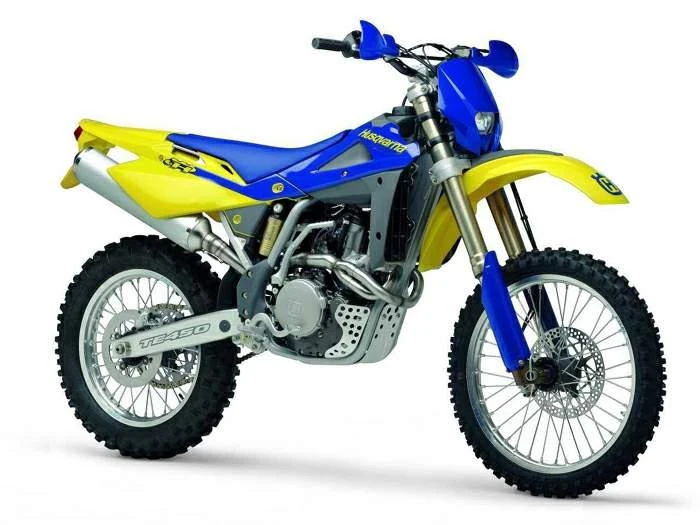

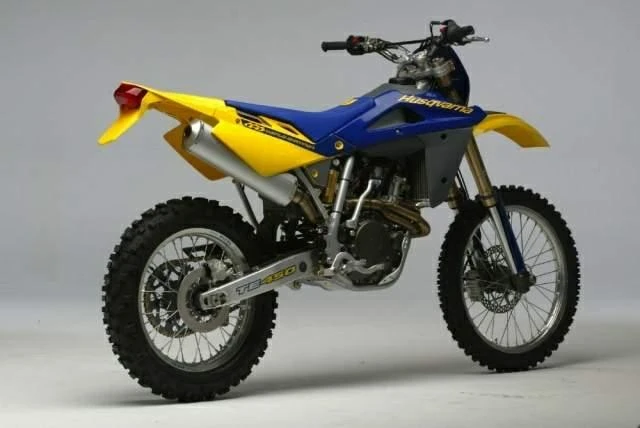

Husqvarna TE 450 (2004 – 2005)

Husqvarna TE 450 (2004 - 2005)

The Husqvarna TE 450, a true marvel of engineering and design. This 2004 and 2005 model boasts a sleek, streamlined body style, inspired by the Centennial model, with a fuel tank, seat, and sidecovers that exude a sense of speed and agility.

Under the hood, the TE 450’s engine has undergone significant modifications to enhance performance and functionality. New titanium valves with increased diameter stems provide improved strength and durability, while the intake camshaft has been redesigned with optimized lift profiles for increased performance.

The addition of Keihin FCR type carburetors with a 41mm bore further enhances the throttle response, making it easier to ride in any condition. The double choke system and electric start button ensure seamless cold starts and hot restarts.

With its advanced features and improved engine performance, the Husqvarna TE 450 is a true riding machine, designed to deliver an unparalleled riding experience.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Engine Capacity27.4 cubic inches / 449 cc
Max Power46.9 hp / 34.5 kW @ 8500 rpm
Max Torque30.6 ft-lb / 41.5 nm
Fuel Tank Capacity2.0 US gallons / 7.7 L
Seat Height38.4 inches / 975 mm
Husqvarna TE 450 (2004 - 2005)

All Specifications

Make & Model

ModelHusqvarna TE 450
Year2004 – 2005

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Displacement27.4 cubic inches / 449 cc
Bore x Stroke97 x 60.7 mm
Compression Ratio12.0;1
Max Horsepower46.9 hp / 34.5 kW @ 8500 rpm
Max Torque30.6 ft-lb / 41.5 nm
Engine Management System41mm Keihin MX carburetor
Lubrication SystemDry sump with 2 oil pump rotors and cartridge filter
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchHydraulically-actuated multiplate wet clutch
Gearbox6 Speed
Gear Ratios1e 2.000 (28/14), 2nd 1.611 (29/18), 3th 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final DriveChain

Electrical & Electronics System

StarterElectric & Kick

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front SuspensionMarzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Front Suspension Travel11.8 inches / 300 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size90/90-21
Rear Tire Size140/80-18
Front BrakesSingle 260mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height38.4 inches / 975 mm
Wheelbase57.5 inches / 1460 mm
Ground Clearance340 mm / 13.4 in
Fuel Tank Capacity2.0 US gallons / 7.7 L
Dry Weight116 kg / 255.7 lbs

Features

  • Steel single tube cradle (round tubes)
  • Rear frame in light alloy
  • Marzocchi “Upside-Down” telescopic hydraulic fork
  • Adjustable compression and rebound stroke
  • 2004 4-stroke Husqvarnas share the same body style as the TE 510 Centennial
  • Fuel tank, seat, sidecovers, front number plate, and front fender have the same shape as the TEC 510
  • New look that is particularly streamlined
  • Improved performance and function of the TE 450
  • New valves with increased diameter for improved strength
  • Manufacturing technology of the valves has been improved
  • New intake camshaft with optimized lift profiles
  • New cylinder head gasket made of multi layer steel sheets (MLS)
  • Reduced head deformations and improved temperature distribution of the power train
  • Latest generation of Keihin FCR type carburetors with a 41mm bore
  • Double choke system COLD/HOT
  • Electric start button
  • Primary drive similar to the 510’s
  • High strength aluminum (Ergal) clutch basket
  • Improved clutch discs sliding and reduced wear on the contact surface
  • Increased con-rod pin diameter
  • New roller bearing with increased load capacity
  • Silver plated cage
  • Redesigned connecting rod
  • Improved crankshaft balancing to reduce vibrations
  • Programmable digital CPU
  • Recognizes throttle position (TPS) and individual gears (GPS)
  • Modified ignition timing
  • Improved battery re-charging circuit
  • Increased charging current starting from lower revs
