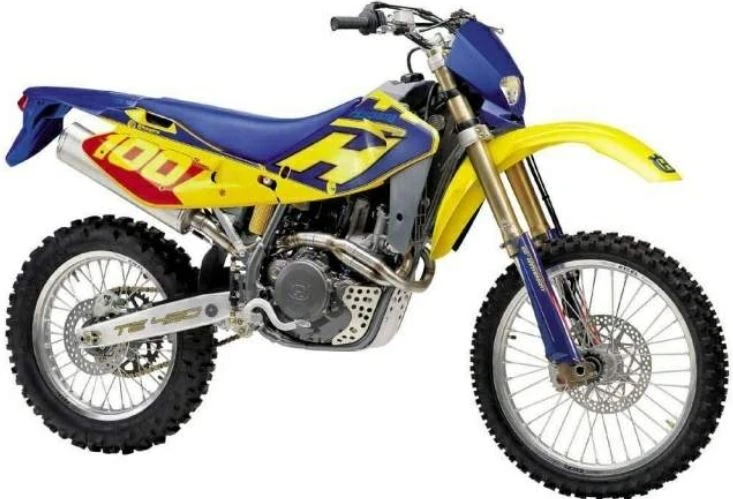

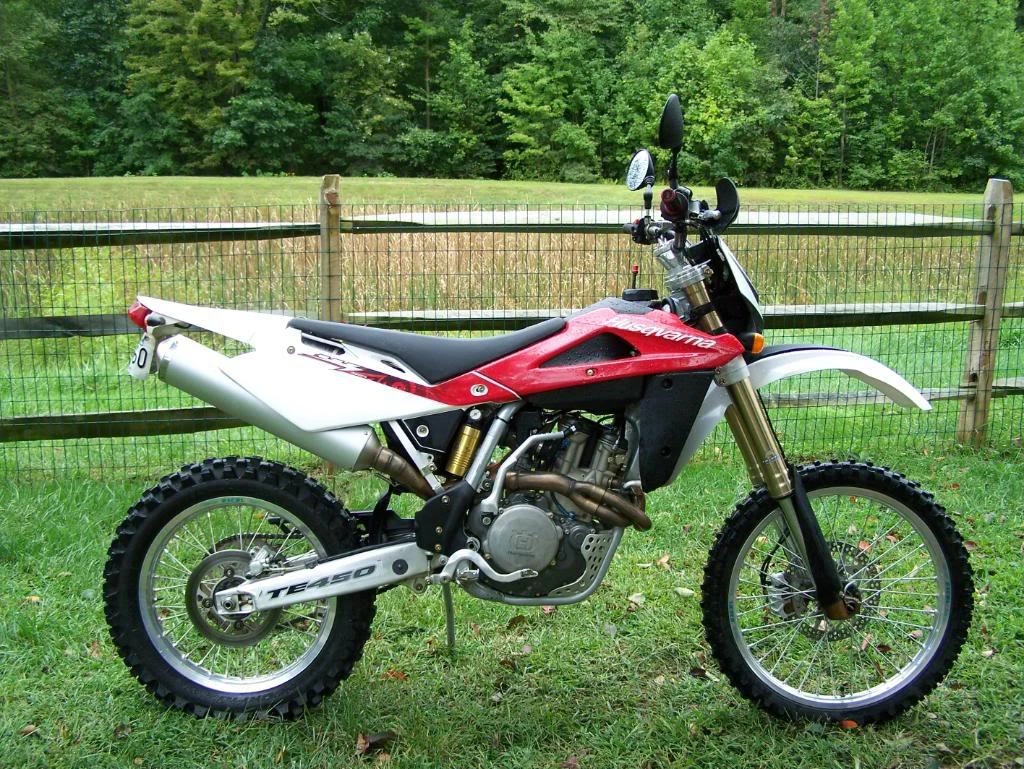

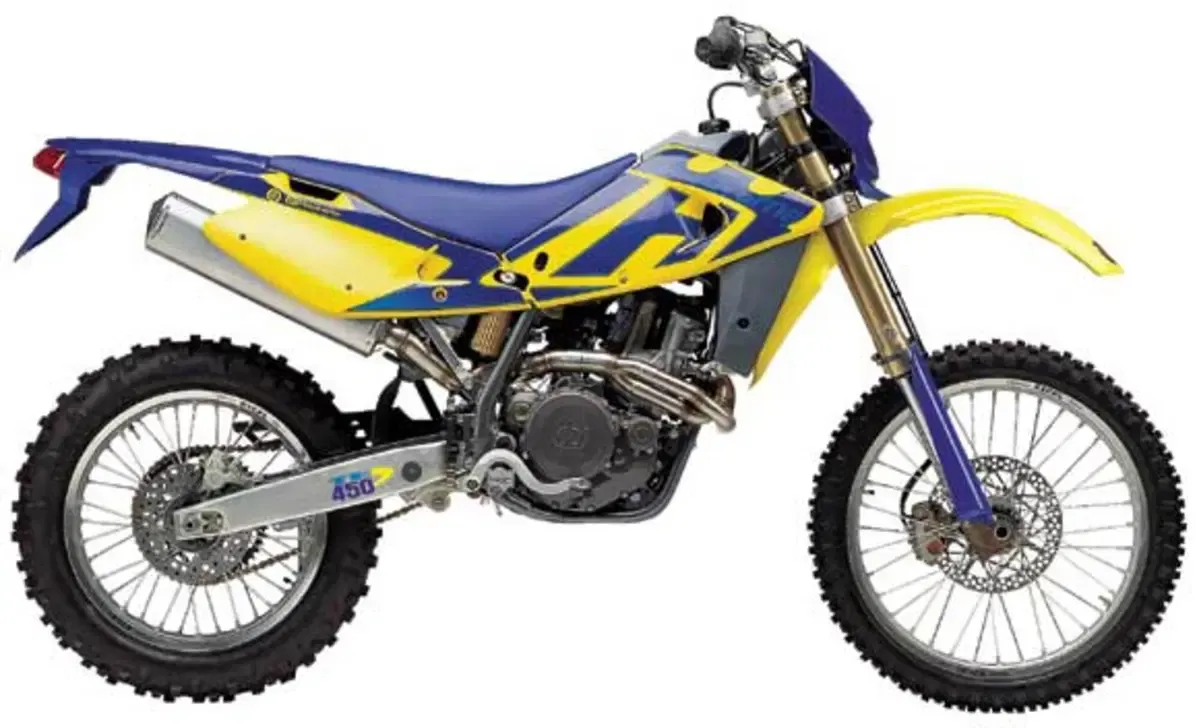

Husqvarna TE 450 (2002 – 2003)

Husqvarna TE 450 (2002 - 2003)

The wait is finally over for Husqvarna enthusiasts as the Swedish manufacturer unleashes its latest creation, the TE 450. This highly anticipated bike boasts a sleek, lightweight steel single tube cradle and a rear frame crafted from durable light alloy.

At the heart of the TE 450 lies a powerhouse of an engine, boasting a Marzocchi “Upside-Down” telescopic hydraulic fork with advanced compression and rebound stroke adjustment. The new engine, a 450cc four-stroke unit, is the culmination of years of development and a direct response to the demands of the market.

Riding the TE 450 is an exhilarating experience, with the engine delivering a thrilling blend of power and agility. The bike’s handling is precise and responsive, making it a joy to navigate even the most demanding terrain. With its impressive performance and robust construction, the Husqvarna TE 450 is sure to leave a lasting impression on any rider who dares to ride it.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Engine Capacity27.4 cubic inches / 449 cc
Max Power46.9 hp / 34.5 kW @ 8500 rpm
Max Torque30.6 ft-lb / 41.5 nm
Fuel Tank Capacity2.0 US gallons / 7.7 L
Seat Height38.4 inches / 975 mm
Husqvarna TE 450 (2002 - 2003)

All Specifications

Make & Model

ModelHusqvarna TE 450
Year2002 – 2003

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Displacement27.4 cubic inches / 449 cc
Bore x Stroke97 x 60.7 mm
Compression Ratio12.0:1
Max Horsepower46.9 hp / 34.5 kW @ 8500 rpm
Max Torque30.6 ft-lb / 41.5 nm
Engine Management System41mm Keihin MX carburetor
Lubrication SystemDry sump with 2 oil pump rotors and cartridge filter
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchHydraulically-actuated multiplate wet clutch
Gearbox6 Speed
Gear Ratios1e 2.000 (28/14), 2nd 1.611 (29/18), 3th 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final DriveChain

Electrical & Electronics System

StarterElectric & Kick

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front SuspensionMarzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Front Suspension Travel11.8 inches / 300 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel12.6 inches / 320 mm

Wheels & Brakes

Front Tire Size90/90-21
Rear Tire Size140/80-18
Front BrakesSingle 260mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height38.4 inches / 975 mm
Wheelbase57.5 inches / 1460 mm
Ground Clearance340 mm / 13.4 in
Fuel Tank Capacity2.0 US gallons / 7.7 L
Dry Weight116 kg / 255.7 lbs

Features

  • Steel single tube cradle
  • Rear frame in light alloy
  • Marzocchi “Upside-Down” telescopic hydraulic fork
  • Compression and rebound stroke adjustment
  • Electric start
  • Six-speed transmission
  • Five-speed transmission (pre-production model)
  • New engine for the TE range
  • Four-stroke enduro/trail bike
  • Single-beam chassis
  • New chassis design from swingarm forward
  • Advanced axle in the front fork
  • Hydraulic fork with adjustable compression and rebound
  • New generation 250 and 450 engines
  • 570 motor remains unchanged
  • Pre-production model was a TE450 with a five-speed transmission
