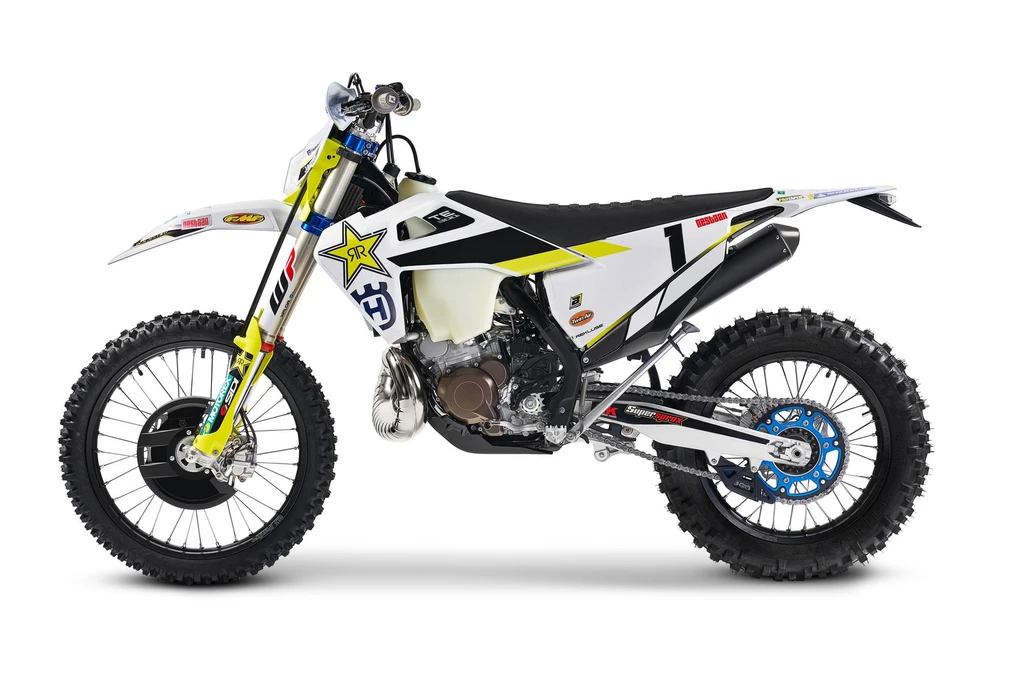

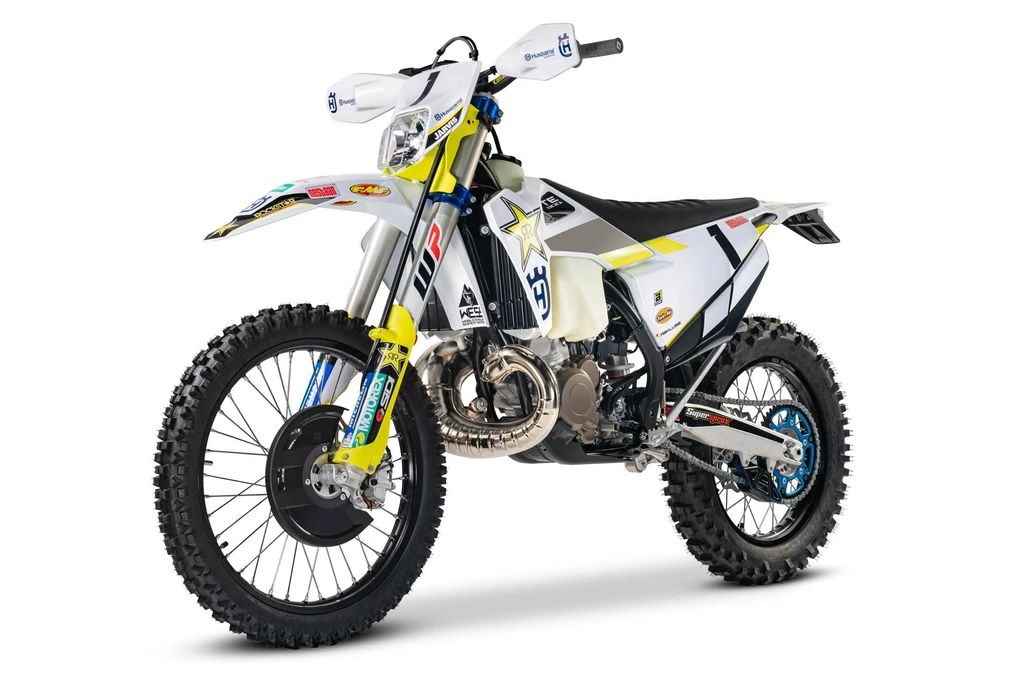

Husqvarna TE 300i Jarvis Edition (2020)

The Husqvarna TE 300i Jarvis Edition is a testament to the brand’s commitment to producing exceptional machines. As a tribute to the legendary Graham Jarvis, this limited edition model boasts advanced technology, including a contactless, controlled ignition system and digital timing adjustment. The 300cc 2-stroke engine, renowned for its class-leading performance, delivers smooth power and impressive torque, thanks in part to its electronic fuel injection and twin-valve controlled power valve system.

The result is a thrilling ride experience that’s both controllable and exhilarating. With its optimized power valve drive and precisely positioned shaft arrangements for optimal mass centralization, the TE 300i Jarvis Edition is the perfect machine to conquer new terrain. Its electronic fuel injection, combined with a counter balancer shaft to reduce vibration, ensures a smooth and efficient ride.

As a replica of Graham Jarvis’ race machine, the TE 300i Jarvis Edition wears official Rockstar Energy Husqvarna Factory Racing graphics, making it a true standout on the trail. This exceptional motorcycle is the ultimate tribute to the legend, delivering a riding experience that’s unmatched in its class.

Key Specifications

Engine Type	Two stroke, single cylinder with reed intake and exhaust control
Engine Capacity	17.8 cubic inches / 293.2 cc
Max Power	NA
Fuel Tank Capacity	2.2 US gallons / 8.3 L
Seat Height	37.4 inches / 950 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna TE 300i Jarvis Edition
Year	2020

Engine

Engine Type	Two stroke, single cylinder with reed intake and exhaust control
Displacement	17.8 cubic inches / 293.2 cc
Bore x Stroke	72 x 72 mm
Compression Ratio	NA
Max Horsepower	NA
Engine Management System	Dell Orto EFI with 39mm throttle body
Lubrication System	Electronically controlled oil injection
Cooling System	Liquid cooled
Exhaust	TVC power valve

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, DDS multi-disc clutch, Magura hydraulics
Gearbox	6 Speed
Final Drive	ChainX-Ring 5/8 x 1/4 in

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Central double-cradle chromoly steel, Carbon-fiber reinforced polyamide Subframe
Front Suspension	48mm Fully adjustable WP Xplor inverted fork
Front Suspension Travel	11.8 inches / 300 mm
Rear Suspension	Linkage-assisted fully adjustable WP Xact shock
Rear Suspension Travel	13.0 inches / 330 mm
Rake	26.5

Wheels & Brakes

Front Tire Size	80/100-21
Rear Tire Size	110/100-18
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	37.4 inches / 950 mm
Wheelbase	58.5 inches / 148210 mm
Ground Clearance	355 mm / 14.0 in
Fuel Tank Capacity	2.2 US gallons / 8.3 L
Dry Weight	111.5 kg / 246 lbs

Features

Contactless, controlled, fully electronic ignition system
Digital ignition timing adjustment
Electronic fuel injection
72 mm bore cylinder
Twin-valve controlled power valve system
Adjustable power valve drive
Two inlet positions for fuel injectors
Die-cast crankcases with thin-wall design
Counter balancer shaft for reduced vibration
Precisely positioned shaft arrangement for optimal mass centralization
New water pump casing for improved cooling
3D-designed header pipe for improved geometry and performance
Corrugated surface on header pipe for impact resistance
New aluminum mounting bracket for muffler
New internals in muffler for improved noise damping
Less dense packing material in muffler for weight saving
Chromoly steel frame with laser-cut, robot-welded, and hydro-formed construction
