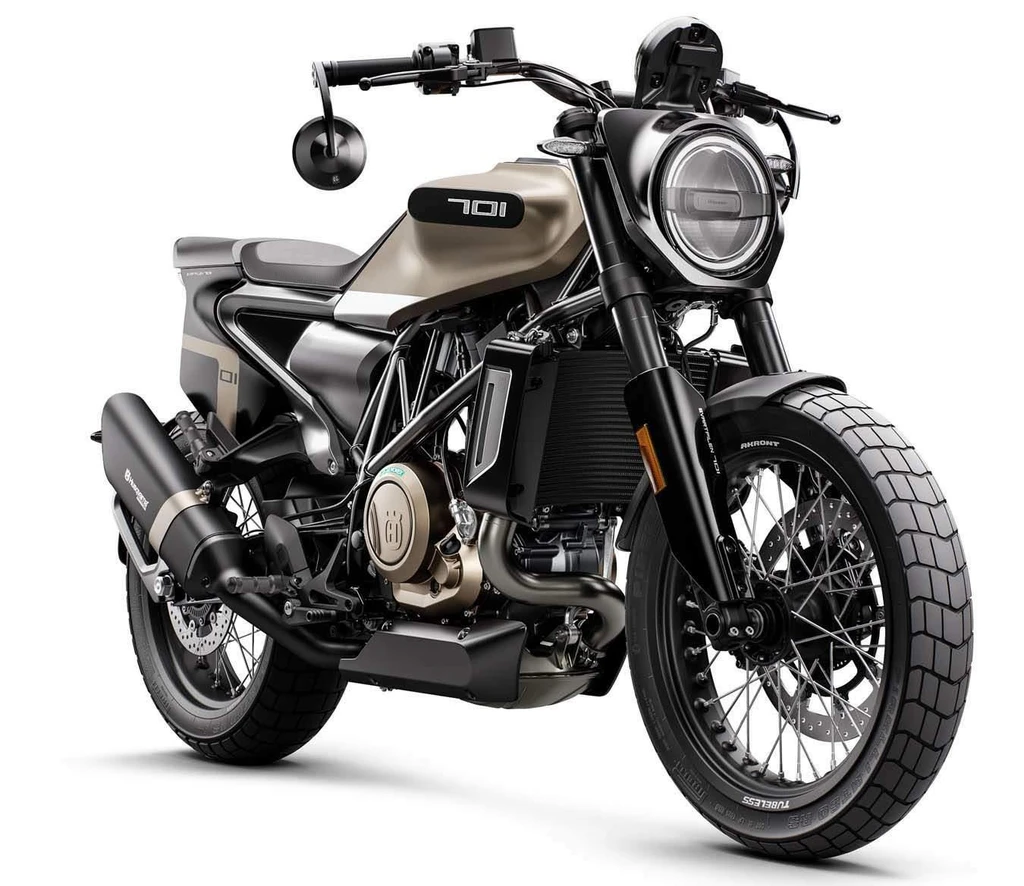

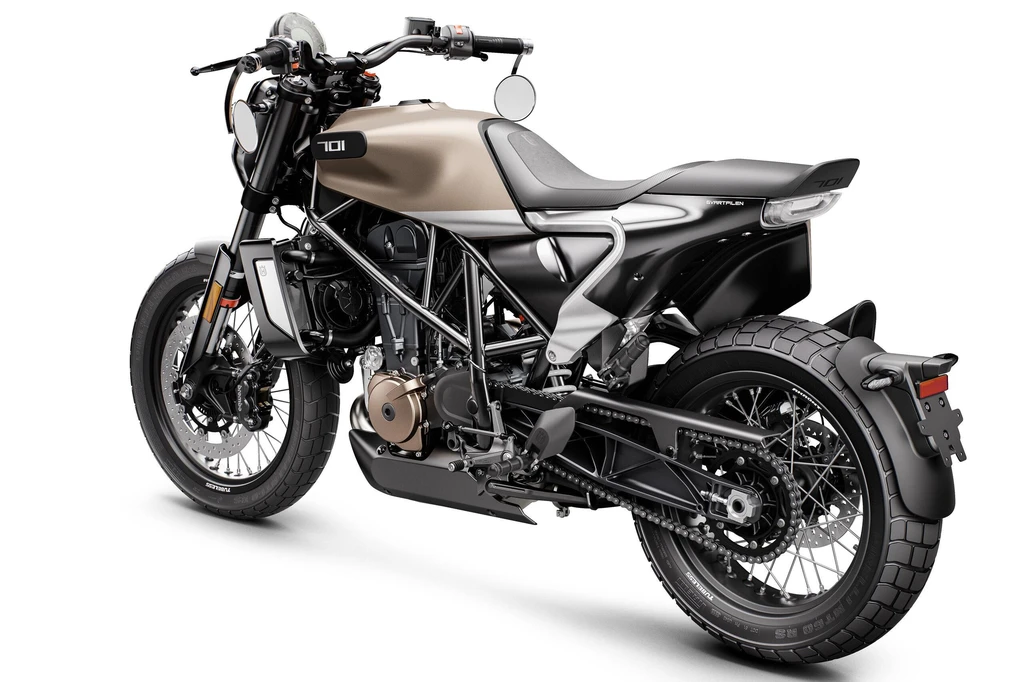

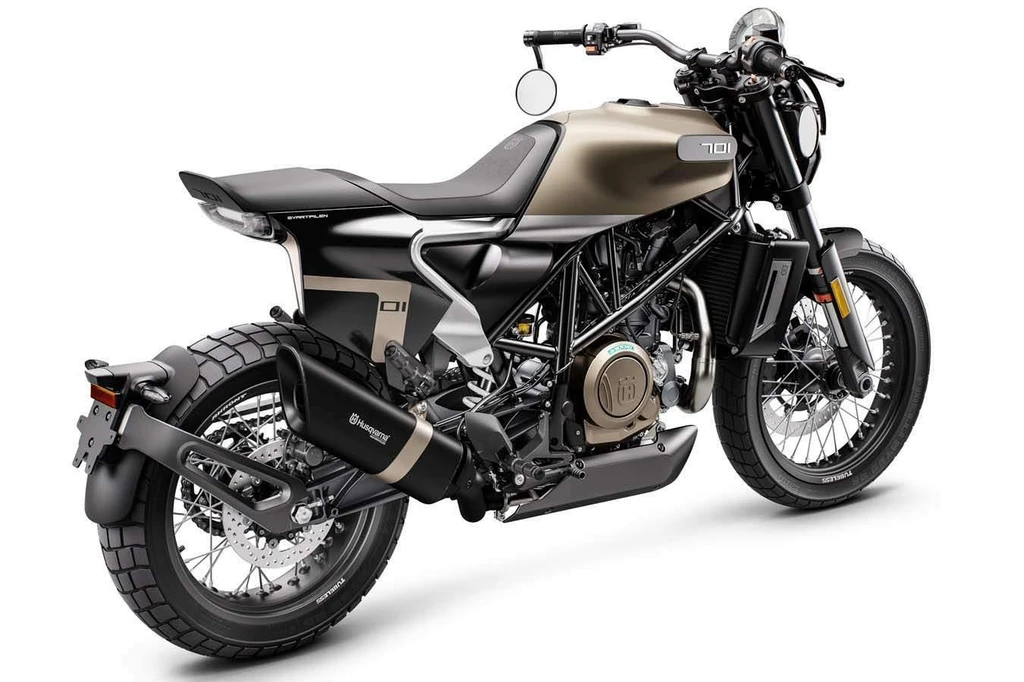

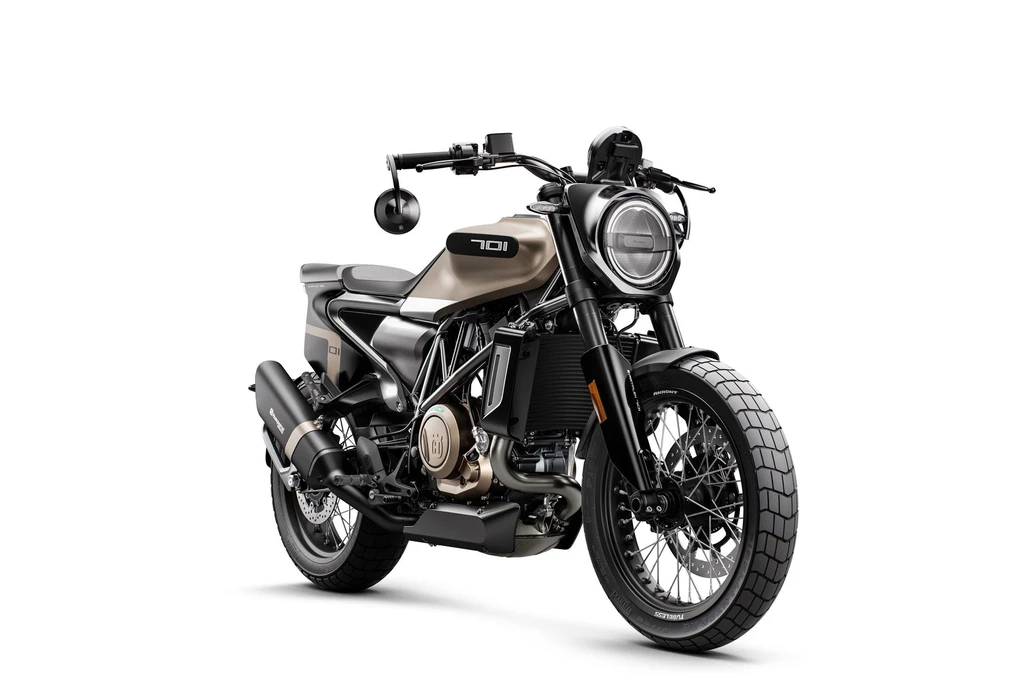

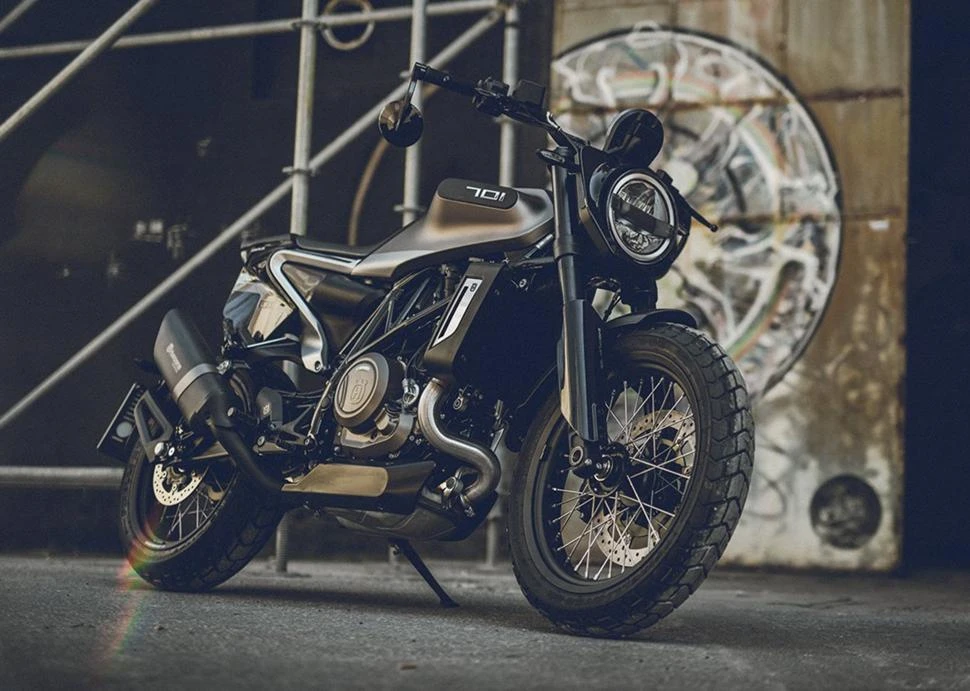

Husqvarna Svartpilen 701 Style Limited Edition (2019)

Husqvarna Svartpilen 701 Style Limited Edition (2019)

The Husqvarna Svartpilen 701 Style Limited Edition is a stunning evolution of the original production model, infused with a sense of exclusivity and premium flair. The striking bronze colour, initially conceived as a special edition, has proven so captivating that it has become a model in its own right. This captivating bike seamlessly blends technical prowess with sophisticated aesthetics, featuring a range of high-end components, including bar end mirrors, CNC-machined footpegs, and spoked wheels that lend an air of rugged sophistication.

The heart of the Svartpilen 701 Style Limited Edition is its 692.7cc single-cylinder engine, producing a potent 75 horsepower and 72 Nm of torque, while weighing in at a svelte 158.5kg. This carefully crafted powerplant is a testament to Husqvarna’s commitment to stripping away unnecessary complexity, instead focusing on a simple, progressive blend of classic thinking and modern design.

The result is a bike that embodies the Swedish heritage of Husqvarna Motorcycles, boasting a sleek, reduced look that is both timeless and modern. The lightweight, narrow bodywork allows for seamless movement, while the 18-inch front and 17-inch rear spoked wheels deliver a distinctive look that is unmistakably dark and mysterious.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves with intake cam levers and exhaust rocker arm
Engine Capacity692.7 cc / 42.27 cu in
Max Power55 kw / 75 hp
Max Torque71Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm
Fuel Tank Capacity3.17 US gallons / 12.0 L
Seat Height32.9 inches / 835 mm
Husqvarna Svartpilen 701 Style Limited Edition (2019)

All Specifications

Make & Model

ModelHusqvarna Svartpilen 701 Style Limited Edition
Year2019

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves with intake cam levers and exhaust rocker arm
Displacement692.7 cc / 42.27 cu in
Bore x Stroke105 x 80 mm
Compression Ratio12.8:1
Max Horsepower55 kw / 75 hp
Max Torque71Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm
Engine Management SystemKeihin EFI, 50mm throttle body
Lubrication SystemPressure lubrication with 2 oil pumps
Cooling SystemLiquid cooled
ExhaustStainless steel primary and secondary silencer

Performance

Top Speedn/a

Transmission

ClutchAPTC slipper clutch, hydraulically actuated
Gearbox6 Speed
Final DriveChain X-Ring 5/8 x 1/4″

Electrical & Electronics System

StarterElectric
ABSABS Bosch 9M+ Two Channel

Chassis & Suspension

Frame TypeChromium-Molybdenum-Steel trellis frame, powder coated, aluminium
Front Suspension43 mm WP-USD forks
Front Suspension Travel5.9 inches / 150 mm
Rear SuspensionWP-Monoshock with Pro-Lever linkage
Rear Suspension Travel5.9 inches / 150 mm
Trail65
HandlebarForged aluminium triple clamps

Wheels & Brakes

WheelsSpoked rims
Front Tire SizePirelli MT60 RS 18 in
Rear Tire SizePirelliMT60 RS 17 in
Front BrakesSingle 320 mm disc,4 pistonBrembo caliper
Rear BrakesSingle 240 mm disc, Brembo single piston, floating caliper
ABSABS Bosch 9M+ Two Channel

Dimension & Weights

Seat Height32.9 inches / 835 mm
WheelbaseNA
Ground Clearance164 mm / 6.5 in
Fuel Tank Capacity3.17 US gallons / 12.0 L
Dry Weight158.5 kg / 349.4 lbs

Features

  • 692.7 cc, single cylinder, 4-stroke liquid-cooled engine
  • 75 hp and 72 Nm of torque
  • Dry weight of 158.5 kg
  • Matt silver and high gloss black paint scheme
  • Graphics inspired by SVARTPILEN 701 show bike
  • Bar end mirrors for reduced visual appearance
  • Spoked wheels for rugged look
  • CNC-machined footpegs for premium quality
  • Aluminium badges on tank pills for high-end livery and protection
  • 18 front and 17 rear spoked wheels
  • PIRELLI MT60RS tyres for advanced grip and durability
  • High-quality seat materials for superior comfort and durability
  • Minimalistic tail design with floating seat
  • Aluminium filler cap with Husqvarna Motorcycles logo
  • 12 L fuel tank
  • Integrated handlebars for seamless movement
Husqvarna Svartpilen 701 Style Limited Edition (2019)
Husqvarna Svartpilen 701 Style Limited Edition (2019)
Husqvarna Svartpilen 701 Style Limited Edition (2019)
