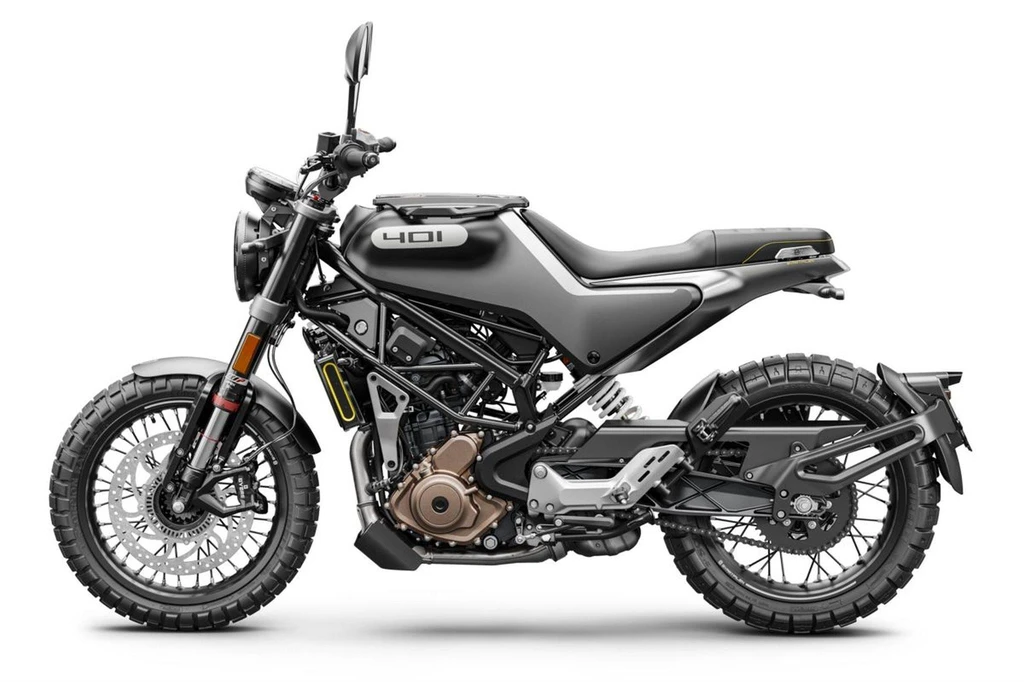

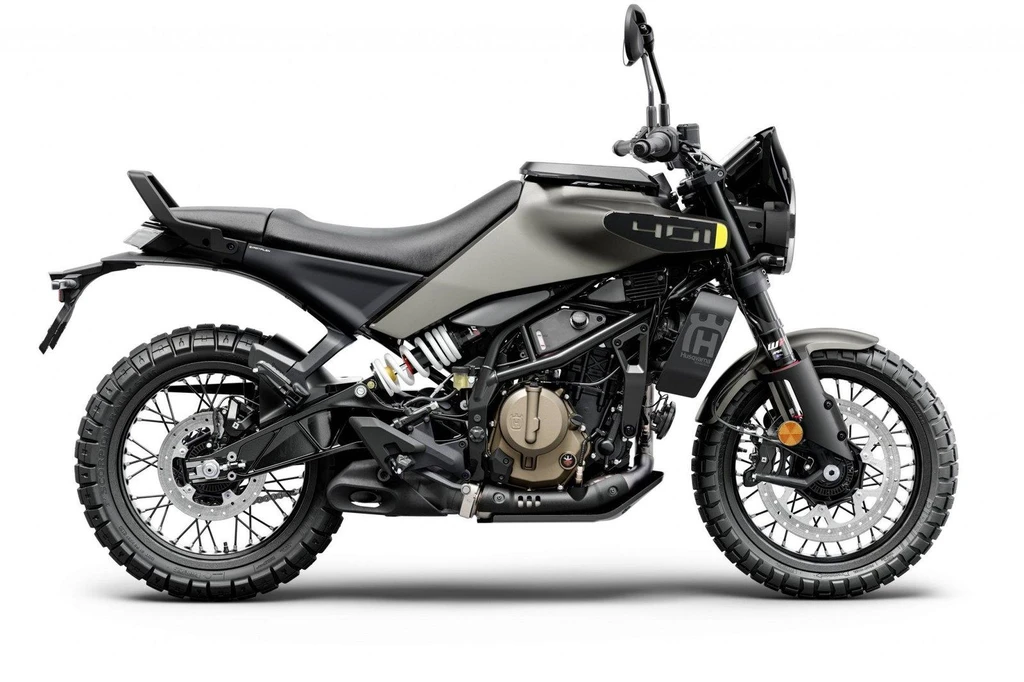

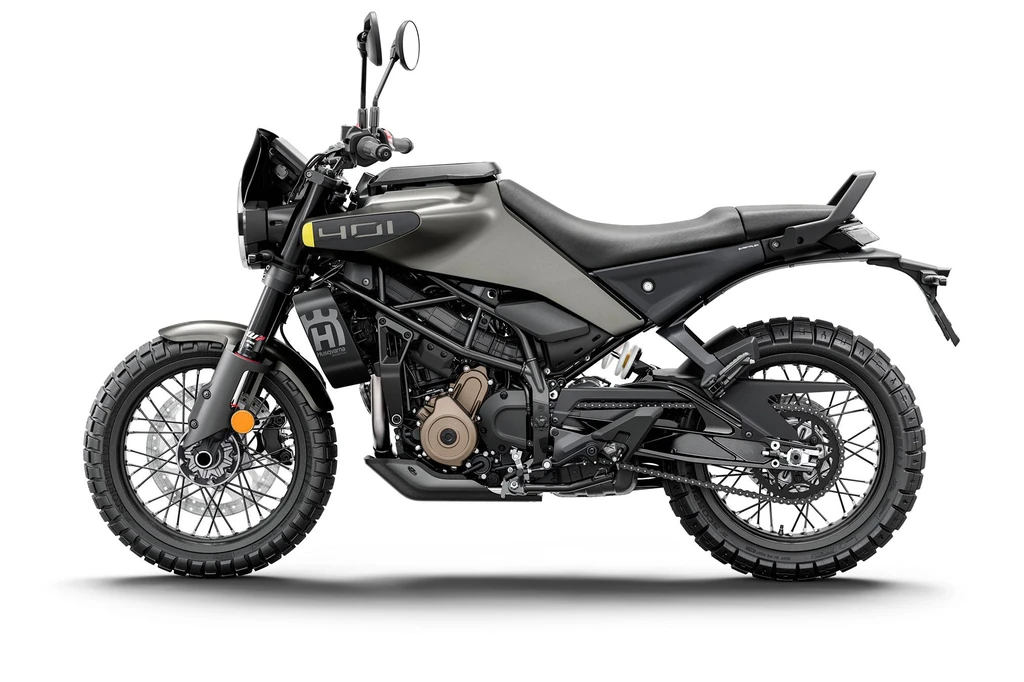

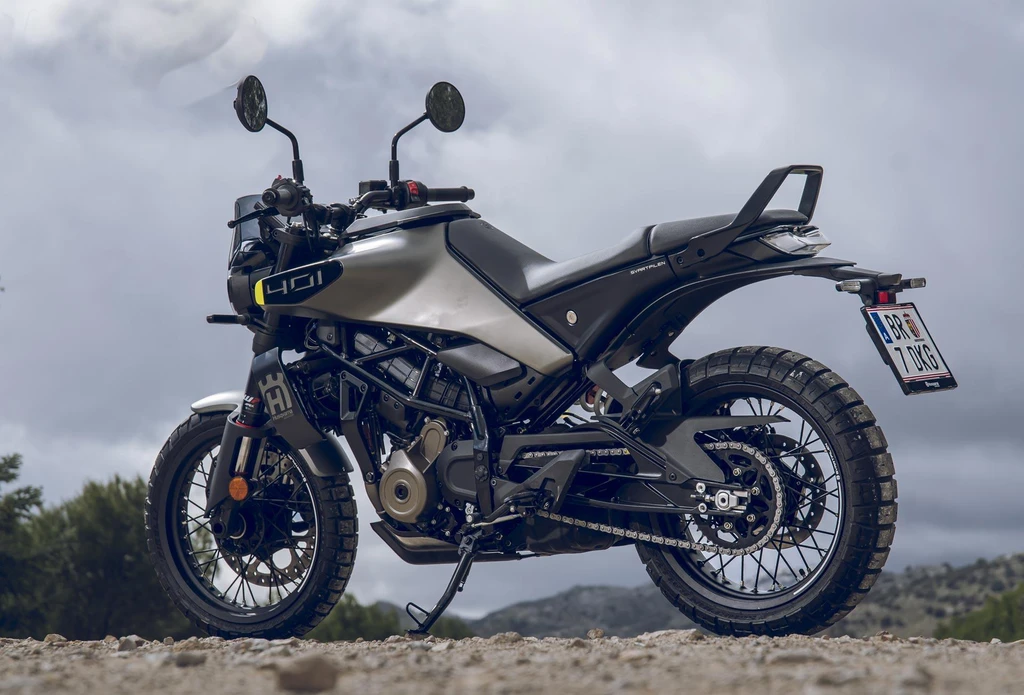

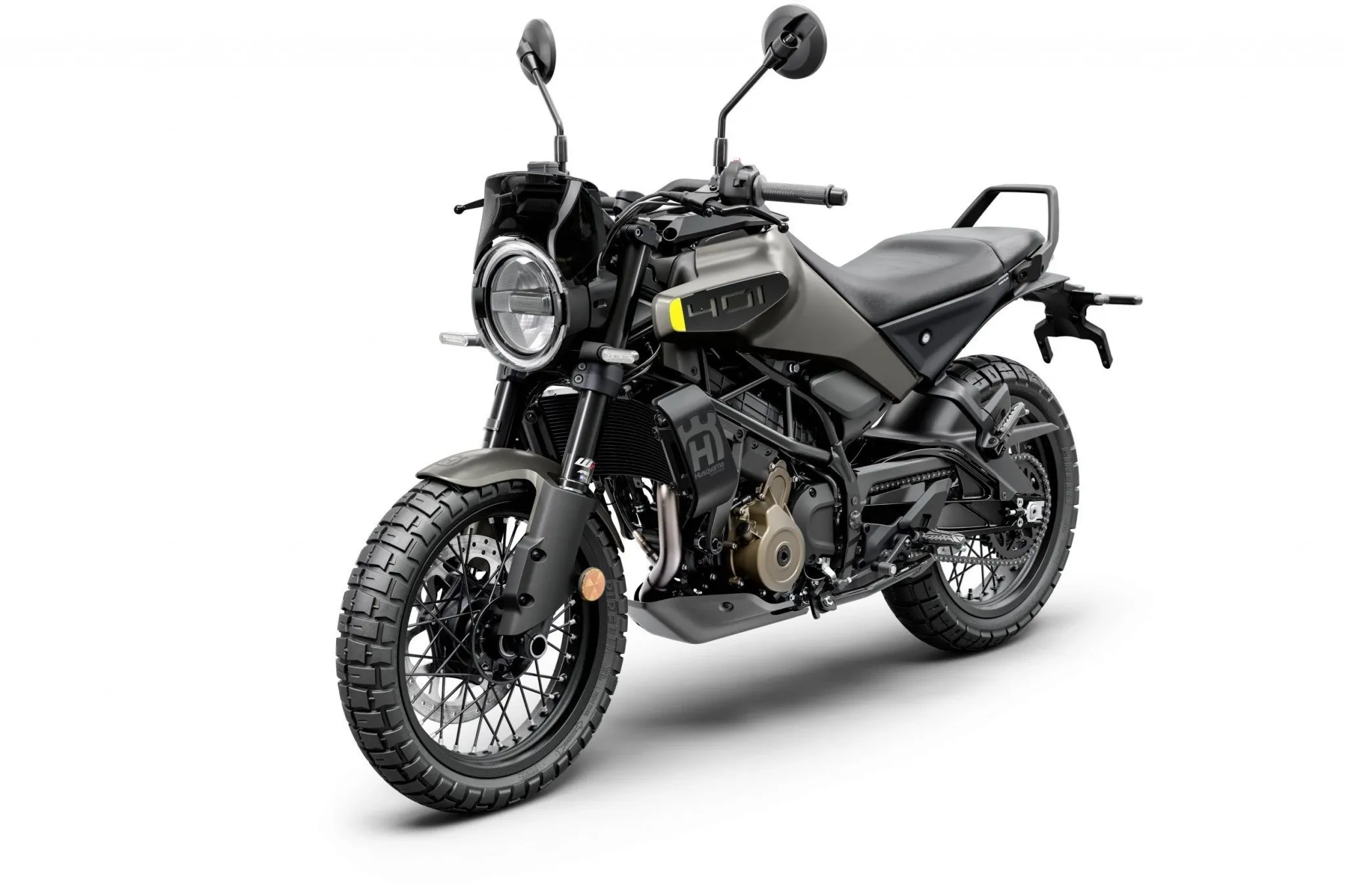

The wait is finally over for the eagerly anticipated 2024 Husqvarna Svartpilen 401. This radical new machine boasts a potent 399cc single-cylinder engine, producing 45 horsepower, and is housed within a lightweight steel trellis chassis. The Svartpilen 401’s compact engine design not only reduces weight but also enhances power delivery, making it a thrill to ride.
Aboard the Svartpilen 401, riders will appreciate the intuitive handlebar design, adjustable WP suspension, and powerful ByBre brakes, all of which come together to create an exhilarating riding experience. The addition of cornering MTC, switchable ride modes, and Bosch cornering sensitive ABS ensures that this bike is as capable as it is fun to ride.
Whether carving through twisty roads or navigating urban jungles, the 2024 Husqvarna Svartpilen 401 is the perfect companion for any adventure. With its sleek styling, cutting-edge technology, and thrilling engine character, this bike promises to deliver an unforgettable riding experience that will leave you craving more.
Key Specifications
Engine Type
Four stroke, single cylinder, DOHC with cam levers, 4 valves
Engine Capacity
398.6 cc / 24.3 cu in
Max Power
33 kw / 45 hp
Max Torque
28.8 ft-lb / 39 nm
Fuel Tank Capacity
3.4 US gallons / 13.0 L
Seat Height
32.3 inches / 820 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Husqvarna Svartpilen 401
Year
2024
Engine
Engine Type
Four stroke, single cylinder, DOHC with cam levers, 4 valves
Displacement
398.6 cc / 24.3 cu in
Bore x Stroke
89 x 64 mm
Compression Ratio
12.6:1
Max Horsepower
33 kw / 45 hp
Max Torque
28.8 ft-lb / 39 nm
Engine Management System
Dell’ Orto EFI (46mm throttle body)
Lubrication System
Wet sump with 2 oil pumps
Cooling System
Liquid cooled
Exhaust
Stainless steel / Aluminium silencer with regulated catalyticconverter
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi disc PASC slipper clutch
Gearbox
6 Speed
Primary Drive Ratio
33:86
Final Drive
Chain, X-Ring520
Electrical & Electronics System
Starter
Electric, 12V 8Ah
ABS
Two channel Bosch 9.31MP (cornering ABS and Supermoto Mode, disengageable
Chassis & Suspension
Frame Type
Steel trellis frame, powder coated
Front Suspension
43mm WP APEX upside-down forks, with compression rebound adjustability
Front Suspension Travel
5.9 inches / 150 mm
Rear Suspension
WP APEX monoshock with preload and rebound adjustability
Rear Suspension Travel
5.9 inches / 150 mm
Trail
95 mm / 3.7 in
Wheels & Brakes
Wheels
Spoked wheels with aluminium rims
Front Wheel/Rim Size
3.00 x 17
Front Tire Size
110/70-R17 Pirelli Scorpion Rally STR
Rear Tire Size
150/60-R17 Pirelli Scorpion Rally STR
Front Brakes
Single 320mm disc, ByBre opposed 4 piston caliper
Rear Brakes
Single 240mm disc, ByBre, twon piston, floating caliper
ABS
Two channel Bosch 9.31MP (cornering ABS and Supermoto Mode, disengageable
Dimension & Weights
Seat Height
32.3 inches / 820 mm
Wheelbase
53.80.6 inches / 15.5 mm
Ground Clearance
180 mm / 7.1 in
Fuel Tank Capacity
3.4 US gallons / 13.0 L
Dry Weight
159 kg / 350 lbs
Features
WP APEX monoshock with preload and rebound adjustability
All-new steel trellis frame
Lightweight aluminium swingarm
WP suspension on each machine
Predictable handling
Longer wheelbase
Revised seat height
Improved cornering behaviour
Reduced weight handlebars (on Vitpilen models)
New and more compact engine family
EURO 5+-compliant engine
Improved weight distribution
Revised gearbox
399 cc, 45 hp, single-cylinder engine
Cornering MTC
Switchable ride modes
Adjustable WP suspension
ByBre brakes
Bosch cornering sensitive ABS
Easy Shift technology
5 bonded glass TFT display
Premium paint finish with decals
17 wheels
Premium Pirelli Scorpion Rally STR tyres (on Svartpilen 401)
Cast aluminium 17″ wheels with 6-spoke aero design (on Vitpilen 401)
Premium Michelin Power 6 tyres (on Vitpilen 401)
LED headlight with positioning light ring
Open cartridge front fork
