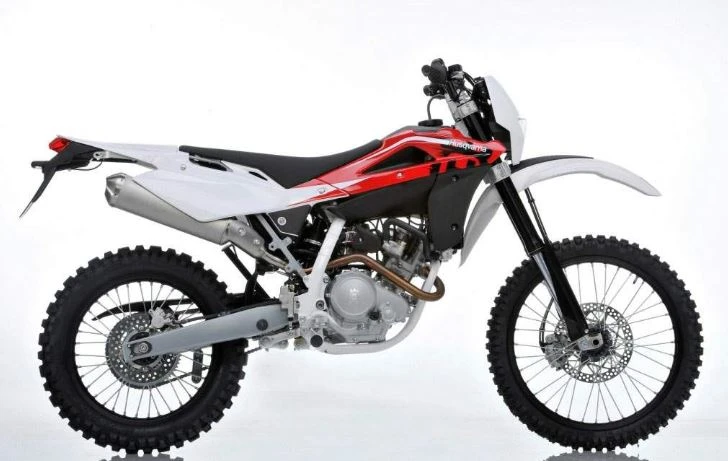

Husqvarna SMS 125 (2011 – 2012)

Husqvarna SMS 125 (2011 - 2012)

The Husqvarna SMS 125 has become an icon among young first-time bikers, a commercial hit, and a new fashion must. Its lightweight and easy-handling nature make it an ideal choice for everyday commuting in town, while its off-road style and 2-stroke engine provide a thrilling experience for those seeking adventure.

The 2011 version of the SMS 125 boasts a refined 125cc engine, improved with features derived from racing models, resulting in enhanced pick-up and power at low to medium revs. The ECS electronic carburetion system, developed in collaboration with Dell’Orto, enables the bike to meet Euro 3 requirements, reducing costs and boosting commercial competitiveness.

The SMS 125’s suspension has been upgraded with new Marzocchi front forks and a Sachs shock absorber, providing greater flexibility and support. The bike’s new exhaust and silencer, derived from the 125cc racing CR/WR, adds to its sporty character. With its sleek new colour schemes and In-Mould Decoration, the Husqvarna SMS 125 is the ultimate choice for young riders seeking a fun, exciting, and affordable off-road experience.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valve
Engine Capacity7.6 cubic inches / 124.4 cc
Max Power11 kw / 15 hp
Max Torque9.0 ft-lb / 12.1 nm
Fuel Tank Capacity2.5 US gallons / 9.5 L
Seat Height35.4 inches / 900 mm

All Specifications

Make & Model

ModelHusqvarna SMS 125
Year2011 – 2012

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valve
Displacement7.6 cubic inches / 124.4 cc
Bore x Stroke52 x 58.6 mm
Compression Ratio11.2:1
Max Horsepower11 kw / 15 hp
Max Torque9.0 ft-lb / 12.1 nm
Engine Management SystemCarburettor KEIHIN 29
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet,multiplate type; hydraulic control
Gearbox6 Speed
Gear Ratios1st 2.833 (34/12) 2nd 1.875 (30/16) 3rd 1.364 (30/22) 4th 1.143 (24/21) 5th 0.957 (22/23) 6th 0.840 (21/25
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTypeDouble tube cradle with high resistance steel round tubes; rear frame with steel square tubes
Front SuspensionMarzocchi Upside-Down telescopic hydraulic fork with advanced axle, 250 mm wheel travel
Rear SuspensionProgressive “Soft Damp” type with single hydraulic shock absorber; spring preload adjustment.
Rear Suspension Travel11.4 inches / 290 mm

Wheels & Brakes

Front Tire Size110/70 -17
Rear Tire Size150/60 -17
Front BrakesSingle 260mm disc 4 piston caliper
Rear BrakesSingle 220mm disc 2 piston caliper

Dimension & Weights

Seat Height35.4 inches / 900 mm
Fuel Tank Capacity2.5 US gallons / 9.5 L
Dry Weight118 kg / 259 lbs

Features

  • Marzocchi Upside-Down telescopic hydraulic fork
  • 250 mm wheel travel
  • Advanced axle
  • In-Mould Decoration graphics on bodywork
  • Bodywork graphics integrated into plastic
  • Red and white color scheme
  • Black and white color scheme
  • New handlebar guards
  • White chassis
  • Anodised black hubs
  • 125cc 2-stroke engine
  • Refined engine with improved pick-up and power
  • ECS electronic carburetion system
  • Electronic control of fuel mix and ignition system
  • Meets Euro 3 requirements
  • New exhaust and silencer design
  • New Marzocchi front forks
  • Sachs shock absorber with new calibration
  • LED rear light
  • New registration plate holder
  • Redesigned front light housing
  • More powerful headlight beam
