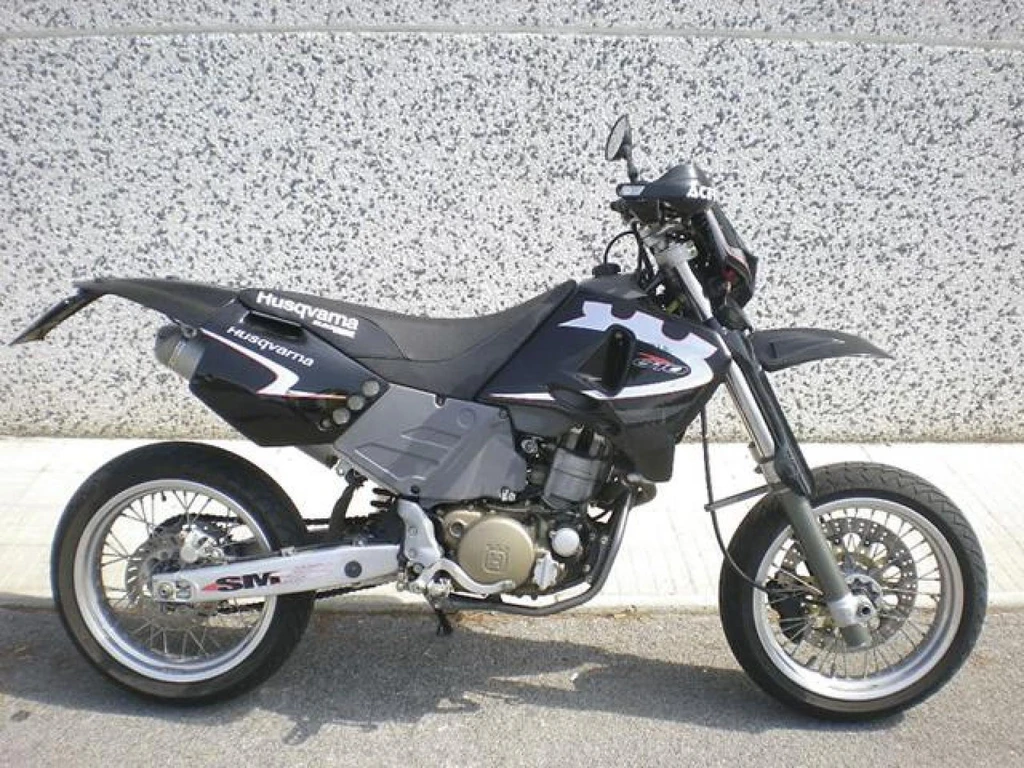

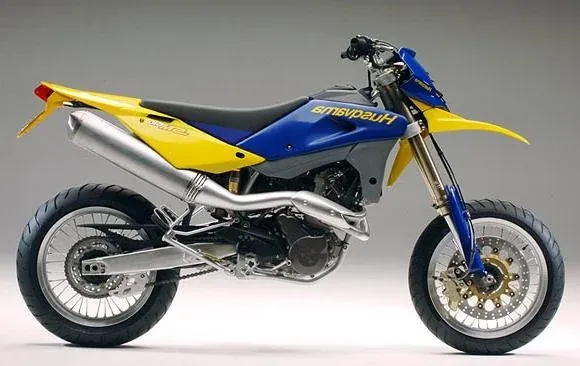

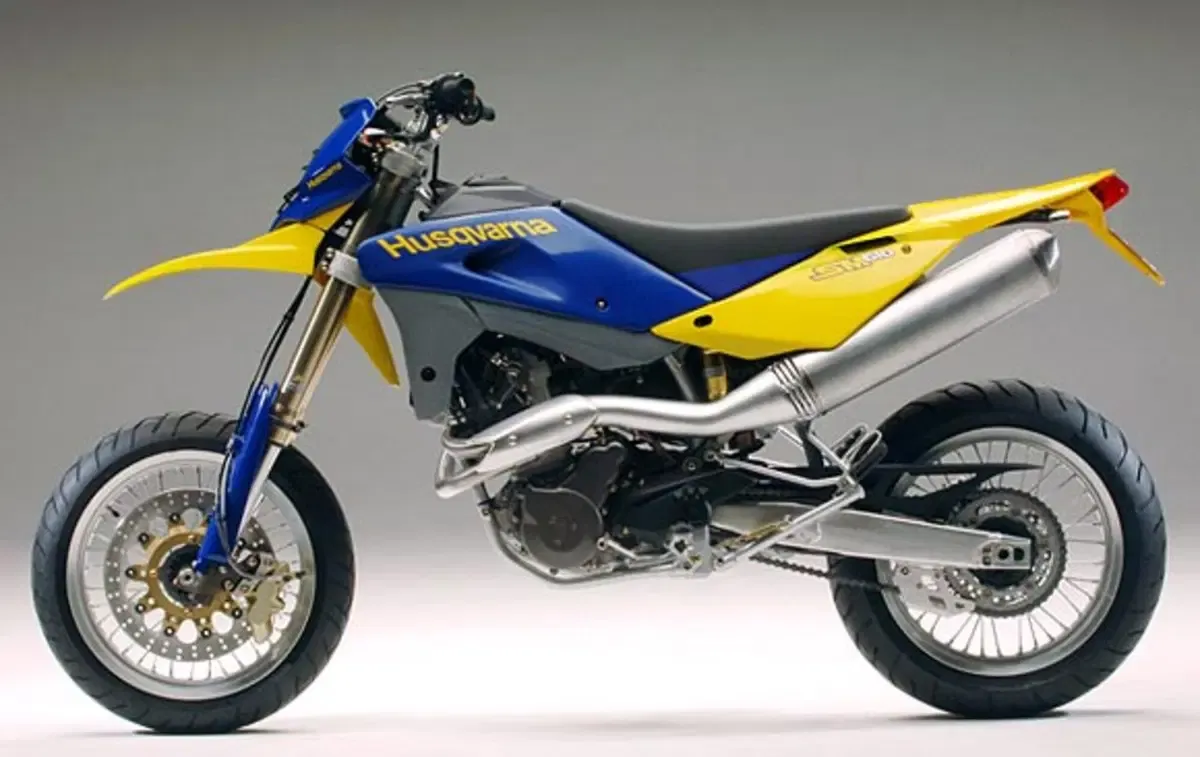

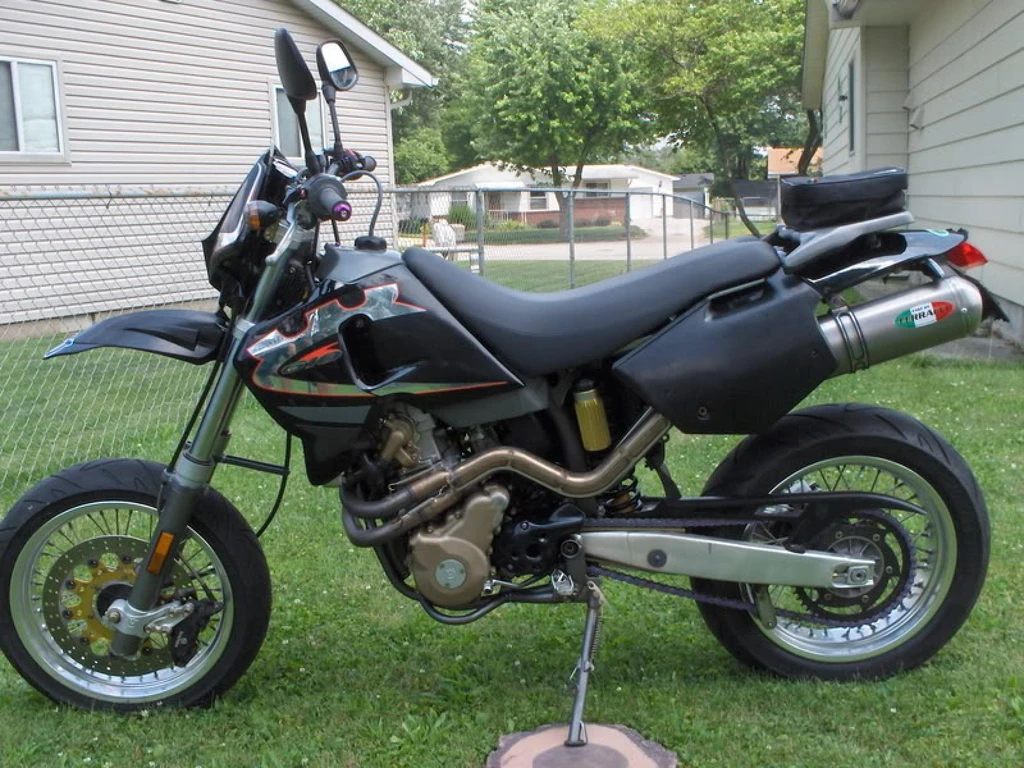

Husqvarna SM 610S (2000 – 2004)

The Husqvarna SM 610S is a masterclass in design and engineering, blending the agility of a dirt bike with the poise of a road machine. Powered by a 576cc single-cylinder engine, this Supermotard is built for the twisties, its lightweight chassis and high-quality suspension making it a joy to ride.

Its 43cm wheels and large racing brake discs provide exceptional handling and braking performance, while the sticky sports tyres grip the road with tenacity. The result is a bike that’s as at home carving through mountain roads as it is navigating wet suburban streets.

From the thrill of leaving big superbikes behind to the satisfaction of pulling off precision drifts, the Husqvarna SM 610S is an exhilarating ride that demands to be pushed to its limits. With its incredible acceleration, agility, and versatility, this bike is the ultimate urban assault vehicle, ready to unleash its full fury on the twisties and beyond.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity	35.2 cubic inches / 576 cc
Max Power	50 hp / 36.5 kW @ 6750 rpm
Max Torque	36.8 ft-lb / 50 nm
Fuel Tank Capacity	2.4 US gallons / 9.0 L
Weight (Wet/Kerb)	326.5 lbs / 148 kg
Seat Height	33.9 inches / 860 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna SM 610S
Year	2000 – 2004

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Displacement	35.2 cubic inches / 576 cc
Bore x Stroke	98.0 x 76.4 mm
Compression Ratio	9.0:1
Max Horsepower	50 hp / 36.5 kW @ 6750 rpm
Max Torque	36.8 ft-lb / 50 nm
Engine Management System	Dell’Orto PHBH/Mikuni BST 40mm
Cooling System	Liquid cooled

Performance

Top Speed

171.3 km/h

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multiplate type, hydraulic control
Gearbox	6 Speed
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Steel single tube cradle (round tubes);rear frame in light alloy
Front Suspension	Marzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Rear Suspension	Sachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment

Wheels & Brakes

Front Tire Size	120/70 -17
Rear Tire Size	150/60 -17
Front Brakes	Single 320mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	33.9 inches / 860 mm
Wheelbase	59.3 inches / 1505 mm
Ground Clearance	240 mm / 9.4 in
Fuel Tank Capacity	2.4 US gallons / 9.0 L
Wet (kerb/curb) Weight	326.5 lbs / 148 kg
Dry Weight	139.0 kg / 306.4 lbs

Features

Steel single tube cradle frame
Rear frame in light alloy
Marzocchi “Upside-Down” telescopic hydraulic fork
Adjustable compression and rebound stroke
576cc single-cylinder four-stroke engine
Lightweight 43cm (17in) wheels
Large racing brake discs
Sticky sports tyres
Low-geared, torquey off-road machine
Electric start
Totally different engine configuration than Husky’s competition motors
Two oil pumps and two oil filters for reliability and low maintenance
Lower compression ratio for standard fuel usage and increased engine life
17-litre fuel tank for long-range riding
Aggressive bike design
Large front brake
Wheels and tyres suitable for both on-road and off-road use
