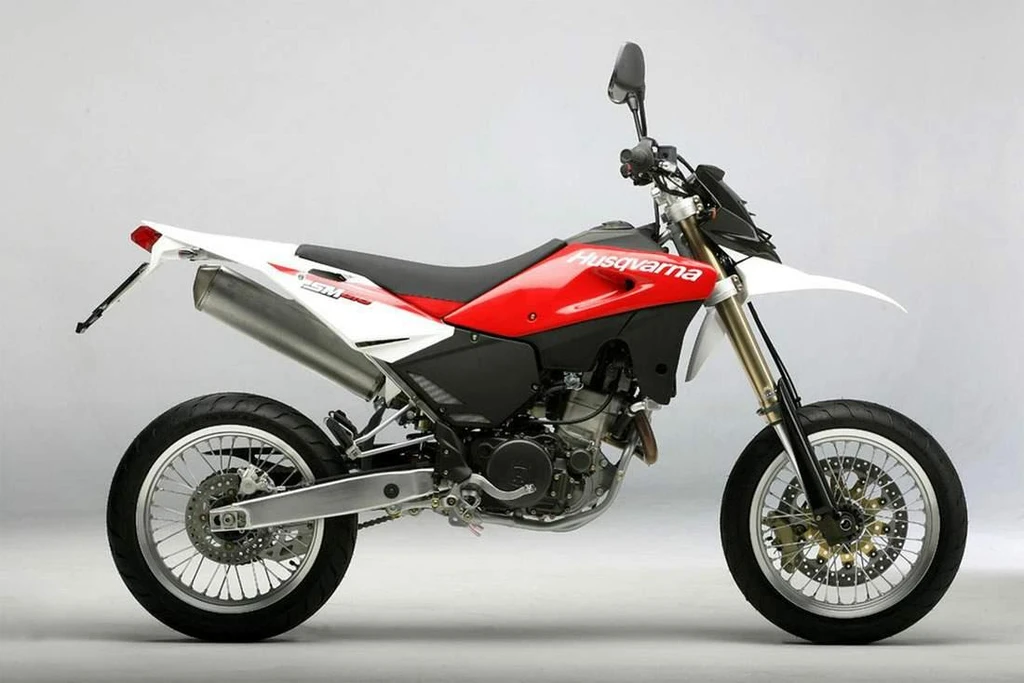

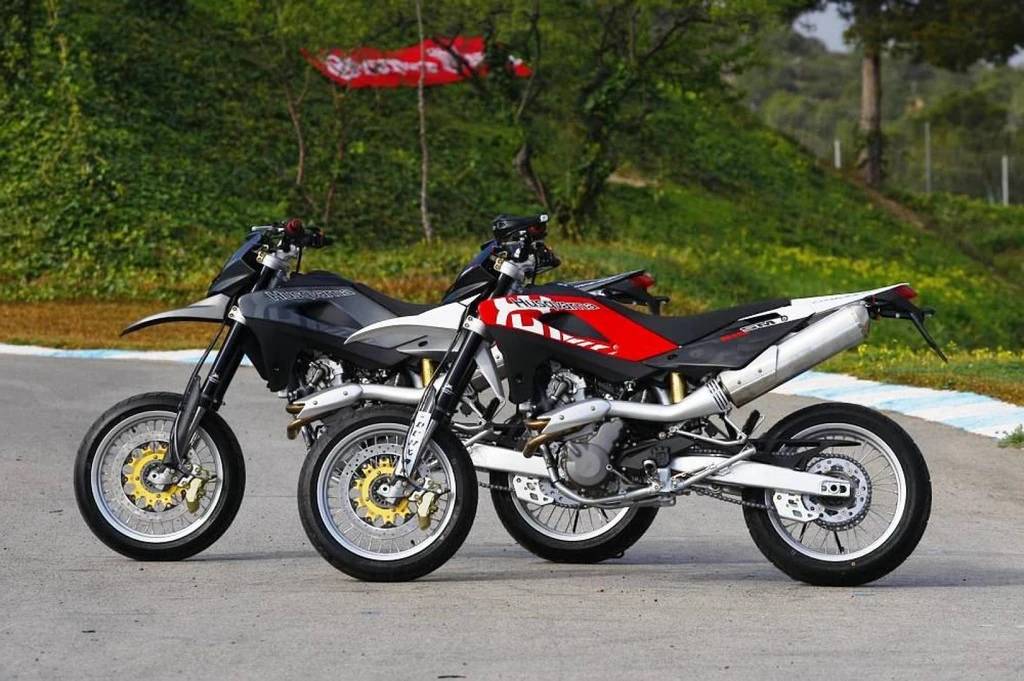

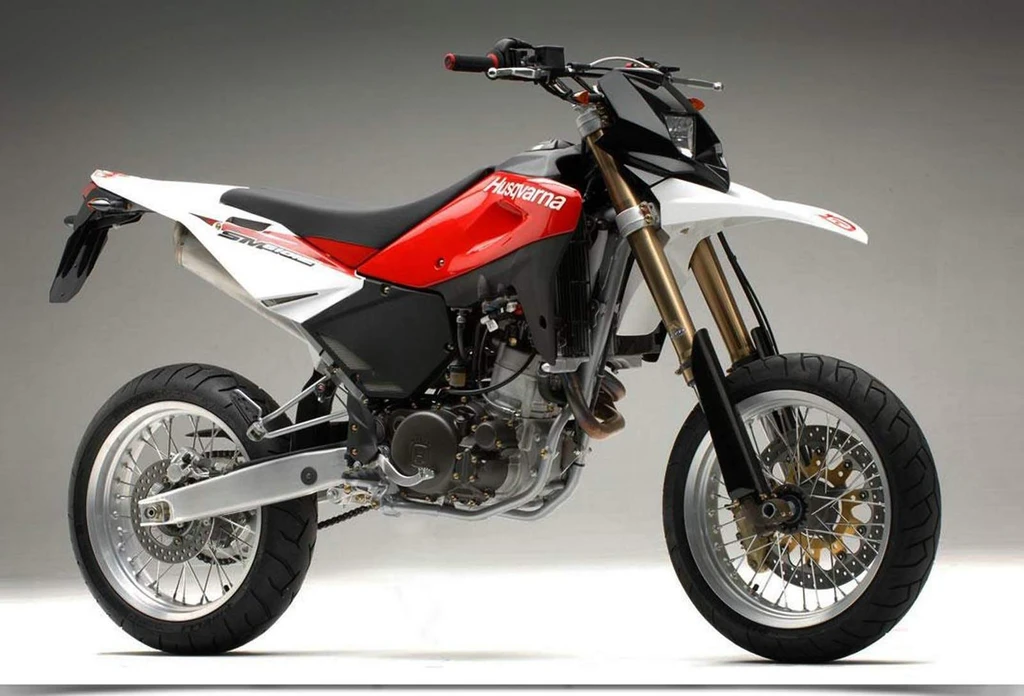

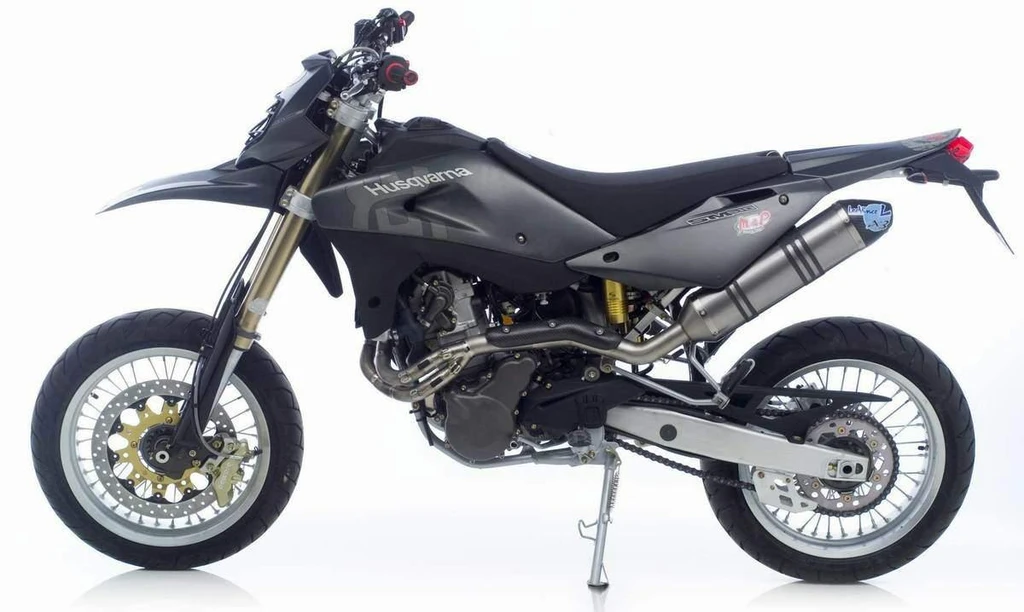

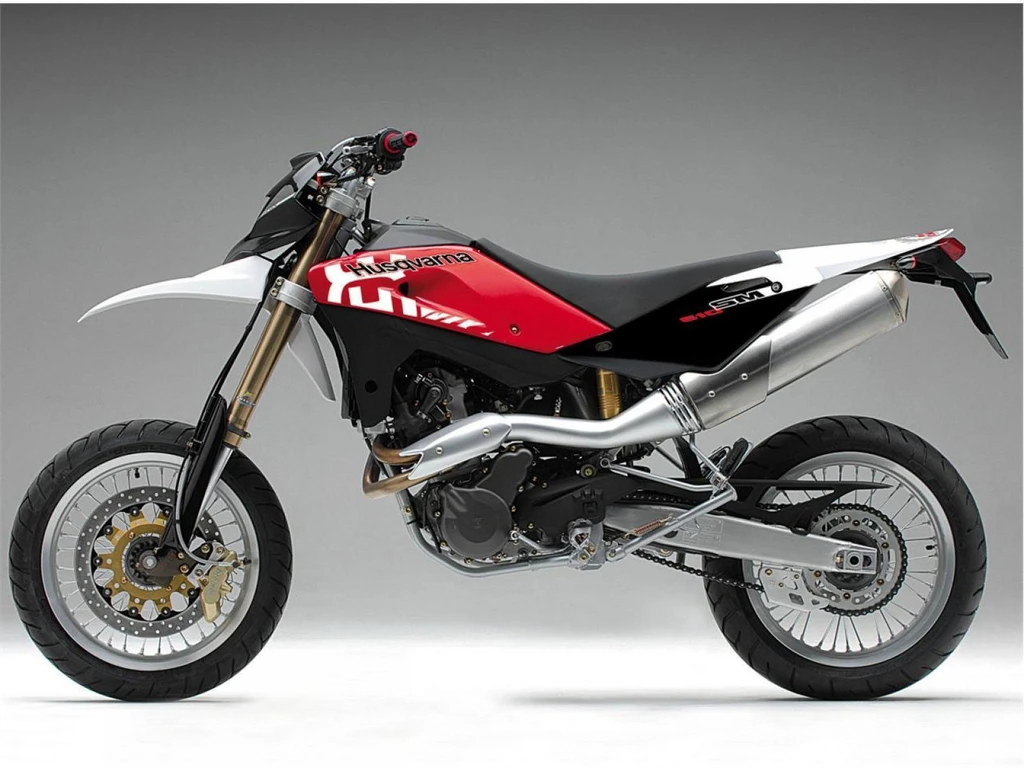

Husqvarna SM 610 (2005 – 2007)

Husqvarna SM 610 (2005 - 2007)

The Husqvarna SM 610 is a masterpiece of modern motorcycle design, expertly blending racing technology with comfort-oriented innovation. At the heart of this Motard bike is a potent 610cc engine, delivering a thrilling riding experience that’s as much at home on the twisties as it is on the daily commute. With its steel single tube cradle and advanced 45mm Marzocchi fork, the SM 610 tackles corners with precision and poise, its 12.5-litre fuel tank and generous saddle height making it accessible to riders of all skill levels.

The bike’s aggressive, race-inspired styling is matched only by its impressive feature list, which includes digital instrumentation, a lockable fuel tank, and a sophisticated Sachs shock absorber with adjustable compression and rebound. Whether carving up a mountain road or simply cruising to work, the Husqvarna SM 610 is a joy to ride, offering a perfect balance of performance, comfort, and style.

The result of a meticulous design process aimed at creating a versatile and user-friendly bike, the SM 610 is a true standout in the world of motorcycles, with nothing to match its looks or its capabilities.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, 4 valves
Engine Capacity35.2 cubic inches / 576 cc
Max Power53 hp /38.3kW @ 7000 rpm
Max Torque36.8 ft-lb / 52 nm
Fuel Tank Capacity3.3 US gallons / 12.5 L
Husqvarna SM 610 (2005 - 2007)

All Specifications

Make & Model

ModelHusqvarna SM 610
Year2005 – 2007

Engine

Engine TypeFour stroke, single cylinder, SOHC, 4 valves
Displacement35.2 cubic inches / 576 cc
Bore x Stroke98.0 x 76.4 mm
Compression Ratio11.0:1
Max Horsepower53 hp /38.3kW @ 7000 rpm
Max Torque36.8 ft-lb / 52 nm
Engine Management System41mm Keihin FCR MX
Cooling SystemLiquid cooled

Performance

Top Speed165.8 km/h

Transmission

ClutchWet, multiplate type, hydraulic control
Gearbox6 Speed
Gear Ratios1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel single tube cradle round tubesrear frame in light alloy
Front Suspension45mm Marzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Front Suspension Travel9.8 inches / 250 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel11.4 inches / 290 mm

Wheels & Brakes

Front Tire Size120/70 -17
Rear Tire Size150/60 -17
Front BrakesSingle 320mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Wheelbase58.9 inches / 1497 mm
Fuel Tank Capacity3.3 US gallons / 12.5 L
Dry Weight142.0 kg / 313.0 lbs

Features

  • Steel single tube cradle frame
  • Round tubes rear frame in light alloy
  • 45mm Marzocchi “Upside-Down” telescopic hydraulic fork
  • Adjustable compression and rebound stroke
  • Rear frame with new Sachs shock absorber
  • 50mm piston with compression and rebound stroke adjustment
  • Unique rear progression curves
  • Brembo brakes with floating 4-caliper 320 mm front disc
  • 220 mm rear disc
  • Digital instrumentation with speed, mileage, rpm, and trip meter
  • Lockable fuel tank filler cap
  • Same key for starter, steering lock, and saddle lock
  • Low saddle height for improved rider accessibility
  • Adjustable handlebars and controls
  • Rear arm with same design as 450/510 twin cam models
  • Anti-slip footpegs for rider and pillion
  • Side panniers available as optional extra
  • Balancing counter-shaft to reduce engine vibration
  • Twin trochoidal-type pumps for lubrication
