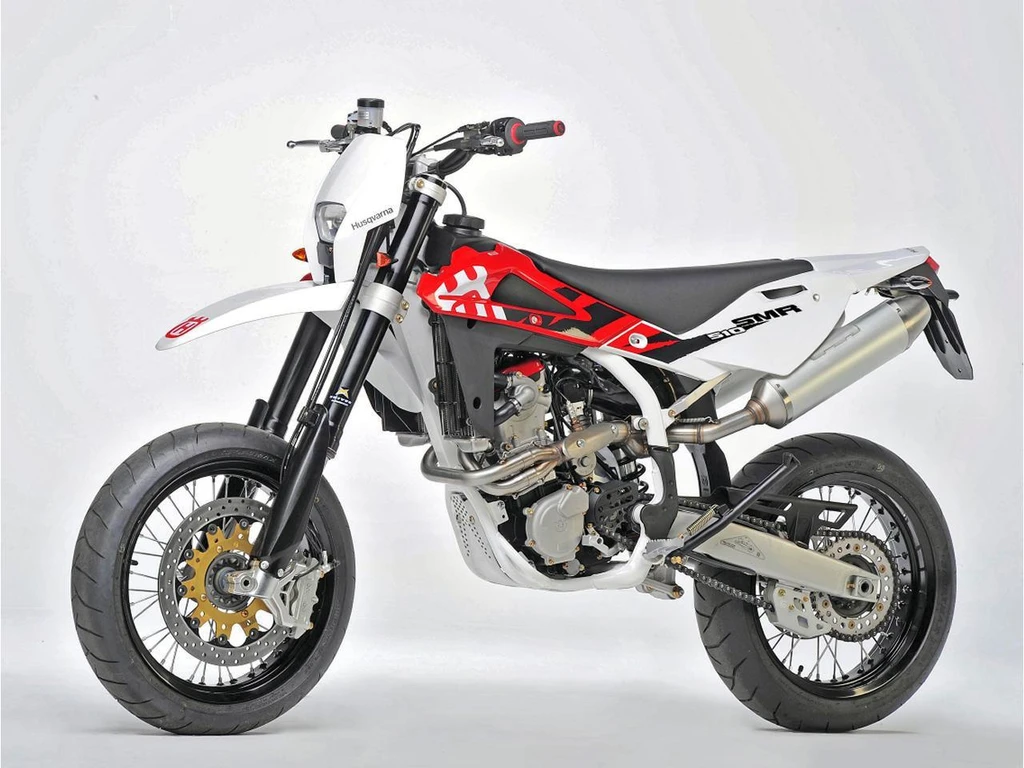

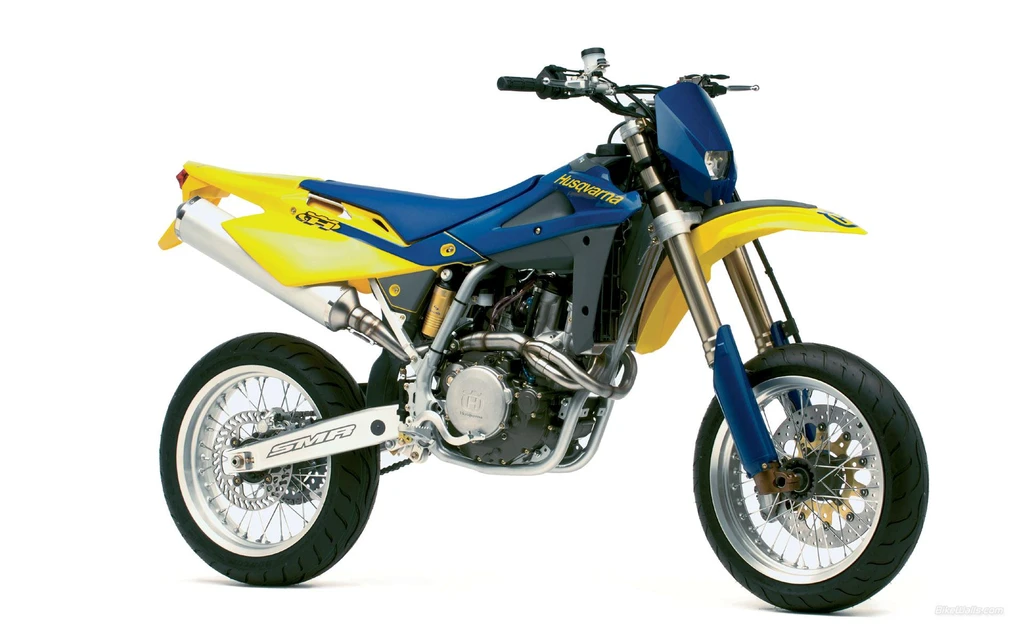

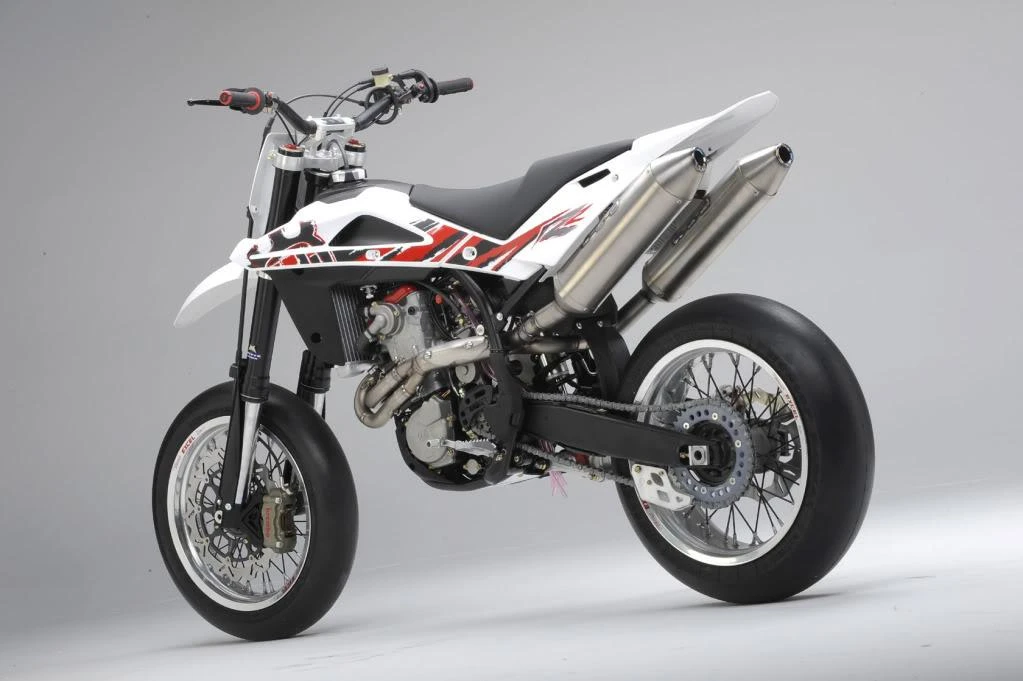

Husqvarna SM 510R (2005 – 2006)

Husqvarna SM 510R (2005 - 2006)

The Husqvarna SM 510R is a razor-sharp supermoto that defies the notion of a “comfortable commuter.” Built for the race track, this bike is a thrill-seeker’s dream, with neck-snap acceleration, crackerjack reflexes, and heart-stopping brakes.

Its lightweight steel single tube cradle and 45mm Marzocchi Inverted telescopic hydraulic fork ensure razor-sharp handling and response. But it’s the all-new 501cc engine that’s the real showstopper, producing an estimated 60 horsepower and delivering perky performance.

With its aggressive styling and razor-thin weight of 119.7kg dry, the SM 510R is the perfect recipe for a riding experience that’s anything but dull. It’s a bike that promises to keep you on the edge of your seat and begging for more.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Engine Capacity30.5 cubic inches / 501 cc
Max Power59.8 hp / 44 kW @ 8000 rpm
Max Torque56 ft-lb / 49 nm
Fuel Tank Capacity2.4 US gallons / 9.2 L
Seat Height36.2 inches / 920 mm
Husqvarna SM 510R (2005 - 2006)

All Specifications

Make & Model

ModelHusqvarna SM 510R
Year2005 – 2006

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 valves
Displacement30.5 cubic inches / 501 cc
Bore x Stroke97 x 67.8 mm
Compression Ratio12.5;1
Max Horsepower59.8 hp / 44 kW @ 8000 rpm
Max Torque56 ft-lb / 49 nm
Engine Management System41mm Keihin MX carburetor
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet / Multiplate / 6 spd
Gearbox6 Speed
Gear Ratios1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final DriveChain

Electrical & Electronics System

Battery12 V – 6 Ah
StarterElectric

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front Suspension45mm Marzocchi Inverted telescopic hydraulic adjustable fork
Rear SuspensionSACHS Progressive “Soft Damp” with Hydraulic Adjustable Single Shock Absorber

Wheels & Brakes

Front Tire Size120/70 -17
Rear Tire Size150/60 -17
Front BrakesSingle 320mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height36.2 inches / 920 mm
Wheelbase58.9 inches / 1497 mm
Fuel Tank Capacity2.4 US gallons / 9.2 L
Dry Weight109.3 kg /241.0 lbs

Features

  • Steel single tube cradle frame
  • Rear frame in light alloy
  • 45mm Marzocchi Inverted telescopic hydraulic fork
  • Adjustable fork
  • 501cc engine
  • 60 horsepower estimate
  • Electric starter
  • Programmable digital CPU
  • Throttle position and gear selection recognition
  • Modified ignition timing
  • Improved charging from low revs
  • Sachs rear suspension unit
  • New Brembo brake system
  • 119.7kg dry weight
  • 20kg lighter than SM 610 sibling
